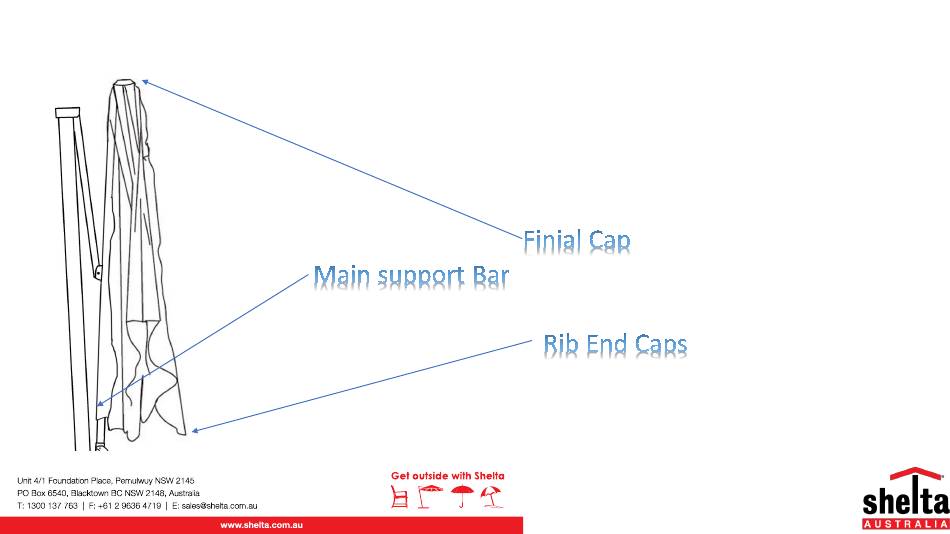

- Page 1 Canopy Change AG5a, AG5c,AG25, AG25R, AG35, AG45, AD45, AG55, AG65...
- Page 2 Step 1 Remove all the screws from the Rib ends (7)
- Page 3 Step 2 Raise the umbrella slightly so you can remove the support bar canopy screw – depending on the model, this step may require a stumpy Phillips head. Rip the Velcro apart all the way to the protector pad...
- Page 4 Step 3 Remove the finial by unscrewing it in a counter clockwise direction. You can use a step ladder for this step...
- Page 5 Step 4 Lift the canopy up and over the structure. You can use a step ladder for this step...
- Page 6 Step 5 Place the new canopy over the structure and align the hole and the support arm Velcro under the protective pad...
- Page 7 Step 6 Replace the finial by screwing it in a clockwise direction. You can use a step ladder for this step...
- Page 8 Step 7 Replace the screw into the support arm Join the Velcro all the way to under the protector pad...
- Page 9 Step 8 Replace all the screws in the Rib ends (7) Then wind up the canopy slowly to allow proper unfolding...
