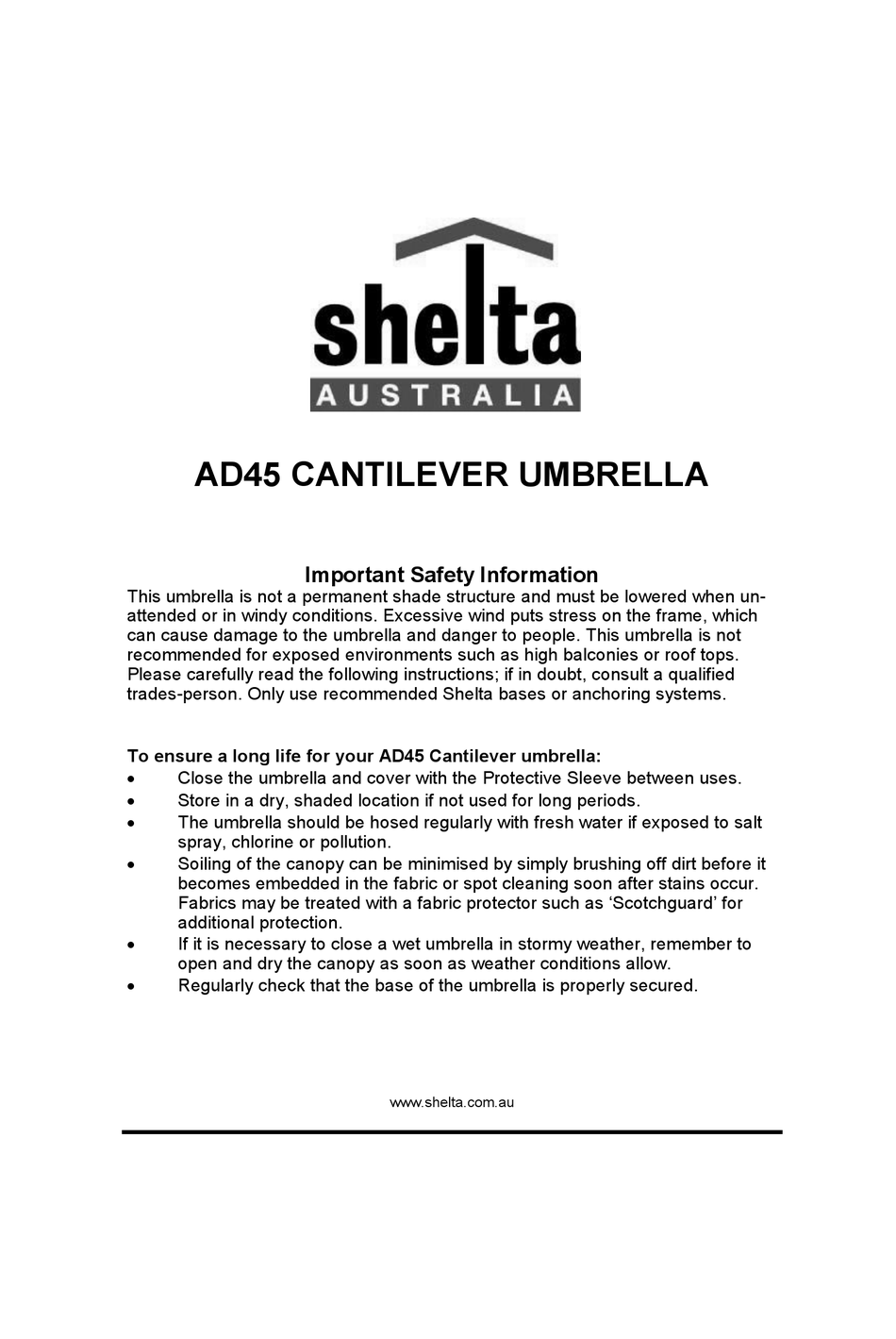

AD45 CANTILEVER UMBRELLA

This umbrella is not a permanent shade structure and must be lowered when un-

attended or in windy conditions. Excessive wind puts stress on the frame, which

can cause damage to the umbrella and danger to people. This umbrella is not

recommended for exposed environments such as high balconies or roof tops.

Please carefully read the following instructions; if in doubt, consult a qualified

trades-person. Only use recommended Shelta bases or anchoring systems.

To ensure a long life for your AD45 Cantilever umbrella:



Close the umbrella and cover with the Protective Sleeve between uses.



Store in a dry, shaded location if not used for long periods.



The umbrella should be hosed regularly with fresh water if exposed to salt

spray, chlorine or pollution.



Soiling of the canopy can be minimised by simply brushing off dirt before it

becomes embedded in the fabric or spot cleaning soon after stains occur.

Fabrics may be treated with a fabric protector such as 'Scotchguard' for

additional protection.



If it is necessary to close a wet umbrella in stormy weather, remember to

open and dry the canopy as soon as weather conditions allow.



Regularly check that the base of the umbrella is properly secured.

Important Safety Information

www.shelta.com.au

Table of Contents

Do you have a question about the AD45 and is the answer not in the manual?

Page 1 Please carefully read the following instructions; if in doubt, consult a qualified trades-person. Only use recommended Shelta bases or anchoring systems. To ensure a long life for your AD45 Cantilever umbrella:  Close the umbrella and cover with the Protective Sleeve between uses.
Page 2 AD45 Components After unpacking the carton, please make sure that you have the following components: COMPONENT REF QTY AD45 Side-post and Umbrella Protective Sleeve Ballast Block Frames Rotate Bearing Rotate Base Plate Parts Bag (including Handle and spanner)
Page 3 Suitable for most surfaces including grass. This should be ballasted with between 110 and 140 kilograms of weight. Purchase at least 6 Shelta Resinstone Ballast Weights or concrete pavers (45 x 45 x 4cm) from your outdoor retailer or hardware.
Page 4 AD45 Operating Instructions Carefully lift the umbrella and side-post to the vertical position. Lower onto the Rotate Bearing stem and insert 2 screws with washers into the bottom of the side-post. Attach the crank handle using the small Allan key.
