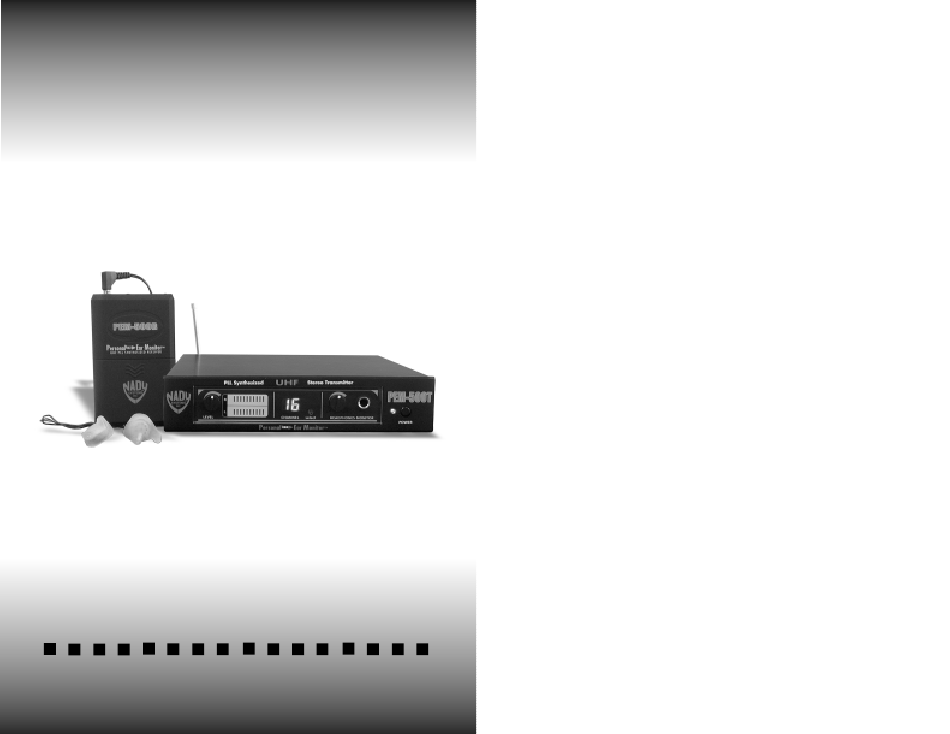

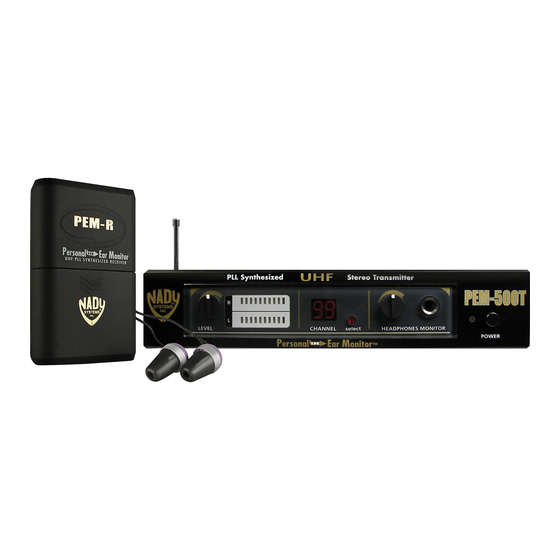

  • Page 1 PEM-500 PEM-500 Wireless Personal In-Ear Monitor 16 Channel UHF PLL Synthesized OWNER’S MANUAL...

  • Page 2: Table Of Contents

    This booklet gives instructions for the operation of the PEM-500 Wireless In-Ear Monitor System. Please read the instructions for your system completely before operating unit. This manual first lists the features of the PEM-500, and then takes you step-by-step in explaining how to operate your new system, both transmitter and receiver.

  • Page 3: Warning

    PEM-500R receiver ON. • Back panel provides BNC jack for the detachable antenna, a Stereo/Mono 2. Just as with any in-ear monitor system, The PEM-500 works best when used select switch, a 1/4" TRS balanced microphone input, and XLR jacks for Left exclusively by all performers on stage (without any wedges or side monitors).

  • Page 4: Operation

    4. Connecting the Audio Input OPERATION The PEM-500T transmitter features a 1/4" TRS balanced MIC INPUT (9) and a line level balanced XLR jack for the LEFT and RIGHT LINE INPUTS (10). The MIC INPUT PEM-500T TRANSMITTER allows the use of a microphone alone for easy cueing of performers while on stage, which can be useful in many applications.
  • Page 5 UHF band. Select an open frequency that doesn't interfere with any other PEM-500 or UHF wireless mic system you are also using by pushing the CHANNEL SELECT BUTTON (13) on the front panel of the PEM-500T until the channel you want is displayed on the CHANNEL LED DISPLAY (14).

  • Page 6: Pem-500R Receiver

    4. Selecting Stereo or Mono Mode Reception OPERATION Switch the STEREO/MONO CONTROL (23) in the BATTERY COMPARTMENT to stereo or mono reception to match the transmission mode already selected for the PEM-500R RECEIVER transmitter, as per the Connecting the Audio Input section of the PEM-500T transmitter instructions above.

  • Page 7: Battery Compartment

    You are now ready to use the PEM-500 system for wireless personal in-ear monitoring. (Note: Due to the strong transmission power of the PEM-500T, you may experience compromised audio or static if the PEM-500R is too close to the antenna of the PEM-500T transmitter.

  • Page 8: Specifications

    1/4" stereo headphones monitor out, 1/4" TRS balanced mic input, balanced XLR L& R (U.S.) Should your Nady PEM-500 Wireless Personal In-Ear Monitor System require line input, and 2.1 mm barrel-type DC input service, please contact the Nady Service Department via telephone at (510) 652- jacks;...
  • Page 9 DO NOT ATTEMPT TO SERVICE THIS UNIT YOURSELF AS IT CAN BE DANGEROUS AND ALSO WILL VOID THE WARRANTY. NADY SYSTEMS, INC. • 6701 SHELLMOUND STREET, EMERYVILLE, CA 94608 Tel: 510.652.2411 • Fax: 510.652.5075 • www.nadywireless.com...
