Page 2
Instruction book Before using the appliance for the first time, please read the safety advice 说明书 初次使用前,请阅读安全建议 說明手冊 第一次使用本機之前,請先閱讀 安全建議 설명서 제품을 처음 사용하기 전 안전 지 침을 읽어 보십시오 คู ่ ม ื อ แนะนำการใช้ ง าน ก่ อ นใช้ อ ุ ป กรณ์ เ ป็ น ครั ้ ง แรก กรุ ณ า อ่...
Page 3

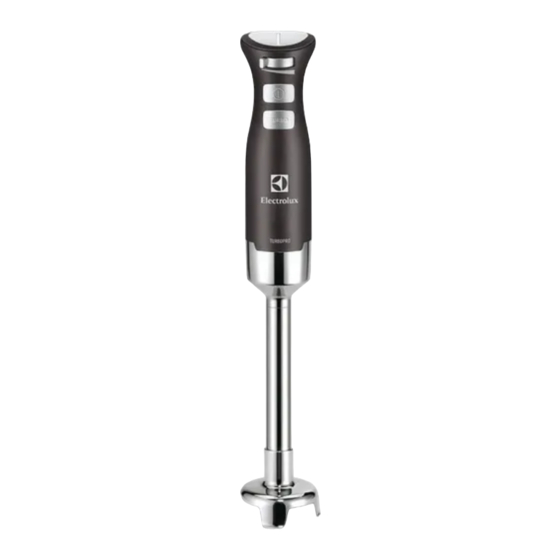

부품 組件 组件 Components A. LED 속도 표시등 A. LED 轉速指示燈 A. LED 转速指示灯 A. LED light speed indicator B. 속도 선택기 B. 轉速旋鈕 B. 调速滑块 B. Speed selector C. 전원 버튼 C. 電源鈕 C. 电源按钮 C. Power button D. 터보 버튼 D.
Page 4
Safety advice/安全建议 Read the following instruction • Always disconnect the appliance from • When processing heavy load, do not carefully before using the appliance for the supply if it is left unattended and use the appliance continuously for the first time. before assembling, disassembling or more than 60 seconds. Allow to cool cleaning.
Page 6
Getting started/入门指南/開始入門/작동 시작 1. Before first use, be sure to clean 2. Connect the handheld part to the 3. Select the speed by moving the mixing foot and all the attachments, mixing foot and lock into position. To sliding speed selector. Press power and then let dry.
Page 7
4. Insert the stick mixer deep into the 5. Using the mini chopper*. Place 6. Place food into the chopper bowl*. beaker, begin mixing by starting at chopper bowl on a clean, level surface. The maximum amount of food that lowest speed.
Page 8
Getting started/入门指南/開始入門/작동 시작 7. Insert the handheld part, into the 8. Working with the professional 9. Storage – to fasten the wall chopper lid and lock into position. Plug double whisk*. To assemble whisk mounting device, drill two holes into into power outlet, select the speed with handheld part, connect them and the wall, insert two plastic plugs and...
Page 9
Cleaning/清洁/清潔/세척 1. It is not recommended to wash 2. Beaker and whisks detached from the 3. Before cleaning, always unplug the the mixing foot in the dishwasher. If plastic holder can be washed in the appliance. Disassemble the handheld washed in the dishwasher, dry the dishwasher.
Page 10
Blending quantities and Processing Times Accessory Metal mixing foot and Beaker Recipe Ingredients Quantity Time Speed Pineapple in slices 250 g Pineapple-apricots Dried Apricots 40 g 60 sec Turbo Smoothie Yoghurt 300 g Frozen raspberries 250 g Banana ½ pcs Raspberries Smoothie Water 100 g...
Page 13
혼합 용량 및 처리 시간 부속품 금속 혼합봉 및 비커 조리법 재료 용량 시간 속도 파인애플 슬라이스 250 g 파인애플-살구 건조 살구 터보 60 초 40 g 스무디 요거트 300 g 냉동 라즈베리 250 g 바나나 ½ 개 라즈베리 스무디 물...
Page 14
Troubleshooting/故障排除/疑難排解/문제 해결 Problem Possible cause Solution The mini chopper* does not work. The chopper lid is not correctly fastened. Make sure the lid and the chopper bowl are properly assembled. The mixing foot/traditional whisk* does The mixing foot/traditional whisk* is not Make sure to lock mixing foot/traditional not work.
Page 15
Disposal/处理/廢棄處理/폐기 Disposal Old appliance which could otherwise be caused by Packaging materials inappropriate waste handling of this The symbol on the product or on The packaging materials are environ- product. For more detailed information mentally friendly and can be recycled. its packaging indicates that this product about recycling of this product, please The plastic components are identified...
Page 16
Cấu tạo ส่ ว นประกอบ Komponen A. Đèn chỉ báo tốc độ Đi-ốt A. ไฟ LED ส่ ว นแสดงความเร็ ว A. Indikator kecepatan lampu Phát Quang (LED) B. ตั ว เลื อ กความเร็ ว B. Bộ chọn tốc độ C. ปุ ่ ม เปิ ด ปิ ด B.
Page 18
Lời khuyên về sự an toàn Đọc kỹ chỉ dẫn sau đây trước khi sử • Luôn ngắt kết nối thiết bị với nguồn • Khi xử lý khối lượng lớn, không sử dụng thiết bị lần đầu tiên. điện nếu không có ai chú ý đến thiết dụng thiết bị...
Page 24
Jumlah bahan yang dicampur dan Waktu Pemrosesan Aksesori Kaki pencampur logam dan Beaker Resep Bahan Jumlah Waktu Kecepatan Potongan nanas 250 g Smoothie Nanas- Apricot Kering 40 g 60 dtk Turbo apricot Yoghurt 300 g Raspberry beku 250 g Pisang ½...
Page 25
Số lượng pha trộn và Thời Gian Xử Lý Phụ kiện Đế trộn bằng kim loại và Cốc Công thức Thành phần Số lượng Thời gian Tốc độ Dứa cắt lát 250 g Sinh Tố Dứa-Mơ Mơ Sấy Khô 40 g 60 giây Turbo Sữa chua...
Page 30
Share more of our thinking at Printed on recycled www.electrolux.com Product specications and colours are subject to changes and vary from country to country...
