5
Fully tighten the four partially tightened screws.
*Push the speaker against the monitor while driving the screw.
R
4 2
L
R
4 2

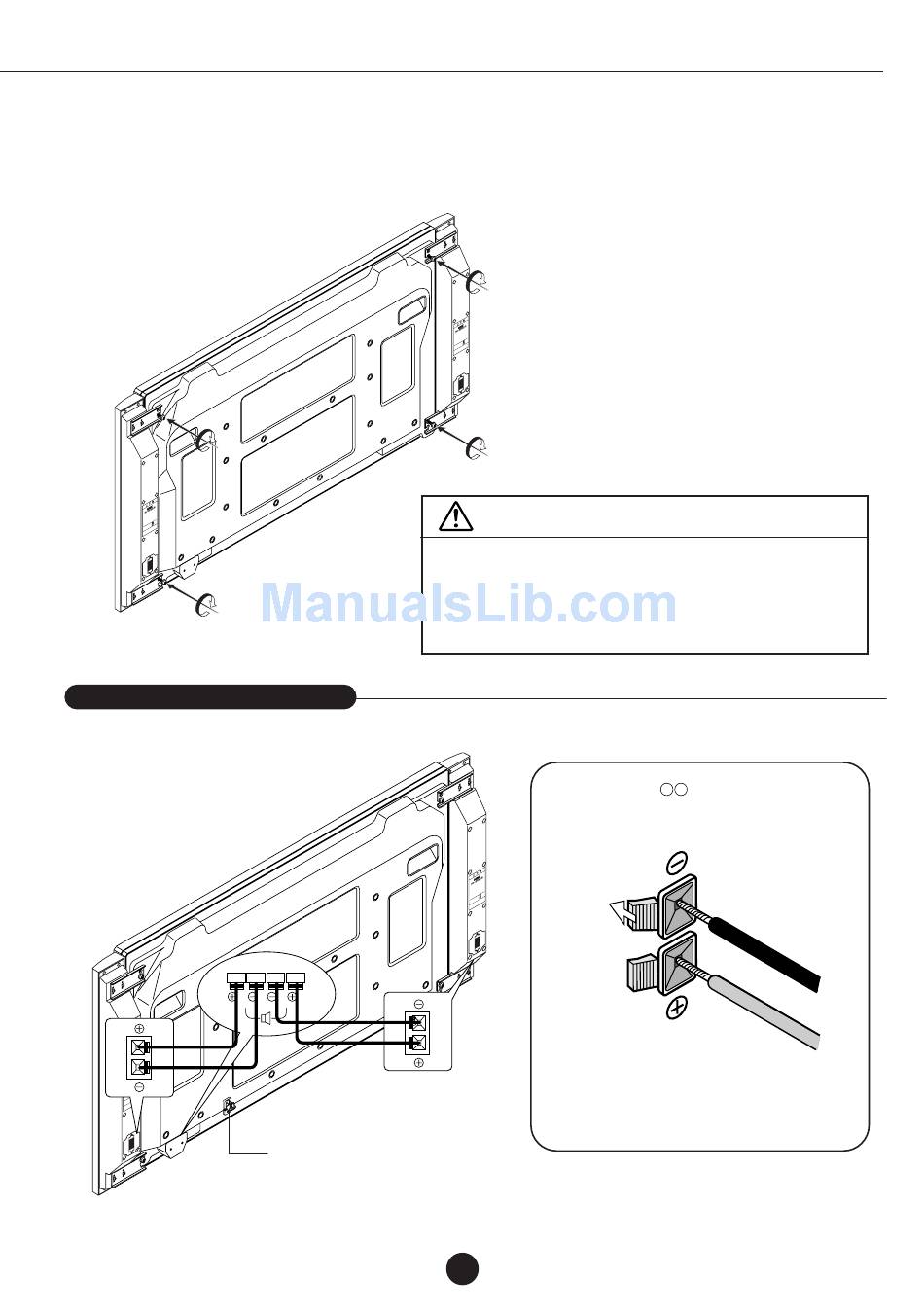

Connecting the cords
Turn off the power of all connected units before connecting the cords.
Connect the monitor's SPEAKER R and L
terminals with the speakers' terminals using the
included connection cords.
R
4 2
L
R
4 2
RIGHT
LEFT
Cord Clamper
Peel off the protective tape from the back of the clamper, then
mount the clamper in the desired position and clamp the cords
together.
L
4 2
R
L
4 2
WARNING
● Do not move the monitor by holding onto the speakers which
have been mounted to the monitor.
This could cause the monitor to fall and result in injury.
●
Fasten the screws securely. Failing to do so could cause the
speakers to fall and result in injury.
L
There is polarity
4 2
connection cord.
Connect each conductor to the correct terminal.
R
L
4 2
Hold down the button of the speaker terminal
with your finger, insert the conductor of the
connection cable, and release your finger.
5
with the conductor of each
＋ −
Black
Red
