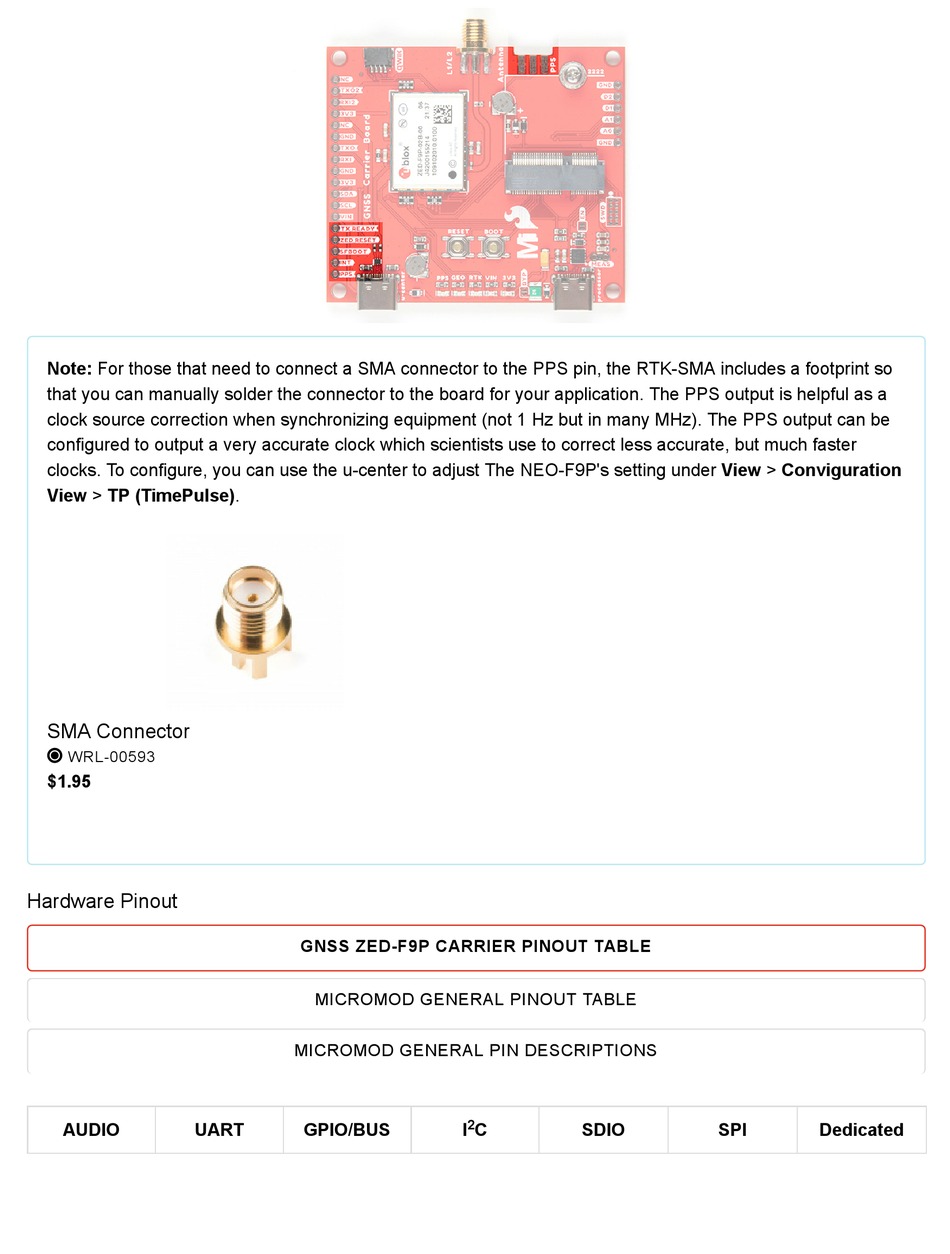

Note: For those that need to connect a SMA connector to the PPS pin, the RTK-SMA includes a footprint so
that you can manually solder the connector to the board for your application. The PPS output is helpful as a
clock source correction when synchronizing equipment (not 1 Hz but in many MHz). The PPS output can be
configured to output a very accurate clock which scientists use to correct less accurate, but much faster
clocks. To configure, you can use the u-center to adjust The NEO-F9P's setting under View > Conviguration
View > TP (TimePulse).
SMA Connector
 WRL-00593
$1.95
Hardware Pinout
GNSS ZED-F9P CARRIER PINOUT TABLE
MICROMOD GENERAL PINOUT TABLE
MICROMOD GENERAL PIN DESCRIPTIONS
2
AUDIO UART GPIO/BUS I C SDIO SPI Dedicated
