Control Compressor, Condenser Fan, Dual Refrigerant Valve and Evaporator Fan Motors
The control senses evaporator and compartment temperatures via thermistors; one on each evaporator, and one in
each compartment. High Offset (Cut-in) is governed by the evaporator temperatures; Low Offset (Cut-out) is gov-
erned by the compartment/zone temperatures. High Offset and Low Offset are based on the set-point.
If either evaporator temperature is at high offset (calling for cooling), power is supplied to the compressor and con-
denser fan motor, cycling them ON
Two relays on the control board, which are in series with one another, are used to control the dual refrigerant valve.
The first "pulse" relay controls the length of time the solenoid is energized (500ms / 30 pulses per 1/2 second). The
second "sine" relay controls the negative polarity, or positive polarity of the pulse supplied to the valve's solenoid
(determined by which evaporator is calling for cooling, ( + ) = Upper Evaporator, ( - ) = Lower Evaporator). When an
evaporator calls for cooling, the bead inside the T-connection of the refrigerant valve is forced to one side or the
other, depending on the polarity of the pulse, supplying refrigerant to the appropriate evaporator
When the door is closed, the door switch is open, interrupting power to the relay coil, so the relay's P1 to P5 con-
nection remains closed, keeping the neutral side of the evaporator fan motors circuits intact; depending on which
evaporator is calling for cooling, the corresponding evaporator fan relay on the control board closes, completing the
circuit and delivering power to the appropriate fan motor
NOTES:
HIGH VOLTAGE
• When in
Sabbath
Mode, the
evaporator
thermistors
still control
cut-in,
except
there is a
random fif-
teen (15) to
WINE
CONTROL
twenty-five
BOARD
(25) second
delay
before
power is
BLACK
supplied to
cooling
compo-
LOW VOLTAGE
nents.
DISPLAY

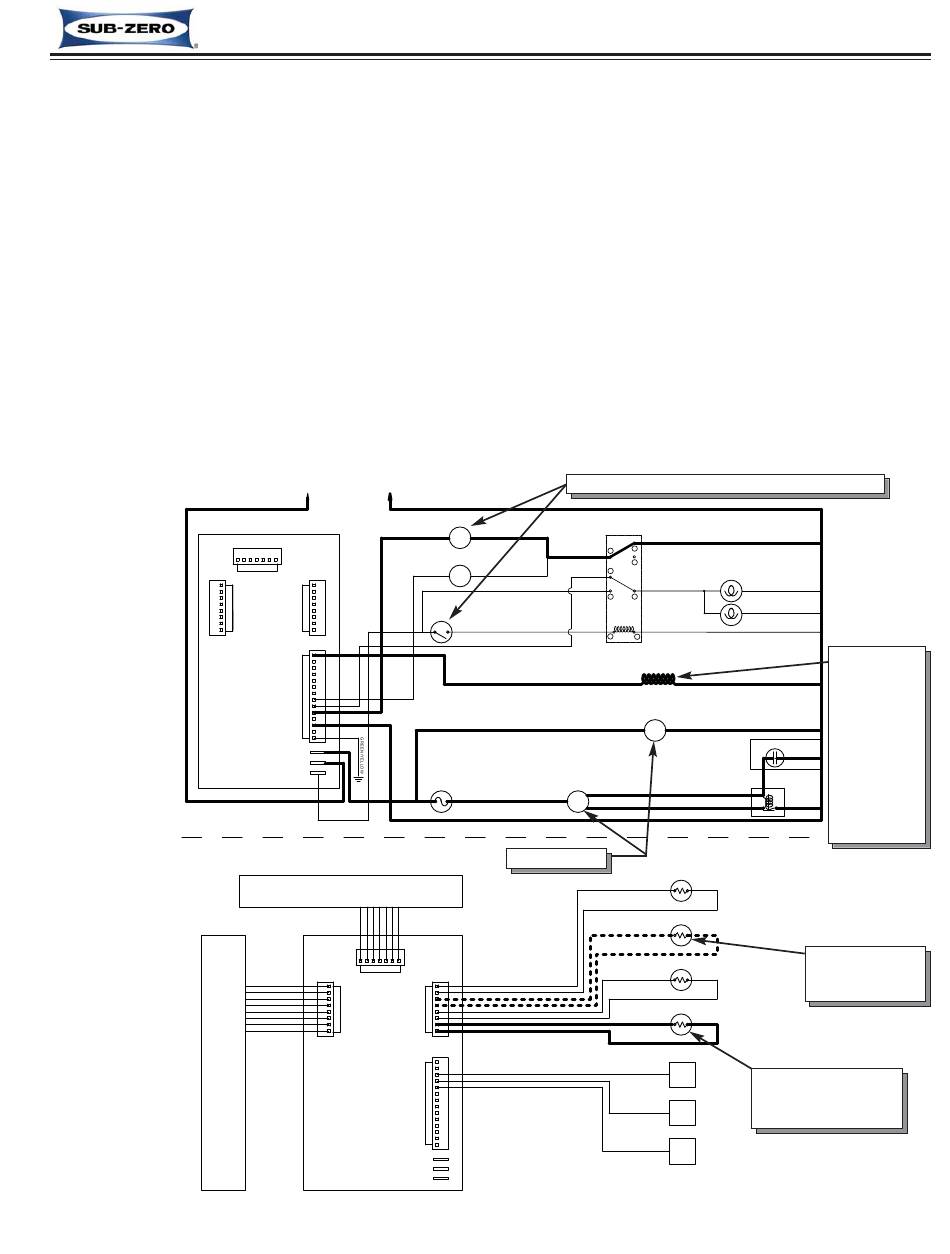

Figure 3-17. Cooling Signal Trace (Upper Evaporator at High-Offset Temperature, Calling for Cooling)
