Installation Information
Electrical Requirements
A 220-240 V AC, 50/60 Hz, 10 amp circuit breaker and
electrical supply are required. A separate circuit, servic-
ing only this appliance, is required.
All Sub-Zero WS Series models are equipped with a
power supply cord with a 3-prong grounding plug, which
must be plugged into a mating 3-prong grounding-type
wall receptacle. Follow the National Electrical Code
and local codes and ordinances when installing the
receptacle. For location of the electrical supply, refer to
the Finished Rough Opening Specifications illustration
for your specific model.
IMPORTANT NOTES:
• A ground fault circuit interrupter (GFCI) is not recom-
mended and may cause interruption of operation.
• The Built-In line is equipped with an appliance inlet
type device. This allows easy replacement of the
power cord. The appliance inlet is located at the top
right of the unit toward the rear. When replacing the
power cord make sure that the replacement cord is
rated HO5VV-F3G1.0 or equivalent to ensure safe
operation of the appliance.
DO NOT USE AN EXTENSION CORD OR TWO
PRONG ADAPTER.
REQUIRED ON THESE APPLIANCES.
REMOVE POWER SUPPLY CORD GROUND
PRONG!
ALWAYS SWITCH POWER OFF AT THE CIRCUIT
BREAKER BEFORE PERFORMING ANY INSTAL-
LATION, SERVICE OR MAINTENANCE.
The outlet must be checked by a qualified electri-
cian to be sure that it is wired with the correct
polarity. If the power and neutral polarity are
reversed at the outlet, the appliance will not oper-
ate. Verify that the outlet provides 220-240 V AC
and is properly grounded.
#7013455 - Revision A - April, 2009
International W
International W
ELECTRICAL GROUND IS
DO NOT
ine Storage
ine Storage
(ICBWS)
(ICBWS)
Leveling the Unit
Once the unit is in position, the front leveling legs must
be extended down to the floor by turning them clock-
wise. The front leveling legs are also used to make
front height adjustments, turn the leveling legs clock-
wise to raise the unit and counterclockwise to lower it.
The rear height adjustment can be performed at the
front of the base using a 5/16" socket to turn the adjust-
ing bolt that reaches to rear leveler/roller assembly.
Turn the 5/16" hex bolt clockwise to raise the rear of the
unit or counterclockwise to lower it.
When the unit is leveled properly, door and/or drawer
adjustments are less likely to be necessary. Refer to the
illustration below for location of the rear roller base
adjustment.
IMPORTANT NOTE:
unit to the floor, not "squareness" of the unit to the sur-
rounding cabinetry. This could affect the operation of
the unit, such as door closing.
FRONT
LEVELING LEG

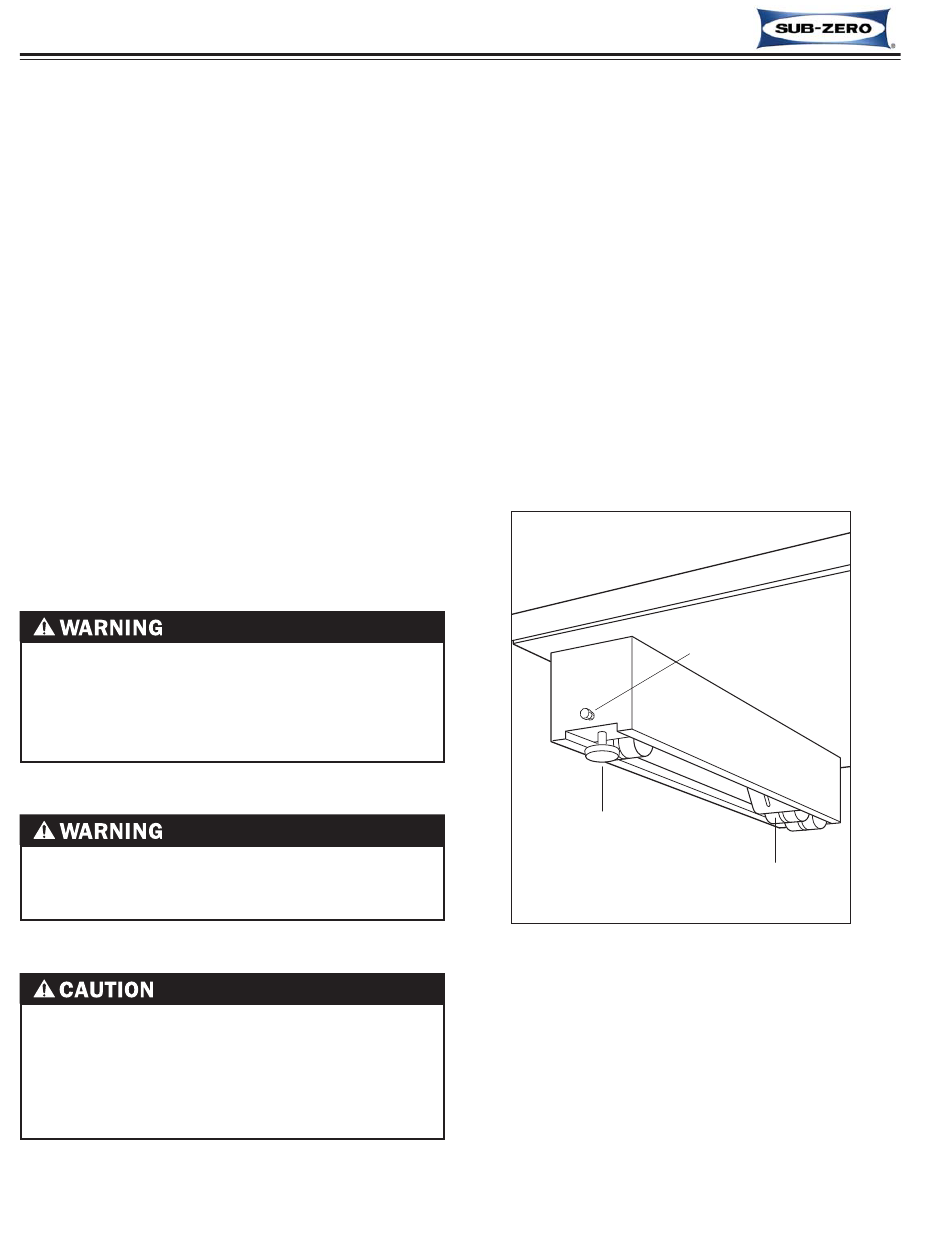

Figure 2-5. Unit Leveling
2-6
Series
Series
Be sure to reference "level" of the
REAR
ADJUSTING
BOLT
U N
I T
B A
S E
A S
S E
M B
L Y
REAR
ROLLER / LEVELING
ASSEMBLY
