Dancing Wings Hobby Sbach 342 Instruction Manual

注意事项
SAFETY PRECAUTIONS
这个产品不是玩具，而是一个复杂的具有难度的飞行器。您和您身边人的安全取决于您如何操作它，您需要了解相关知识，并谨慎操作。禁止
●
没有成人陪伴的儿童独自操作该设备。不适合14岁以下人群使用。再次强调，这不是一个玩具。
● This product should not be considered a toy, but rather a complicated and sophisticated flying model. Your safety depends
on how you use and fly it, If not correctly operated, could cause injury to you or your family members. Children must be
accompanied by an adult at all times if operating this product. Not suitable for children under the age of 14. THIS IS NOT A
TOY.
● 不要在机场，军事基地，居民区或其他任何受限制的地方飞行。
● Do not fly around some restricted location like airports, military bases, residential areas, etc.
● 您需要对发射机进行距离检查，以确保没有收到任何干扰。
● You will need to range check the transmitter to be sure you are not experiencing any interference.
● 始终保持先打开发射机后打开接收机，先关闭接收机后关闭发射机的步骤。
● Always turn on the receiver last after turning on the transmitter and shut off the receiver first before turning off the transmitter.
● 如果您是初学者，建议您在有经验玩家的协助下调试和飞行。
● If you are only a beginner to the radio control model flying, do not attempt to fly your model without any assistance or advice from
advanced expert fliers.
● 请将相关物品放置在孩子们够不到的地方
● Keep relevant items out of reach of children.
● 这个设备的设计已经超过我们正常使用所需要刚性要求，但若您需要以超出我们推荐的动力飞行时，请合理控制动作幅度并适当增加机体强度。
● This product has been flight tested to meet or exceed our rigid performance and reliability standards in normal use,if you plan to perform
any high-stress flying, you are solely responsible for taking any and all necessary steps to control movement range and reinforce the body
strength.
● 您的设备中可能包括一些玻纤和碳纤雕刻的部件，这些纤维部件所带的粉尘可能会引起眼睛，皮肤的不适，请您在需要的时候带上护目镜或者防尘服。
● This product may include some fiberglass and carbon-fiber reinforced plastic parts,which may cause eye and skin discomfort,pls wear the
goggles or dust-proof clothes when needed.
● 因航空运输安全管制，您收到的产品可能没有清单中出现过的胶水，请您理解无法发送胶水给您的原因。您可以在当地文具店很方便的购买到您所需要
的胶水。
● Due to air traffic safety control, the products you receive may not have the glue that appears in the list. Please understand and purchase the
glue you need at your local stationery store.
http://www.dwhobby.com/

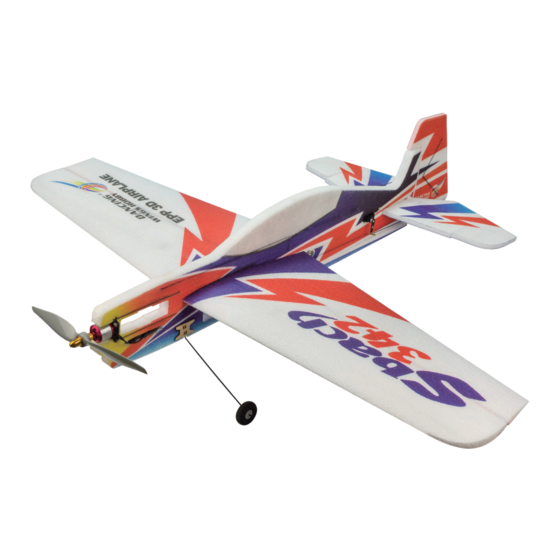

EPP 3D Airplane
飞行参数
Specification
翼展:1000mm
机长:990mm
起飞重量≈460g
Wingspan: 1000mm
Length: 990mm
Flying Weight≈460g
推荐配置
Suggested Equipment
推荐马达: MM2212-2220 900-1200KV
推荐电调: 20-30A 3S
推荐舵机: 9g*4pcs
推荐桨叶: 9-10寸
推荐电池 3S 1300-1800mAh
推荐4通道以上接收机
Suggested Motor: MM2212-2220 900-1200KV
Suggested ESC: 20-30A 3S
Suggested Servos: 9g*4pcs
Suggested Propeller: 9-10 inch
Suggested Battery: 3S 1300-1800mAh
Radio≥4CH
配件图仅做参考用，您收到的实物可能因为修改/优化的原因导致与图片有略有不同。
Photos shown here just for reference, the product you received maybe slightly
散件 KIT
differ from the photos due to continuous improvement on products.
A
A
C2
C1
E1
D2
A：机翼 B1-B2：机身 C1：水平尾翼 C2：垂直尾翼
E1-E3：起落架 F：舵角 G：钢丝连杆 H：塑料夹
K：木件 L：马达座 M：魔术绑带
A: Wing B1-B2: Fuselage C1: Horizontal Tail
Carbon sheet E1-E3: Landing Gear F: Servo Horn
H: Plastic clips I: Servo Arm J: EZ-Connector
K: Wood Parts L: Motor Mount M: Magic Strap
E18
工具
Tools Needed
B2
B1
I L
D1
F H E2
J
E3
M
G
K
D1-D2：碳片
I：舵臂 J：快装接头
C2: Vertical Tail D1-D2:
G: Steel Wire Connecting Rod
