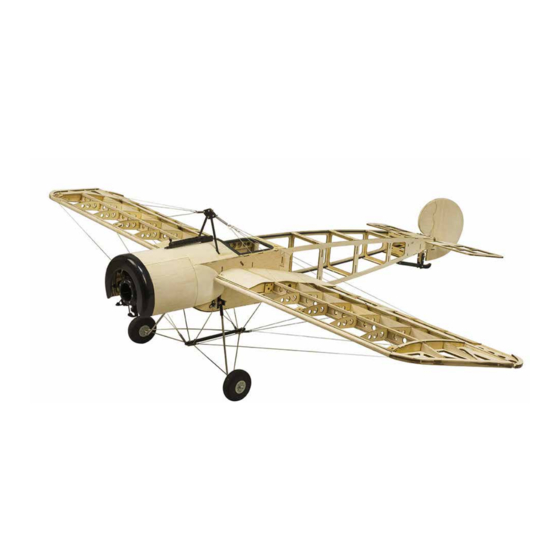

Dancing Wings Hobby S20 1.2M Fokker-E Instruction Manual

S20 1.2M Fokker-E
Instruction Manual
Tools Needed
机身组装 Fuselage Installation
玻纤
F23
F2-1 F2 F2-1
Fiberglass
1.1
F23
F1
F20
F22
F23
F21
F20
F24
F11
2 F32
F32-1
F32
F32-1
把步骤3中拼好的两片侧板粘合到1.3上
4
Stick the 2pcs sideboards which you
assembled in step 3 on the "1.3".
F5
F4
F3
F19
5
Wingspan: 1200mm
Speci�ication
参数
Length: 950mm
翼展：1200mm ≈
Flying Weight:≈1100g
机长：950mm
起飞重量： 1100g
Electric power: 2216 920kv
ESC: 20A
推荐配置
Battery: 3S 2200-2800mAh
推荐马达：2216 920KV
Servo：9g*4pcs
推荐电调：20A
推荐电池：3S 2200-2800mAh Propeller: 8-9inch
≥4CH
推荐舵机：9g*4pcs Radio≥4CH
推荐桨叶：8-9寸
通道
爪牙螺母
+F2-2
1.2 1.3
Nut screws
F11
F11
F32
3
F32-2
F34
F34-1
F35
F7 F8 F9 F10
F6 F35-1
F35-1
F33-1
6
F17
方碳杆
Square carbon rod
4x4x500mm
F7-1
F18
轻木条
Balsawood strip
4x4x100mm
9
F25
F0
F31
机翼及尾翼组装 Wing and Tail Wing Installation
机翼及尾翼请按1：1图纸拼装，并在水平工作台面上进行拼装，
并保持拼装机翼的平整。
Install wing and tail wing according to 1:1
drawing,assemble them on the horizontal workdesk,
keep the wings straightness.
12
碳管 Carbon tube
10x93mm
F33
W19-1
W19
U7
1 U7机翼固定插销
U7 wing fixed bolt.
7.1 顶面 Top surface
F17
F5-1
F6-1
底面 Bottom surface
F14
F5-1
F6-1
F7-1
轻木条8x8x57mm
Balsawood strip
10
F26
F29
F30
F27
W17
W16
W15
W14
W13
Pile and stick, then sand it to the
堆叠粘贴后，打磨成机翼相应弧度
corresponding radian of the wing.
F18-2
F10
F18-1
F15
7.2
8.1
F16
F28
8.2
轻木条
Balsawood strip
10x10x20mm
8.3
F16-1
有孔一端在外
hole side out
碳管 Carbon tube
10x93mm F10-1
11
纸合页
Paper Hinge
W42
W25
W41
W16-1
W40
W16-1
W25
