User Guide

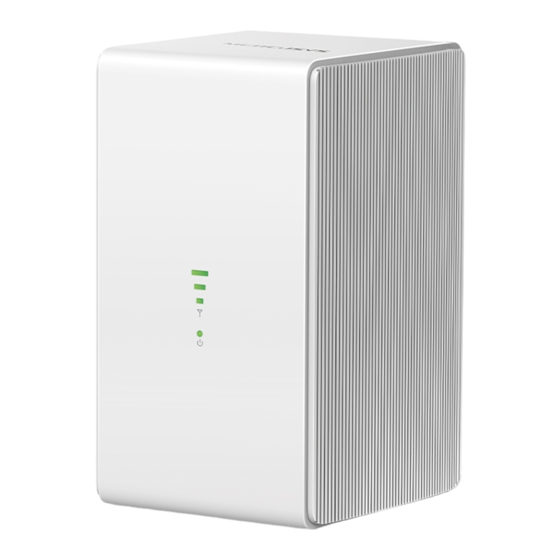

300Mbps Wireless N 4G LTE Router
MB110-4G
© 2023 MERCUSYS 1910080087 REV1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MB110-4G and is the answer not in the manual?

Questions and answers

Related Manuals for Mercusys MB110-4G

Summary of Contents for Mercusys MB110-4G

  • Page 1 User Guide 300Mbps Wireless N 4G LTE Router MB110-4G © 2023 MERCUSYS 1910080087 REV1.0.0...
  • Page 2 WCDMA: B1/B8 (25dBm±1dBm) LTE: B1/B3/B7/B8/B20/B28/B38/B40 (23dBm±2dBm) EU Declaration of Conformity Mercusys hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. The original EU Declaration of Conformity may be found at http://www.mercusys.com/en/ce.
  • Page 3 注意！ 取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大 功率或變更原設計之特性及功能。 低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用， 並改善至無干擾時方得繼續使用。 前述合法通信，指依電信管理法規定作業之無線電通信。 低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 減少電磁波影響，請妥適使用。 安全諮詢及注意事項 • 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。 • 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。 • 注意防潮，請勿將水或其他液體潑灑到本產品上。 • 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。 • 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。 • 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。 限用物質含有情況標示聲明書 設備名稱： 300Mbps Wireless N 4G LTE 型號（型式）：MB110-4G Router Type designation (Type) Equipment name 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 六價鉻 多溴聯苯 多溴二苯醚 鉛 汞 鎘 Unit Hexavalent Polybrominated Polybrominated...
  • Page 4 備考 1.〝超出 0.1 wt %〞及〝超出 0.01 wt %〞係指限用物質之百分比含量超出百分比含量基 準值 Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition. 備考 2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2：“ ○ ” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. 備考 3.〝−〞係指該項限用物質為排除項目。 Note 3：The “−” indicates that the restricted substance corresponds to the exemption. Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами...
  • Page 5 use this product with care and operate at your own risk. Explanation of the symbols on the product label Note: The equipment marking is at the bottom of the device. Symbol Explanation Class II equipment Direct current Alternating current For indoor use only Polarity of d.c.

  • Page 6: Table Of Contents

    Manage the User Mercusys IDs ..........09 4. 1. 1. Add Mercusys ID to Manage the Extender ......09 4.
  • Page 7 Chapter 8. Guest Network........22 8.
  • Page 8 11. 6. Reboot the Modem Router ..........51 11.

  • Page 9: Conventions

    More Info Specifications and the latest software can be found at the product page at the official website http://www.mercusys.com. The Quick Installation Guide can be found where you find this guide or inside the package of the router.

  • Page 10: Chapter 1. Introduction

    Chapter 1 Introduction Chapter 1. Introduction 1. 1. Product Overview The 4G LTE Router shares the latest generation 4G LTE network with multiple Wi-Fi devices, anywhere you want. With various features and functions, the router is the perfect hub of your home or business network.

  • Page 11: Rear And Bottom Panels

    Chapter 1 Introduction 1. 2. 2. Rear and Bottom Panels The following items are located on the rear and bottom panels. Item Description 4G/3G External Antenna Connect external antennas (if any) to strengthen the LTE network. Ports Press and hold this button for more than 5 seconds to reset the router. WPS/RESET Button Press for 1 second to use the WPS function.

  • Page 12: Chapter 2. Quick Setup

    Chapter 2 Quick Setup Chapter 2. Quick Setup 2. 1. Position Your Router With the router, you can access your network from anywhere within the wireless network coverage. However, the wireless signal strength and coverage varies depending on the actual environment where your router is in. Many obstacles may limit the range of the wireless signal, for example, concrete structures, thickness and number of walls.

  • Page 13: Set Up The Router In Wireless Router Mode

    Chapter 2 Quick Setup 2. Connect the power adapter to the router. 3. Wait until the LED turns on. Your router is connected to the internet successfully. Note: For better internet connection, make sure 2 or 3 bars of the LED are lit. Otherwise, try relocating the router to a spot that may receive a stronger mobile network signal, such as near a window.

  • Page 14: Install External Antennas

    Chapter 2 Quick Setup 2. 4. Install External Antennas If you have external antennas, you can install them to strengthen the LTE Network. 1. Open the back cover. 2. Connect your external antennas. 3. Log in to the web page (http://mwlogin.net), then go to Advanced > Wireless > Antenna Settings to select external antennas.

  • Page 15: Chapter 3. Log In To The Router

    Chapter 3 Log In to the Router Chapter 3. Log In to the Router With the web-based utility, it is easy to configure and manage the router. The web- based utility can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft the Internet Explorer, Mozilla Firefox or Apple Safari.

  • Page 16: Chapter 4 Mercusys Cloud Service

    3. Click Register Now and follow the instructions to register a Mercusys ID. 4. After activating your Mercusys ID, come back to the Mercusys ID page to log in. The Mercusys ID used to log in to the extender for the first time will be automatically bound as an Admin.

  • Page 17: Manage The User Mercusys Ids

    Chapter 4 Mercusys Cloud Service 4.2 Manage the User Mercusys IDs The Mercusys ID used to log in to the extender for the first time will be automatically bound as the Admin account. An admin account can add or remove other Mercusys IDs to or from the same extender as User accounts.

  • Page 18: Remove Mercusys Id(S) From Managing The Extender

    Chapter 4 Mercusys Cloud Service 4. The new Mercusys ID will be displayed in the Bound Accounts table as a User. 4. 1. 2. Remove Mercusys ID(s) from Managing the Extender 1. Visit http://mwlogin.net, and log in with your Mercusys ID.

  • Page 19: Chapter 5. Network Security

    Chapter 5 Network Security Chapter 5. Network Security 5. 1. Protect the Network from Cyber Attacks The SPI Firewall can prevent cyber attacks and validate the traffic that is passing through the router based on the protocol. This function is enabled by default, and it’s recommended to keep the default settings.

  • Page 20: Access Control

    Chapter 5 Network Security 3. Click Add. 4. Select a service type from the drop-down list and the following four fields will be auto-populated. Select Custom when your desired service type is not listed, and enter the information manually. 5. Specify the IP address(es) that this filtering rule will apply to. 6.
  • Page 21 Chapter 5 Network Security To block specific device(s) 1 ) Select Blacklist and click Save. 2 ) Select the device(s) to be blocked in the Online Devices table. 3 ) Click Block above the Online Devices table. The selected devices will be added to Devices in Blacklist automatically.

  • Page 22: Ip & Mac Binding

    Chapter 5 Network Security To allow specific device(s) 1 ) Select Whitelist and click Save. 2 ) Click Add. 3 ) Click Scan and select the device that you want to add in the whitelist, then the Device Name and MAC Address will be automatically filled in. Or enter the Device Name and MAC Address manually.
  • Page 23 Chapter 5 Network Security How can I do that? 1. Visit http://mwlogin.net, and log in with the password you set for the router. 2. Go to Advanced > Security > IP & MAC Binding and enable IP & MAC Binding. 3.

  • Page 24: Chapter 6. Parental Controls

    For example, I want to allow my children’s devices (e.g. a computer or a tablet) to access https://www.mercusys.com and https://www.wikipedia.org from 18:00 (6PM) to 22:00 (10PM) on weekdays only. How can I do that? 1.
  • Page 25 Chapter 6 Parental Controls 4. Click Scan and select the device to be controlled. Or enter the Device Name and MAC Address manually. 5. Click the Clock icon to set the Effective Time. Drag the cursor over the appropriate cell(s) and click OK. 6.
  • Page 26 9. Click Add a New Keyword. You can add up to 200 keywords for both Blacklist and Whitelist. Below are some sample entries to allow access. 1 ) Enter a web address (e.g. www.mercusys.com) or a web address keyword (e.g. wikipedia) to only allow or block access to the websites containing that keyword.

  • Page 27: Chapter 7. Sms

    Chapter 7 SMS Chapter 7. 7. 1. View Messages 1. Visit http://mwlogin.net, and log in with the password you set for the router. 2. Go to Advanced > SMS > Inbox page. 3. Click the envelope icon to unfold and read the content of the message. 7.

  • Page 28: View Sent Messages

    Chapter 7 SMS 5. Click Send to send the message or click Save to save the message to the Drafts. 7. 3. View Sent Messages 1. Visit http://mwlogin.net, and log in with the password you set for the router. 2. Go to Advanced > SMS > Outbox page. All the messages you sent are listed in the Outbox table.
  • Page 29 Chapter 7 SMS 2. Go to Advanced > SMS > SMS Settings page and enable Message Center. 3. The Message Center Number is auto-populated. Change it according to your needs.

  • Page 30: Chapter 8. Guest Network

    Chapter 8 Guest Network Chapter 8. Guest Network This function allows you to provide Wi-Fi access for guests without disclosing your main network. When you have guests in your house, apartment, or workplace, you can create a guest network for them. In addition, you can customize guest network options to ensure network security, privacy, and fluency.
  • Page 31 Chapter 8 Guest Network 3. Customize guest network options according to your needs. • Allow Guests to Access Each Other Select this checkbox if you want to allow the wireless clients on your guest network to communicate with each other via methods such as network neighbors, Samba, Ping, and FTP.

  • Page 32: Chapter 9. Nat Forwarding

    Chapter 9 NAT Forwarding Chapter 9. NAT Forwarding Router’s NAT (Network Address Translation) feature makes the devices in the LAN use the same public IP address to communicate in the internet, which protects the local network by hiding IP addresses of the devices. However, it also brings about the problem that external host cannot initiatively communicate with the specified device in the local network.

  • Page 33: Share Local Resources In The Internet By Virtual Server

    Chapter 9 NAT Forwarding • L2TP Pass-through: If enabled, it allows Layer 2 Point-to-Point sessions to be tunneled through an IP network and passed through the router. • IPSec Pass-through: If enabled, it allows IPSec (Internet Protocol Security) to be tunneled through an IP network and passed through the router. IPSec uses cryptographic security services to ensure private and secure communications over IP networks.
  • Page 34 Chapter 9 NAT Forwarding the router with the WAN IP address 218.18.232.154. Personal Website 4G LTE Router WAN: 218.18.232.154 Home How can I do that? 1. Assign a static IP address to your PC, for example 192.168.1.100. 2. Visit http://mwlogin.net, and log in with the password you set for the router. 3.

  • Page 35: Open Ports Dynamically By Port Triggering

    Chapter 9 NAT Forwarding Users in the internet can enter http:// WAN IP (in this example, enter http:// 218.18.232.154) to visit your personal website. Note: 1. WAN IP should be a public IP address. For the WAN IP is assigned dynamically by ISP, it is recommended to apply and register a domain name for the WAN by DDNS, go to Set Up a Dynamic DNS Service Account...

  • Page 36: Make Applications Free From Port Restriction By Dmz

    Chapter 9 NAT Forwarding Tips: 1. You can add multiple port triggering rules according to your network need. 2. If the application you need is not listed in the Existing Applications list, please enter the parameters manually. You should verify the external ports the application uses first and enter them into External Port field according to the format the page displays.

  • Page 37: Make Xbox Online Games Run Smoothly By Upnp

    Chapter 9 NAT Forwarding make a team to game with other players. 9. 5. Make Xbox Online Games Run Smoothly by UPnP UPnP (Universal Plug and Play) protocol allows the applications or host devices to automatically find the front-end NAT device and send request to it to open the corresponding ports.

  • Page 38: Chapter 10.Specify Your Network Settings

    Chapter 10 Specify Your Network Settings Chapter 10. Specify Your Network Settings 10. 1. Create a Connection Profile If your ISP settings are not detected by the router, you can create an internet connection profile by following the steps below: 1.

  • Page 39: Upgrade Your Isp Information

    6. Download the latest ISP upgrade file from the Support page at https://www.mercusys.com to your computer. 1. Visit http://mwlogin.net, and log in with the password you set for the router. 2. Go to Advanced > Network > ISP Upgrade.

  • Page 40: Pin Management

    Chapter 10 Specify Your Network Settings Note: 3. If you fail to dial-up Internet access after upgrading to the latest version, please contact the technical support. 4. If your ISP settings are still not detected after upgrading, refer to Create a Connection Profile to add a new internet connection profile.

  • Page 41: Data Settings

    Chapter 10 Specify Your Network Settings 10. 4. Data Settings Data Settings is used to monitor the data usage of your router in real-time. You can limit your data usage according to your monthly allowance or total allowance and you will receive a warning if your data usage reaches the specified level.

  • Page 42: Lan Settings

    Chapter 10 Specify Your Network Settings 10. 5. LAN Settings 10. 5. 1. Change the LAN IP Address The router is preset with a default LAN IP 192.168.1.1, which you can use to log in to its web management page. The LAN IP address together with the Subnet Mask also defines the subnet that the connected devices are on.

  • Page 43: Reserve Lan Ip Addresses

    Chapter 10 Specify Your Network Settings 3. Select DHCP to enable the DHCP function and select DHCP Server. 4. Specify the IP Address Pool, the start address and end address must be on the same subnet with LAN IP. The router will assign addresses within this specified range to its clients.

  • Page 44: Wireless Settings

    Chapter 10 Specify Your Network Settings 4. Click Scan and select the device for which you want to reserve IP address. Then the MAC Address and IP Address will be automatically filled in. Or enter the MAC Address and IP Address manually. 5.
  • Page 45 Chapter 10 Specify Your Network Settings Enable the Wireless Network 2.4GHz. If you don’t want to use the wireless function, just uncheck the box. If you disable the wireless function, all the wireless settings won’t be effective. ¾ To change the wireless network name (SSID) and wireless password: Enter a new SSID.

  • Page 46: Use Wps For Wireless Connection

    Chapter 10 Specify Your Network Settings uses the newest standard and the security level is the highest. We recommend you don’t change the default settings unless necessary. 10. 6. 2. Use WPS for Wireless Connection You can use WPS (Wi-Fi Protected Setup) feature to add a new wireless device to your existing network quickly.

  • Page 47: Schedule Your Wireless Function

    Chapter 10 Specify Your Network Settings 5. Connect successfully will appear on the above screen, which means the client device has successfully connected to the router. Method 3 Enter the router’s PIN on your client device Use this method if your client device asks for the router’s PIN. 1.

  • Page 48: View Wireless Information

    Chapter 10 Specify Your Network Settings 4. Set the wireless off time. Select From and To time. You can repeat the schedule every day or just certain days in a week. 5. Click Save to make the settings effective. Note: 1.

  • Page 49: Advanced Wireless Settings

    Chapter 10 Specify Your Network Settings ¾ To view the detailed information of the connected wireless clients: 1. Visit http://mwlogin.net, and log in with the password you set for the router. 2. Go to Advanced > Wireless > Statistics page. 3.

  • Page 50: Set Up A Dynamic Dns Service Account

    To set up DDNS, please follow the instructions below: 1. Visit http://mwlogin.net, and log in with the password you set for the router. 2. Go to Advanced > Network> Dynamic DNS. 3. Select the DDNS Service Provider (Mercusys, Dyndns or NO-IP).

  • Page 51: Create Static Routes

    Chapter 10 Specify Your Network Settings It is recommended to select Mercusys so that you can enjoy superior DDNS service of Mercusys. To use Mercusys DDNS service, log in with your Mercusys ID and register new domain names. If you have selected NO-IP or DynDNS, enter the username, password and domain name of your account.
  • Page 52 Chapter 10 Specify Your Network Settings 3. Go to Advanced > Network > Static Routing. 4. Click Add to add a new static routing entry. Finish the settings according to the following explanations: • Network Destination - The destination IP address that you want to assign to a static route.

  • Page 53: Ipv6 Tunnel

    Chapter 10 Specify Your Network Settings 5. Select the checkbox to enable this entry. 6. Click Save to save the settings. Done! Open a web browser on your PC. Enter the company server’s IP address to visit the company network. 10.
  • Page 54 Chapter 10 Specify Your Network Settings...

  • Page 55: Chapter 11.Administrate Your Network

    Chapter 11 Administrate Your Network Chapter 11. Administrate Your Network 11. 1. Set System Time System time is the time displayed while the router is running. The system time you configure here will be used for other time-based functions like Parental Controls and Wireless Schedule.

  • Page 56: Control Leds

    Chapter 11 Administrate Your Network 5. After setting the system time, you can set Daylight Saving time according to your needs. Tick the checkbox to enable Daylight Saving, set the start and end time and then click Save to make the settings effective. 11.

  • Page 57: Test Internet Connectivity

    3. Click Start to test the internet connectivity and you will see the test result in the gray box. 11. 4. Update the Firmware MERCUSYS is dedicated to improving and richening the product features, giving you a better network experience. We will inform you through the web management page if there’s any update firmware available for your router.

  • Page 58: Online Upgrade

    11. 4. 2. Local Upgrade 1. Download the latest firmware file for the router from our website https://www.mercusys.com. 2. Visit http://mwlogin.net, and log in with the password you set for the router. 3. Go to Advanced > System Tools > Firmware Upgrade.

  • Page 59: Reboot The Modem Router

    Chapter 11 Administrate Your Network 2. Click Advanced > System Tools > Backup & Restore page. ¾ To back up configuration settings: Click Backup to save a copy of the current settings to your local computer. A conf. bin file will be stored to your computer. ¾...

  • Page 60: Change The Administrator Account

    Chapter 11 Administrate Your Network 2. Go to Advanced > System Tools > Reboot. ¾ To Reboot Manually Locate the Manual Reboot section and click Reboot. ¾ To Reboot Automatically 1 ) Locate the Reboot Schedule section and check the box to enable Reboot Schedule.

  • Page 61: Local Management

    Chapter 11 Administrate Your Network 2. Go to Advanced > System Tools> Administration page. Locate the Account Management section. 3. Enter the old password. Enter the new password and enter again to confirm. 4. Click Save to make the settings effective. 11.

  • Page 62: Remote Management

    Chapter 11 Administrate Your Network 5. If you only want to allow one specific device to manage the router, enable Only Allow the Following IP/MAC and then enter the IP Address or MAC Address of the device in the IP/MAC Address field. 6.

  • Page 63: Icmp Ping

    Chapter 11 Administrate Your Network 11. 10. ICMP Ping ICMP (Internet Control Message Protocol) Ping is used to diagnose the network by sending ICMP echo request packets to the target remote or local host and waiting for an ICMP response. 1.
  • Page 64 Chapter 11 Administrate Your Network 2. Click Advanced > System Tools > System Log page. ¾ To view the system logs: 1. Select the log Type. 2. Select the log Level and you will see the logs with the specific or higher levels. 3.

  • Page 65: Cwmp

    Chapter 11 Administrate Your Network information of the remote server. If the remote server has a log viewer client or a sniffer tool implemented, you can view and analyze the system log remotely in real-time. 11. 12. CWMP CWMP (CPE WAN Management Protocol, also called TR-069) allows Auto-Configuration Server (ACS) to perform auto-configuration, provision, connection, and diagnostics to this device.
  • Page 66 Chapter 11 Administrate Your Network 8. Select the checkbox Connection Request Authentication to enable authentication for the connection request. Enter the username and password for the ACS server to log into the router. Then enter the path, port, and URL that connects to the ACS server.

  • Page 67: Faq

    Q1. How do I restore my router to its factory default settings? With the router powered on, press and hold the WPS/RESET button on the rear panel for more than 5 seconds to reset the router. Note: Once the router is reset, the current configuration settings will be lost and you will need to re-configure the router. Q2.
  • Page 68 4 ) Click LAN settings, deselect the following three options and click OK; 5 ) Go to Advanced > Restore advanced settings, click OK to save the settings.
  • Page 69 • Use another web browser or computer to log in again. • Reset the router to factory default settings and try again. If the login still fails, please contact the technical support. Note: You’ll need to reconfigure the router to surf the internet once the router is reset. Q4.
  • Page 70 If the parameters are incorrect, click Create Profile and enter the correct parameters, then select the new profile from the Profile Name list. 6. Check the PIN settings: 1 ) Open a web browser and log in to the web management page. 2 ) Go to Advanced >...
  • Page 71 2. Make sure the wireless adapter driver is installed successfully and the wireless adapter is enabled. On Windows 7 1 ) If you see the message No connections are available, it is usually because the wireless function is disabled or blocked somehow; 2 ) Clicking on Troubleshoot and windows might be able to fix the problem by itself.
  • Page 72 5 ) Select Wireless Zero Configuration, right click it, and then select Properties; 6 ) Change Startup type to Automatic, click on Start button and make sure the Service status is Started. And then click OK.
  • Page 73 7 ) Connect to wireless network. ¾ If you can find other wireless network except your own, please follow the steps below: 1. Make sure your computer/device is still in the range of your router/modem, move closer if it is currently too far away; 2.
  • Page 74 2 ) If you cannot find the PIN or PIN failed, you may choose Connecting using a security key instead, and then type in the Network Security Key/Wireless Password; 3 ) If it continues saying network security key mismatch, it is suggested to confirm the wireless password on your wireless router/modem;...
  • Page 75 1 ) Check the wireless signal strength of your network, if it is weak (1~3 bars), please move the router closer and try again; 2 ) Change the wireless Channel of the router to 1,6,or 11 to reduce interference from other networks; 3 ) Re-install or update the driver for your wireless adapter of the computer;...
