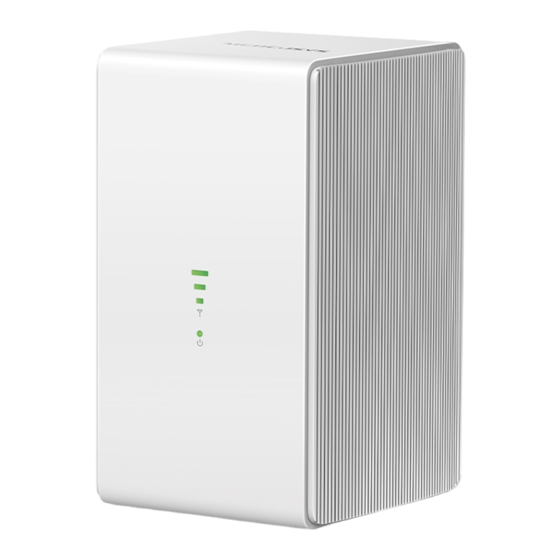

Mercusys MB110-4G Quick Installation Manual

Quick Installation Guide
Wireless 4G LTE Router
Images may differ from actual products.
©2022 MERCUSYS 7107500242 REV1.0.0

1. Connect the Hardware

a. Insert the Nano SIM card into
the slot until you hear a click.

2. Check the LED

Wait until the LED turns on. Your router is connected
to the internet successfully.
Note: If the LED does not turn on (no internet), refer to FAQ-Q2.
On
For better internet connection, make sure 2 or 3
bars of the LED are lit. Otherwise, try relocating
the router to a spot that may receive a stronger
mobile network signal, such as near a window.

LED Indicators

LED Status Indication
Blinking Green The router is starting up, upgrading
firmware, or establishing WPS connection.
Solid Green The router is working properly.
Solid Orange Wi-Fi is off.
Off Power is off.
On Indicates the signal strength received
from the mobile internet network. More lit
bars indicates a better signal strength.
Off There is no mobile internet signal.
Power Adapter
b. Connect the power adapter to the router.

3. Enjoy the Internet

• Wired
Connect your computer to the router's LAN port via an
Ethernet cable.
• Wireless
a. Find the default SSID
(network name) and
wireless password
printed on the label at the
bottom of the router.
b. Click the network icon of your computer or go to Wi-Fi
settings of your smart device, and then select the
SSID to join the network.
Wireless Password/PIN: XXXXXXXX
Wireless Password/PIN: XXXXXXXX
SSID:MERCUSYS_XXXX
SSID:MERCUSYS_XXXX
