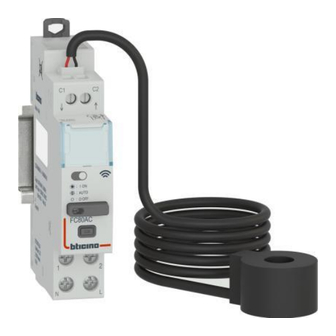

Connected Dry-Contact
1. DESCRIPTION - USE
Use:
. The actuator allows you to manage and measure the
consumption remotely of any device equipped with a clean
contact (eg: charging stations for electric vehicles, wallboxes,
heat pumps, ventilation systems, irrigation ... or a traditional
contactor with clean contact).
This product does not manage roller shutters, gates and the like
and works only in single-phase lines up to 80A and is compatible
with the intelligent load management function (in combination
with the smart load management module ref. FC80GCS).
Technology:
. Monostable dry contact connected for control via smartphone,
voice assistants and/or push button on the front panel.
Measurement of single-phase current up to 80A, by field effect
using a closed toroid (delivered with the module) and sending
data by radio frequency to the connected network.
Symbol:
2. RANGE
Noise level:
. Noiseless switch: <10bB.
Width:
. 1 module. 17.8 mm wide.
Types of contact:
. Normally open contact type « F »
Rated current:
. 2 A
Rated voltage:
. 100 to 240V AC
Rated frequency:
. 50 / 60 Hz
Poles:
. 1 pole « 1F »
Technical data sheet: IDP001665EN_01
BTicino SpA
Viale Borri 231,21100 Varese - Italy
Cat. number : FC80AC
Requires beforehand installation of a
connected starter pack or a Control
module (gateway).
2. RANGE
Configuration and use:
Can be used with:
- Legrand smartphone app
« HOME + CONTROL»
. Available for free on Google Play or App Store
- Voice assistants
- Connected Home Ecosystems

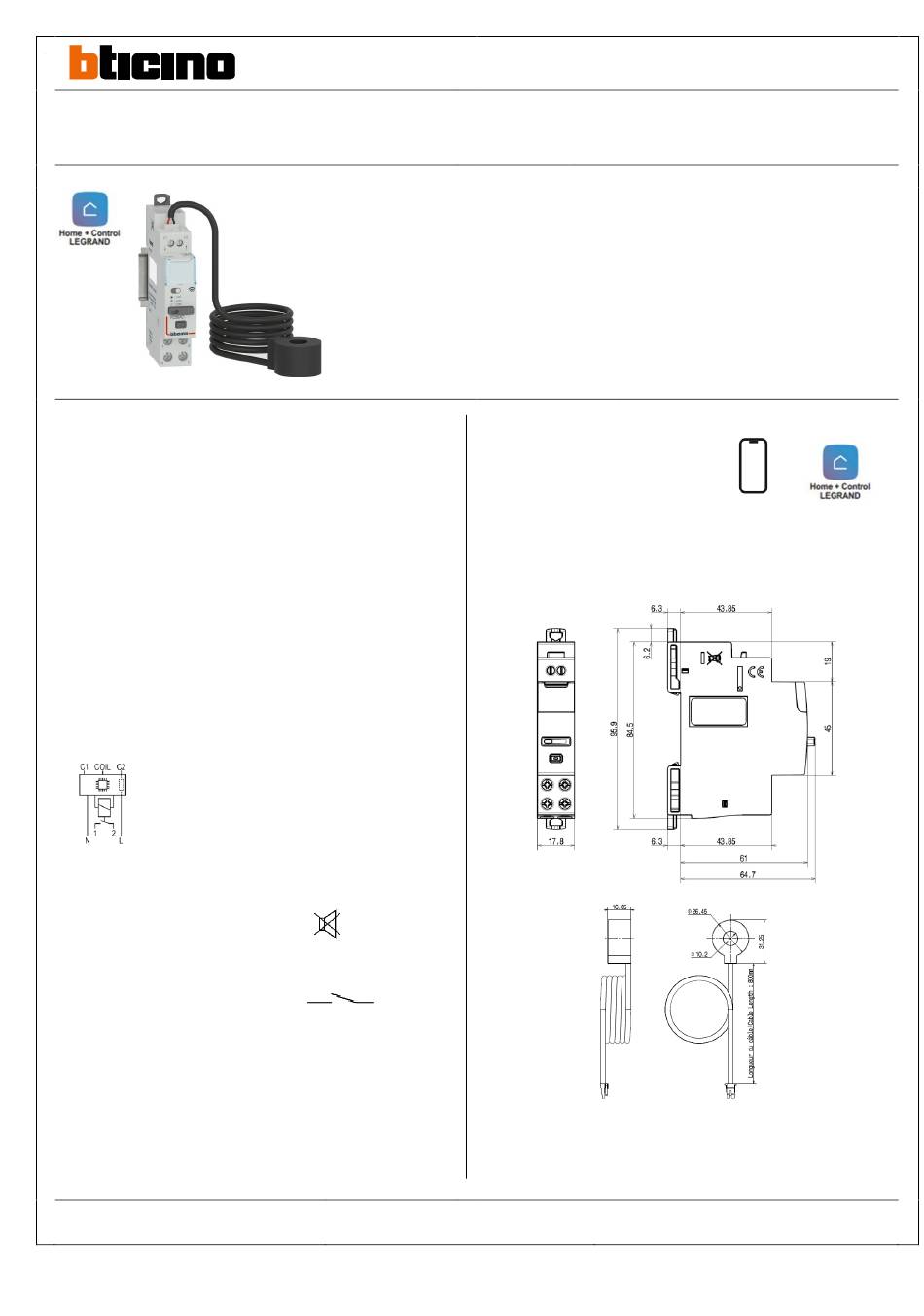

3. OVERALL DIMENSIONS
Updated on: -
Index
1. Description - Use ..................................... 1
2. Range ......................................................... 1
3. Overall dimensions .................................. 1
4. Preparation - Connection ....................... 2
5. General characteristics ........................... 6
6. Compliance and approvals ..................... 6
7 Equipment and accessories .................... 6
(continued)
Pages
Created on: 05/09/2022
1/6
