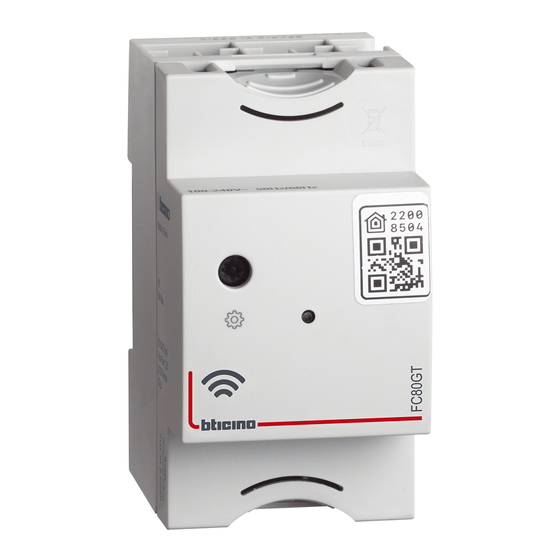

Bticino FC80GT Installation Manual
  1. Manuals
  2. Brands
  3. Bticino Manuals
  4. Gateway
  5. FC80GT
  6. Installation manual

Bticino FC80GT Installation Manual

Btdin with netatmo
Hide thumbs Also See for FC80GT:
Table of Contents

Advertisement

Quick Links

Btdin with Netatmo
Installation Manual
RA00180AD-04/22-PC
www.bticino.com

Advertisement

Table of Contents
loading

Related Manuals for Bticino FC80GT

Summary of Contents for Bticino FC80GT

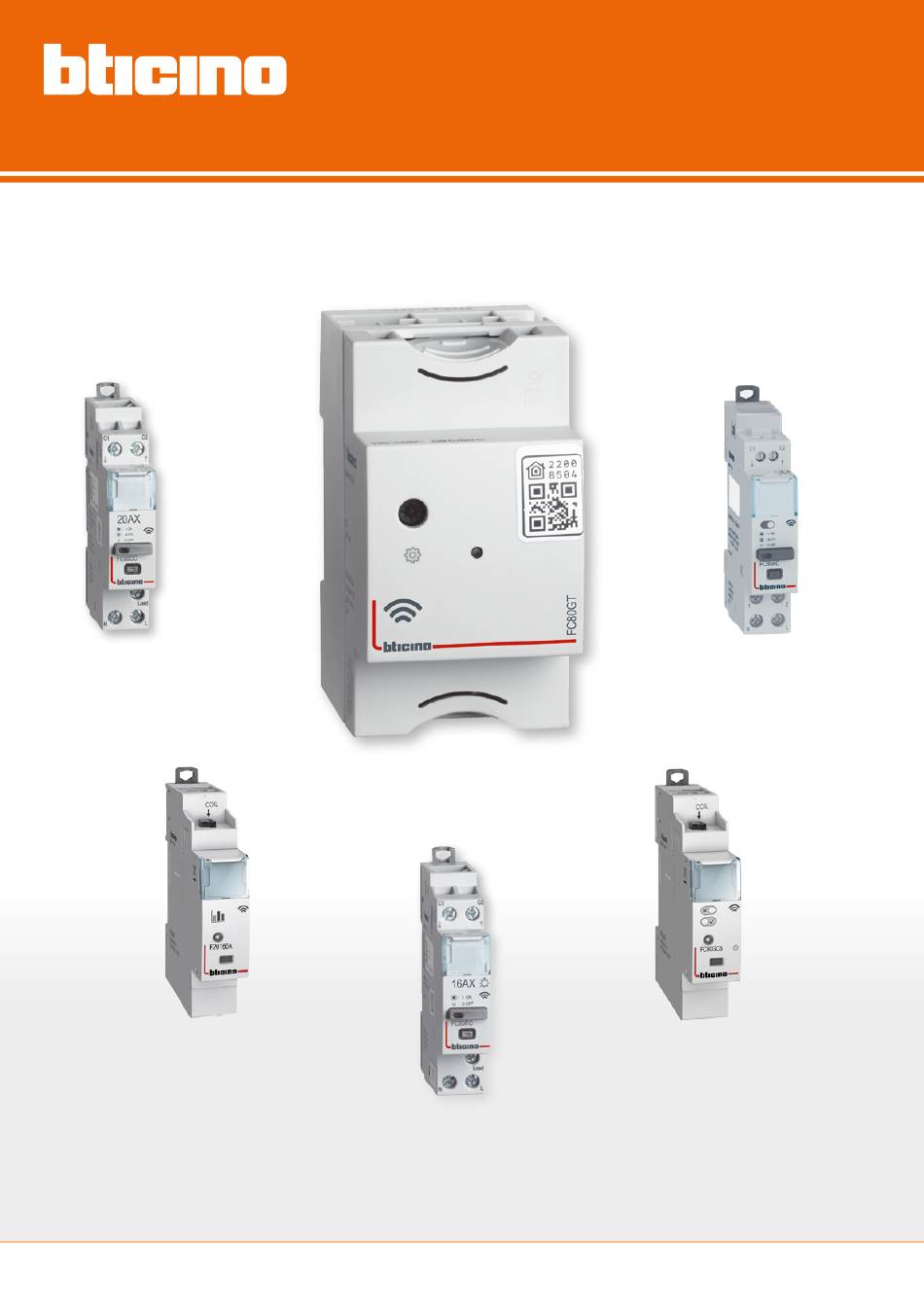

  • Page 1 Btdin with Netatmo Installation Manual RA00180AD-04/22-PC www.bticino.com...
  • Page 2 Btdin with Netatmo Installation Manual...

  • Page 3: Table Of Contents

    Btdin with Netatmo Installation Manual Contents General features Install Btdin with Netatmo Associate the wired devices Add a wired device Reset the Wi-Fi and Apple HomeKit Reset to the factory settings Use the App Compatibility with civil series Add a wireless scenario control Associate a wireless light control to one or more modular wired devices Dissociate a wireless control from the wired devices...

  • Page 4: General Features

    Check with your supplier or installer about their availability. Connected DIN smart Smart Dry DIN Smart DIN Smart DIN load Relè smart relay for Contatc with gateway contactor management light Netatmo module COIL COIL   AUTO O OFF FC80GCS FC80AC F20T60A FC80GT FC80CC FC80RC F20T60A FC80GCS FC80AC...

  • Page 5: Install Btdin With Netatmo

    FC80AC Dry Contact (C NO) Measurement toroid Contactor smart Relè smart FC80RC Smart DIN FC80AC with Equipped with contacts gateway FC80GT phase-supplied contr for control with AUTO O OFF FC80AC remote buttons Dry Contact (C NO) Measurement toroid...
  • Page 6 Btdin with Netatmo Installation Manual 2. Reconnect the power using the general switch. AUTO O OFF FC80AC COIL F20T60A COIL   FC80GCS Check that the LEDs of all the devices turn on red steady (with the exception of the gateway LED, which remains off ).
  • Page 7 Btdin with Netatmo Installation Manual After installing the smart electric system, it will be possible to control lights and loads without further set up needed. Note: smart contactors will be powered by default. It is now possible to associate all the devices and take advantage of the connected functions of your system.

  • Page 8: Associate The Wired Devices

    Btdin with Netatmo Installation Manual Associate the wired devices Perform the pairing procedure shown below within 15 minutes of powering up the system. Otherwise repeat the operation from the beginning. 1. Disconnect the voltage from the general switch. 2. Wait for 1 minute. 3.
  • Page 9 Btdin with Netatmo Installation Manual FC80GT Gateway 1. Start the association: press the reset key of the Gateway until the LED turns green. AUTO O OFF FC80AC COIL F20T60A COIL   FC80GCS Check that the LEDs of all the devices turn green steady.
  • Page 10 Btdin with Netatmo Installation Manual FC80GT Gateway 2. End the association: press and release the reset key of the Gateway, the LED switches off. AUTO O OFF FC80AC COIL F20T60A COIL   FC80GCS Check that the LEDs of all the devices immediately turn off: the wired devices are now associated with each other.

  • Page 11: Add A Wired Device

    Btdin with Netatmo Installation Manual Add a wired device Note: if the association with the Home + Control App has already been completed, follow the instructions of the “Add a product to this home” menu in the App, or: 1. Disconnect the voltage from the general switch. 2.
  • Page 12 Btdin with Netatmo Installation Manual AUTO O OFF FC80AC COIL F20T60A COIL   FC80GCS Check that the LEDs of all the devices are off, with the exception of the device to add, which must have a steady red LED. 4.

  • Page 13: Reset The Wi-Fi And Apple Homekit

    Btdin with Netatmo Installation Manual Reset the Wi-Fi and Apple HomeKit This procedure must be performed on the FC80GT Smart DIN Gateway, the result will be - complete disconnection of the gateway from HomeKit - disconnection from the Wi-Fi Wi-Fi network.
  • Page 14 Now release the pushbutton. The LED turns red steady. The reset has been done. Warning: a short accidental pressure of the reset pushbutton, starts the association (green LEDs are ON). Press quickly the reset pushbutton of the FC80GT gateway to end it.

  • Page 15: Use The App

    Btdin with Netatmo Installation Manual Use the App After completing the association of all the wired devices to the gateway it will immediately be possible to: – control lights and sockets. Download the “Home + Control” App and configure it so that all the other functions of the Smart electric system are available: •...

  • Page 16: Compatibility With Civil Series

    Living Now with Netatmo range, although the same functions may also be combined with other BTicino with Netatmo ranges. This integration allows to extend the functionality of your Smart DIN system. In addition, you will be...
  • Page 17 Btdin with Netatmo Installation Manual Wireless controls Flush mounted Flush mounted Flush mounted Flush mounted wireless light control wireless shutter IN&OUT scenario wireless Night&Day control control scenario control Wall mounted Wall mounted Wall mounted Wall mounted wireless light wireless double light wireless 4-scenario wireless In&Out control...

  • Page 18: Add A Wireless Scenario Control

    Btdin with Netatmo Installation Manual Add a wireless scenario control FC80GT Gateway 1. Start the association: press the reset key of the Gateway until the LED turns green. AUTO O OFF FC80AC COIL F20T60A COIL   FC80GCS Check that the LEDs of all the devices immediately turn green steady (with the exception of the...
  • Page 19 Btdin with Netatmo Installation Manual Wireless In&Out scenario control 2. Remove the tab from the control Warning: if cover and plate are not fitted, do not press the wireless control keys. 3. Press and release one of the control keys: the LED flashes green; release it and wait for the LED to turn off.
  • Page 20 Btdin with Netatmo Installation Manual FC80GT Gateway 4. End the association: press and release the reset key of the Gateway, the LED switches off. AUTO O OFF FC80AC COIL F20T60A COIL   FC80GCS Check that the LEDs of all the devices immediately turn off: the wired devices are now associated...
  • Page 21 Btdin with Netatmo Installation Manual After associating the wireless scenario control, it is possible to activate the IN/OUT scenarios that can be controlled by the same. Upper key for scenario Shutters UP No effect on sockets and contactors No effects on lights, relays and remote contactors Living Living...

  • Page 22: Associate A Wireless Light Control To One Or More Modular Wired Devices

    App, or: Note: it is not possible to associate the FC80CC Smart Contactor wired device to the wireless light control. FC80GT Gateway 1. Start the association:: press the reset key of the Gateway until the LED turns green.
  • Page 23 Btdin with Netatmo Installation Manual Wireless light control 2. Remove the tab from the new control. Warning: if cover and plate are not fitted, do not press the wireless control keys. 3. Press and release one of the two control keys: the LED flashes green; wait until it turns off. The control is now associated to your Smart electric system.
  • Page 24 Btdin with Netatmo Installation Manual Connected module FC80RC Relè smart 4. Press and hold down the control pushbutton until the LED flashes blue then release. 5. Press and hold down one of the two keys of the wireless control to associate, with the control, touch three times (gently and in quick sequence) the wired device to associate.
  • Page 25 Btdin with Netatmo Installation Manual Connected module FC80RC Relè smart 6. Press and hold down the control pushbutton until the LED flashes blue then release. 7. Press and hold down one of the two keys of the wireless control to associate, with the control, touch three times (gently and in quick sequence) the wired device to associate.
  • Page 26 The LED of the wired device goes from blue flashing to green, then turns back to blue for one second and then again to green. FC80GT Gateway 8. End the association: press and release the reset key of the Gateway, the LED switches off.
  • Page 27 Btdin with Netatmo Installation Manual AUTO O OFF FC80AC COIL F20T60A COIL   FC80GCS Check that the LEDs of all the devices immediately turn off: the wired devices are now associated with each other. After associating the wireless light control to the smart relays, it is possible to activate the connected loads.

  • Page 28: Dissociate A Wireless Control From The Wired Devices

    Btdin with Netatmo Installation Manual Dissociate a wireless control from the wired devices Note: the wireless control that is the subject of this procedure is an example; for the complete list of wireless controls, see the "Compatibility with civil series" section. Wireless light control Wireless shutter control 1.
  • Page 29 Btdin with Netatmo Installation Manual...
  • Page 30 BTicino SpA Viale Borri, 231 21100 Varese www.bticino.com BTicino Spa reserves at any time the right to modify the contents of this booklet and to communicate, in any form and modality, the changes brought to the same.
