AXOLUTE
NIGHTER and WHICE control
Description

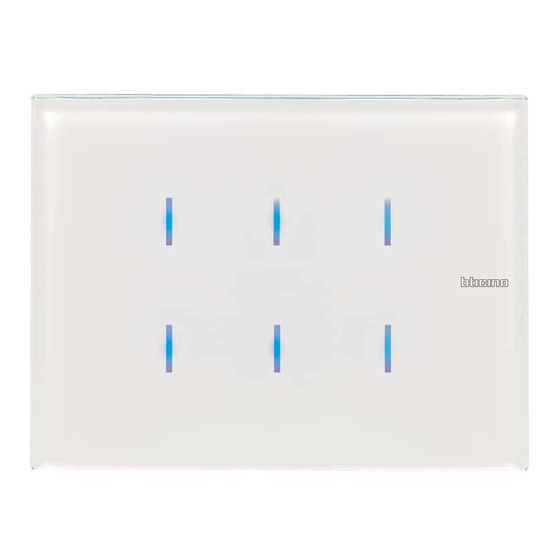

The Nighter and Whice control is a control where the traditional pushbuttons are replaced
by capacitive sensors.The device can be used to perform the functions typical of a special
SCS control by simply moving a finger close to the surface. It is produced in the 3 and
4 module flush mounted version, 6 and 8 keys respectively. Each zone corresponding to
a key is marked at the centre by a light blue LED. When the user moves a finger close
to the zone, its intensity increases sensibly, and remains so until the finger is moved
away again. The brightness level of the LEDs can be changed using the appropriate
adjustment pushbutton.
The Nighter and Whice control can operate in 4 different ways: self-learning, scenarios,
swivelling, CEN.
- The self-learning mode (cyclic or non-cyclic) allows to associate to each key most of
the typical automation system, sound system, video door entry system (staircase light,
open-door, call to the floor, door lock, and cycling of cameras) functions, in addition to
auxiliary controls.
- The scenario mode can be used to recall, program and delete 6 scenarios of a scenario
module.
- The swivelling mode can be used to drive the 3 or 4 consecutive light points or rolling
shutters (or rooms or groups).
- The CEN mode enables using the control with the scenario programmer
item MH 200.
In order to clean the device, it is possible to temporarily disable the sensitive zones
by pressing two diagonally opposite zones at the same time. The LEDs will flash in
sequence. Normal operation is automatically reinstated after 10 seconds.
Technical data
Power supply from SCS BUS:
Operating power supply with SCS BUS:
Max absorption HD/HC/HS4657M3:
Max absorption HD/HC/HS4657M4:
Operating temperature:
Installation
Nighter and Whice can be easily wall mounted using the following items, available to order:
- for the 3-module control: box, item 503E, and screw support, item H4703
- for the 4-module control: box, item
504E,
Boxes:
503E
504E
27 Vdc
18 – 27 Vdc
20 mA
25 mA
0–40 °C
and screw support, item
H4704
HD4657M3 - HC4657M3 - HS4657M3
HD4657M4 - HC4657M4 - HS4657M4

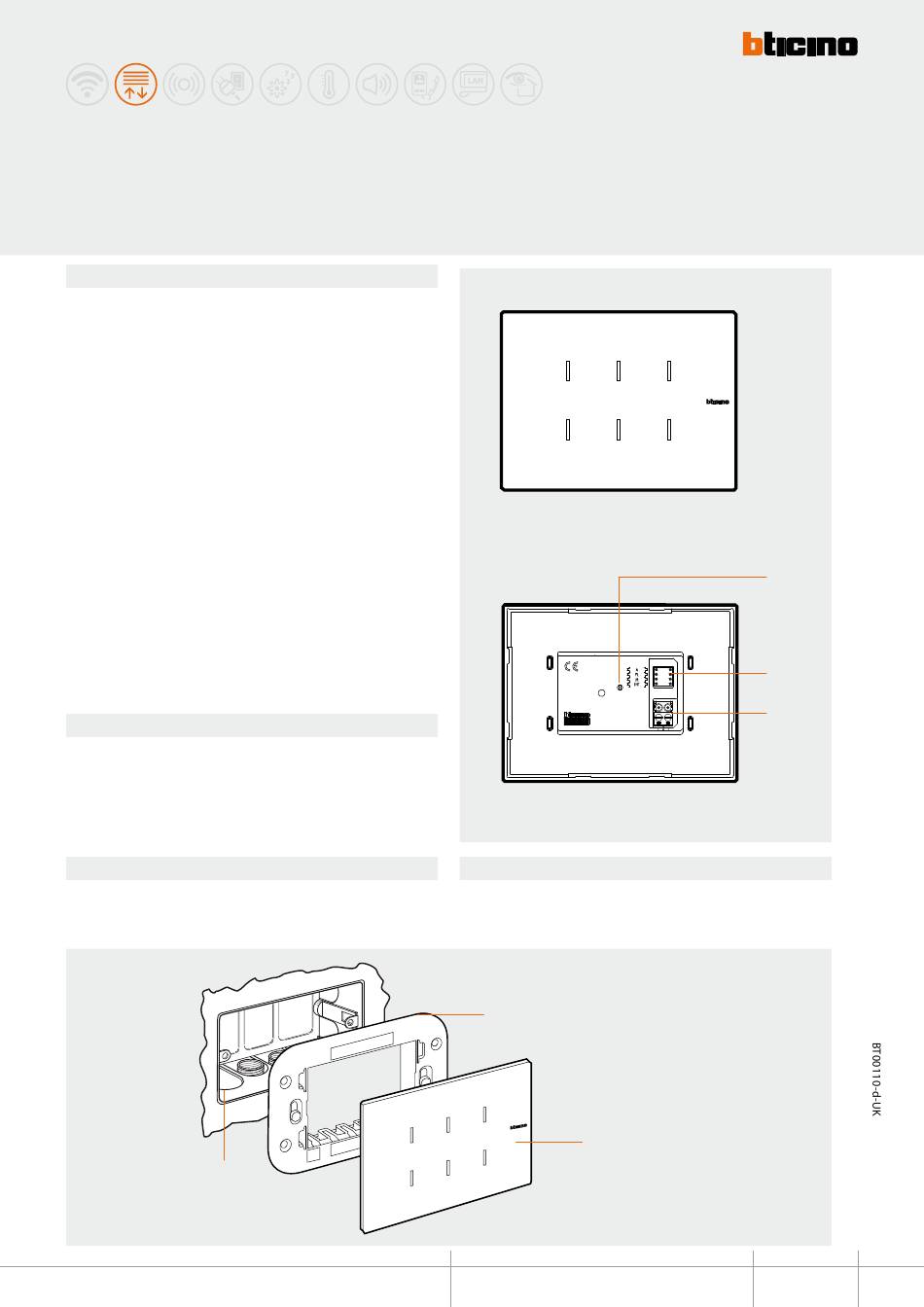

Front view
P
HC/HS4657M3
Rear view
Legenda
1. LED intensity programming and adjustment pushbutton
2. Configurator socket
3. BUS
Supports:
H4703
H4704
Control:
HC4657M3
HS4657M3
HC4657M4
HS4657M4
Technical sheets - Automation
1
2
3
MY HOME
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AXOLUTE HD4657M3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bticino AXOLUTE HD4657M3

  • Page 1 AXOLUTE HD4657M3 - HC4657M3 - HS4657M3 NIGHTER and WHICE control HD4657M4 - HC4657M4 - HS4657M4 Description The Nighter and Whice control is a control where the traditional pushbuttons are replaced by capacitive sensors.The device can be used to perform the functions typical of a special SCS control by simply moving a finger close to the surface.
  • Page 2 HD4657M3 - HC4657M3 - HS4657M3 HD4657M4 - HC4657M4 - HS4657M4 Configuration The configuration of the Nighter & Whice control can be made in two different modes: - PHYSICAL CONFIGURATION: by connecting the physical configurators to their sockets; - VIRTUAL CONFIGURATION: the control can be configured remotely, when no physical configurators are available.
  • Page 3 HD4657M3 - HC4657M3 - HS4657M3 HD4657M4 - HC4657M4 - HS4657M4 3) Scenario mode M = 1 – 4 Possible function Value configurator in M This operating mode is useful if the system includes a scenario module, item F420. 1 – 4 The combination is ensured by assigning to both items the same address, identified by A=0-9 and PL=1-9.
  • Page 4 HD4657M3 - HC4657M3 - HS4657M3 HD4657M4 - HC4657M4 - HS4657M4 4) Swivelling modes M=0/I; ↑↓; ↑↓M These modes enable quick installation without the need for learning procedures or scenario modules, allowing control of 4 or 3 consecutive light points or rolling shutters. The A PL address is the light point or rolling shutter controlled by the first pair of keys.
  • Page 5 HD4657M3 - HC4657M3 - HS4657M3 HD4657M4 - HC4657M4 - HS4657M4 7) LED display selection mode – SET position Using the SET configurator it is possible to select: - if in the idle conditions the unused/not configured LEDs should stay off or on; - if the LED should come on or not when the corresponding key is pressed (status return);...
