TERK Technologies THINTV6A QSG 01 Quick Start Manual

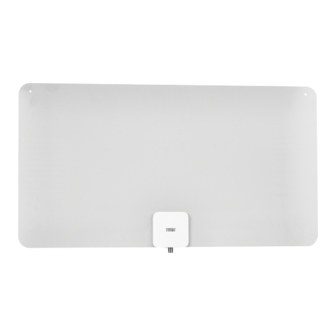

ultra-thin xl amplified HDTV antenna
Quick Start
Guide
FOR BEST RESULTS
Place your antenna as high as possible,
in or near a window.
For more information, see the STOP! sheet that comes in this
package.
Use the Terk Signal Finder App to find the
1
best location for your antenna.
In the Google Play or Apple App Stores, search for "Terk
Signal Finder" and look for the icon shown here. Then
download and install the App.
Launch the App and follow the directions there to find the
best location and orientation for your antenna.
Connect the coaxial cable to the antenna
2
and power injector.
Connect one end of the provided
coaxial cable to the coaxial
connector on the bottom of the
antenna.
Antenna
3
Connect the power injector to your TV.
STOP!
Connect the other end of the coaxial
cable to the ANTENNA jack on the
power injector.
Power Injector
Make sure the power injector is unplugged
and your TV is turned off.
Connect the coaxial cable from the power
injector to the antenna input on your TV or
digital converter box.
Important: Make sure you uncoil the antenna's cable
completely. Leaving it coiled will reduce reception
performance.
DO NOT RETURN this product to the store!
Visit TerkAntennaHelp.com for instructional and how-to videos.
Check out setup videos at
www.TerkAntennaHelp.com
Plug in the power injector.
4
Plug the power injector's USB cable into the
included AC adapter. Then plug the adapter into an
AC outlet.
Note: If your TV has a USB power outlet, you can plug the
power injector's USB cable directly into it for power instead of
using the power adapter.
5
Mount the antenna.
There are two easy ways to mount the antenna.
Option 1: Using the hook and loop tabs
Remove the backing from Remove the backing from
one side of each pair of the other side of each pair
tabs and press the tabs into of tabs.
place on the corners of the
antenna.
Option 2: Using the antenna's mounting holes
6
Scan for channels on your TV.
Most TVs have a channel scan option in their menu system, many times
in a SETUP or CHANNEL menu under ANTENNA.
For detailed instructions on performing a channel scan, see the owner's
manual that came with your TV.
Important: You must perform a channel scan to receive any channels!
THINTV6A QSG 01
Line up the antenna
and press it against the
mounting surface for 10
seconds. Let go, then press
30 seconds more.
Insert two of the included push pins into
the two holes on the top of the antenna.
