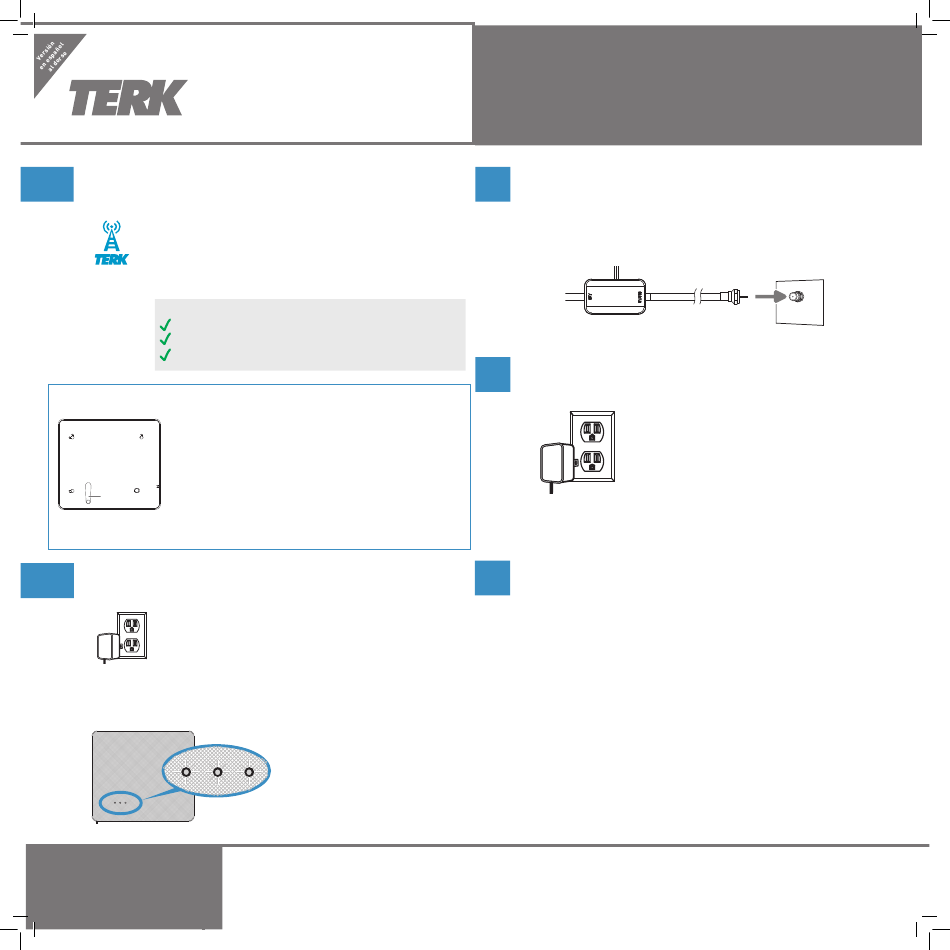

TERK Technologies TIAD6M QSG 03 Quick Start Manual

amplified indoor HDTV antenna
with signal meter
Quick Start Guide
Use the Terk Signal Finder App to find the
1
best location for your antenna.
In the Google Play or Apple App Stores, search for "Terk
Signal Finder" and look for the icon shown here. Then
download and install the App.
Launch the App and follow the directions there to find the
best location and orientation for your antenna.
Antenna Placement Tips
Avoid metal surfaces (like a metal stand).
Move the antenna close to or in a window.
Position the antenna as high as possible.
Placement Options: Stand or Wall Mounting
This antenna offers two placement options: the
Antenna,
provided stand or wall mounting. If you'd like to
back
use the stand, insert it into one of the circular slots
on the back of the antenna. The antenna can be
positioned vertically or horizontally.
Stand
If you'd rather mount the antenna to the wall, use the
included M3x18 mounting screws and the mounting
slots on the back of the antenna.
Use the antenna's signal meter to fine-tune
2
antenna location and orientation.
Plug the antenna's power injector power adapter into a
standard AC outlet. Don't connect it to your TV yet.
The antenna's built-in signal meter measures the signal of the strongest
UHF signal your antenna is receiving.
STOP!
Move your antenna until the signal
meter shows at least the second
indicator. For best performance, try
to get the third indicator.
Note: The signal meter times out
after 15 minutes. To use it again,
unplug the power cord and plug it
back in.
DO NOT RETURN this product to the store!
Visit TerkAntennaHelp.com for instructional and how-to videos.
Check out setup videos at
www.TerkAntennaHelp.com
3
Connect the power injector to your TV.
Unplug the power injector and make sure your TV is turned off.
Connect the coaxial cable from the power injector to the antenna input
on your TV.
Amplifier Insert
Plug the power injector's power cord into a
4
power outlet.
Important: This power adapter should be plugged
in so that it stays vertical or lays flat.
5
Scan for channels on your TV.
Most TVs have a channel scan option in their menu system, many times
in a SETUP or CHANNEL menu under ANTENNA.
For detailed instructions on performing a channel scan, see the owner's
manual that came with your TV.
Important: You must perform a channel scan to receive any channels!
TIAD6M QSG 03
TV or
converter
ANTENNA
box (back)
IN
