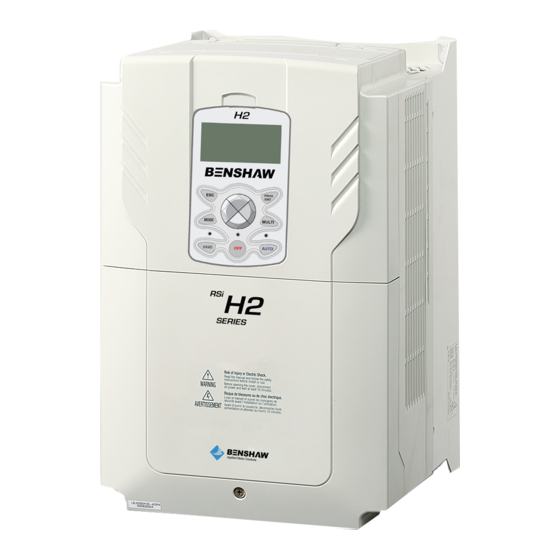

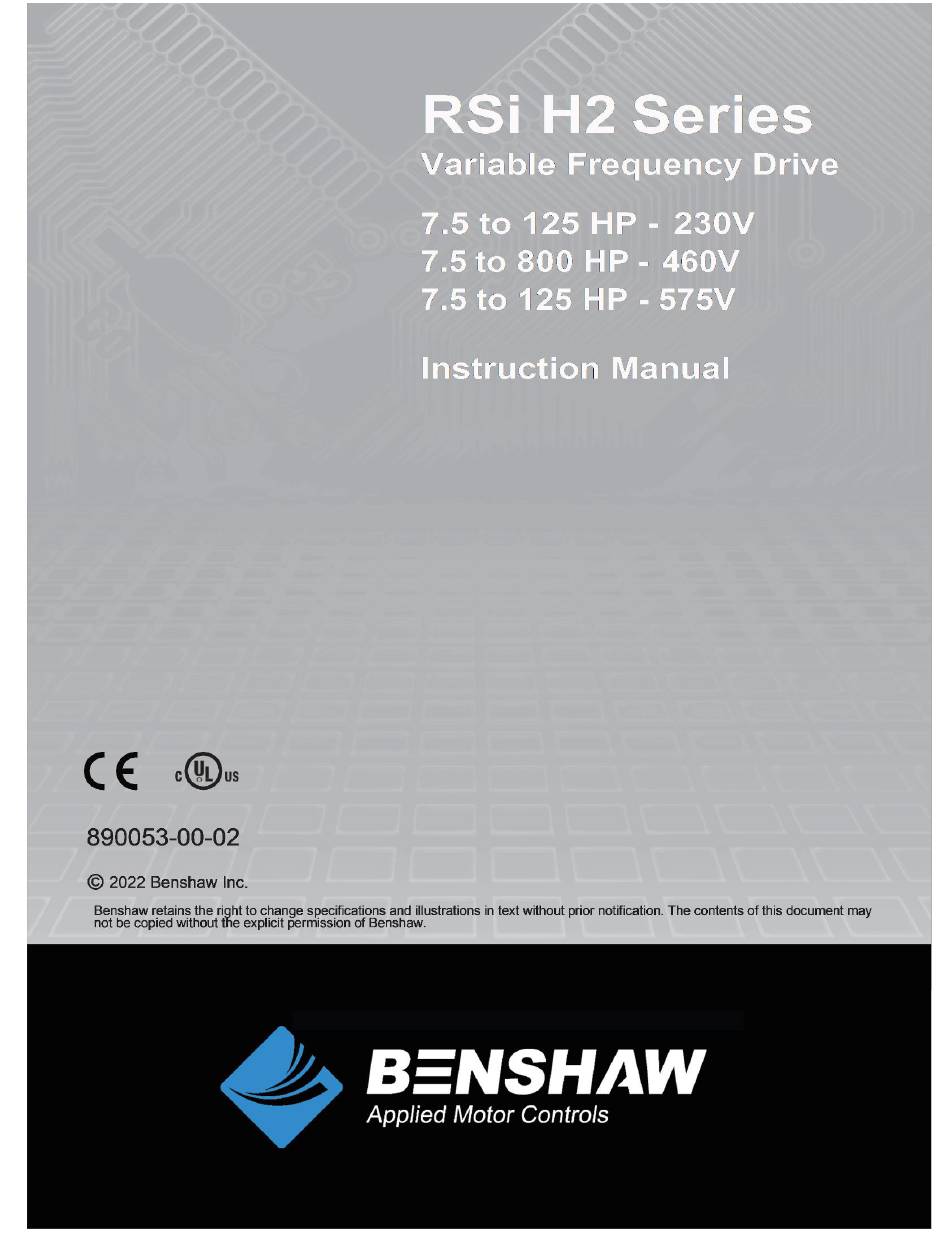

BENSHAW RSi H2 Series Instruction Manual

Variable frequency drive
Hide thumbs Also See for RSi H2 Series:
1
2
3
4
Table Of Contents
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
Table of Contents

Advertisement

Quick Links

i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSi H2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for BENSHAW RSi H2 Series

Summary of Contents for BENSHAW RSi H2 Series

  • Page 3 Safety Safety Information Read and follow all safety instructions in this manual to avoid unsafe operating conditions, property damage, personal injury, or death. Safety symbols in this manual Indicates an imminently hazardous situation which, if not avoided, will result in severe injury or death.
  • Page 4 Safety • Do not modify the interior workings of the inverter. Doing so will void the warranty. • The inverter is designed for 3-phase motor operation. Do not use the inverter to operate a single-phase motor. • Do not place heavy objects on top of electric cables. Doing so may damage the cable and result in an electric shock.

  • Page 5: Table Of Contents

    Table of Contents 890053-00-02 Table of Contents Preparing the Installation ................1 Product Identification ................1 Part Identification ..................2 Installation Considerations ..............10 Selecting and Preparing a Site for Installation ........11 Cable Selection ..................14 Installing the Inverter ..................17 Mounting the Inverter ................
  • Page 6 Table of Contents 890053-00-02 Parameter Lists and Quick Reference ............81 Quick Reference Table ................81 Parameter Lists ..................82 4.2.1 Drive Group (DRV) ..............82 4.2.2 Motor Group (MOT) ..............84 4.2.3 Basic Group (BAS) ..............85 4.2.4 Advanced Group (ADV) ............87 4.2.5 Control Group (CON) ..............
  • Page 7 Table of Contents 890053-00-02 5.4.4 ADV-09 Forward or Reverse Run Prevention ......143 5.4.5 ADV-10 Power-on Run ............144 5.4.6 ADV-20 Dwell Operation ............146 5.4.7 ADV-24 Frequency Limits - Upper/Lower Limit Frequency ..147 5.4.8 ADV-27 Frequency Jump ............148 5.4.9 ADV-41 Brake Control .............
  • Page 8 Table of Contents 890053-00-02 5.6.25 Damper Open ................176 5.6.26 Pump Clean ................176 5.6.27 Sleep Wake Chg ..............176 5.6.28 PID Step Ref L, PID Step Ref M, PID Step Ref H ....177 5.6.29 Digital Input Terminal Control ........... 177 Output Group (OUT) ................
  • Page 9 Table of Contents 890053-00-02 6.3.2 PID Sleep Mode ..............233 6.3.3 Pre-PID and Soft Fill Operation ..........235 6.3.4 PID Switching (PID Open loop)..........237 6.3.5 Flow Compensation..............238 Sensorless Vector Control ................239 IM (Induction Motors) ................239 7.1.1 Sensorless Vector Control Operation Setting ......241 7.1.2 Sensorless Vector Control Operation Guide ......
  • Page 10 Table of Contents 890053-00-02 9.6.3 CNF-40 Parameter Initialization ..........293 9.6.4 CNF-41 Changed Parameter Display ........294 9.6.5 CNF-42 User & Macro Mode (U&M) ........294 9.6.6 CNF-43 Macro Selection ............294 9.6.7 CNF-44 Delete Trip History ............. 295 9.6.8 CNF-46 Read, Write, and Save Parameters ......295 9.6.9 CNF-50 Parameter View Lock ..........
  • Page 11 Table of Contents 890053-00-02 11.1.1 Faults ..................341 11.1.2 Warning Messages ..............344 11.2 Troubleshooting Faults ................ 346 11.3 Troubleshooting Other Faults .............. 348 12 Maintenance ....................352 12.1 Periodic Inspection Summary ............. 352 12.2 Periodic Inspection Items ..............353 12.3 Storage ....................
  • Page 12 Table of Contents 890053-00-02...

  • Page 13: Preparing The Installation

    Preparing the Installation 890053-00-02 1 Preparing the Installation This chapter provides details on product identification, part names, installation and cable specifications. To install the inverter correctly and safely, carefully read and follow the instructions. 1.1 Product Identification The H2 Series Inverter is manufactured within a range based on inverter capacity (HP/kW) and power source specifications (240V/480V/575V).

  • Page 14: Part Identification

    Preparing the Installation 890053-00-02 1.2 Part Identification The illustrations below display part names. Details may vary between product ratings. 240V, 7.5 HP ~ 25 HP (5.5 kW ~ 18.5 kW) 480V, 7.5 HP ~ 40 HP (5.5 kW ~ 30 kW) USB Port WinDRIVE only...
  • Page 15 Preparing the Installation 890053-00-02 575V, 7.5 HP ~ 40 HP (5.5 kW ~ 30 kW) USB Port WinDRIVE only...
  • Page 16 Preparing the Installation 890053-00-02 240V 30 HP ~ 60 HP (22 kW ~ 45 kW) 480V and 575V 50 HP ~ 125 HP (37 kW ~ 90 kW) USB Port WinDRIVE only...
  • Page 17 Preparing the Installation 890053-00-02 240V 75 HP ~ 100 HP (55 kW ~ 75 kW) 480V 150 HP ~ 200 HP (110 kW ~ 132 kW) USB Port WinDRIVE only...
  • Page 18 Preparing the Installation 890053-00-02 240V 125 HP (90 kW) 480V 250 HP ~ 300 HP (160 kW ~ 185 kW) USB Port WinDRIVE only...
  • Page 19 Preparing the Installation 890053-00-02 480V, 400 HP (250 kW) USB Port WinDRIVE only...
  • Page 20 Preparing the Installation 890053-00-02 480V, 500 HP ~ 650 HP (315 kW ~ 400 kW) USB Port WinDRIVE only...
  • Page 21 Preparing the Installation 890053-00-02 480V, 800 HP (500 kW) USB Port WinDRIVE only...

  • Page 22: Installation Considerations

    Preparing the Installation 890053-00-02 1.3 Installation Considerations Inverters are composed of various precision, electronic devices, and therefore the installation environment can significantly impact the life span and reliability of the product. The table below details the ideal operation and installation conditions for the inverter. Items Description 14°F~104°F (- 10°C~40°C)

  • Page 23: Selecting And Preparing A Site For Installation

    Preparing the Installation 890053-00-02 1.4 Selecting and Preparing a Site for Installation When selecting an installation location consider the following points: The inverter must be installed on a wall that can support the inverter’s weight. The location must be free from vibration. Vibration can adversely affect the operation of the inverter. The inverter can become very hot during operation.
  • Page 24 Preparing the Installation 890053-00-02 Ensure sufficient air circulation is provided around the inverter when it is installed. If the inverter is to be installed inside a panel, enclosure, or cabinet rack, carefully consider the position of the inverter’s cooling fan and the ventilation louver. The cooling fan must be positioned to efficiently transfer the heat generated by the operation of the inverter.
  • Page 25 Preparing the Installation 890053-00-02 NOTE • The vent covers must be removed for side-by-side installations. • Side-by-side installation cannot be used for the H2 inverters rated for 37 kW and above. • For the H2 inverters rated for 50 HP (37 kW) and above, if the installation site satisfies the UL Open Type requirements and there is no danger of foreign objects getting inside the inverter, the vent cover may be removed to improve cooling efficiency.

  • Page 26: Cable Selection

    Preparing the Installation 890053-00-02 1.5 Cable Selection Use cables that meet the required specification for the safe and reliable operation of the product. Refer to NEC Articles 430.2 and 430.6 along with Table 310-16 for selecting the correct wire sizing. Some local codes may take precedence over the NEC.
  • Page 27 Preparing the Installation 890053-00-02 Ground Wire Input/Output Power Wire Voltage R/S/T U/V/W R/S/T U/V/W 1/0 x2 1/0 x2 50x2 70x2 70x2 2/0 x2 2/0 x2 50x2 95x2 95x2 50x2 1/0 x2 95x2 95x2 4/0 x2 4/0 x2 70x2 70x2 3/0 x2 120x2 120x2 250 x2...
  • Page 28 890053-00-02...

  • Page 29: Installing The Inverter

    Installing the Inverter 890053-00-02 2 Installing the Inverter This chapter describes the physical and electrical installation of the H2 series inverters, including mounting and wiring of the product. Refer to the flowchart and basic configuration diagram provided below to understand the procedures and installation instructions to be followed to install the product correctly.
  • Page 30 Installing the Inverter 890053-00-02 Basic configuration diagram The reference diagram below shows a typical system configuration showing the inverter and peripheral devices. Prior to installing the inverter, ensure that the product is suitable for the application (power rating, capacity, etc.). Ensure that all of the required peripherals and optional devices (contactors, reactors, noise filters, etc.) are available.
  • Page 31 Installing the Inverter 890053-00-02 575V: 7.5 HP ~ 40 HP (5.5 kW ~ 30 kW) 575V: 50 HP ~ 125 HP (37 kW ~ 90 kW) • Figures in this manual are shown with covers removed to show a more detailed view of the installation arrangements.

  • Page 32: Mounting The Inverter

    Installing the Inverter 890053-00-02 2.1 Mounting the Inverter Mount the inverter on a wall or inside a panel following the procedures provided below. Before installation, ensure that there is sufficient space to meet the clearance specifications, and that there are no obstacles impeding the cooling fan’s air flow. Select a wall or panel suitable to support the installation.
  • Page 33 Installing the Inverter 890053-00-02 575V, 7.5 HP ~ 40 HP (5.5 kW ~ 30 kW) 240V, 30 HP ~ 125 HP (22 kW ~ 90 kW) 480V, 50 HP ~ 300 HP (37 kW ~ 185 kW) 575V, 50 HP ~ 125 HP (37 kW ~ 90 kW)
  • Page 34 Installing the Inverter 890053-00-02 480V, 400 HP ~ 800 HP (250 kW ~ 500 kW) • Do not transport the inverter by lifting with the inverter’s covers or plastic surfaces. The cover may come loose causing the inverter to be dropped which can cause injuries or damage to the product.
  • Page 35 Installing the Inverter 890053-00-02 Do not install the inverter on the floor or mount it sideways against a wall. The inverter must be installed vertically on a wall or inside a panel with its rear flat on the mounting surface.

  • Page 36: Enabling The Rtc (Real-Time Clock) Battery

    Installing the Inverter 890053-00-02 2.2 Enabling the RTC (Real-Time Clock) Battery The H2 Series inverter comes from the factory with a CR2032 lithium-manganese battery pre-installed on the I/O CPU PCB. The battery powers the inverter’s built-in RTC. The battery is installed with a protective insulation strip to prevent battery discharge.
  • Page 37 Installing the Inverter 890053-00-02 240V: 75 HP ~ 125 HP (55kW ~ 90 kW) 480V: 400 HP ~ 800 HP (250 kW ~ 500 kW) 480V: 150 HP ~ 300 HP (110 kW ~ 185 kW) For 7.5 ~ 125 HP only. Remove the keypad from the inverter body. 240V: 7.5 HP ~ 25 HP (5.5 kW ~ 18.5 kW) 480V: 7.5 HP ~ 40 HP (5.5 kW ~ 30 kW) 240V: 30 HP ~ 60 HP (22 kW ~ 45 kW)

  • Page 38: Battery Specifications

    Installing the Inverter 890053-00-02 For 7.5 HP ~ 125 HP only. Loosen the screws securing the front cover and remove the front cover by lifting it. The I/O CPU PCB is exposed. 240V: 7.5 HP ~ 25 HP (5.5 kW ~ 18.5 kW) 240V: 30 HP ~ 60 HP (22 kW ~ 45 kW) 480V: 7.5 HP ~ 40 HP (5.5 kW ~ 30 kW) 480V, 575V: 50 HP ~ 125 HP (37 kW ~ 90 kW)

  • Page 39: Cable Wiring

    7.5 HP → 800 HP-----492 ft. (150 m). To increase the service life of the motor and the inverter, Benshaw recommends adding an output reactor with motor lead lengths up to 100 ft. For motor lead lengths between 100 ft. up to 1500 ft., install a Long Lead (dV/dT) filter.
  • Page 40 Installing the Inverter 890053-00-02 Step 1 Terminal Cover and Cable Guide The terminal cover and cable guide must be removed to install cables. Refer to the following procedures to remove the covers and cable guide. The steps to remove these parts may vary depending on the inverter model.
  • Page 41 Installing the Inverter 890053-00-02 Remove Cable Guide (①) Push and hold the levers on both sides of the cable guide and then (②) remove the cable guide by pulling it directly away from the front of the inverter. In some models (50 HP ~ 125 HP, 37 kW ~ 90kW) the cable guide is secured by a bolt. Remove the bolt first.
  • Page 42 Installing the Inverter 890053-00-02 Step 2 Ground Connection Install the ground connection for the inverter. Locate the ground terminal and connect an appropriately rated ground cable to the terminals. Refer to 1.5 Cable Selection on page 14 to find the appropriate cable specification for your installation. 240V: 7.5 HP ~ 25 HP (5.5 kW ~ 18.5 kW) 240V: 30 HP ~ 60 HP (22 kW ~ 45 kW) 480V: 7.5 HP ~ 40 HP (5.5 kW ~ 30 kW)
  • Page 43 Installing the Inverter 890053-00-02 Step 3 Power Terminal Wiring The following illustration shows the terminal layout on the power terminal block. Refer to the power terminal descriptions to understand the function and location of each terminal before making wiring connections. Ensure that the cables selected meet or exceed the specifications in 1.5 Cable Selection on page 14 before installing them.
  • Page 44 Installing the Inverter 890053-00-02 240V: 30 HP ~ 60 HP (22 kW ~ 45 kW) 480V: 50 HP ~ 125 HP (37 kW ~ 90 kW) Power Terminal Labels and Descriptions Terminal Labels Name Description R(L1) / S(L2) / T(L3) AC power input terminal Mains supply AC power connections.
  • Page 45 Installing the Inverter 890053-00-02 240V: 75 HP ~ 125 HP (55 kW ~ 90 kW) 480V: 150 HP ~ 400 HP (110 kW ~ 250 kW) P(+) N(-) Power Terminal Labels and Descriptions Terminal Labels Name Description R(L1) / S(L2) / T(L3) AC power input terminal Mains supply AC power connections.
  • Page 46 Installing the Inverter 890053-00-02 480V: 500 HP ~ 800 HP (315 kW ~ 500 kW) Terminal Labels Name Description R(L1) / S(L2) / T(L3) AC power input terminal Mains supply AC power connections. DC bus terminal DC voltage terminals. P(+) / N(-) (or DBU connection terminals) (or Brake unit wiring connection) 3-phase induction motor wiring...

  • Page 47: Inverter - Dc Reactor Installation

    Installing the Inverter 890053-00-02 2.3.1 575V Inverter - DC Reactor Installation For 575V inverters (7.5 HP ~ 40 HP), a DC Reactor is supplied mounted in a conduit box. It requires mounting and connection to the inverter. Follow the steps below to install and connect the DC Reactor.
  • Page 48 Installing the Inverter 890053-00-02 575V: 7.5 HP ~ 25 HP (5.5 kW ~ 18.5 kW, Built-in DC Reactor) Power Terminal Labels and Descriptions Terminal Labels Name Description R(L1) / S(L2) / T(L3) AC power input terminal Mains supply AC power connections. P2(+) / N(-) DC bus terminal DC voltage terminals.
  • Page 49 Installing the Inverter 890053-00-02 575V: 25 HP ~ 40 HP (22 kW ~ 30 kW, Built-in DC Reactor) Power Terminal Labels and Descriptions Terminal Labels Name Description R(L1) / S(L2) / T(L3) AC power input terminal Mains supply AC power connections. P2(+) / N(-) DC bus terminal DC voltage terminals.
  • Page 50 Installing the Inverter 890053-00-02 575V: 50 HP ~ 125 HP (37 kW ~ 90 kW, Built-in DC Reactor) Power Terminal Labels and Descriptions Terminal Labels Name Description R(L1) / S(L2) / T(L3) AC power input terminal Mains supply AC power connections. P2(+) / N(-) DC bus terminal DC voltage terminals.
  • Page 51 Installing the Inverter 890053-00-02 Step 4 Control Terminal Wiring The illustrations below show the layout of control wiring terminals and control board switches located on the I/O TB PCB. Refer to the detailed information provided below and 1.5 Cable Selection on page 14 before installing control terminal wiring.
  • Page 52 Installing the Inverter 890053-00-02 Input Output Control Terminal Block Wiring Diagram...
  • Page 53 Installing the Inverter 890053-00-02 Input Output Terminal Block (IO TB PCB) Input Terminal Labels and Descriptions Function Label Name Description Configurable multi-function input terminals. Factory default settings are as follows: P1~P7 Multi-function Inputs 1-7 P1: Fx P2: Rx P3: BX P4: RST Multi-function P5: Speed-L P6: Speed-M P7: Speed-H input terminal...
  • Page 54 Installing the Inverter 890053-00-02 Function Label Name Description Switch between current (I2) and voltage (V2) input modes using SW4 on the IO TB board. I2 - Modify a frequency reference via analog current input. Analog input Current/Voltage input for I2/(V2) configuration frequency reference input V2 - Modify a frequency reference via...
  • Page 55 Installing the Inverter 890053-00-02 Function Label Name Description Form C, configurable output terminal. Activates based on OUT-31 setting. Normal operation: B1-C1 closed. A1-C1 open Multi-function output Activated condition: A1-C1 closed, B1-C1 open Relay A1/C1/B1 relay Outputs (Form C) Specifications: N.O.: AC250 V, < 2 A, DC 30 V, < 3 A N.C.: AC250 V, <...
  • Page 56 Installing the Inverter 890053-00-02 Step 5 PNP/NPN Mode Selection The H2 inverter supports both PNP (Source) and NPN (Sink) modes for activating the digital inputs at the terminal block. Select an appropriate mode to suit switching requirements using the PNP/NPN selection switch (SW2) on the IO TB board.
  • Page 57 Installing the Inverter 890053-00-02 Step 6 Disabling the EMC Filter for Power Sources with Asymmetrical Grounding H2 inverters have built-in EMC filters (exceptions are 240V:50 HP and 60 HP, 480V and 575V:100 HP and 125 HP). An EMC filter prevents electromagnetic interference by reducing radio emissions from the inverter.
  • Page 58 Installing the Inverter 890053-00-02 Disabling the Built-in EMC Filter 240V: 7.5 HP ~ 25 HP (5.5 kW ~ 18.5 kW) 480V: 7.5 HP ~ 40 HP (5.5 kW ~ 30 kW) 575V: 7.5 HP ~ 40 HP (5.5 kW ~ 30 kW) Refer to the figures below to locate the EMC filter on/off terminal and replace the metal bolt with the plastic bolt.
  • Page 59 Installing the Inverter 890053-00-02 Disabling the Built-in EMC Filter 240V: 75 HP ~ 125 HP (55 kW ~ 90 kW) 480V: 150 HP ~ 800 HP (110 kW ~ 500 kW) Follow the instructions listed below to disable the EMC filters for the H2 inverters with the above ratings. Remove the front cover located at the top of the inverter.
  • Page 60 Installing the Inverter 890053-00-02 Step 7 Re-assembling the Covers and Routing Bracket Re-assemble the cable routing bracket and the covers after completing the wiring and basic configurations. Note that the assembly procedure may vary according to the product group or frame size of the product.

  • Page 61: Post-Installation Checklist

    Installing the Inverter 890053-00-02 2.4 Post-Installation Checklist After completing the installation, check the items in the following table to make sure that the inverter has been safely and correctly installed. Items Check Point Ref. Result Is the installation location appropriate? p.11 Does the environment meet the inverter’s operating p.10...
  • Page 62 Installing the Inverter 890053-00-02 Items Check Point Ref. Result Are STP (shielded twisted pair) cables used for control terminal wiring? Is the shielding of the STP wiring properly grounded? If 3-wire operation is required, are the multi-function input terminals defined prior to the installation of the control p.169 wiring connections? Are the control cables properly wired?

  • Page 63: Test Run

    Installing the Inverter 890053-00-02 2.5 Test Run After the post-installation checklist has been completed, follow the instructions below to test the inverter. Turn on the power supply to the inverter. Ensure that the keypad display light is on. Choose to Run Quick Start? Select the command source.

  • Page 64: Run Quick Start

    Installing the Inverter 890053-00-02 2.6 Run Quick Start The inverter LCD boots up to the “Quick Start” menu on power up. The parameters in the below table will be displayed in order to quickly setup the inverter. These include the Control Source, Frequency Reference Source, Motor and Protection parameters.

  • Page 65: Performing Basic Operations

    Performing Basic Operations 890053-00-02 3 Performing Basic Operations This chapter describes the keypad layout and functions. It also introduces parameter groups/codes and LCD Display Modes required to perform basic operations. The chapter also outlines the correct operation of the inverter before advancing to more complex applications. Examples are provided to demonstrate keypad operation.

  • Page 66: Operation Buttons

    Performing Basic Operations 890053-00-02 3.1.1 Operation Buttons The following table lists the names and functions of the keypad’s operation buttons.

  • Page 67: About The Display

    Performing Basic Operations 890053-00-02 3.1.2 About the Display 3.1.2.1 Monitor Mode Status Bar The following table lists display icons and their names/functions. No. Name Description Displays one of the following inverter modes: Use MODE button to move through modes. MON: Monitor mode PAR: Parameter mode 1 Operation mode U&M: User Group and Macro mode...
  • Page 68 Performing Basic Operations 890053-00-02 No. Name Description The function of the “MULTI” button is selected with parameter CNF-42. It can be used to register or delete parameters in the User group or can also be used for Time/Date display. Multi-function button configuration Displays one of the following operating states: STP: Stop...
  • Page 69 Performing Basic Operations 890053-00-02 3.1.2.2 Parameter Program Mode The following table lists display icons and their names/functions. Name Description Displays one of the following inverter modes: Use MODE button to move through modes. MON: Monitor mode PAR: Parameter mode Operation mode U&M: User defined and Macro mode TRP: Trip mode CNF: Config mode...
  • Page 70 Performing Basic Operations 890053-00-02 Name Description The function of the “MULTI” button is selected with parameter CNF-42. It can be used to register or delete parameters in the User group or can also be used for Time/Date display. Multi-function button configuration Displays one of the following operation states: STP: Stop...

  • Page 71: Lcd Display Modes

    Performing Basic Operations 890053-00-02 3.1.3 LCD Display Modes The H2 inverter uses 5 modes to monitor or configure various inverter functions. The majority of parameters are in the Parameter Mode (PAR Mode). The inverter boots up in the Monitor Mode (MON). The MON Mode can be configured to display data most important to the user.
  • Page 72 Performing Basic Operations 890053-00-02 3.1.3.1 Table of LCD Display Modes The following table describes the 5 display modes used to monitor and program the inverter functions. Refer to section 9 LCD Display Modes on page 279 for more detail on the LCD Display Modes. Mode Name Keypad Display Description...
  • Page 73 Performing Basic Operations 890053-00-02 3.1.3.2 Parameter Mode (PAR) The following table lists the groups of parameters in Parameter (PAR) mode. When in PAR mode, use the right and left arrow buttons to move through the groups of parameters. At the parameter level, you can set parameter values to turn specific functions on or off or decide how the functions will be used.

  • Page 74: Learning To Use The Keypad

    Performing Basic Operations 890053-00-02 3.2 Learning to Use the Keypad The keypad includes HAND, OFF and AUTO buttons that are described further. 3.2.1 HAND - OFF - AUTO Buttons Operation The inverter is operable only when it is in HAND or AUTO mode. HAND mode is for local control using the keypad, while AUTO mode is primarily for remote control via terminal strip or communications.
  • Page 75 Performing Basic Operations 890053-00-02 Changing DRV-06 (Cmd Source) to Keypad The AUTO button is now the start and stop command for the inverter. Pressing the AUTO button once puts the inverter in Ready mode (AUTO LED blinking). Pressing the AUTO button a second time, will start the inverter. •...

  • Page 76: Switching Operation Modes (Hand / Off / Auto)

    Performing Basic Operations 890053-00-02 3.2.2 Switching Operation Modes (HAND / OFF / AUTO) The H2 Series inverters have two operating modes–the HAND and AUTO modes. HAND mode is used for local control using the keypad. AUTO mode is used for remote operation using the terminal inputs or network commands.
  • Page 77 Performing Basic Operations 890053-00-02 3.2.2.3 Mode Buttons and LED Status Buttons / LED Description Used to enter the HAND operating mode and start the inverter. Used to enter the OFF mode (standby mode) or to reset faults. Used to enter the AUTO operating mode or to start and stop inverter operation in AUTO m od e .
  • Page 78 Performing Basic Operations 890053-00-02 3.2.2.4 Basic HAND / OFF / AUTO Mode Operations Mode Description In HAND mode, Start/Stop operation is available only by the keypad HAND and OFF buttons. The frequency reference is set at the Monitor mode, Line-1 and is displayed at all times.
  • Page 79 Performing Basic Operations 890053-00-02 3.2.2.5 Parameters related to HAND/OFF/AUTO Operation Modes Codes / Functions Description DRV-01 Frequency reference in AUTO mode when DRV-07 is set to’ KeyPad’. Cmd Frequency Rotation direction of the keypad start/run command in the HAND or AUTO mode.
  • Page 80 Performing Basic Operations 890053-00-02 3.2.2.6 Switching between the HAND/OFF/AUTO Modes Mode Description Press the HAND button in AUTO mode to switch to HAND mode. The inverter operates as follows based on the setting at DRV-26 (Hand Ref Mode). Settings Description The inverter operates based on the rotation Hand direction set at DRV-02 (Kepad Run Dir) and the...
  • Page 81 Performing Basic Operations 890053-00-02 Operation Mode at Power Recovery If a power interruption occurs during inverter operation in the OFF or HAND mode, the inverter stops the operation with low voltage fault. When the power is recovered, the inverter powers up in the OFF mode.

  • Page 82: Moving Among Lcd Display Modes

    Performing Basic Operations 890053-00-02 3.2.3 Moving among LCD Display Modes Pressing the MODE button will move through the various LCD display modes. 0.0Hz On power up, the LCD boots up in the monitor Frequency (MON) mode. 0.00 Hz 0.0 A •Press the MODE button once to move to the parameter (PAR) mode.

  • Page 83: Switching Parameter Groups In Parameter Mode (Par)

    Performing Basic Operations 890053-00-02 3.2.4 Switching Parameter Groups in Parameter Mode (PAR) After entering Parameter mode from Monitor mode, press the Right arrow button to move to the next parameter group. Press the Left arrow button to go back to the previous group. 0.0Hz On power up, the LCD boots up in the monitor Frequency...

  • Page 84: Viewing And Changing Parameter Values And Settings

    Performing Basic Operations 890053-00-02 3.2.5 Viewing and Changing Parameter Values and Settings 3.2.5.1 Changing Parameters with Numerical Values The following example shows how to view and change Accel Time (DRV-03). 0.0Hz On power up, the LCD boots up in the monitor Frequency (MON) mode.
  • Page 85 Performing Basic Operations 890053-00-02 3.2.5.2 Changing Parameters with Lists The following example shows how to view and change the command source (DRV-06). 0.0Hz On power up, the LCD boots up in the monitor Frequency (MON) mode. 0.00 Hz 0.0 A •Press the MODE button once to move to the parameter (PAR) mode.

  • Page 86: Navigating Parameters Using "Jump Codes

    Performing Basic Operations 890053-00-02 3.2.6 Navigating Parameters using “Jump Codes” The Jump Code feature allows moving directly to a specific parameter. The Jump Code is the first code/number of each mode. The Jump Code feature is convenient when navigating for a specific code/number in a function group that has many parameters.

  • Page 87: Setting The Monitor Mode Display Line Items

    Performing Basic Operations 890053-00-02 3.2.7 Setting the Monitor Mode Display Line Items In Monitor (MON) mode, 3 different line items are displayed. The items displayed on the LCD can be changed by the user. In HAND mode and in OFF mode, the first line item is permanently fixed as the frequency reference.

  • Page 88: Selecting The Status Bar Display Item

    Performing Basic Operations 890053-00-02 3.2.8 Selecting the Status Bar Display Item At the top-right corner of the LCD display’s status bar is another frequency item. This item refers to the frequency reference when the inverter stopped and the output frequency when the inverter is operating.

  • Page 89: Fault Monitoring

    Performing Basic Operations 890053-00-02 3.3 Fault Monitoring 3.3.1 Monitoring Faults during Inverter Operation The following example shows how to view fault information that occurred during inverter operation. TRP Current Over Voltage (01) When a fault occurs, the inverter enters the trip Output Frequency (TRP) mode and displays the active fault 36.00 Hz...

  • Page 90: Monitoring Multiple Faults

    Performing Basic Operations 890053-00-02 3.3.2 Monitoring Multiple Faults The following example shows how to monitor multiple faults that occur at the same time. 3.3.3 Viewing Fault History The fault history information can be viewed in the trip (TRP) mode. The inverter stores five (5) of the most recent faults.

  • Page 91: Parameter Initialization

    Performing Basic Operations 890053-00-02 3.4 Parameter Initialization The following example demonstrates how to reset all the parameter settings back to the factory default settings. Parameter initialization may be performed on individual parameter groups as well. NOTE: The MOT Group is not initialized. 0.0Hz 00 Jump Code 42 CODE...
  • Page 92 Performing Basic Operations 890053-00-02...

  • Page 93: Parameter Lists And Quick Reference

    Parameter Lists 890053-00-02 4 Parameter Lists and Quick Reference 4.1 Quick Reference Table Refer to the below table for a list of functions and a link to the parameter description pages. Groups Description Ref. DRV Group Move to DRV Group p.101 MOT Group Move to MOT Group...

  • Page 94: Parameter Lists

    Parameter Lists 890053-00-02 4.2 Parameter Lists Press the MODE button on the Keypad to move to the PAR Mode (upper left corner of LCD). Press the right and left arrow buttons to move through the parameter groups. The following tables list the parameter groups and all the parameters within each group. Set the parameters according to your operating requirements.
  • Page 95 Parameter Lists 890053-00-02 Code Name LCD Display Setting Range Initial value Ref. Property* Jog frequency Jog Frequency 0.00, Low Freq–High Freq 10.00 Jog acceleration time Jog Acc Time 0.0–600.0 (sec) 20.0 p.165 Jog deceleration time Jog Dec Time 0.0–600.0 (sec) 30.0 Manual Δ...

  • Page 96: Motor Group (Mot)

    Parameter Lists 890053-00-02 4.2.2 Motor Group (MOT) Code Name LCD Display Setting Range Initial value Property* Ref. Jump Code Jump Code 1–99 p.74 0.3HP (0.2 kW) 0.5HP (0.4 kW) 1.0HP (0.75 kW) 1.5HP (1.1 kW) 2.0HP (1.5 kW) 3.0HP (2.2 kW) 4.0HP (3.0 kW) 5.0HP (3.7 kW) 5.5HP (4.0 kW)

  • Page 97: Basic Group (Bas)

    Parameter Lists 890053-00-02 4.2.3 Basic Group (BAS) Code Name LCD Display Setting Range Initial value Property* Ref. Jump Code Jump Code 1-99 p.74 Keypad Fx/Rx-1 p.127 Fx/Rx-2 Δ Second command source Cmd 2nd Src Fx/Rx-1 Int 485 FieldBus Time Event p.176 Keypad-1 Keypad-2...
  • Page 98 Parameter Lists 890053-00-02 Code Name LCD Display Setting Range Initial value Ref. Property* Xcel Change 0.00-Maximum frequency Δ Acc/Dec time transition frequency 0.00 p.135 (Hz) Multi-step acceleration time1 Acc Time-1 0.0-600.0 (sec) 20.0 Multi-step deceleration time1 Dec Time-1 0.0-600.0 (sec) 20.0 Multi-step acceleration time2 Acc Time-2...

  • Page 99: Advanced Group (Adv)

    Parameter Lists 890053-00-02 4.2.4 Advanced Group (ADV) Code Name LCD Display Setting Range Initial value Property* Ref. Jump Code Jump Code 1-99 p.74 Linear Δ Acceleration pattern Acc Pattern Linear S-curve p.138 Linear Δ Deceleration pattern Dec Pattern Linear S-curve S-curve acceleration start Δ...
  • Page 100 Parameter Lists 890053-00-02 Code Name LCD Display Setting Range Initial value Ref. Property* Jump Hi 3 Jump frequency lower Jump frequency upper limit3 limit3- Maximum frequency 35.00 (Hz) Brake Open Current BR Rls Curr 0.0 - 180.0% 50.00 Brake Open Delay Time BR Rls Dly 0.0 - 10.0 (sec) 1.00...

  • Page 101: Control Group (Con)

    Parameter Lists 890053-00-02 4.2.5 Control Group (CON) Prop Code Name LCD Display Setting Range Initial value Ref. Jump Code Jump Code 1-99 p.74 240V: 7.5~25HP 1.0~15.0 480V: (kHz) 7.5~40HP 575V: 7.5~30HP 240V: 30~40HP 1.0~10.0 480V: (kHz) 50~75HP 575V: 40~75HP Carrier frequency Carrier Freq p.154 240V: 50-...
  • Page 102 Parameter Lists 890053-00-02 Prop Code Name LCD Display Setting Range Initial value Ref. PM speed estimator integral PM SpdEst Ki 2 0~300% 100% gain 2 PM D-axis back-EMF PM EdGain Perc 0~300% 100% estimated gain (%) PM Q-axis back-EMF PM EqGain Perc 0~300% 100% estimated gain (%)
  • Page 103 Parameter Lists 890053-00-02 Prop Code Name LCD Display Setting Range Initial value Ref. 150~800HP 130.0 575V only 240V, 480V: 130.0 7.5~125HP Δ Energy buffering stop level KEB Stop Lev CON-78 ~ 145.0 (%) 480V: 125.0 150~800HP 135.0 575V only 240V:7.5~40HP 480V: 7.5~800HP Energy buffering slip gain...

  • Page 104: Input Group (In)

    Parameter Lists 890053-00-02 4.2.6 Input Group (IN) Code Name LCD Display Setting Range Initial value Property* Ref. Jump Code Jump Code 1-99 p.74 p.108 Start Frequency - Maximum Maximum p.111 Frequency at maximum analog input Freq at 100% Freqency (Hz) Frequency p.113 p.115...
  • Page 105 Parameter Lists 890053-00-02 Code Name LCD Display Setting Range Initial value Ref. Property* Exchange p.170 Down p.171 U/D Clear Analog Hold p.173 I-Term Clear p.220 PID Openloop p.237 PID Gain2 p.220 PID Ref Change p.220 Pre Excite p.174 Timer In p.174 dis Aux Ref p.128...

  • Page 106: Output Group (Out)

    Parameter Lists 890053-00-02 4.2.7 Output Group (OUT) Code Name LCD Display Setting Range Initial value Property* Ref. Jump Jump Code 1-99 p.74 Code Frequency Output Current Output Voltage DCLink Voltage Output Power Analog AO1 Mode Target Freq Frequency p.179 output1 Ramp Freq PID Ref Value PID Fdb Value...
  • Page 107 Parameter Lists 890053-00-02 Code Name LCD Display Setting Range Initial value Ref. Property* Under Load Fan Warning Stall Over Voltage Low Voltage Over Heat Lost Command Stop Steady Inverter Line Comm Line Speed Search Ready Reserved Timer Out Trip p.183 Lost Keypad DB Warn%ED On/Off Control...
  • Page 108 Parameter Lists 890053-00-02 Code Name LCD Display Setting Range Initial value Ref. Property* Timer Off Timer Off Delay 0.00-100.00 (sec) 0.00 p.174 delay Detected FDT Frequency 0.00-Maximum frequency (Hz) 30.00 p.183 frequency Detected frequency FDT Band 0.00-Maximum frequency (Hz) 10.00 p.183 band Frequency...

  • Page 109: Protection Group (Prt)

    Parameter Lists 890053-00-02 4.2.8 Protection Group (PRT) Code Name Setting Range Initial Value Ref. Property* Display Jump Code Jump Code 1–99 p.74 Back Spin Timer Backspin Time 0.0 - 6000.0 (sec) p.191 Normal Duty Δ Load Duty Load Duty Normal Duty p.197 Heavy Duty 00–11...
  • Page 110 Parameter Lists 890053-00-02 Code Name Setting Range Initial Value Property* Ref. Display Thermal In Thermal sensor input Thermal In Src Thermal In p.201 Thermal sensor fault level Thermal-T Lev 0.0–100.0 (%) 50.0 p.201 Thermal sensor fault range Thermal-T Area p.201 High Motor overheat detection Thermal Monitor...
  • Page 111 Parameter Lists 890053-00-02 Code Name Setting Range Initial Value Property* Ref. Display PID Ref Value PID Fdb Value Output Level detect delay time LDT Dly Time 0–9999 (sec) p.214 Level detect standard set value LDT Level Source setting Source setting p.214 Level detect band width LDT Band width...
  • Page 112 Parameter Lists 890053-00-02...

  • Page 113: Parameter Descriptions

    Parameter Descriptions 890053-00-02 5 Parameter Descriptions 5.1 Drive Group (DRV) 5.1.1 DRV-01 Command Frequency The following parameters are related to HAND-OFF-AUTO button operation. Refer to section 3.2.1 for details. Codes / Functions Description DRV-01 Frequency reference in AUTO mode when DRV-07 is set to’ KeyPad’. Cmd Frequency Rotation direction of the keypad start/run command in the HAND or AUTO mode.

  • Page 114: Acceleration And Deceleration Times

    Parameter Descriptions 890053-00-02 5.1.2 DRV-03, DRV-04 Acceleration and Deceleration Times 5.1.2.1 Acc/Dec Time Based on Maximum Frequency Acc/Dec times are based on maximum frequency (BAS-08 set to ‘0, MaxFreq’). Acceleration time set at DRV-03 (Acceleration time) refers to the time required for the inverter to reach the maximum frequency from a stopped (0 Hz) state.
  • Page 115 Parameter Descriptions 890053-00-02 Use the time scale for all time-related values. It is particularly useful when a more accurate Acc/Dec times are required because of load characteristics, or when the maximum time range needs to be extended. BAS-09 Configuration Description Time scale 0.01 sec Sets 0.01 second as the minimum unit.

  • Page 116: Command Source Configuration (Start/Stop)

    Parameter Descriptions 890053-00-02 If Acc/Dec times are set to 5 seconds, and multiple frequency references BAS-08 are used in the operation in 2 steps, at 10 Hz and 30 Hz, each acceleration Ramp T Mode stage will take 5 seconds (refer to the graph below). 5.1.3 DRV-06 Command Source Configuration (Start/Stop) The H2 Series inverter provides several methods to Start and Stop the inverter.
  • Page 117 Parameter Descriptions 890053-00-02 5.1.3.2 Terminal Block as a Command Source (Fwd/Rev Run) Digital input terminals can be selected as the start/stop command source. Set DRV-06 (command source) to 1 (Fx/Rx-1). The default settings for terminals P1 and P2 are 1 (Fx) and 2 (Rx) respectively. Or set any (2) of the corresponding parameters (IN-65~IN-71) to 1 (Fx) and 2 (Rx).
  • Page 118 Parameter Descriptions 890053-00-02 Run Command and Fwd/Rev Command Using Multi-function Terminal – Setting Details Code Description DRV-06 Set to ‘2 (Fx/Rx-2)'. Cmd Source IN-65–71 Assign a terminal for run command (Fx). Px Define Assign a terminal for changing rotation direction (Rx). 5.1.3.4 RS-485 Communication as a Command Source Set DRV-06 (command source) in the to ‘3 (Int 485)’.

  • Page 119: Frequency Reference Source

    Parameter Descriptions 890053-00-02 5.1.4 DRV-07 Frequency Reference Source The H2 Series inverter provides several methods to setup and modify a frequency reference for operation. These include the keypad, analog inputs (V1, I2, V2 and TI) and RS-485 (digital signals from higher-level controllers, such as PC or PLC). Group Code Name...
  • Page 120 Parameter Descriptions 890053-00-02 5.1.4.3 IN-05 V1 Terminal as the Frequency Reference Source You can set and modify a frequency reference by applying voltage inputs to the V1 terminal. Use voltage inputs ranging from 0–10 V (unipolar) for forward only operation. Also, voltage inputs ranging from -10 to +10 V (bipolar) can be applied for both directions, where negative voltage inputs are used in reverse operations.
  • Page 121 Parameter Descriptions 890053-00-02 0–10 V Input Voltage Setting Details Code Description Configures the frequency reference at the maximum input voltage when a potentiometer is connected to the control terminal block. A frequency set with parameter IN-01 becomes the maximum frequency only if the value set in IN-01 parameter IN-11 (or IN-15) is 100 (%).
  • Page 122 Parameter Descriptions 890053-00-02 Code Description Inverts the direction of rotation. Set this parameter to ‘1 (Yes)’ if you need the IN-16 V1 Inverting motor to run in the opposite direction from the current rotation. Quantizing may be used when the noise level is high in the analog input signal.
  • Page 123 Parameter Descriptions 890053-00-02 5.1.4.3.2 IN-12 Setting a Frequency Reference for -10–+10V Input Set DRV-07 (Frequency reference source) to ‘2 (V1)’, and then set IN- 06 (V1 Polarity) to ‘1 (bipolar)’. Use the output voltage from an external source to provide a bipolar input to V1. V1 terminal wiring Parameter Group Code Name...
  • Page 124 Parameter Descriptions 890053-00-02 Rotational Directions for Different Voltage Inputs Command / Voltage Input Input voltage 0–+10 V -10–0 V Forward Reverse Reverse Forward -10–10 V Voltage Input Setting Details Code Description These parameters are used to set the slope and offset value of the output frequency based on a frequency reference with a negative input voltage.
  • Page 125 Parameter Descriptions 890053-00-02 5.1.4.4 IN-50 I2 Terminal as the Frequency Reference Source You can set and modify a frequency reference by applying inputs to the I2 terminal. Inputs can be 0(4)- 20mA or I2 can be used as a second voltage input (0-10VDC) based on the position of switch SW4. 5.1.4.4.1 Setting a Frequency Reference for 0(4) - 20mA Input You can modify the frequency reference using the I2 input terminal.
  • Page 126 Parameter Descriptions 890053-00-02 Configures the slope and off-set values of the output frequency based on a mA input at the I2 terminal. IN-53 I2 Curr x1 IN-54 I2 Perc y1 IN-55 I2 Curr x2 IN-56 I2 Perc y2 5.1.4.4.2 IN-35 Setting a Frequency Reference for 0-10V Input (I2 Terminal) You can modify the frequency reference using a voltage input at the I2 terminal.
  • Page 127 Parameter Descriptions 890053-00-02 5.1.4.5 IN-91 TI Terminal (Pulse) as the Frequency Reference Source You can modify the frequency reference using a pulsed frequency input at the TI terminal. Set DRV-07 (Frequency reference source) to ‘9 (Pulse)’ and apply a 0–32 kHz. input to TI. Scaling of the pulsed input is done with IN-93 ~ IN-96.
  • Page 128 Parameter Descriptions 890053-00-02 Configures the slope and offset values for the output frequency based on a pulse input at the TI terminal. IN-93 TI Pls x1 IN-94 TI Perc y1 IN-95 TI Pls x2 IN-96 TI Perc y2 IN-97 TI Inverting Identical to IN-16~17 (refer to 5.1.4.3.1 Setting a Frequency Reference IN-98 TI Quantizing for 0–10 V Input on page 108, V1 Inverting and V1 Quantizing.

  • Page 129: Control Mode

    Parameter Descriptions 890053-00-02 5.1.5 DRV-09 Control Mode 5.1.5.1 V/F Control The speed of an AC motor when powered by an inverter is controlled by a scalar method. The most common type of inverter control is referred to as V/F (or V/Hz). This ratio can be calculated by taking the rated output voltage of the inverter and dividing by the maximum frequency of the motor.

  • Page 130: Jog Frequency

    Parameter Descriptions 890053-00-02 Code Description Rated Curr Enter the measured no-load current at the rated frequency. If no-load MOT-06 current is difficult to measure, enter a current equivalent to 30–50% of Noload Curr the rated motor current. MOT-08 Enter the efficiency from the motor name plate. Efficiency For other DRV-09 control mode settings, refer to section 7 Sensorless Vector Control on page 239.
  • Page 131 Parameter Descriptions 890053-00-02 Manual Torque Boost Setting Details Code Description DRV-16 Fwd Boost Set torque boost for forward operation. DRV-17 Rev Boost Set torque boost for reverse operation. Too much torque boost can result in over-excitation and motor overheating. Over current faults may also occur.

  • Page 132: Start Frequency

    Parameter Descriptions 890053-00-02 5.1.8 DRV-19 Start Frequency The inverter output frequency can be limited by setting Start and Maximum frequencies. These include start frequency, maximum frequency, upper and lower frequency limits. Refer to 5.4.7 ADV-24 Frequency Limits - Upper/Lower Limit Frequency on page 147 for details on frequency limits. 5.1.8.1 Frequency Limit Using Max.

  • Page 133: Quickstart

    Parameter Descriptions 890053-00-02 5.1.11 DRV-31 Quick Start The inverter LCD boots up to the “Quick Start” menu on power up. The Quick Start menu contains basic parameter settings for control and protection of a standard induction motor. The default settings are used for a standard induction motor controlled with a linear (fixed) V/Hz. pattern with a base frequency of 60 Hz.

  • Page 134: Mot Group (Mot)

    Parameter Descriptions 890053-00-02 5.2 MOT Group (MOT) 5.2.1 MOT-01 Set the motor related parameters. Group Code Name LCD Display Parameter Setting Setting Range Unit Motor capacity Motor Capacity Varies 0-30 30.00–400.00 (Hz) Base Frequency Base Freq 60.00(Hz.) 40.00-120.00(Hz) IM S/L 30.00–180.00 (Hz) PM S/L2 Number of motor poles Pole Number 2-48...

  • Page 135: Trim Power

    Parameter Descriptions 890053-00-02 If MOT-07 (motor rated voltage) is set to ‘0’, the inverter corrects the output voltage based on the input voltage in the stopped condition. If the output frequency is higher than the base frequency and the input voltage is lower than the MOT-07 setting, the inverter will output a voltage based on the input voltage.

  • Page 136: Auto Tuning

    Parameter Descriptions 890053-00-02 5.2.5 MOT-11 Auto Tuning The motor parameters can be measured automatically and are used for auto torque boost or sensorless vector control. Example - Auto-Tuning Based on 7.5 HP (5.5kW), 230V, 60Hz, 4 Pole Motor Parameter Group Code Name LCD Display...
  • Page 137 Parameter Descriptions 890053-00-02 Stator Motor Rated No-load Rated Slip Leakage Resistance(Ω) Voltage Current(A) Current(A) Frequency(Hz) Inductance(mH) 12.1 0.94 9.62 16.3 1.33 0.52 8.53 23.2 0.36 4.48 0.25 3.38 18.5 0.168 2.457 44.5 12.5 0.168 2.844 60.5 16.9 0.1266 2.133 74.4 20.1 0.1014 1.704...
  • Page 138 Parameter Descriptions 890053-00-02 Auto Tuning Parameter Setting Details Code Description MOT-01 ~ Enter motor parameters prior to performing Auto Tuning. MOT-08 Select one of the auto tuning options and then press the [ENT] button to run the auto tuning. After Auto Tuning is complete, the parameter value will return to ‘0’. Setting Function None...

  • Page 139: Basic Group (Bas)

    Parameter Descriptions 890053-00-02 5.3 Basic Group (BAS) 5.3.1 BAS-01 2nd Operating Mode - 2 Source Second (2 ) Operating Mode is commonly referred to as Hand-Off-Auto switching or Local-Off- Remote switching. The inverter can be operated (Start/Stop and Reference Frequency) by two different operating modes and switch between them as required.

  • Page 140: Operating With Auxiliary References

    Parameter Descriptions 890053-00-02 5.3.2 BAS-03 Operating with Auxiliary References Frequency references can be configured with various calculated conditions that use the main frequency reference and an auxiliary frequency reference simultaneously. The main frequency reference (DRV-06) is used as the operating frequency, while the auxiliary reference is used to modify and fine-tune the main reference.
  • Page 141 Parameter Descriptions 890053-00-02 Code Description BAS-05 Adjust the gain of the auxiliary reference source selected in BAS-03 (Aux Ref Src). Aux Ref Gain Set one of the multi-function (digital) input terminals to 31 (dis Aux Ref) and activate it to IN-65–71 disable the auxiliary frequency reference.
  • Page 142 Parameter Descriptions 890053-00-02 Auxiliary Reference Operation Example #2 • Keypad Frequency Setting is Main Frequency and I2 Analog Voltage is Auxiliary Frequency • Main frequency: Keypad (Operation frequency 30Hz) • Maximum frequency setting (DRV-20): 400Hz • Auxiliary frequency setting (BAS-03): I2 [Display by percentage(%) or auxiliary frequency(Hz) depending on the operation setting condition] •...

  • Page 143: V/F (Voltage/Frequency) Control

    Parameter Descriptions 890053-00-02 M[Hz]+{M[Hz]*(G[%]*A[%])} 30Hz(M)+{30[Hz]x(50%(G)x40%(A))}=36Hz M[Hz]+G[%]*2*(A[%]-50[%])[Hz] 30Hz(M)+50%(G)x2x(40%(A)–50%)x60Hz=24Hz M[HZ]*{G[%]*2*(A[%]-50[%])} 30Hz(M)x{50%(G)x2x(40%(A)–50%)}=-3Hz(Reverse) M[HZ]/{G[%]*2*(A[%]-50[%])} 30Hz(M)/{50%(G)x2x(60%–40%)}=-300Hz(Reverse) M[HZ]+M[HZ]*G[%]*2*(A[%]-50[%]) 30Hz(M)+30Hz(M)x50%(G)x2x(40%(A)–50%)=27Hz • *M: main frequency reference (Hz or rpm) • G: auxiliary reference gain (%) • A: auxiliary frequency reference (Hz or rpm) or gain (%). • **If the frequency setting is changed to rpm, it is converted to rpm instead of Hz. Note When the maximum frequency value is high, output frequency deviation may result due to analog input variation and deviations in the calculations.
  • Page 144 Parameter Descriptions 890053-00-02 5.3.3.2 Square Reduction V/F Pattern Operation Square reduction V/F pattern is ideal for variable torque loads such as fans and pumps that do not require high torque at frequencies lower than the base frequency. The inverter provides a non- linear V/F acceleration and deceleration pattern to sustain enough torque throughout the speed range.
  • Page 145 Parameter Descriptions 890053-00-02 5.3.3.3 User V/F Pattern Operation The H2 Series inverter allows the configuration of a user-defined V/F pattern to suit unique load characteristics of motors. Parameter Group Code Name LCD Display Setting Range Unit Setting V/F pattern V/F Pattern 2 User V/F 0–3 0–Maximum...
  • Page 146 Parameter Descriptions 890053-00-02 5.3.3.4 BAS-50 Multi-step Frequencies (Fixed Speed Inputs) Multi-step operations (Fixed Speed Inputs) can be assigned to the Px terminals. Seven steps (1 through 7) can be configured using (3) digital input terminals. Step 0 uses the frequency reference source set with DRV-07.
  • Page 147 Parameter Descriptions 890053-00-02 Set a time interval for the inverter to check for additional terminal block IN-89 inputs after receiving an input signal. InCheck Time After adjusting IN-89 to 100 ms and an input signal is received at P6, the inverter will search for inputs at other terminals for 100 ms, before proceeding to accelerate or decelerate based on the configuration at P6.
  • Page 148 Parameter Descriptions 890053-00-02 5.3.3.6 BAS-70 Multi-step Acc/Dec Time Configuration Digital input terminals can be configured for different Acc and Dec times. Up to 7 acceleration times and 7 deceleration times can be set. Choose (up to 3) digital input terminals (P1 ~ P7) and set the corresponding parameters (IN-65~IN-71) to 11 (XCEL-L), 12 (XCEL-M) and 13 (XCEL-H).
  • Page 149 Parameter Descriptions 890053-00-02 Acc/Dec Time Setup via Multi-function Terminals – Setting Details Code Description BAS-70–82 Set multi-step acceleration time1–7. Acc Time 1–7 BAS-71–83 Set multi-step deceleration time1–7. Dec Time 1–7 Choose and configure the terminals to use for multi-step Acc/Dec time inputs Configuration Description...

  • Page 150: Advance Group (Adv)

    Parameter Descriptions 890053-00-02 5.4 Advance Group (ADV) 5.4.1 ADV-01 Acc/Dec Pattern Configuration A Linear Accel and Decel pattern features a linear increase (and decrease) of the output frequency at a fixed rate. An S-curve pattern provides a smoother and more gradual increase (and/or decrease) of output frequency.
  • Page 151 Parameter Descriptions 890053-00-02 Note The Actual Acc/Dec time during an S-curve application The actual Acc/Dec times become greater than user defined Acc/Dec times when S-curve Acc/Dec patterns are applied. Example: The Actual Acc/Dec time during an S-curve application. Actual acceleration time = DRV-03 + (DRV-03 x ADV-03/2) + (DRV-03 x ADV-04/2) Settings: DRV-03 = 10 secs., ADV-03 = 50%, ADV-04 = 50% Actual acceleration time = 10 + (10 x .5/2) + (10 x .5/2) = 15 secs.

  • Page 152: Start Mode Setting

    Parameter Descriptions 890053-00-02 5.4.2 ADV-07 Start Mode Setting Select the start mode to use when a run command is applied with the motor in the stopped condition. Select 0 (Acceleration Start) or 1 (DC Brake Start). Excitation current (Pre-Excite) can also be applied by activating a digital input.

  • Page 153: Stop Mode Setting

    Parameter Descriptions 890053-00-02 5.4.3 ADV-08 Stop Mode Setting Select a stop mode to stop the inverter operation. Select from 0 (deceleration), 1 (DC Brake), 2 (Free-Run (coast)) or 4 (Power Braking). 5.4.3.1 Deceleration Stop Deceleration stop is a typical stop mode used when stopping a motor. If there are no other settings applied, the inverter decelerates the motor from the reference frequency down to 0 Hz and stops.
  • Page 154 Parameter Descriptions 890053-00-02 Code Description Set a delay time after the inverter output turns off and before applying DC braking. If the inertia of the load is high, or if DC braking frequency (ADV-17) is ADV-14 set too high, a fault may occur due to overcurrent conditions when the inverter DC-Block Time supplies DC voltage to the motor.

  • Page 155: Forward Or Reverse Run Prevention

    Parameter Descriptions 890053-00-02 5.4.3.4 Power Braking Power Braking is applied during deceleration when the inverter’s DC voltage rises above a specified level due to motor regenerated energy. The inverter determines the optimum deceleration rate and will either adjust the deceleration rate or will reaccelerate the motor in order to reduce the regenerated energy.

  • Page 156: Power-On Run

    Parameter Descriptions 890053-00-02 5.4.5 ADV-10 Power-on Run The inverter can be set to start operating (output power to the motor) as soon as the inverter powers up or with some delay time. See caution below. If DRV-06 is set to Keypad, Power-on Run does not function.
  • Page 157 Parameter Descriptions 890053-00-02 Note • Power on Run and Speed Search - If the speed search is not enabled, the inverter will start its operation in a normal V/F pattern and accelerate the motor. A fault may be triggered if the inverter starts operating while the load is still rotating. To prevent faults with Power-on Run, enable speed search.

  • Page 158: Dwell Operation

    Parameter Descriptions 890053-00-02 5.4.6 ADV-20 Dwell Operation The dwell operation is used to maintain speed (torque) at programmed frequencies during the acceleration and deceleration process. This function is used in the application and release of the mechanical brakes on lift-type loads (elevators). Inverter dwell operation is based on the Acc/Dec dwell frequency (ADV-20, ADV-22) and the dwell time (ADV-21, ADV-23) set by the user.

  • Page 159: Frequency Limits - Upper/Lower Limit Frequency

    Parameter Descriptions 890053-00-02 Note Dwell operation does not function when: • Dwell operation time is set to 0 sec. • Re-acceleration is attempted from stop or from a deceleration. Only the first acceleration dwell operation is valid through the complete process. [Acceleration dwell operation] Deceleration dwell operation is carried out only when a stop command is issued, and the decelerating frequency passes through the dwell frequency.

  • Page 160: Frequency Jump

    Parameter Descriptions 890053-00-02 When ADV-24 (Freq Limit) is set to ‘Yes,’ the frequency set at ADV-25 (Freq Limit Lo) is the minimum frequency (Low Freq). If ADV-24 (Freq Limit) is set to ‘No,’ the frequency set at DRV-19 (Start Freq) becomes the minimum frequency. When ADV-24 (Freq Limit) is set to ‘Yes,’...

  • Page 161: Brake Control

    Parameter Descriptions 890053-00-02 Jump frequency lower Jump frequency Jump Hi 2 25.00 limit 2–Maximum upper limit 2 frequency Jump frequency 0.00–Jump frequency Jump Lo 3 30.00 lower limit 3 upper limit 3 Jump frequency lower Jump frequency Jump Hi 3 35.00 limit 3–Maximum upper limit 3...
  • Page 162 Parameter Descriptions 890053-00-02 Brake release sequence: When a run command is applied, the inverter accelerates up to brake release frequency (ADV-44 Forward or ADV-45 Reverse). After reaching the brake release frequency, when the motor current reaches brake release current (ADV-41 BR Rls Curr), the output (OUT-31~35 or OUT-36) set to 35 (BR Control) sends a release signal.

  • Page 163: Energy Saving Operation

    Parameter Descriptions 890053-00-02 5.4.10 ADV-50 Energy Saving Operation 5.4.10.1 Manual Energy Saving Operation If the inverter output current is lower than the current which is set at MOT-05 (Motor Rated Curr), the output voltage is reduced by the percentage set in ADV-51 (Energy Save). The voltage before the energy saving operation starts will become the base value of the percentage.

  • Page 164: Cooling Fan Control

    Parameter Descriptions 890053-00-02 5.4.11 ADV-64 Cooling Fan Control This function controls the operation of the inverter’s heat-sink cooling fan. It is used in situations with frequent starting and stopping, or noise free environment is required. The correct use of cooling fan control can extend the life of the cooling fan. Parameter Setting Group Code...

  • Page 165: Press Regeneration Prevention

    Parameter Descriptions 890053-00-02 5.4.12 ADV-74 Press Regeneration Prevention Press regeneration prevention is used during press operations to prevent braking during the regeneration process. When motor regeneration occurs during a press operation, motor operation speed automatically increases to avoid the regeneration zone. Parameter Group Code...

  • Page 166: Control Group (Con)

    Parameter Descriptions 890053-00-02 5.5 Control Group (CON) 5.5.1 CON-04 Carrier Frequency Settings Group Code Name LCD Display Parameter Setting Setting Range 240V: 7.5~25HP 1.0~15.0 480V: 7.5~40HP (kHz) 575V: 7.5~30HP 240V: 30~40HP 1.0~10.0 480V: 50~75HP (kHz) 575V: 40~75HP 240V: 50~60HP Carrier Frequency Carrier Freq 1.0~7.0 480V: 100~125HP (kHz)

  • Page 167: Anti-Hunting Regulation (Resonance Prevention)

    Parameter Descriptions 890053-00-02 5.5.2 CON-13 Anti-hunting Regulation (Resonance Prevention) This function is used to prevent the hunting of a V/F controlled fan or motor caused by current distortion or oscillations due to mechanical resonance or other reasons. Parameter Group Code Name LCD Display Setting Range...

  • Page 168: Speed Search Operation

    Parameter Descriptions 890053-00-02 5.5.3 CON-70 Speed Search Operation Speed Search is used to start the inverter while the motor/load are already spinning (idling). Speed Search synchronizes the inverter output (voltage and frequency) to that of the spinning motor. This is accomplished by ramping up the output voltage then ramping down the output frequency.
  • Page 169 Parameter Descriptions 890053-00-02 Speed Search Operation Setting Details Code Description Select a speed search type. Setting Function Flying The speed search is carried out as it controls the inverter Start-1 output current during idling below the CON-72 (SS Sup- Current) parameter setting. Use when the direction of the idling motor and the direction of operation command at restart are the same.
  • Page 170 Parameter Descriptions 890053-00-02 Code Description internal power shuts down, the speed search operation accelerates the motor back to its frequency reference before the low voltage trip. If the current increases above the value set at CON-72, the voltage stops increasing and the frequency decreases (t1 zone). If the current decreases below the value set at CON-72, the voltage increases again and the frequency stops decelerating (t2 zone).

  • Page 171: Kinetic Energy Buffering Operation

    Parameter Descriptions 890053-00-02 5.5.4 CON-77 Kinetic Energy Buffering Operation When the input power is disconnected, the inverter’s DC bus voltage decreases, and a low voltage trip occurs blocking the output. Kinetic energy buffering operation can be used to decelerate the motor safely under these conditions. The inverter uses regenerative energy from the motor during the power outage to maintain the DC bus voltage.
  • Page 172 Parameter Descriptions 890053-00-02 Kinetic Energy Buffering Operation Setting Details Code Description Select the kinetic energy buffering operation when the input power is disconnected. When KEB Select is selected, it controls the inverter's output frequency and charges the DC bus with regenerative energy from the motor.

  • Page 173: Input Group (In)

    Parameter Descriptions 890053-00-02 5.6 Input Group (IN) 5.6.1 Analog Inputs Refer to 5.1.4 on page 107 for parameters related to the DRV-07 Frequency Reference Source analog inputs. Terminal Range Parameters Section 0-10V IN-05~IN-11 5.1.4.3 0- (-10)V IN-12~IN-15 5.1.4.3.2 4-20mA IN-50~IN-56 5.1.4.4 I2(V2) 0-10V...
  • Page 174 Parameter Descriptions 890053-00-02 Safe Operation Mode Setting Details Code Description IN-65~71 Set one of the multi-function (digital) input terminals to 15 (RUN Enable) Px Define to operate in safe operation mode. Setting Function Enables safe operation mode. Input must be IN-60 Always Enable closed (Enabled) to operate.

  • Page 175: Digital Inputs

    Parameter Descriptions 890053-00-02 5.6.3 Digital Inputs The digital input terminals (P1 ~ P7) can be set to a variety of functions. The following table shows the default settings of parameters IN-65 ~ IN-71. Code Name LCD Display Setting IN-65 P1 terminal configuration P1 Define 1 Fx IN-66 P2 terminal configuration P2 Define...

  • Page 176: Digital Input Descriptions

    Parameter Descriptions 890053-00-02 5.6.4 Digital Input Descriptions 5.6.4.1 Fx, Rx (Forward, Reverse) Command Input Group Code Name LCD Display Parameter Setting Setting range Unit 1 Fx Px terminal setting Px Define 65~71 0-43 options (Px: P1–P7) 2 Rx Assign a terminal for forward ‘1 (Fx)’ operation. Assign a terminal for reverse ‘2 (Rx)’ operation. Refer to 5.1.3.2 Terminal Block as a Command Source (Fwd/Rev Run) on page 105 for additional details.
  • Page 177 Parameter Descriptions 890053-00-02 [External Trip] 5.6.4.4 BX, Output Block Set one of the digital input terminals (P1 ~ P7) to ‘5 (BX)’. When activated, the inverter output is blocked, and operation stops. The LCD displays ‘BX”. The “HAND” button is also disabled. The BX input is not a latched fault.
  • Page 178 Parameter Descriptions 890053-00-02 Parameter Setting Group Code Name LCD Display Unit Setting Range 0.50- Jog frequency 10.00 Maximum Frequency frequency Jog operation JOG Acc Time 20.00 0.00-600.00 acceleration time Jog operation JOG Dec Time 30.00 0.00-600.00 deceleration time Px terminal Px Define 65~71 0-42...
  • Page 179 Parameter Descriptions 890053-00-02 5.6.4.5.2 Jog Operation 2-Fwd/Rev Jog by Multi-function Terminal A terminal that is set for ‘32 (FWD JOG)’ or ’33 (REV JOG)’ also starts the inverter. The table below lists parameter settings for a forward (or reverse) jog operation. A separate Run (Fx) command is not required.

  • Page 180: Multi-Step Frequencies, Speed-L, Speed-M, Speed-H

    Parameter Descriptions 890053-00-02 5.6.5 Multi-Step Frequencies, Speed-L, Speed-M, Speed-H Multi-step operations (Fixed Speed Inputs) can be assigned to the Px terminals. Seven steps (1 through 7) can be configured using (3) digital input terminals. Refer to section 5.3.3.4, BAS-50 Multi- step Frequencies (Fixed Speed Inputs) for more details.

  • Page 181: 3-Wire

    Parameter Descriptions 890053-00-02 5.6.9 3-Wire 3-wire operation is used to latch the run command input signal (FWD or REV) when using a momentary contact input. This configuration is commonly used to operate the inverter with a set of momentary push buttons. Group Code Name...

  • Page 182: Exchange

    Parameter Descriptions 890053-00-02 5.6.11 Exchange Power Source Transition can be used to switch the power source to the motor from the inverter output to the main supply power source (commercial power source), and vice versa. Parameter Group Code Name LCD Display Setting Range Unit Setting Px terminal...

  • Page 183: Up-Down Operation

    Parameter Descriptions 890053-00-02 5.6.12 Up-Down Operation The inverter can control the speed of the motor using digital inputs set to the Up and Down functions. The Up/Down operation can be applied to systems that use upper-lower limit switches. Two digital inputs are required. One set to Up (increase speed) and one set to Down (decrease speed) operation.
  • Page 184 Parameter Descriptions 890053-00-02 Code Description IN-59 Up/Down Save Mode: No IN-59 Up/Down Save Mode: Yes IN-59 U/D Save Mode • When the inverter resumes normal operation from: • Run command applied • Power Up with Run command • Fault Reset with Auto Re-Start •...

  • Page 185: Frequency Hold By Analog Input

    Parameter Descriptions 890053-00-02 5.6.13 Frequency Hold by Analog Input When using an analog input as the frequency reference, you can apply a hold of the inverter output frequency by applying a digital input any point even though the analog input continues to change. Set a digital input to ‘23 (Analog Hold)’.

  • Page 186: Pid Pgain2

    Parameter Descriptions 890053-00-02 5.6.16 PID PGain2 When operating in PI Control mode, a digital input can be set to ‘26 (PID Gain2)’. When activated, the inverter switches from the PID PGain1 setting to the PID PGain2 setting. Refer to section 6 PID Control Group (PID) for more details.

  • Page 187: Dis Aux Ref

    Parameter Descriptions 890053-00-02 Timer Setting Details Code Description IN-65–71 Choose one of the digital input terminals and set it to 29 (Timer In). Activate the terminal to start the timer function. Px Define OUT-31 ~ 35 Set multi-function output terminals to be used as the timer output to 22 Relay1~Relay5, (Timer out).

  • Page 188: Time Event En

    Parameter Descriptions 890053-00-02 5.6.23 Time Event En A digital input can be set to ’35 (Time Event En)’. When activated, the scheduling set in the Event Timer of Application Group 3 (AP3) is performed. Refer to 8.2 Application Group 3 (AP3) on page 269 for details on the Event Timer.

  • Page 189: Pid Step Ref L, Pid Step Ref M, Pid Step Ref H

    Parameter Descriptions 890053-00-02 5.6.28 PID Step Ref L, PID Step Ref M, PID Step Ref H Three digital inputs can provide up to 7 different Step References (setpoints). Refer to section 6 PID Control Group (PID) on page 220 for more details. Group Code Name LCD Display...
  • Page 190 Parameter Descriptions 890053-00-02 Multi-function Input Terminal Control Setting Details Code Description Each input terminal (P1~P9) can be set to function with an On Delay and/or an Off Delay. Apply an “On Delay” function for selected terminals with IN-83. Apply an “Off Delay” function for selected terminals with IN-84.

  • Page 191: Output Group (Out)

    Parameter Descriptions 890053-00-02 5.7 Output Group (OUT) 5.7.1 OUT-01, OUT-07 Analog Outputs Each of the analog output terminals (AO1, AO2) can represent one of a variety of functions. AO1 is switchable (SW5 on IO TB PCB) between 0/4-20mA or 0-10V outputs. AO2 is 0-10V output only.
  • Page 192 Parameter Descriptions 890053-00-02 Code Description Outputs frequency calculated with Acc/Dec function Ramp Freq as a standard. May vary with actual output frequency. Outputs 10V. PID Ref Outputs command value of a PID controller as a Value standard. Outputs approximately 6.6V at 100%. PID Fdk Outputs feedback amount of a PID controller as a Value...
  • Page 193 Parameter Descriptions 890053-00-02 Note AO1 Current Output Tuning Mode on 4–20mA output, OUT-02 (AO1 Gain) and OUT-03 (AO1 Bias) Bias Tuning Set OUT-01 (AO1 Mode) to constant and set OUT-05 (AO1 Const %) to 0.0 %. Set OUT-03 (AO1 Bias) to 20.0% and then check current output. 4mA output should be displayed. If the value is less than 4mA, gradually increase OUT-03 (AO1 Bias) until 4mA is measured.
  • Page 194 Parameter Descriptions 890053-00-02 Analog Pulse Output Setting Details Code Description Pulse output TO and multi-function output Q1 share the same terminal. Set OUT-36 to ‘38’, TO for a 0-32kHz pulsed output at Q1 terminal. OUT-36 Q1 Define When connecting the pulse signal between the inverters, connect pulse output (Q1/TO-EG) to pulse input (TI-CM) directly.

  • Page 195: Digital Outputs

    Parameter Descriptions 890053-00-02 5.7.2 OUT-31 Digital Outputs Multi-function Output Terminals (Relay1 ~ Relay5 and Q1) Settings Setting Group Code Name LCD Display Parameter Setting Unit Range Trip Out Fault output item 000-111 Mode Multi-function Relay 1 Trip 0-43 relay1 setting Multi-function Relay 2 0-43...
  • Page 196 Parameter Descriptions 890053-00-02 Multi-function Output Terminal and Relay Setting Details Code Description OUT-31 Relay1 Select Relay 1 ~ Relay 5 output functions. OUT-35 Relay5 OUT-36 Select terminal (Q1) output options. Q1 is open collector TR output. Define Set output functions. Setting Function None...
  • Page 197 Parameter Descriptions 890053-00-02 Code Description FDT-4 Relay changes state based on separate conditions for acceleration and deceleration. In acceleration: Operation frequency≧ Detected frequency deceleration: Operation frequency>(Detected frequency–Detected frequency width/2) Example: Detection frequency (OUT-57) is 30 Hz. Frequency bandwidth (OUT-58) is 10 Hz. During acceleration, relay changes state when output frequency reaches detection frequency.
  • Page 198 Parameter Descriptions 890053-00-02 Code Description Stop Relay changes state when a stop command is applied and when there is no inverter output voltage. Steady Relay changes state during steady state operation. Inverter line Used in combination with “Comm Line” function. Relay maintains state while the motor is driven by the inverter output.

  • Page 199: Digital Output Status

    Parameter Descriptions 890053-00-02 • FDT-1 and FDT-2 functions are related to the frequency setting of the inverter. If the inverter enters standby mode by pressing the off button during auto mode operation, FDT-1 and FDT-2 function operation may be different because the set frequency of the inverter is different compared to the set frequency of the auto mode.
  • Page 200 Parameter Descriptions 890053-00-02 Fault Output by Multi-function Output Terminal and Relay - Setting Details Code Description Setting Function Bit2 Bit1 Bit0 ✓ Operates when low voltage faults occur Operates when faults other than low voltage ✓ occur Operates when auto restart fails (PRT-08, ✓...

  • Page 201: Multi-Function Output Terminal Delay Time Settings

    Parameter Descriptions 890053-00-02 5.7.5 OUT-50 Multi-function Output Terminal Delay Time Settings Set On/Off delay times to adjust the relay operation time. The delay times set in OUT-50 and OUT-51 will be applied to all Relays (1~5) and Q1 except when any are set to ‘23 (Trip)’. Additionally, a NO or NC setting can be individually applied to the outputs.

  • Page 202: Relay Output On/Off Control

    Parameter Descriptions 890053-00-02 5.7.6 OUT-67 Relay Output On/Off Control This feature operates a digital output (Relay1~Relay5 or Q1) based on the analog input level. Set the On level (OUT-68) to activate the output and the Off level (OUT-69) to deactivate the output. Parameter Group Code Name...

  • Page 203: Protection Group (Prt)

    Parameter Descriptions 890053-00-02 5.8 Protection Group (PRT) Protection features provided by the H2 Series inverter include both motor and inverter protections. Motor Protection - Overload, Underload, Over Heat (ETH), Stall Prevention, etc. Inverter Protection - Open Phase, Inverter Overload, Fan Fault, etc. 5.8.1 PRT-01 Backspin Timer The Backspin Timer is used to prevent starting for a specified time.

  • Page 204: Phase Loss Protection

    Parameter Descriptions 890053-00-02 5.8.2 PRT-05 Phase Loss Protection 5.8.2.1 Open Phase Protection Open-phase monitoring and protection can be set for both the input and output of the inverter. The protection is used to prevent overcurrent levels at the inverter output due to an open phase. An open phase at output may cause the motor to stall due to a lack of torque.
  • Page 205 Parameter Descriptions 890053-00-02 Automatic Reset and Restart - Setting details Code Description LCD bit representation in parameter view. When the top segment is black, bit is set to "ON". Item Bit Status (On) Bit Status (Off) LCD Display Reset Restart function Setting Function Bit 1...
  • Page 206 Parameter Descriptions 890053-00-02 [Example of auto restart with PRT-09 setting of 2] Normally when a fault occurs, the inverter cuts off the output and the motor will free run. Another fault may be triggered if the inverter begins its operation while motor load is in a free-run state. Note •...

  • Page 207: Keypad Loss And Speed Reference Loss

    Parameter Descriptions 890053-00-02 5.8.4 PRT-11 Keypad Loss and Speed Reference Loss When setting operating speed using an analog input, a pulsed input, through communications or the keypad, the inverter can detect a keypad loss (PRT-11) and/or a speed reference loss based on the settings of the following parameters.
  • Page 208 Parameter Descriptions 890053-00-02 10 seconds before the loss of the speed reference and uses it as the speed reference. The inverter calculates the average output value for 4 Hold Output 10 seconds before the loss of the speed reference and uses it as the speed reference.

  • Page 209: Overload Trip And Early Warning

    Parameter Descriptions 890053-00-02 5.8.5 PRT-17 Overload Trip and Early Warning The inverter provides motor overload protection and will trip on an Overload Fault based on amount of current (% motor amps) and time. The inverter responds to an overload fault based on the setting of parameter PRT-20 (OL Trip Select).
  • Page 210 Parameter Descriptions 890053-00-02 Overload Early Warning and Trip Setting Details Code Description Select the Overload Level. Setting Function Used in light loads like fans and pumps (overload Normal PRT-04 tolerance: 110%/120% of rated underload current for 1 Duty Load Duty minute).

  • Page 211: Under Load Fault And Warning

    Parameter Descriptions 890053-00-02 5.8.5.1 Inverter Overload Protection (IOLT) and Warning In addition to motor overload settings, the inverter has built in inverter overload protection. When the inverter output current exceeds the rated current, a protective function is activated to prevent damage to the inverter.

  • Page 212: No Motor Trip

    Parameter Descriptions 890053-00-02 PRT-26 A protective function operates when under load level condition explained UL Warn Time above is maintained for the warning time set. Sets the inverter operation mode for situations when an under-load trip occurs. If set to ‘1 (Free-Run)’, the output is blocked in an under-load fault PRT-27 event.

  • Page 213: Motor Over Heat Sensor

    Parameter Descriptions 890053-00-02 5.8.8 PRT-34 Motor Over Heat Sensor A motor thermistor (PTC) can be connected to the inverter to monitor and protect the motor. The source of current through the PTC can be provided by the 20mA output (AO1) of the inverter. The voltage from the PTC can be applied to the inverter input terminals V1 or I2 (set as V2).
  • Page 214 Parameter Descriptions 890053-00-02 Connections of a motor thermistor (PTC sensor). When the AO1 (analog output) terminal is connected to the PTC thermistor (temperature sensor installed in a motor), the inverter supplies constant current to the temperature sensor. Connect the PTC signal wire (voltage) to one of the inverter’s analog input terminals. This allows the inverter to detect the changes in the PTC resistance and translates it into voltage.

  • Page 215: Electronic Thermal Prevention (Eth)

    Parameter Descriptions 890053-00-02 5.8.9 PRT-40 Electronic Thermal Prevention (ETH) ETH is an electronic thermal protective function that uses the output current and the speed of the motor to predict a rise in motor temperature without a separate temperature sensor. Protection of the motor is based on current, time and speed.
  • Page 216 Parameter Descriptions 890053-00-02 The 1 minute trip level. The amount of current that can be continuously PRT-42 supplied to the motor for 1 minute, Percentage is based on the motor-rated ETH 1 min current (MOT-05). Sets the amount of continuous rated current (including service factor) with the ETH function activated.

  • Page 217: Fire Mode

    Parameter Descriptions 890053-00-02 5.8.10 PRT-44 Fire Mode Fire Mode operation is for use in emergency situations. When enabled, Fire Mode allows the inverter to provide continuous operation ignoring most faults. Primarily used for fire pump operation but can be applied when continuous operation is required due to emergencies. When enabled, Fire Mode forces the inverter to ignore all minor faults and repeats a Reset/Restart of major faults, regardless of the Reset/Restart count limit.
  • Page 218 Parameter Descriptions 890053-00-02 Code Description mode does not increase the count value at PRT-48 (Fire Mode Cnt). PRT-46 Sets the run direction for Fire mode operation. Fire Mode Dir PRT-47 Sets the operation frequency for Fire mode. Fire Mode Freq Counts the number of the Fire mode operations.

  • Page 219: Stall Prevention And Flux Braking

    Parameter Descriptions 890053-00-02 5.8.11 PRT-50 Stall Prevention and Flux Braking The stall prevention function is a protective function that prevents motor stall caused by overloads. When high currents are sensed during acceleration and/or constant speed, the output frequency is decreased automatically to reduce current. Also, during deceleration, as the DC bus voltage increases, the deceleration time is extended.
  • Page 220 Parameter Descriptions 890053-00-02 Stall Prevention Function and Flux Braking Setting Details Code Description Stall prevention can be configured for acceleration, deceleration, or while operating a motor at constant speed. Setting Function Bit 3 Bit 2 Bit 1 Bit 0 ✓ Stall protection during acceleration Stall protection while operating at a ✓...
  • Page 221 Parameter Descriptions 890053-00-02 PRT-51 Additional stall protection levels can be configured for different frequencies, Stall Freq 1 ~ based on the load type. As shown in the graph below, the stall level can be set above the base frequency. The lower and upper limits are set using numbers PRT-58 that correspond in ascending order.
  • Page 222 Parameter Descriptions 890053-00-02 Use caution when decelerating while using stall protection since the deceleration time can take longer than the time set, depending on the load. Acceleration stops when stall protection operates. This may make the actual acceleration time longer than the preset acceleration time. When the motor is operating, Stall Level 1 applies and determines the operation of stall protection.

  • Page 223: Pipe Break Detection

    Parameter Descriptions 890053-00-02 5.8.12 PRT-60 Pipe Break Detection This function detects Pipe Breaks during PID operation. The fault or a warning signal will occur if the feedback does not reach the level set by users during the operation with the maximum output (PID maximum output or the maximum speed set).

  • Page 224: Dynamic Braking (Db) Resistor Configuration

    Parameter Descriptions 890053-00-02 5.8.13 PRT-66 Dynamic Braking (DB) Resistor Configuration 240V, 30 HP and larger inverters 480V, 50 HP and larger inverters 575V, 30 HP and larger inverters The above require both an external Dynamic Brake Unit (DBU) and Dynamic Brake Resistor (DBR).
  • Page 225 Parameter Descriptions 890053-00-02 Dynamic Breaking Resistor Setting Details Code Description Set the braking resistor configuration (%ED: Enable Duty). The braking resistor configuration sets the rate at which the braking resistor operates for one operation cycle. The maximum time for continuous braking is 15 sec and the braking resistor signal is not output from the inverter after the 15 sec period elapses.

  • Page 226: Level Detection

    Parameter Descriptions 890053-00-02 5.8.14 PRT-70 Level Detection When the inverter is operating at or above the frequency set at PRT-74 (LDT Level), this function is used to trigger a fault or set a relay output if the source value is out of the range of the user- defined values.
  • Page 227 Parameter Descriptions 890053-00-02 Code Description 1 DC Link Voltage Sets the DC link voltage as the source. 2 Output Voltage Sets the output voltage as the source. 3 kW Sets the output power as the source. 4 hp Sets the output power as the source. 5 V1 Sets the V1 terminal input as the source.
  • Page 228 Parameter Descriptions 890053-00-02 Code Description OUT-31~35 Sets one of the output relays to ‘32 (LDT)’ to monitor the level detection Relay 1–5 status. <An example of PRT-71 set to (1: Above Level)> As shown in the figure above, level detection can be carried out (relay output is ‘on’) as the output frequency is above PRT-76 frequency for the PRT-73 time and above the PRT-74 detection level.

  • Page 229: Fan Fault Detection

    Parameter Descriptions 890053-00-02 5.8.15 PRT-79 Fan Fault Detection Group Code Name LCD Display Parameter Setting Setting range Unit Cooling fan fault Fan Trip Mode Warning selection 31~35 Multi-function relay 1–5 Relay 1–5 0-43 Warning Multi-function output 1 Q1 Define * 150 HP and larger have internal cooling fans. These fans are also included in the Fan Fault Detection.

  • Page 230: Low Voltage Fault

    Parameter Descriptions 890053-00-02 5.8.17 PRT-81 Low Voltage Fault When the internal DC bus voltage drops due to a power loss, the inverter turns off the output and a low voltage fault occurs after the delay time set in PRT-81 (Low voltage fault delay time). When the voltage recovers, the fault clears, and the inverter is ready to resume operation.

  • Page 231: Broken Belt

    Parameter Descriptions 890053-00-02 Low Battery Voltage Warning Detail Settings Code Description The low battery voltage warning for the RTC function installed in the PRT-90 inverter can be enabled or disabled. The low battery voltage warning Low Battery occurs when the battery voltage is lower than 2 V. For battery replacement, refer to 2.2.1 Battery Access on page 24.

  • Page 232: Pid Control Group (Pid)

    PID Control 890053-00-02 6 PID Control Group (PID) PID control is one of the most common auto-control methods. It uses a combination of proportional, integral, and differential (PID) controls that provide more effective control for automated systems. The functions of PID control that can be applied to the inverter operation are as follows: Purpose Function...
  • Page 233 PID Control 890053-00-02 Code Name Setting Range Initial Value Property* Ref. Display M * (G * 2 * (A- 50)) M / (G * 2 * (A-50)) M + M * G * 2 * (A- (M-A)^2 M^2 + A^2 MAX (M,A) MIN (M,A) (M + A) / 2...
  • Page 234 PID Control 890053-00-02 Code Name Setting Range Initial Value Property* Ref. Display M / (G*A) M + (M * (G*A)) M + G * 2 * (A- 50) M * (G * 2 * (A- 50)) M / (G * 2 * (A-50)) M + M * G * 2 * (A- (M-A)^2...
  • Page 235 PID Control 890053-00-02 Code Name Setting Range Initial Value Property* Ref. Display m3/s m3/m m3/h kg/s kg/m kg/h gl/s gl/m gl/h ft/s f3/s f3/m f3/h lb/s lb/m lb/h x 100 x 10 PID unit scale PID Unit Scale p.224 x 0.1 x 0.01 X100 -30000 - Unit Max...

  • Page 236: Pid Basic Operation

    PID Control 890053-00-02 6.2 PID Basic Operation PID operates by controlling the output frequency of the inverter in automated process control systems to maintain speed, pressure, flow, or temperature. Note • Normal PID output (PID OUT) is bipolar and is limited by PID-30 (PID Limit Hi) and PID- 31 (PID Limit Lo) settings.
  • Page 237 PID Control 890053-00-02 Code Description Pulse TI Pulse input terminal (0-32 kHz Pulse input) 10 V3 V3 analog input terminal of Extended IO option card. When the analog voltage/current input terminal selection 11 I3 switch (SW2) at the terminal block is set to I3 (current), input 0-20 mA current.
  • Page 238 PID Control 890053-00-02 Code Description Setting Function -10-10 V input voltage terminal I2 analog input terminal If the analog voltage/current input terminal selection switch (SW4) at the terminal block is set to I (current), input 0-20 mA current. If it is set to V (voltage), input 0–10 V Int.
  • Page 239 PID Control 890053-00-02 Code Description Set the output ratio for differences (errors) between the reference (setpoint) PID-25 and feedback. As P-Gain is increased, the error is more quickly corrected. PID P-Gain1 However, if P-Gain is set too high, the mechanical system will begin to PID-32 overshoot and at some point may begin to oscillate and become unstable.
  • Page 240 PID Control 890053-00-02 Code Description The 7 different setpoint settings can be entered at parameters PID-40 through PID-46. See below table. These inputs when closed override the Reference (setpoint) assigned in PID-10 and PID-11 (Keypad setpoint). Terminals IN-69 IN-70 IN-71 Setpoint PID Step PID Step...
  • Page 241 PID Control 890053-00-02 PID Command Block...
  • Page 242 PID Control 890053-00-02 PID Feedback Block...
  • Page 243 PID Control 890053-00-02 PID Output Block...
  • Page 244 PID Control 890053-00-02 PID Output Mode Block...

  • Page 245: Application Group 1 (Ap1)

    PID Control 890053-00-02 6.3 Application Group 1 (AP1) Application Group 1 (AP1) includes additional PID control related parameters and are described below. 6.3.1 AP1 Parameter List Code Name Setting Range Initial Value Property* Ref. Display Jump Code Jump Code 1–99 p.74 Sleep boost amount Sleep Bst Set...
  • Page 246 PID Control 890053-00-02 PID Operation Sleep Mode Setting Details Code Description Sets the sleep boost amount before entering Sleep Mode. Feedback AP1-05 must reach the boost level (PID Reference+Sleep Bst Set) above the Sleep Bst Set setpoint before entering Sleep Mode. AP1-06 Sets the inverter operating frequency to reach sleep boost level.

  • Page 247: Pre-Pid And Soft Fill Operation

    PID Control 890053-00-02 6.3.3 Pre-PID and Soft Fill Operation Pre-PID and Soft Fill are two separate operations. Both are used to prevent excessive pressure from building in the pipe system during the initial stages of pump operation. Pre-PID - At start, Pre-PID (without PID control) begins and continues at the Pre-PID frequency (AP1-21) for the time set at AP1-22.
  • Page 248 PID Control 890053-00-02 Code Description Set the amount of each Soft Fill step. After Pre-PID operation time, if feedback amount has not reached the Soft Fill Set (exit) amount (AP1-23), AP1-24 Soft Fill operation begins. The PI Reference (setpoint) will automatically Fill Step Set change to this "Soft Fill PI Reference"...

  • Page 249: Pid Switching (Pid Open Loop)

    PID Control 890053-00-02 6.3.4 PID Switching (PID Open loop) When one of the multi-function terminals (IN-65~71) is set to ‘25 (PID Openloop)’ and is activated, the PID operation stops and is switched to general operation. When the terminal is deactivated, the PID operation starts again.

  • Page 250: Flow Compensation

    PID Control 890053-00-02 6.3.5 Flow Compensation In a system with a pipeline, longer pipes and higher flow rate cause greater pressure loss. A flow compensation operation can compensate for pressure loss by increasing the value of the PID reference. Group Code Name LCD Display...

  • Page 251: Sensorless Vector Control

    Sensorless Vector Control 890053-00-02 7 Sensorless Vector Control 7.1 IM (Induction Motors) Sensorless vector control provides a more accurate estimation of the motor rotation speed compared to V/F control. When auto tuning is completed, the inverter calculates motor speed and does not require any rotating speed feedback from the motor.
  • Page 252 Sensorless Vector Control 890053-00-02 Group Code Name LCD Display Parameter Setting Setting Range Unit Sensorless speed ASR-SL I Depends on the 10-9999 controller integral gain 1 Gain1 motor capacity Sensorless speed ASR-SL P Depends on the controller proportional 1-1000 Gain2 motor capacity gain 2 Sensorless speed...

  • Page 253: Sensorless Vector Control Operation Setting

    Sensorless Vector Control 890053-00-02 Group Code Name LCD Display Parameter Setting Setting Range Unit Sensorless voltage SL Volt Comp 20 (230V, 460V) 0-60 compensation 2 110 (575V) Sensorless voltage SL Volt Comp 20 (230V,460V) 0-60 compensation 3 Sensorless field weakening start SL FW Freq 0.0-110.0 frequency...
  • Page 254 Sensorless Vector Control 890053-00-02 Code Description Speed Controller P Gain1 and I Gain1 - Changes the speed PI controller gains during sensorless vector control. P Gain1 is a proportional gain for the speed deviation. If speed deviation becomes higher than the torque, the output command increases accordingly. As the P Gain1 value is increased, the faster the speed deviation decreases.
  • Page 255 Sensorless Vector Control 890053-00-02 Code Description ACR SL I Gain CON-50 Voltage Controller - Adjusts the limit and I Gain of the sensorless voltage V Con HR controller. Used for maximum voltage output at 60 Hz. For adjustments of CON-51 the voltage controller, refer to Sensorless Vector Control Operation V Con Ki Guide.

  • Page 256: Sensorless Vector Control Operation Guide

    Sensorless Vector Control 890053-00-02 Note Speed controller gain can improve the speed control waveform while monitoring the changes in speed. If speed deviation does not decrease quickly, increase the speed controller P gain or decrease I gain (time in ms). However, if the P gain is increased too high or I gain is decreased too low, severe vibration may occur.
  • Page 257 Sensorless Vector Control 890053-00-02 Problem Function code Troubleshooting CON-32 S-Est I At mid speed (30 Hz or higher), increase the value of Gain1 CON-31 by increments of 500. If the parameter setting is CON-33 S-Est I too extreme, over current trip may occur at low speed, Gain2 lower CON-31 and increase CON-32.

  • Page 258: Pm (Permanent-Magnet) Motors

    Sensorless Vector Control 890053-00-02 7.2 PM (Permanent-Magnet) Motors Sensorless vector control is an operation that carries out vector control without speed feedback from the motor but, instead, with an estimation of the motor rotation speed calculated by the inverter. Note 240V, 30 HP ~ 125 HP, 480V, 150 HP ~ 800 HP, and all 575V inverters do not include SVC control of PM motors.
  • Page 259 Sensorless Vector Control 890053-00-02 Code Keypad Display Description Setting Range Factory Default Units Auto tuning frequency for MOT-22 Ld,Lq Tune Hz 80.0~150.0% 150.0/100.0 Ld and Lq Initial pole position BAS-94 Init Angle Sel 1: Angle Detect estimation type PD Repeat Initial pole position BAS-95 0~10...

  • Page 260: Sensorless Vector Control Operation For Pm Motor

    Sensorless Vector Control 890053-00-02 Code Keypad Display Description Setting Range Factory Default Units Filter Keypad-1 Keypad-2 Torque Limit setting CON-53 Torque Lmt Src 0:Keyypad-1 options Int 485 FieldBus Pulse Forward direction CON-54 FWD +Trq Lmt 0-200% 180% [4] retrograde torque limit Forward direction CON-55 FWD -Trq Lmt 0-200%...

  • Page 261: Pm Auto Tuning

    Sensorless Vector Control 890053-00-02 7.2.2 PM Auto Tuning After entering the parameters, set MOT-11 (Auto tuning) to 4 [All(PM)] and perform the auto tuning operation. When auto tuning is complete, the MOT-16 (Rs), MOT-17 Ld (PM), MOT-18 Lq (PM), and MOT-19 (PM Flux Ref) parameters are automatically measured and saved. Keypad Code Description...
  • Page 262 Sensorless Vector Control 890053-00-02 Code Description Set these parameters to change the speed estimator gain during a PM synchronous motor operation in sensorless vector control mode. CON-39, 40 is applied at starting. CON-39 PM SpdEst Kp 0 If faults occur or excessive oscillation is observed at starting and low speeds, CON-40 PM SpdEst Ki 0 decrease the value at CON-39, 40 until the motor operates stably.

  • Page 263: Detecting The Initial Pole Position

    Sensorless Vector Control 890053-00-02 7.2.3 Detecting the Initial Pole Position Initial pole position detection is a process to match the rotor position calculated by the inverter and the actual rotor position in a motor. In a permanent-magnet (PM) synchronous motor, rotor flux is generated from the permanent magnet attached to the rotor.
  • Page 264 Sensorless Vector Control 890053-00-02 Speed Search Setting Details Code Description CON-69 SS Pulse Curr Sets the speed search current based on the motor’s rated current. 2: Flying Start-3 CON-70 SS Mode This speed search is available when operating a PM synchronous motor. It is used when DRV-09 (Control Mode) is set to 4 (PM Sensorless).
  • Page 265 Sensorless Vector Control 890053-00-02 Problem Relevant function code Troubleshooting motor is operated at mid-speed (above 30Hz). If the motor is operated at the rated speed, try decreasing the value at CON-50 in 5% Speed variation occurs during an CON-38 PM Flux FF % increments.
  • Page 266 Sensorless Vector Control 890053-00-02 Problem Relevant function code Troubleshooting operate due to an inverter Try increasing the value (100%) at MOT-20 in overload fault. 5% increments. 2. Speed search fails when the a load exceeding the rated load is applied to the motor at each speed section, or a current equal to or exceeding 150% of the rated current is supplied to the...

  • Page 267: Application Groups

    Application Groups 890053-00-02 8 Application Groups The H2 Series inverter includes three Application Groups (AP1, AP2 and AP3). AP1 includes additional PID control related parameters and can be found in the PID group, section 6.3. Application Groups 2 & 3 include the following additional pump related features. AP2 - Load tuning, Pump cleaning operation, Damper control, Oil Pump control and Motor Pre- Heat functions.

  • Page 268: Application Group 2 (Ap2)

    Application Groups 890053-00-02 8.1 Application Group 2 (AP2) Application Group 2 includes additional pump and fan related parameters. These are Pump Load Curve Tuning, Pump Clean Operation, Check Valve timing, Damper status monitoring, Oil Pump starter control and Motor Pre-Heat function. 8.1.1 AP2 Parameter List Initial Code...

  • Page 269: Ap2-01 Load Tuning

    Application Groups 890053-00-02 Initial Code Name Setting Range Ref. Property* Display Value Start Ramp Acc time Start Ramp Acc 0.0–600.0 (sec) 10.0 p.264 End Ramp Dec time End Ramp Dec 0.0–600.0 (sec) 10.0 p.264 Damper check time Damper check T 0.0–600.0 (sec) p.265 Lubrication operation time...
  • Page 270 Application Groups 890053-00-02 Load Tuning Setting Details Code Description The inverter performs an automatic tuning to generate an ideal system load curve. AP2-01 Load Tune Setting Function None Load tuning is not used. Load Tune Start load tuning. AP2-02 Load Fit LFreq Defines the first frequency set point for load tuning (user definable).

  • Page 271: Ap2-15 Pump Clean Operation

    Application Groups 890053-00-02 8.1.3 AP2-15 Pump Clean Operation The pump clean operation is used to remove the scales and deposits attached on the impeller inside a pump. This operation keeps the pump clean by performing a repetitive run-and-stop operation of a pump. This prevents loss in pump performance and premature pump failures. Parameter Group Code Name LCD Display...
  • Page 272 Application Groups 890053-00-02 <Basic Pump Clean Operation> When a pump clean start command is given, the inverter waits until the delay time set at AP2-19 elapses, accelerates by the acceleration time set at AP2-22, and operates at the frequency set at AP2-25.
  • Page 273 Application Groups 890053-00-02 Pump Clean Function Setting Details Code Description Sets the pump mode. Setting Function 0 None Pump Clean function is not used. Set one of the terminal inputs to ‘46 (Pump Clean Sel)’ and performs the pump clean defendant AP2-15 operation by turning on the terminal.
  • Page 274 Application Groups 890053-00-02 Code Description Determines the inverter operation after pump clean operation. Setting Function 0 Stop This stops the inverter after pump cleaning. AP2-31 The inverter operates based on the inverter’s PC End Mode command status after the pump cleaning. (If a 1 Start terminal command is received, the inverter performs the operation it was performing before...

  • Page 275: Ap2-38 Decelerating Valve Ramping

    Application Groups 890053-00-02 8.1.4 AP2-38 Decelerating Valve Ramping This function is used to prevent pump damage due to abrupt deceleration. When the pump operation frequency reaches the valve ramp frequency ( AP2-38 Dec Valve Freq) while decelerating rapidly based on the deceleration ramp time (set at AP2-42), it begins to slow down the deceleration based on the deceleration valve ramp time (set at AP2-39 DecValve Time).

  • Page 276: Ap2-40 Start & End Ramp Operation

    Application Groups 890053-00-02 8.1.5 AP2-40 Start & End Ramp Operation This function is used to rapidly accelerate the pump to the normal operating level, or to rapidly decelerate the pump and stop it. Start & End ramp operation is performed when ADV-24 (Freq Limit) is set to ‘1 (Yes).’...

  • Page 277: Ap2-45 Damper Operation

    Application Groups 890053-00-02 8.1.6 AP2-45 Damper Operation A damper is a device that controls the flow in a ventilation system. If a damper is used in a system, the inverter may be configured to operate according to the damper’s operation status. One of the digital input terminals (IN-65–71) may be set to ‘45 (Damper Open)’...

  • Page 278: Ap2-46 Lubrication Operation

    Application Groups 890053-00-02 8.1.7 AP2-46 Lubrication Operation Lubrication operation can be used for oil pump starters. The inverter outputs the lubrication signal through one of the output relays when the inverter receives a run command. The inverter does not start operating until the time set at AP2-46 (Lub Op Time) has elapsed and the Lubrication signal is turned off.

  • Page 279: Ap2-48 Pre-Heat Function

    Application Groups 890053-00-02 8.1.8 AP2-48 Pre-Heat Function This function uses current to heat up the motor to remove moisture and prevent freezing when it is not in operation. Group Code Name LCD Display Parameter Setting Setting Range Unit Initial heating Pre Heat Level 1–100 output current...
  • Page 280 Application Groups 890053-00-02 The diagram above shows the operation waveform related to AP2-50 DC Inj Delay T. The Pre Heat function performs when the inverter stop mode is set to Free Run and the Pre Heat signal is supplied. Then, if the inverter operation command is on, the inverter maintains acceleration and a fixed frequency.

  • Page 281: Application Group 3 (Ap3)

    Application Groups 890053-00-02 8.2 Application Group 3 (AP3) 8.2.1 Time Event Scheduling Time Event function enables the inverter to be fully automated. The user can program the inverter to operate among 4 Time Periods. Each period contains start/stop times for 7 days- 24 hours to program operation of the inverter.
  • Page 282 Application Groups 890053-00-02 Parameter Group Code Name LCD Display Setting Range Unit Setting Time Period 4 Start time Period4 StartT 24: 00 00:00 ~ 24:00 Period4 StartT ~ Time Period 4 End time Period4 StopT 24: 00 24:00(Min) Time Period 4 Day of the week Period4 Day 0000000 0000000~1111111...
  • Page 283 Application Groups 890053-00-02 Time Event Function Setting Details Code Description Sets the current date, time, and day of the week. The Time Event function is based on the setting. When the user sets the summer time start date, the current time is subtracted by one hour. ex) [AP3- 04 Summer T Start] is set to AP3-01 Now Date April 1, and if it is 1:59 on April 1, it will not be 2:00 a minute later and it will AP3-02 Now Time...
  • Page 284 Application Groups 890053-00-02 Code Description selected. Select the desired Event. Setting None PID Openloop PID Gain2 PID Ref Change Speed-L 2nd Motor Speed-M Timer In Speed-H Dis Aux Ref AP3-73 ~ 87 Xcel-L Pre Heat T-Event1 ~ 8 Define Xcel-M Sleep Wake Chg Xcel-H PID Step Ref L...
  • Page 285 Application Groups 890053-00-02 Time Period Parameter Setting There are 4 Time Period Sets in the Time Event. Each Time Period Set has: Period 1–4 Start (Start time), Period 1–4 Stop T (End time), and Period 1–4 Day (Operation day) for which they can be set. Time Period Schedule Every Sunday, Monday, Wednesday, Thursday, and Friday at 06: 00 (On) and 18:...
  • Page 286 Application Groups 890053-00-02 Parameters Setting for Exception Date There are 8 Exception date modules in the Time Event function. They are used to specify the operation on particular days (public holidays, etc.). The settings for the start time and the end time are the same as the settings for the modules and can be set for particular days.
  • Page 287 Application Groups 890053-00-02 <The Time Chart for the Exception Day> Connection settings for Time Period and Time Event There are 8 Time event modules in the Time Event function. The parameters for T-Events 1–8 are used to set the connections to each module for the Time Period and the Exception Date. The parameters for T-Event 1–8 are used to specify the operation on particular days.
  • Page 288 Application Groups 890053-00-02 Time Event Module Function Settings The functions to be performed in the Time Event for T-Events 1–8 can be set with the 30 functions listed in AP3-73~AP3-87. There are 8 Time event modules in the Time Event. The parameters for T-Events 1–8 are used to set the connections to each module for the Time Period and the Exception Date.
  • Page 289 Application Groups 890053-00-02 15 I-Term Clear Openloop 17 PID Gain 2 18 PID Ref Change 19 2nd Motor 20 Timer In 21 dis Aux Ref 24 Pre Heat Sleep Wake 28 PID Step Ref L 29 PID Step Ref M 30 PID Step Ref H Time Event 2 T-Event2Period...
  • Page 290 Application Groups 890053-00-02 On Mondays, the inverter operates in the forward direction based on the frequency input on the keypad from 10AM to 8PM (Time Event 1). On Tuesdays, it operates again in the forward direction based on the keypad frequency input from 10AM to 12PM (Time Event 1), and then operates at Speed-L from 12PM to 5PM (Time Event 2).

  • Page 291: Lcd Display Modes

    LCD Display Modes 890053-00-02 9 LCD Display Modes 9.1 LCD Display Mode Selection The keypad enables movement among display modes and within each mode. It enables users to select, configure and view parameters and functions in each mode. The following figure illustrates how to move through the display modes when you press the MODE button on the keypad.

  • Page 292: Monitor Mode (Mon)

    LCD Display Modes 890053-00-02 9.2 Monitor Mode (MON) The inverter boots up in the Monitor Mode (MON). The inverter’s operating conditions can be monitored at the Monitor Mode display. A maximum of four items can be displayed. Monitor Mode Setting Details Code Description Select items to display in the Monitor Mode display.

  • Page 293: Parameter Mode (Par)

    LCD Display Modes 890053-00-02 Inverter power consumption Values are calculated using voltage and current. Power is calculated every second and the results are accumulated. Setting CNF-62 (WH Count Reset) value to 1(Yes) will reset cumulated energy consumption. Power consumption is displayed as shown below: Less than 1,000 kW: Units are in kW, displayed in 999.9 kW format.
  • Page 294 LCD Display Modes 890053-00-02 Code Description ❸ Parameter number to be used in the user group. Pressing the [PROG/ENT] button on the parameter number (40 Parameter) will register DRV-01 as parameter 40 in the user group. ❹ Existing parameter registered as the user group parameter ❺...

  • Page 295: Macro Groups (Mc1, Mc2, Mc3)

    LCD Display Modes 890053-00-02 9.4.2 Macro Groups (MC1, MC2, MC3) The Macro selection function pulls together various parameters into one group that are common to specific applications and load type. The H2 Series inverter includes 3 macros (Pump, Fan and Constant Torque). Groups MC1, MC2, or MC3 are displayed in the U&M Mode when the user selects the macro with parameter CNF-43.
  • Page 296 LCD Display Modes 890053-00-02 MC1 ---> Pump Pole Number Pole Rated Slip Defaults Rated Curr Defaults NoloadCu rr Defaults V/F Pattern Square Xcel Change Fr 0.00 Acc Time-1 20.0 Dec Time-1 20.0 Acc Pattern S-Curve Dec Pattern S-Curve Acc S Start Acc S End Dec S Start Dec S End...
  • Page 297 LCD Display Modes 890053-00-02 MC1 ---> Pump Lost Preset F 0.00 AI Lost Level Half of x1 OL Trip Select Free-Run OL Trip Level OL Trip Time 60.0 No Motor Trip Free-Run No Motor Level No Motor Time ETH Trip Sel Free-Run Motor Cooling Self-cool...
  • Page 298 LCD Display Modes 890053-00-02 MC2 ---> Fan Acc S End Dec S Start Dec S End Start Mode DC-Start Stop Mode Run Prevent Reverse DC-Start Time 3.00 DC Inj Level Freq Limit Freq Limit Lo 0.50 Freq Limit Hi 60.0 E-Save Mode None Energy Save...
  • Page 299 LCD Display Modes 890053-00-02 9.4.2.3 MC3 Constant Torque Macro The constant torque macro sets the V/Hz curve (MC3-16) to Linear for constant torque loads along with an overload setting (MC3-36) of 150% / 1 min. It also sets Load Duty parameter MC3-01 (PRT- 04) to Heavy Load.

  • Page 300: Trip Mode (Trp)

    LCD Display Modes 890053-00-02 MC3 ---> Constant Torque OL Trip Level OL Trip Time 60.0 No Motor Trip Free-Run No Motor Level No Motor Time ETH Trip Sel Free-Run Motor Cooling Self-cool ETH 1 min ETH Cont 9.5 Trip Mode (TRP) If the inverter trips, it immediately displays the fault in the TRP Mode.

  • Page 301: Fault And Warning List

    LCD Display Modes 890053-00-02 9.5.1 Fault and Warning List The following is a list of faults and warnings that can occur while using the H2 inverter. For details, refer to 11, Troubleshooting on page 341. Category LCD Display Details Over Current1 Over current trip Over Voltage Over voltage trip...
  • Page 302 LCD Display Modes 890053-00-02 Buttons (HAND, OFF and AUTO) on KPD H.O.A Lock LCD - locked out with DRV-05 Lost Command Command loss fault warning Over Load Overload warning Under Load Under load warning Inv Over Load Inverter overload warning Fan Warning Fan operation warning DB Warn %ED...

  • Page 303: Configure Mode (Cnf)

    LCD Display Modes 890053-00-02 9.6 Configure Mode (CNF) The configure mode includes parameters to view and program various inverter features including: View inverter and keypad software versions • Set 4 parameters to view in the Monitor menu • Initialize parameter settings •...
  • Page 304 LCD Display Modes 890053-00-02 Code Name LCD Display Setting Range Initial Value Ref. PRT Grp APO Grp View All Display changed Parameter Changed Para View All p.294 View Changed None Multi key item Multi-Key Sel UserGrp SelKey None p.294 Now Time Basic Pump Macro function item...

  • Page 305: Monitor Mode (Mon)

    LCD Display Modes 890053-00-02 9.6.2 CNF-20 Monitor Mode (MON) On the LCD keypad, the inverter’s operating conditions can be monitored at the Monitor Mode display. A maximum of four items can be selected and monitored simultaneously. The items are selected in the Configure (CNF) Group. Monitoring mode displays three different items (CNF-21, 22 and 23) and one additional item (CNF-20) in the status bar at the top of the screen.

  • Page 306: Changed Parameter Display

    LCD Display Modes 890053-00-02 9.6.4 CNF-41 Changed Parameter Display This feature displays all the parameters that are different from the factory defaults. Use this feature to track changed parameters. Parameter Setting Group Code Name LCD Display Unit Setting Range Changed parameter Changed View All - display...

  • Page 307: Delete Trip History

    LCD Display Modes 890053-00-02 9.6.7 CNF-44 Delete Trip History The fault history can be deleted by programming CNF-44 to ‘1, Yes’. Refer to 9.5 Trip Mode (TRP) on page 288 for more details. Group Code Name LCD Display Parameter Setting Setting Range Unit Trip History deletion Erase All Tript 9.6.8 CNF-46 Read, Write, and Save Parameters...

  • Page 308: Parameter View Lock

    LCD Display Modes 890053-00-02 9.6.9 CNF-50 Parameter View Lock Use parameter view lock to hide parameters after registering and entering a user password. Group Code Name LCD Display Parameter Setting Setting Range Unit Parameter view View Lock Set Unlocked 0–9999 lock Parameter view View Lock Pw Password...

  • Page 309: Quick Start Menu

    LCD Display Modes 890053-00-02 Parameter Lock Setting Details Code Description Register a password to prohibit parameter modifications. Follow the procedures below to register a password. Procedures Press the [PROG/ENT] button on CNF-53 parameter and the saved password input window will be displayed. If password registration is being made for the first time, enter 0.
  • Page 310 LCD Display Modes 890053-00-02 Parameter Group Code Name LCD Display Setting Range Unit Setting Cooling fan operation Fan time 0/00/00 00:00 accumulated time Initialize Cooling fan Fan Time 0–1 operation time Reset Operation Time Monitor Setting Details Code Description CNF-70 Displays accumulated power supply time (On-time).

  • Page 311: Communication Features

    Communications 890053-00-02 10 RS-485 Communication Features This section explains how to control the inverter with a PLC or a computer over a long distance using the RS-485 communication features. Connect the communication cables and set the communication parameters in the inverter. Refer to the communication protocols and parameters to configure and use the RS-485 communication features.

  • Page 312: Communication System Configuration

    Communications 890053-00-02 10.2 Communication System Configuration In an RS-485 communication system, the PLC or computer is the master device and the inverter is the slave device. When using a computer as the master, the RS-232/RS-485 converter must be integrated with the computer, so that it can communicate with the inverter. Specifications and performance of converters may vary depending on the manufacturer, but the basic functions are identical.

  • Page 313: Setting Communication Parameters

    Communications 890053-00-02 10.2.2 Setting Communication Parameters Before proceeding with setting communication configurations, make sure that the communication lines are connected properly. Turn on the inverter and set the communication parameters. Group Code Name LCD Display Parameter Setting Setting range Unit Built-in communication Int485 St ID 1 1–MaxComID...
  • Page 314 Communications 890053-00-02 Code Description Metasys-N2: If the COM-02 Int485 Proto setting is Metasys-N2, the communication speed is fixed to 9600 bps and COM-03 Int485 BaudR is not shown. Set a communication configuration. Set the data length, parity check method, and the number of stop bits. Setting Function D8/PN/S1...

  • Page 315: Setting Operation Command And Frequency

    Communications 890053-00-02 10.2.3 Setting Operation Command and Frequency After setting the DRV-06 Cmd Source parameter to ‘3 (Int 485)’ and DRV-07 Freq Ref Src parameter to ‘6 (Int 485)’, you can set common area parameters for the operation command and frequency via communication.
  • Page 316 Communications 890053-00-02 seconds before the loss of the speed command and uses it as the speed reference. Operates continuously with the operate frequency before the speed loss. The inverter calculates the 4 Hold Output average output value for 10 seconds before the loss of the speed command and uses it as the speed reference.

  • Page 317: Modbus-Rtu Communication

    Communications 890053-00-02 10.3 Modbus-RTU Communication 10.3.1 Setting Virtual Multi-function Inputs Multi-function inputs can be controlled using a communication address (0h0385). Set parameters COM-70–77 to the functions to operate, and then set the BIT relevant to the function to 1 at 0h0385 to operate it.

  • Page 318: Total Memory Map For Communication

    Communications 890053-00-02 10.3.3 Total Memory Map for Communication Communication Area Memory Map Details Communication common 0h0000–0h00FF H2 Series compatible area compatible area Areas registered at COM-31–38 and COM- 0h0100–0h01FF 51–58 Parameter registration type 0h0200–0h023F Area registered for User Group area 0h0240–0h027F Area registered for Macro Group 0h0280–0h02FF...

  • Page 319: Parameter Group For Data Transmission

    Communications 890053-00-02 10.3.4 Parameter Group for Data Transmission By defining a parameter group for data transmission, the communication addresses registered in the communication function group (COM) can be used in communication. Parameter group for data transmission may be defined to transmit multiple parameters at once, into the communication frame.

  • Page 320: Modbus-Rtu Protocol

    Communications 890053-00-02 Currently Registered Macro Group Parameters Address Parameter Assigned Content by Bit 0h0240 Macro Grp. Code 1 Parameter value registered at U&M > MC ➔ 1 0h0241 Macro Grp. Code 2 Parameter value registered at U&M > MC ➔ 1 0h02A2 Macro Grp.
  • Page 321 Communications 890053-00-02 10.3.6.1.3 Error Response Slave Station ID Func. Code Except. Code CRC(Lo) CRC(Hi) 1 byte 1 byte 1 byte 1 byte 1 byte * Func. Code of the error response is [Request Func. Code] + 0x80. 10.3.6.1.4 Writing One Inverter Parameter Value (Func. Code: 0x06) Codes Description Addr.
  • Page 322 Communications 890053-00-02 10.3.6.1.9 Request Start Start No of No of Reg. Reg. Slave Func. Byte Addr. Addr. Reg. Reg. Value Value Station ID Code Count (Lo) (Hi) (Hi) (Lo) (Hi) (Lo) (Hi) (Lo) 1 byte 1 byte 1 byte 1 byte 1 byte 1 byte 1 byte 1 byte 1 byte 1 byte 1 byte 10.3.6.1.10 Normal Response Slave Station Start Addr...

  • Page 323: Compatible Common Area Parameter

    890053-00-02 10.3.7 Compatible Common Area Parameter The following are common area parameters compatible with Benshaw inverters (SG, GX, GM2, S/SW Series and H2 Series (Addresses 0h0000-0h0011 are for compatible common area parameters. Addresses 0h0012-0h001B are for the H2 Series inverter parameters.) Comm.
  • Page 324 Communications 890053-00-02 Comm. Parameter Scale Unit Assigned Content by Bit Address Reserved 16:Emergency stop 8: W: Trip initialization (0➔1), R: Trip status B4-B0 4: Reverse operation (R) 2: Forward operation (F) 0: Stop (S) Acceleration 0h0007 time Deceleration 0h0008 time Output 0h0009 current...
  • Page 325 Communications 890053-00-02 Comm. Parameter Scale Unit Assigned Content by Bit Address B15 Reserved B14 Reserved B13 Reserved B12 Reserved B11 Reserved B10 H/W-Diag Reserved Reserved Fault 0h000F information Reserved Reserved Reserved Reserved Level Type trip Reserved Reserved Latch Type trip Reserved –B7 Input...
  • Page 326 Communications 890053-00-02 Comm. Parameter Scale Unit Assigned Content by Bit Address 0h0014 V2 input voltage 0h0015 I2 input Current Motor Displays existing motor rotation 0h0016 rotation Rpm R speed speed 0h0017– Reserved 0h0019 Select 0h001A 0: Hz unit, 1: rpm unit Hz/rpm Display the number of...

  • Page 327: H2 Expansion Common Area Parameter

    Communications 890053-00-02 10.3.8 H2 Expansion Common Area Parameter 10.3.8.1 Monitoring Area Parameter (Read Only) Comm. Parameter Scale Unit Assigned content by bit Address 0h0300 Inverter model H2: 000Fh 0.75 kW: 4008h, 1.5 kW: 4015h 2.2 kW: 4022h, 3.7 kW: 4037h 5.5 kW: 4055h, 7.5 kW: 4075h 11 kW: 40B0h, 15 kW: 40F0h 18.5 kW: 4125h, 22 kW: 4160h...
  • Page 328 Communications 890053-00-02 Comm. Parameter Scale Unit Assigned content by bit Address 2: Operating in reverse direction 3: DC operating Operation command source 0: Keypad 1: Communication option 3: Built-in RS 485 4: Terminal block Inverter operation Frequency command 0h0306 frequency command source 0: Keypad speed source 1: Keypad torque...
  • Page 329 Communications 890053-00-02 Comm. Parameter Scale Unit Assigned content by bit Address Display the number Displays the number of poles for the 0h031B of poles for the 2 2nd motor motor Display the number Displays the number of poles for the 0h031C of poles for the selected motor...
  • Page 330 Communications 890053-00-02 Comm. Parameter Scale Unit Assigned content by bit Address 0h0328 0.01 Analog output 1 (I/O board) 0h0329 0.01 Analog output 2 (I/O board) 0h032A Reserved 0.01 Reserved 0h032B Reserved 0.01 Reserved 0h032C Reserved Reserved 0h032D Reserved Reserved Consumption 0h032E Consumption energy (kWh) energy (kWh)
  • Page 331 Communications 890053-00-02 Comm. Parameter Scale Unit Assigned content by bit Address Reserved B15– B4 Reserved Lost Keypad Level type trip 0h0332 information Lost Command Low Voltage B15– B3 Reserved H/W Diagnosis Trip Watchdog-1 error 0h0333 information EEP Err ADC Offset Broken Belt Low Battery Load Tune...
  • Page 332 Communications 890053-00-02 Comm. Parameter Scale Unit Assigned content by bit Address 0h0337– Reserved Reserved 0h0339 0h033A Proc PID Output 0.01 Process PID Output (%) Proc PID UnitScale Proc Proc Unit Scaled Process PID reference 0h033B Unit Unit value Proc PID UnitScale Proc Proc Unit Scaled Process PID feedback...
  • Page 333 Communications 890053-00-02 10.3.8.2 Control Area Parameter (Read/Write) Comm. Parameter Scale Unit Assigned Content by Bit Address 0h0380 Frequency command 0.01 Command frequency setting 0h0381 RPM command Command rpm setting B15–B4 Reserved 0 ➔ 1: Free-run stop 0 ➔ 1: Trip initialization 0: Reverse command, 1: Forward command 0h0382...
  • Page 334 Communications 890053-00-02 Comm. Parameter Scale Unit Assigned Content by Bit Address Reference Unit Unit 0h038F Proc PID Unit Proc Proc Unit Scale Process PID feedback Feedback Unit Unit 0h0390– Reserved Reserved 0h0399 Set the CNF-20 value (refer to 9.6.2 on page 293) 0h039A Anytime Para...
  • Page 335 Communications 890053-00-02 Note A frequency set via communication using the common area frequency address (0h0380, 0h0005) is not saved even when used with the parameter save function. To save a changed frequency to use after a power cycle, follow these steps: Set DRV-07 to ‘Keypad-1’...
  • Page 336 Communications 890053-00-02 10.3.8.3 Inverter Memory Control Area Parameter (Read and Write) Comm. Change Address During Parameter Scale Unit Function Running 0h03E0 Save parameters 0: No, 1: Yes 0h03E1 Monitor mode initialization - 0: No, 1: Yes 0: No, 11:AP1 Grp 1: All Grp 12: AP2 Grp 2: DRV Grp...
  • Page 337 Communications 890053-00-02 0h03EC Initialize cooling fan 0: No, 1:Yes accumulated operation time Note • When setting parameters in the inverter memory control area, the values are reflected to the inverter operation and saved. Parameters set in other areas via communication are reflected to the inverter operation, but are not saved.

  • Page 338: Bacnet Communication

    Communications 890053-00-02 10.4 BACnet Communication 10.4.1 What is BACnet Communication? BACnet (Building Automation and Control network) is a communication network frequently used in building automation. BACnet introduces the concept of object-oriented systems, and defines standardized objects. By exchanging data, this function makes communication possible between products from different companies.
  • Page 339 Communications 890053-00-02 Group Code Name LCD display Parameter Setting Setting Range Unit 0 1200 1 2400 2 4800 3 9600 Communication Baudrate 9600 bps 4 19200 Speed 5 38400 6 56Kbps 7 76.8Kbps 8 115.2Kbps 0 D8/PN/S1 Communication 1 D8/PN/S2 Mode Int485 Mode D8/PN/S1...
  • Page 340 Communications 890053-00-02 10.4.3.1.1 BACnet Parameter Setting Details Code Description Refers to MACID setting parameter used in BACnet. All MACIDs of the inverter using BACnet must be set before connecting to BUS. MACID COM-01 must have the unique value from the Network to be connected to MACID. Int485 ST ID (MAC If BACnet is used, the value must be within 0–127.

  • Page 341: Protocol Implementation

    Communications 890053-00-02 10.4.4 Protocol Implementation The following table summarizes the information required to implement a BACnet system. Refer to each section of the table to implement a BACnet system properly. Category Items Remarks I-Am (Answer to Who-Is, when broadcast or reset after power-up) I-Have (Answer to Who-Has) Read Property Write Property...
  • Page 342 Communications 890053-00-02 Object Type Property Device Firmware Revision Appl Software Revision Location Protocol Version Protocol Revision Services Supported Object Types Supported Object List Max APDU Length APDU Timeout Number APDU Retries Max Master Max Info Frames Device Address Binding Database Revision Preset Value Description Status Flags...
  • Page 343 Communications 890053-00-02 10.4.5.1 Analog Value Object Instance Instance ID Object Name Description Setting Range Units CommTimeoutSet Command timeout setting 0.1–120.0 Secs AccelTimeSet Accelerate time setting 0.0–600.0 Secs DecelTimeSet Decelerate time setting 0.0–600.0 Secs CommandFreqSet Command frequency 0.00–DRV-20 Hz setting** PIDReferenceSet PID reference setting 0–100.0 PIDFeedbackSet...
  • Page 344 Communications 890053-00-02 10.4.5.3 Binary Value Object Instance Instance ID Object Name Description Active /Inactive Text StopCmd Stop command False/True RunForwardCmd Run forward command False/True RunReverseCmd Run reverse command False/True ResetFaultCmd Fault reset command False/True FreeRunStopCmd Free run stop command False/True Relay1Cmd Relay 1 On/Off command False/True Relay2Cmd...
  • Page 345 Communications 890053-00-02 Instance ID Object Name Description Units AI11 OutputRPM Output speed AI12 Pole Pole number of the motor Information of the inverter state (Refer to address 0h0305 in the common AI13 InvStatus (Note1) area) Latch type trip information1 (Refer to address 0h0330 in the common AI14 LatchTripInfo1...
  • Page 346 Communications 890053-00-02 10.4.5.5 Binary Input Object Instance Instance ID Object Name Description Stopped Stop state RunningForward Running forward RunningReverse Running reverse Tripped Trip occurred Accelerating Accelerating Decelerating Decelerating SteadySpeed Operating at steady speed RunningDC Operating at a 0 step speed Stopping Stopping BI10...
  • Page 347 Communications 890053-00-02 10.4.5.6 MultiState Input Object Instance Instance ID Object Name Description Units MSI1 UnitsDisplay Displays Unit setting 10.4.5.7 Error Message Display Description serviceserror+7 Inconsistent parameters propertyerror+9 Invalid data type serviceserror+10 Invalid access method serviceserror+11 Invalid file start serviceserror+29 Service request denied objecterror+31 Unknown object propertyerror+0...

  • Page 348: Metasys-N2 Communication

    Communications 890053-00-02 10.5 Metasys-N2 Communication 10.5.1 Metasys-N2 Quick Communication Start Follow the instructions below to configure the Metasys-N2 network. Set COM-02 (Int485 Proto) to ‘5 (Metasys-N2)’. Set the network communication speed to ‘9600 bps.’ Configure the communication modes and make sure that they are fixed to Data Bit 8 / No Parity Bit/ Start Bit 1 / Stop Bit 1.

  • Page 349: Metasys-N2 Protocol I/O Point Map

    Communications 890053-00-02 10.5.3 Metasys-N2 Protocol I/O Point Map 10.5.3.1 Analog Output The output point map controlling the inverter from the Metasys-N2 master. Name Range Unit Description Command 0.0–Max Freq Command frequency setting** Frequency Accel Time 0.0–600.0 ACC time setting* Decel Time 0.0–600.0 DEC time setting* 0 KeyPad...
  • Page 350 Communications 890053-00-02 10.5.3.2 Binary Output The output point map controlling the inverter from the Metasys-N2 master. Name Range Description Stop Command 1: Stop Stop command Run Forward Command 1: Forward Run Forward run command Run Reverse Command 1: Reverse Run Reverse run command Reset Fault 1: Reset...
  • Page 351 Communications 890053-00-02 10.5.3.4 Binary Input Metasys-N2 master unit monitors the inverter input and output status in binary codes. The following table lists the binary codes used and their meanings. Name Description 1 – Stopped Stopped 1 – Forward operation is running. Running Forward 1 –...
  • Page 352 Communications 890053-00-02 10.5.3.5 Error Code Defined Codes Description The device has been reset. Currently waiting for the ‘Identity Yourself’ command. Undefined command Checksum error has occurred. Data size exceeded the input buffer (message is bigger than the device buffer size). Data field error (input message size does not fit the command type) Invalid data (message value is out of the range) Invalid command for data type (command does not fit the message frame)

  • Page 353: Troubleshooting

    (Off then On), When powered off, wait until the charge indicator light goes off then turn the inverter on again. If the inverter is still in a faulted condition after powering it on again, please contact the supplier or the BENSHAW customer service center. 11.1.1 Faults...
  • Page 354 Troubleshooting 890053-00-02 LCD Display Type Description specified value during inverter operation. Requires reset. Displayed when a ground fault occurs on the output side of the inverter and causes the current to exceed the specified Ground Trip Latch value. The specified value varies depending on inverter capacity.
  • Page 355 Troubleshooting 890053-00-02 LCD Display Type Description Displayed when an error is detected in the memory (EEPRom), analog-digital converter output (ADC Off Set) or CPU watchdog (Watch Dog-1, Watch Dog-2). H/W-Diag Fatal EEP Err: An error in reading/writing parameters due to keypad or memory (EEPRom) fault.

  • Page 356: Warning Messages

    Troubleshooting 890053-00-02 71 ~ PRT-77. Triggered when PRT-91 is set to Free Run. Related settings Broken Belt Latch in PRT-92 ~ PRT-95 Option Protection LCD Display Type Description Displayed when a frequency or operation command error is detected during inverter operation by controllers other than Lost Command Level the keypad (e.g., using a terminal block and a...
  • Page 357 Troubleshooting 890053-00-02 Fire Mode forces the inverter to ignore certain faults and continues to operate. Set output relays or Q1 (OUT-31–35 or OUT-36) to ‘27 (Fire Fire Mode Mode)’ to receive the fire mode warning output signals. Displayed when a pipe is broken during pump operation. Set output relays or Q1 (OUT-31–35 or OUT-36) to ‘28 (Pipe Broken)’...

  • Page 358: Troubleshooting Faults

    Troubleshooting 890053-00-02 11.2 Troubleshooting Faults When a fault or warning occurs due to a protection function, refer to the following table for possible causes and remedies. Type Cause Remedy The load is greater than the motor’s Ensure that the motor and inverter have rated capacity.
  • Page 359 The ambient temperature is too low. Keep the ambient temperature above - 10 NTC Open There is a fault with the internal C. Contact the retailer or the BENSHAW temperature sensor. customer service center. A foreign object is obstructing the...

  • Page 360: Troubleshooting Other Faults

    Troubleshooting 890053-00-02 11.3 Troubleshooting Other Faults When a fault other than those identified as faults or warnings occurs, refer to the following table for possible causes and remedies. Type Cause Remedy The inverter is in operation (driving Stop the inverter to change to mode).
  • Page 361 Troubleshooting 890053-00-02 Type Cause Remedy control panel side is incorrect. Remove the reverse rotation Reverse rotation prevention is selected. prevention. The motor only rotates in one The reverse rotation signal is not Check the input signal associated direction. provided, even when a 3-wire with the 3-wire operation and adjust sequence is selected.
  • Page 362 Troubleshooting 890053-00-02 Type Cause Remedy Replace the motor and inverter with There is a high variance in load. models with increased capacity. Motor speed varies during The input voltage varies. Reduce input voltage variation. operation. Motor speed variations occur at a Adjust the output frequency to avoid specific frequency.
  • Page 363 Troubleshooting 890053-00-02 Type Cause Remedy input filter time constant (IN-07). Ensure that the total cable length The wiring length between the inverter between the inverter and the motor is and the motor is too long. less than 200 m (50 m for motors rated 3.7 kW or lower).

  • Page 364: Maintenance

    • Storage and Disposal of the product. The Benshaw model H2 series inverters are an industrial electronic product with advanced semiconductor components. A reasonable life expectancy of 8 to 10 years can be expected however, there are factors that may affect their continued long-term operation. Environmental issues (temperature and humidity) and mechanical issues (vibration and connections) are the most common reasons for premature failure of inverters.

  • Page 365: Periodic Inspection Items

    Maintenance 890053-00-02 12.2 Periodic Inspection Items Customer Period Inspection Inspection Inspection Method Criterion Check/ Item Initial /Date Temperature: Measure/ -10°C~+40°C Ambient Is the ambient Monitor Temperature/ temperature and humidity (Thermometer, Humidity: Humidity within the design range? Hygrometer, Under 90% Recorder) non- condensing Any signs of physical...
  • Page 366 Maintenance 890053-00-02 Customer Period Inspection Inspection Inspection Method Criterion Check/ Item Initial /Date Inspect the pressure relief vent (or pin). Is there any swelling or rupture? Motor (Note 1) Megger Test 500 MΩ Is the input voltage from inverter the main within spec of rating Measure the the inverter?

  • Page 367: Storage

    Maintenance 890053-00-02 12.3 Storage If you are not using the product for an extended period, adhere to the following guidelines: • Store the product in the same environmental conditions as specified. Refer to section 0. • When storing the product for a period longer than 3 months, store it between 14°F and 86°F •...
  • Page 368 Maintenance 890053-00-02...

  • Page 369: Technical Specifications

    Technical Specifications 890053-00-02 13 Technical Specifications 13.1 Input and Output Specifications 240 V, 7.5 HP - 25 HP (5.5–18.5 kW) Model VFD-RSI-XXX–H2-2C Normal Duty 18.5 120% OL Amps 240V 3φ Input Heavy Duty 150% OL Amps 10.0 240V Normal Duty 1φ...
  • Page 370 Technical Specifications 890053-00-02 240 V, 30 HP - 125 HP (22 kW - 90 kW) Model VFD-RSI-XXX–H2-2C 075* 100* 125* Normal Duty 110%*/120% 240V Amps 3φ Input Heavy Duty 18.5 150% OL Amps 240V Normal Duty 1φ 110%*/120% Amps Input ND Rated Capacity (kVA) 31.2 41.9...
  • Page 371 Technical Specifications 890053-00-02 480 V, 7.5 HP - 30 HP (5.5–22 kW) Model VFD-RSI-XXX–H2-4C Normal Duty 18.5 120% OL Amps 480V 3φ Input Heavy Duty 18.5 150% OL Amps 480V Normal Duty 1φ Input 120% OL Amps Rated Capacity (kVA) 12.2 18.3 23.0...
  • Page 372 Technical Specifications 890053-00-02 480 V, 40 HP - 125 HP (30.0–90.0 kW) Model VFD-RSI-XXX–H2-4C Normal Duty 480V 120% OL Amps 3φ Input Heavy Duty 150% OL Amps 480V Normal 50-60 1φ Duty Amps Input 120% OL Rated Capacity (kVA) 46.5 57.1 69.4 82.0...
  • Page 373 Technical Specifications 890053-00-02 480 V, 150 HP - 800 HP (110.0–500.0 kW) Model VFD-RSI-XXX–H2-4C Normal Duty 480V 110% OL Amps 3φ Input Heavy Duty 150% OL Amps Rated Capacity (kVA) Rated 0–400 Hz (V/Hz, Slip Comp.) Output Frequency Output 0-120 Hz (IM Sensorless) Output Voltage (V) 3-Phase 0–480 V Voltage...
  • Page 374 Technical Specifications 890053-00-02 575 V, 7.5 HP - 30 HP (5.5–22 kW) Model VFD-RSI-XXX–H2-61 Normal Duty 18.5 110% OL Amps 575V 3φ Input Heavy Duty 18.5 150% OL Amps ND Rated Capacity (kVA) 16.9 22.9 26.9 33.9 Rated Output Output Frequency 0–120 Hz (V/Hz, Slip Comp., IM Sensorless) Output Voltage (V) 3-Phase 0–600 V...
  • Page 375 Technical Specifications 890053-00-02 575 V, 40 HP - 125 HP (30.0–90.0 kW) Model VFD-RSI-XXX–H2-6C Normal Duty 110% OL Amps 575V 3φ Input Heavy Duty 150% OL Amps ND Rated Capacity (kVA) 42.8 54.8 63.7 79.7 103.6 127.5 Rated Output Frequency 0–120 Hz (V/Hz, Slip Comp., IM Sensorless) Output Output Voltage (V)

  • Page 376: Product Specification Details

    Technical Specifications 890053-00-02 13.2 Product Specification Details Items Description V/F control, Slip Compensation, Sensorless Vector (IM* and PM**) with Torque Limits (240V and 480V only) Control method * IM Sensorless does not apply to 240V, 30HP~125HP. ** PM Sensorless does not apply to 240V, 30HP~125HP, 480V, 150HP~800HP and all 575V inverters.
  • Page 377 Technical Specifications 890053-00-02 Items Description Frequency Limits Jump Frequencies Loss of Power 3-Wire Control Ride Through (KEB) Fire Mode Safe Stop Speed Search V/Hz. Control Pattern Linear, Squared, User V/Hz Braking Torque Boost DC Injection Braking Stall Prevention Power Braking Flux Braking External Brake Control H2 Pump Software...
  • Page 378 Technical Specifications 890053-00-02 Items Description Motor Over Load Fan Trip Under Load Internal Fan Trip Over Current 1 Motor Over Heat (PTC Input) Over Voltage Lost Keypad Low Voltage Fuse Open Low Voltage2 Pipe Broken Ground Fault Broken Belt E-Thermal Lost Speed Reference Out Phase Open I/O Board Trip...

  • Page 379: External Dimensions

    Technical Specifications 890053-00-02 13.3 External Dimensions 240V: 7.5 HP ~ 15 HP (5.5 kW ~ 11 kW) 480V: 7.5 HP ~ 15 HP (5.5 kW ~ 11 kW) 240V VFD-RSI-007-H2-2C 9.13 8.52 0.41 6.30 5.39 7.13 0.20 0.20 VFD-RSI-010-H2-2C (232) (216.5) (10.5) (160)
  • Page 380 Technical Specifications 890053-00-02 240V: 20 HP ~ 25 HP (15 ~ 18.5 kW) 480V: 20 HP ~ 40 HP (15 ~ 30 kW) 240V 11.42 10.78 0.45 7.09 6.18 8.08 0.20 0.20 VFD-RSI-020-H2-2C (290) (273.7) (11.3) (180) (157) (205.3) 13.78 13.03 0.51 8.66...
  • Page 381 Technical Specifications 890053-00-02 240V: 30 HP ~ 60 HP (22 kW ~ 45 kW) 480V: 50 HP ~ 125 HP (37 kW ~ 90 kW) 575V: 50 HP ~ 125 HP (37 kW ~ 90 kW) 240V 17.72 16.87 0.55 10.83 9.13 11.18...
  • Page 382 Technical Specifications 890053-00-02 240V: 75 HP ~ 125 HP (55 kW ~ 90 kW) 480V: 150 HP ~ 300 HP (110 ~ 185 kW) 240V VFD-RSI-075-H2-2C 27.80 27.11 0.37 11.81 7.87 9.45 15.21 0.35 0.35 (706) (688.5) (9.5) (300) (200) (240) (386) VFD-RSI-100-H2-2C...
  • Page 383 Technical Specifications 890053-00-02 480V: 400 HP ~ 800 HP (250 ~ 500 kW) 36.31 35.26 0.61 17.32 12.61 17.34 0.43 0.43 250 400 VFD-RSI-400-H2-4C (922.3) (895.5) (15.5) (440) (320) (440) (11) (11) 315 500 VFD-RSI-500-H2-4C 39.37 38.27 0.59 23.62 16.54 19.69 0.55 0.55...
  • Page 384 Technical Specifications 890053-00-02 575V: 7.5 HP ~ 25 HP (5.5 kW ~ 18.5 kW) VFD-RSI-007-H2-61 VFD-RSI-010-H2-61 18.90 10.78 7.44 0.30 7.09 6.18 8.08 0.20 0.20 VFD-RSI-015-H2-61 (480) (273.7) (189) (7.5) (180) (157) (205.3) VFD-RSI-020-H2-61 18.5 VFD-RSI-025-H2-61 Units: Inches (mm)
  • Page 385 Technical Specifications 890053-00-02 575V: 30 HP ~ 40 HP (22 ~ 30 kW) kW HP VFD-RSI-030-H2-61 21.65 13.03 7.87 0.31 8.69 7.63 8.79 0.24 0.24 (550) (331) (200) (220.8) (193.8) (223.2) VFD-RSI-040-H2-61 Units: Inches (mm)

  • Page 386: Terminal Screw Specification

    Technical Specifications 890053-00-02 13.4 Terminal Screw Specification Power Input/Output Terminal Screw Specification R/S/T, U/V/W Screw Torque Product Terminal Screw Size in-lbs (Nm) 11 - 12 (1.2 - 1.4) 18 - 21 (2.0 - 2.4) 18.5 240V 49 - 58 (5.5 - 6.6) 78 - 106 (8.8 - 11.96) 158 - 186...
  • Page 387 Technical Specifications 890053-00-02 Control Circuit Terminal Screw Specification Screw Torque Terminal Terminal Screw Size in-lbs. (Nm) P1–P7 / CM, VR, V1, I2 / TI / S+, S-, SG / 1.95 - 2.2 A1/B1/C1, A2-C2, A3-C3, A4-C4, A5-C5 / (0.22 ~ 0.25) AO1, AO2 / 24V, Q1, EG Apply rated torques to the terminal screws.

  • Page 388: Dynamic Braking Resistor Specification

    32000 VFD-RSI-200-H2-4C 16000 32000 20000 40000 VFD-RSI-250-H2-4C 20000 40000 24000 48000 VFD-RSI-300-H2-4C 24000 48000 26000 52000 VFD-RSI-400-H2-4C VFD-RSI-500-H2-4C Contact Benshaw for sizing of both the Contact Benshaw for sizing of both the DBU and Resistor DBU and Resistor VFD-RSI-650-H2-4C VFD-RSI-800-H2-4C...
  • Page 389 Technical Specifications 890053-00-02 Brake Torque 100% (Normal Duty) Brake Torque 150% (Heavy Duty) VFD Brake Resistor Specification VFD Brake Resistor Specification Internal Benshaw VFD Part Resistor Wattage [W] Wattage [W] Resistor Wattage [W] Wattage [W] Brake (Ω) (Ω) Number (%ED=5%)

  • Page 390: Basic Wiring - Dbr And Dbu

    Technical Specifications 890053-00-02 13.5.1 Basic Wiring - DBR and DBU Dynamic Brake Resistor (DBR) and Dynamic Brake Unit DBU)

  • Page 391: Continuous Rated Current Derating

    Below is a summary of operating conditions that occur in the inverter when powered with a single-phase power source compared to a three-phase source. For more detail, see Benshaw Application Note - Sizing inverters for use with a Single-Phase Power Source.

  • Page 392: Derating Based On Carrier Frequency

    Technical Specifications 890053-00-02 13.6.2 Derating based on Carrier Frequency The continuous rated current of the inverter is derated when the carrier frequency (CON-04) is increased. Refer to the following tables for derating percentages based on inverter Voltage and HP rating. Current Derate % Carrier Frequency (kHz.) Voltage...

  • Page 393: Derating Based On Input Voltage

    Technical Specifications 890053-00-02 13.6.3 Derating based on Input Voltage The continuous rated current of the inverter can be limited when higher than normal input voltages are applied. The default settings for AC Input Voltage (MOT-10) are 240V, 480V and 600V. For input voltages higher than the 240V, 480V and 600V, up to a maximum of +10%, refer to the following graphs for current derating percentages.

  • Page 394: Heat Emission And Efficiency

    Technical Specifications 890053-00-02 13.7 Heat Emission and Efficiency The following table provides data on the heat generated by the inverters. Heat emissions are based on operation at room temperature at the default carrier frequency. Total Losses Internal External Voltage Part Number Efficiency (%) Rating (Watts)
  • Page 395 UL-CE Mark 890053-00-02 UL mark The UL mark applies to products in the United States and Canada. This mark indicates that UL has tested and evaluated the products and determined that the products satisfy the UL standards for product safety. If a product received UL certification, this means that all components inside the product had been certified for UL standards as well.
  • Page 396 890053-00-02 Manual Revision History Revision History Rev. Date Edition Software S/W Date Changes 11/26/2020 Dec-20 Standard 201.00 Initial Release 07/13/2022 June-2022 Standard 203.00 Added 575V Inverters 12/16/2022 Dec-2022 Standard 201.01 Added 240V Inverters...
  • Page 397 Revision History 890053-00-02 BENSHAW 615 Alpha Drive Pittsburgh, PA 15238 Phone: (412) 968-0100 Fax: (412) 968-5415 BENSHAW Canada 550 Bright Street Listowel, Ontario N4W 3W3 Phone: (519) 291-5112 Fax: (519) 291-2595...
