Ethernet/IP &
Modbus-TCP

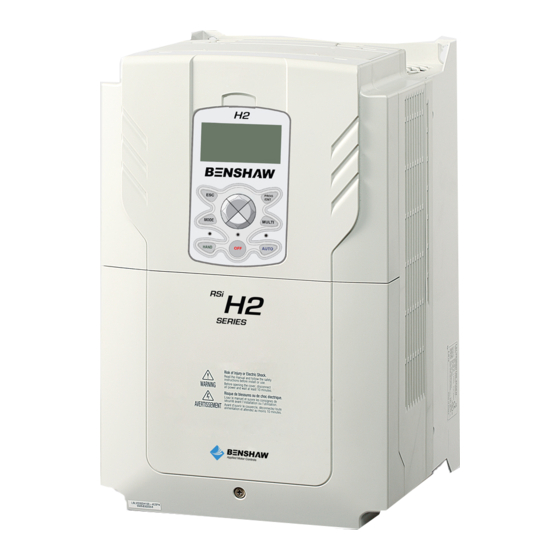

For RSi H2 Series
Variable Frequency Drive
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSi H2 Series and is the answer not in the manual?

Questions and answers

Nigel thomas
January 25, 2025

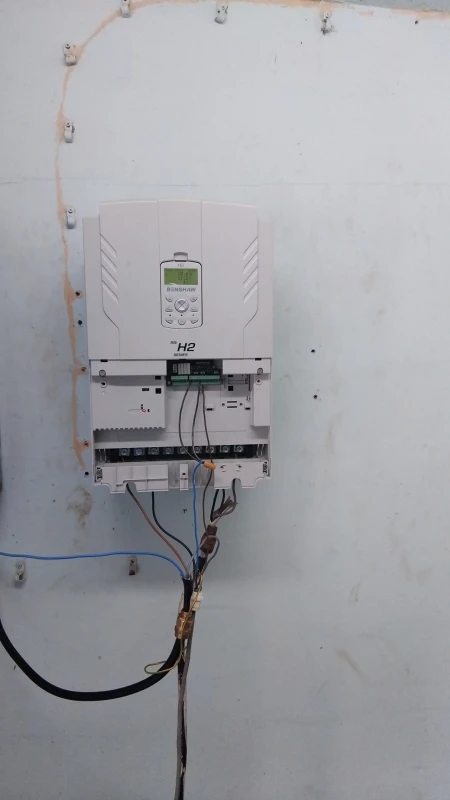

How to set the frequency to 60 Hz
