- Page 1 Waves MidiPlus Fit Controller for 8-Series User Reference...
- Page 2 Table of Contents Overview Control Modes VPots in EQ Mode Description of Controls...

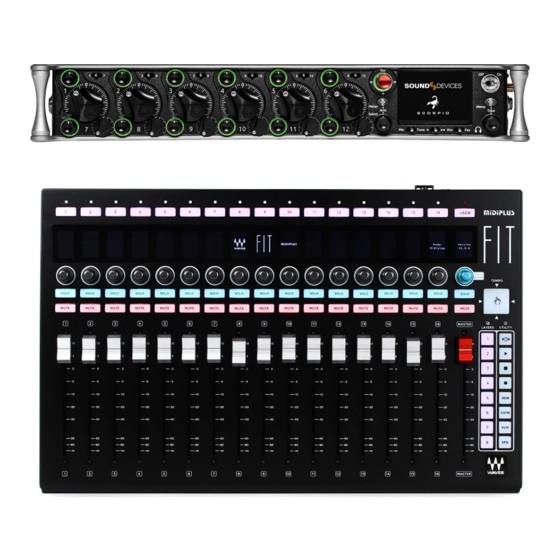

- Page 3 Overview The 8-Series can be controlled from the Waves MidiPlus Fit, a sixteen channel trim and fader panel with main fader and additional mappable buttons. The Waves MidiPlus Fit must be running firmware v1.1.3 or later and set to MCU mode. To enter MCU mode, hold down the ‘Solo’...
- Page 4 VPots in EQ Mode VPot 1 Long Press = EQ enable/disable Quick Press = LF bypass Rotate = LF gain VPot 2 Quick Press = EQ Pre/Post Rotate = LF freq VPot 3 Quick Press = LF shelf/peak Rotate = LF Q VPot 4 Quick Press = MF bypass Rotate = MF gain...
- Page 5 Description of Controls Control Default mapped function User-mappable 1-16 Selects Fat Channels 1-16. Tracks arms when USER button is enabled USER Track Arm Mode for arming/disarming and displaying track arms. Illuminates red when enabled. When enabled, buttons 1-16 toggle track arms. VPots 1-16 Encoders w/various functions depending on selected mode.
- Page 6 LAYER Buttons 1-8 Different functions depending on whether the VPot UTILITY button is enabled or disabled. VPot UTILITY Button disabled 1 = Mic Toggle 2 = Tone Toggle 3 = * Toggle 4 = ** Toggle 5 = Rtn Toggle 6 = Fav Toggle 7 = Bank Left 8 = Bank Right...
- Page 7 Post Office Box 576 E7556 State Rd. 23 and 33 Reedsburg, Wisconsin 53959 USA support@sounddevices.com +1608.524.0625 main 800.505.0625 toll free (U.S. only) www.sounddevices.com...
