Display Mount Pro ND6455 Assembly Instructions Manual

Thanks for choosing our stand. This stand was designed for mounting flat panel televisions weighing up to 60 kg. The height
of TV can be easily adjusted.
Safety Warning:
If you do not understand these directions, or have any doubts about the safety of the installation, please
call a qualified contractor. Check carefully to make sure there are no missing or defective parts. Never use defective parts.
Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly
specified in this manual. We can not be liable for damage or injury caused by incorrect mounting, incorrect assembly, or
incorrect use.
Required Tools: Phillips screw driver.

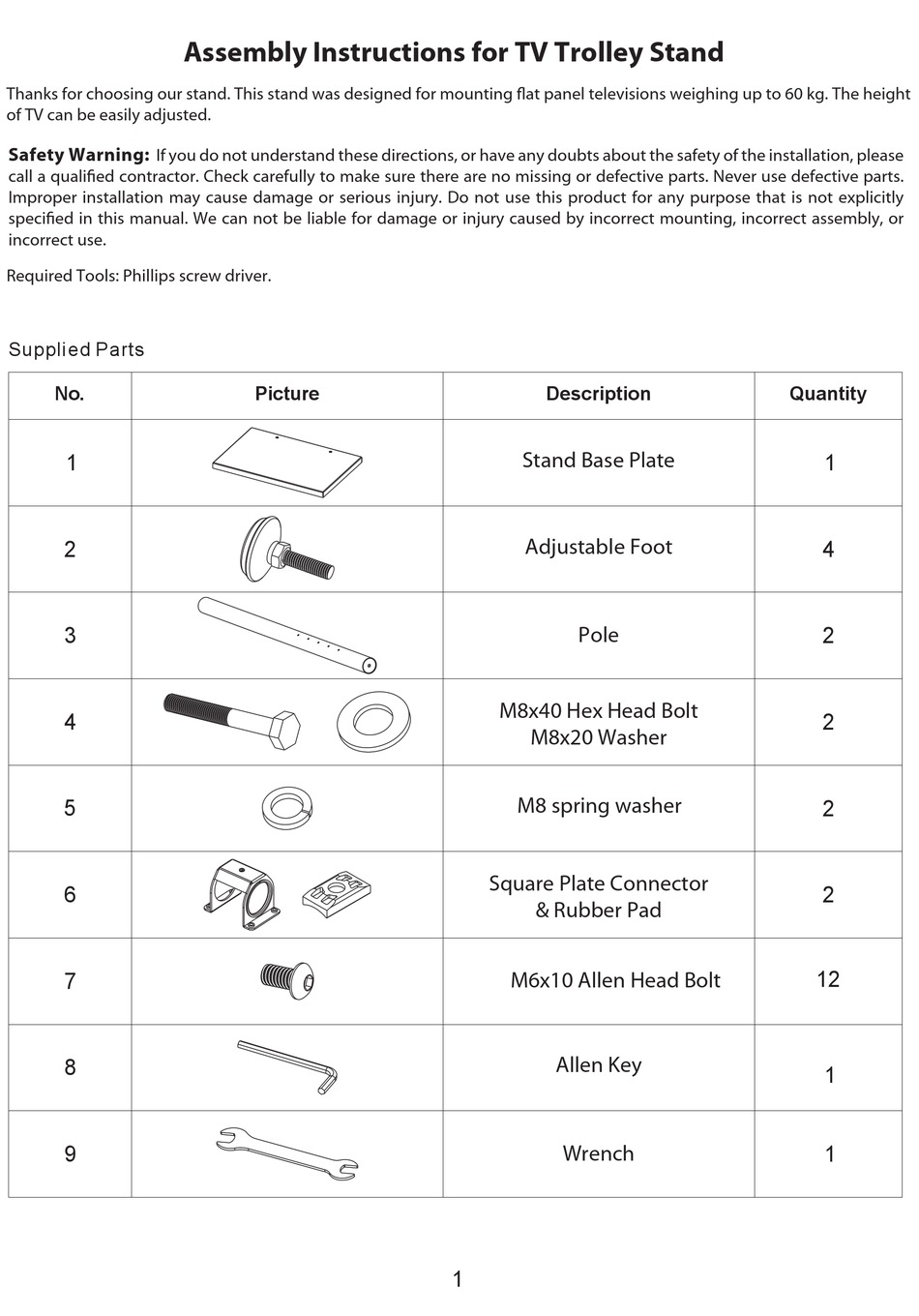

Supplied Parts
No.
1
2
3
4
5
6
7
8
9
Assembly Instructions for TV Trolley Stand
Picture Description
Stand Base Plate
Adjustable Foot
Pole
M8x40 Hex Head Bolt
M8x20 Washer
M8 spring washer
Square Plate Connector
& Rubber Pad
M6x10 Allen Head Bolt
Allen Key
Wrench

Quantity
1
4
2
2
2
2
12
1
1
