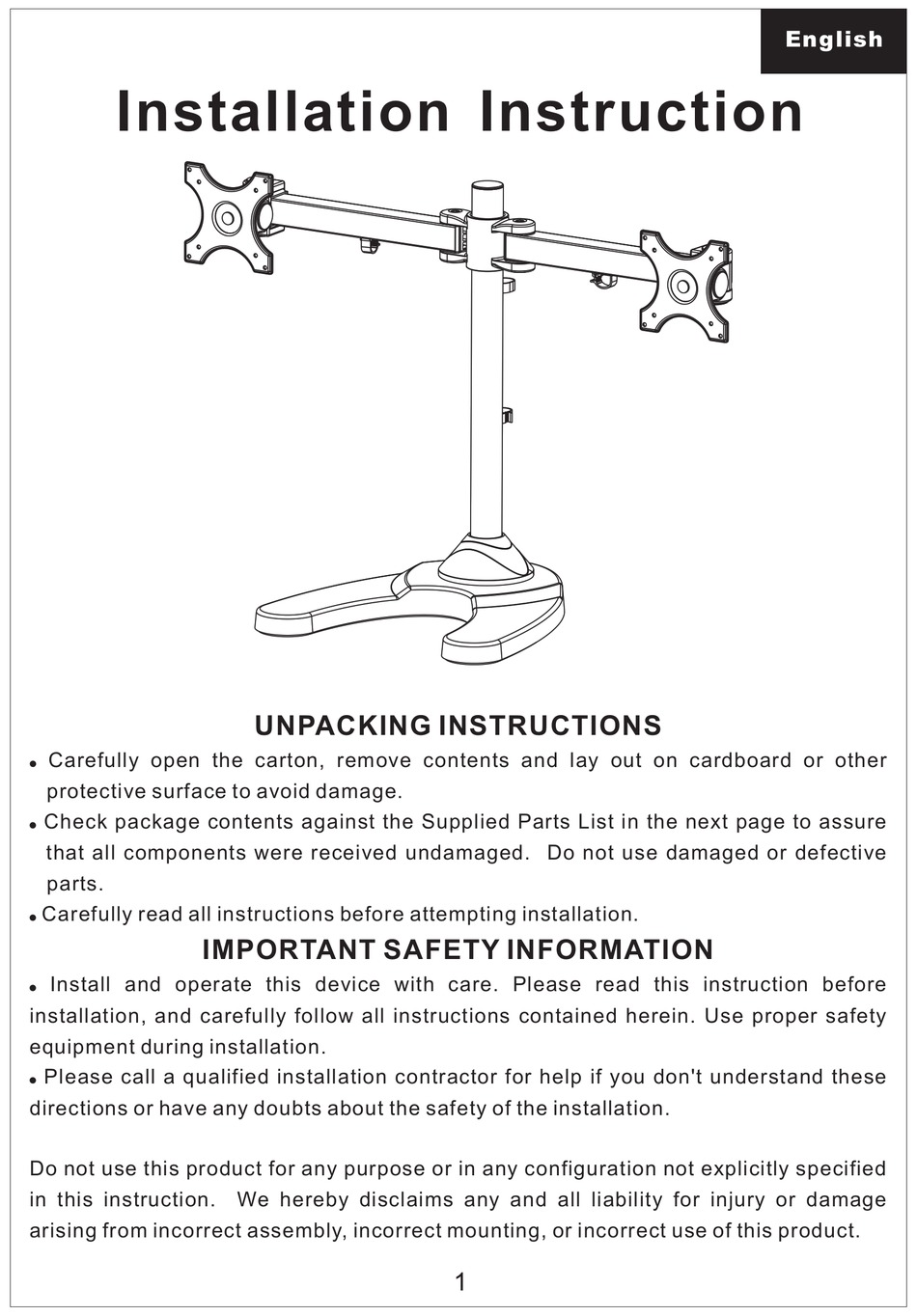

Installation Instruction
Carefully open the carton, remove contents and lay out on cardboard or other
!
protective surface to avoid damage.
Check package contents against the Supplied Parts List in the next page to assure
!
that all components were received undamaged. Do not use damaged or defective
parts.
Carefully read all instructions before attempting installation.
!
IMPORTANT SAFETY INFORMATION
Install and operate this device with care. Please read this instruction before
!
installation, and carefully follow all instructions contained herein. Use proper safety
equipment during installation.
Please call a qualified installation contractor for help if you don't understand these
!
directions or have any doubts about the safety of the installation.
Do not use this product for any purpose or in any configuration not explicitly specified
in this instruction. We hereby disclaims any and all liability for injury or damage
arising from incorrect assembly, incorrect mounting, or incorrect use of this product.
UNPACKING INSTRUCTIONS
1
English
Advertisement
Table of Contents
Related Manuals for Display Mount Pro LCD351D-STAND
Summary of Contents for Display Mount Pro LCD351D-STAND
-
Page 1: Important Safety Information
English Installation Instruction UNPACKING INSTRUCTIONS Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts. - Page 2 Supplied Par ts List (1) 35mm Pole-a (1) Weighted Base-b (1) Monitor Arm-c (1) Plastic Cover-d (1)M10 Bolt-e (1)Support Plate-f (1)M10 Washer-g (1)Spring Washer-h (2)Wire Clip-i (3)M6x29 Bolt-j (1)Allen Key-k (1)Wrench-l (8)M4x12 (8)M4x30 Bolt-n (8)M4 Space-o (2)Spare Cover-p Thumb Bolt-m Tools Required Phillips Screwdriver CAUTION!
- Page 3 Mounting the base according to your requirement Step 1 The stand can be used with the weighted Option 1 metal base or there is a desk attachment provided (as drawings on the bottom) allowing you to mount the stand on a desk. This is very simple to install and just requires a hole drilling (10mm diameter) in your desk and clamping with the bolt and...
- Page 4 Install Monitor Arm to the Pole Step 2 Install monitor arm to the pole, please make sure the wire clip in the downside. Fasten the bolt by supplied Allen Key(k). Wire Clip Mount the Monitor to VESA Plate Step 3 For Flat Back Monitor For Curved Back Monitor...
- Page 5 Do the Necessary Adjustment Step 4 Use the Allen Key(k) to do the Use the Wrench(l) to tighten the nut necessary adjustment of mount. if the tilt angle can not be fixed. Install the Wire Clips & Manage the Wires Step 5 Thank you for choosing our products!
