Display Mount Pro LCD3502-T Installation Instruction

Table of Contents

Download this manual

Installation Instruction

Carefully open the carton, remove contents and lay out on cardboard or other

protective surface to avoid damage.

Check package contents against the Supplied Parts List in the next page to assure

that all components were received undamaged. Do not use damaged or defective

parts.

Carefully read all instructions before attempting installation.

Install and operate this device with care. Please read this instruction before

installation, and carefully follow all instructions contained herein. Use proper safety

equipment during installation.

Please call a qualified installation contractor for help if you don't understand these

directions or have any doubts about the safety of the installation.

Do not use this product for any purpose or in any configuration not explicitly specified

in this instruction. We hereby disclaims any and all liability for injury or damage

arising from incorrect assembly, incorrect mounting, or incorrect use of this product.

UNPACKING INSTRUCTIONS

English

Table of Contents

Do you have a question about the LCD3502-T and is the answer not in the manual?

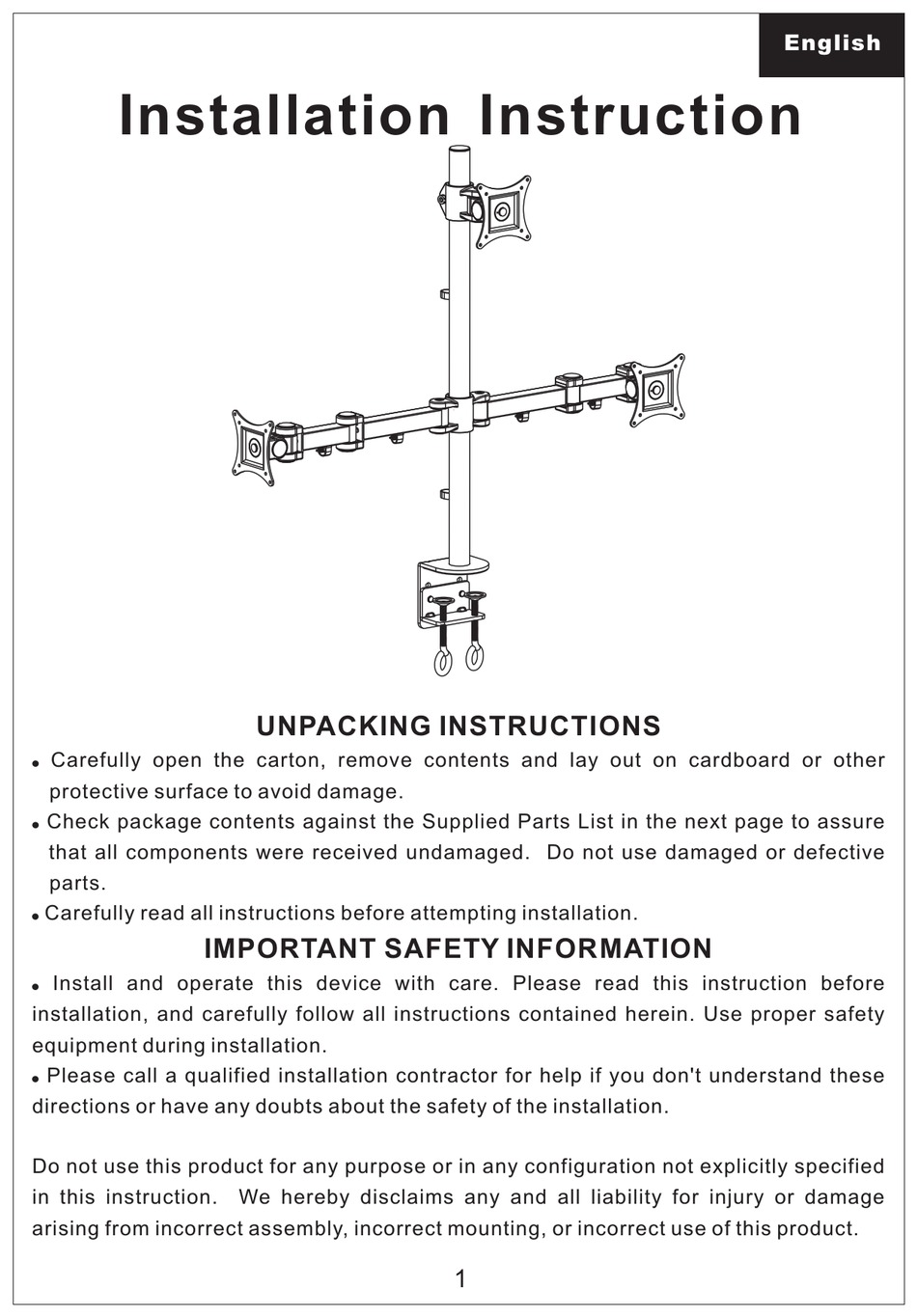

Page 1 English Installation Instruction UNPACKING INSTRUCTIONS Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts.
Page 2 Supplied Par ts List (1) 35mm Tube (1) Disconnected (1) VESA Plate with (1) VESA Plate with Support-a “C” Clamp-b Arm Assembled-c1 Arm Assembled-c2 (12)M4x12 (12)M4x30 Bolt-e (24)M4 Washer-f (12)M4 Space-g Thumb Bolt-d (2)Spare Plastic (2)Wire Clip-h (2)M10x15 Bolt-i (1)Allen Key-j (1)Wrench-l Cover-k Tools Required...
Page 3 Install the “C” Clamp According to the Desktop Thickness Step 1 The depth of “C” clamp can be changed in three positions. Choose the proper depth a c c o r d i n g t o t h e t h i c k n e s s o f y o u r desktop.
Page 4 Step 3 Mount the Monitor to VESA Plate For Flat Back Monitor For Flat Back Monitor For Curved Back Monitor Do the Necessary Adjustment Step 4 Fix the tilt angle Remove the plastic cover, Remove the plastic cover, use t i g h t e n t h e n u t b y t h e the Allen Key(j) to do the Wrench(l) to fix the tilt angle.
