Installation Instruction
Carefully open the carton, remove contents and lay out on cardboard or other
!
protective surface to avoid damage.
Check package contents against the Supplied Parts List in the next page to assure
!
that all components were received undamaged. Do not use damaged or defective
parts.
Carefully read all instructions before attempting installation.
!
IMPORTANT SAFETY INFORMATION
Install and operate this device with care. Please read this instruction before
!
installation, and carefully follow all instructions contained herein. Use proper safety
equipment during installation.
Please call a qualified installation contractor for help if you don't understand these
!
directions or have any doubts about the safety of the installation.
Do not use this product for any purpose or in any configuration not explicitly specified
in this instruction. We hereby disclaims any and all liability for injury or damage arising
from incorrect assembly, incorrect mounting, or incorrect use of this product.
UNPACKING INSTRUCTIONS
1
English
Advertisement
Table of Contents
Related Manuals for Display Mount Pro MDM 003T
Summary of Contents for Display Mount Pro MDM 003T

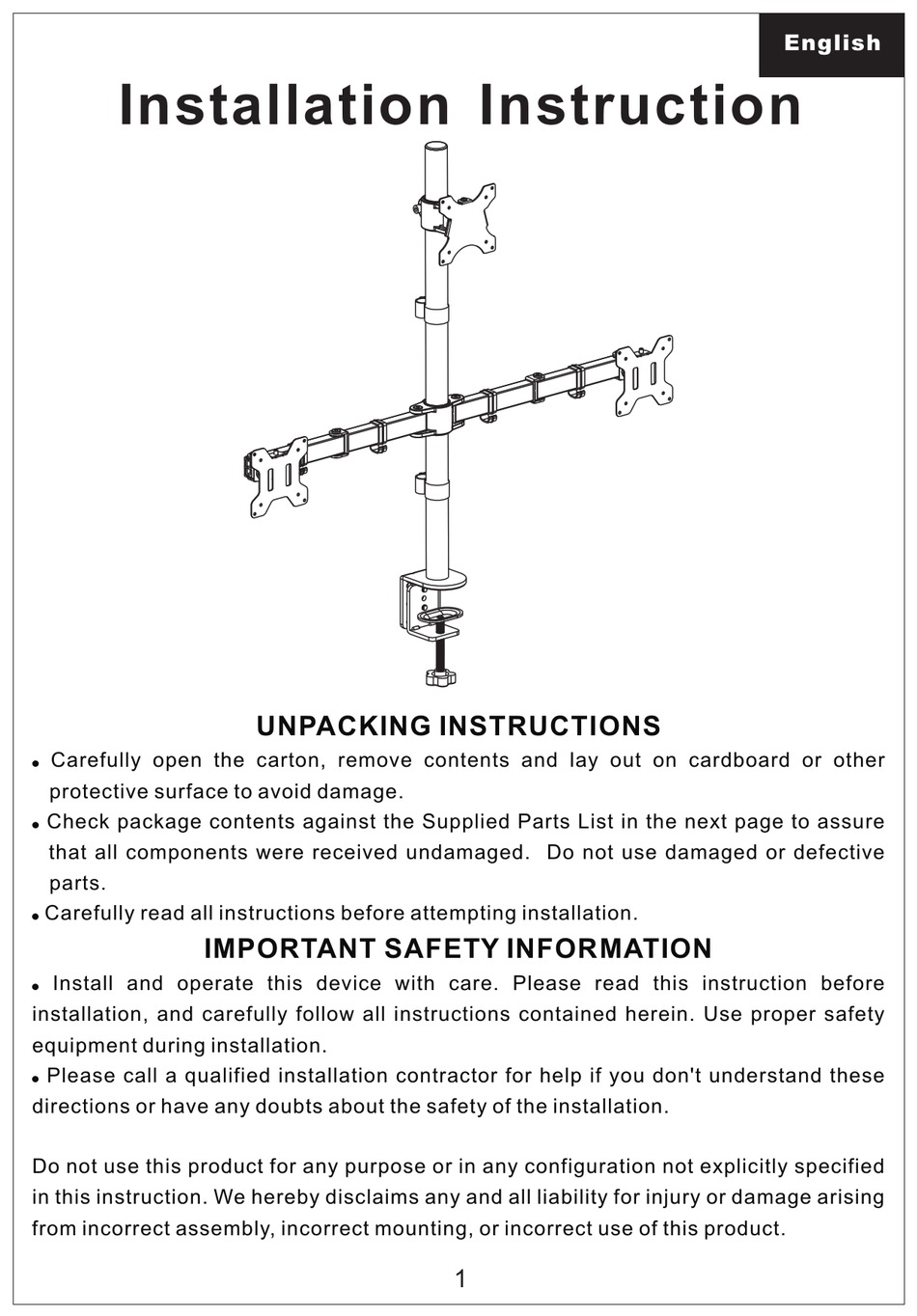

- Page 1 English Installation Instruction UNPACKING INSTRUCTIONS Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts.
- Page 2 Supplied Par ts List (1) Lower Pole-a1 (1) Upper Pole-a2 (1) “C” Clamp-b (1) “C” Clamp Brace-c (1) Swivel Arm-d1 (1) Monitor Arm-d2 (2) VESA Plate-e1 (1)VESA Plate-e2 (2) Nut-f1 (1)M4x6 Bolt-f2 (3) M5x14 Bolt-g (2) M8x12 Bolt-h (1)M10 Bolt-i (1)Support Plate-j (1)M10 Washer-k (1)Spring Washer-l...
- Page 3 Pre-Assembly...
- Page 4 Install the Pole to the Desktop Step 1 Option A: Desk Clamp Install 1. Install the “C”-Clamp Brace(c) to the Pole (a) using 3pcs M5x14 Bolts(g), and tighten using the Allen Key(o), see Figure 1. 2. Install the “C”-Clamp(b) to the pole assembly according to the thickness of the desktop.
- Page 5 Install the Pole to the Desktop Step 1 Option B: Grommet Base Install Self Drilled Grommet Hole Installation 1. Position the Pole(a) on the mounting surface and mark the center hole. Drill a 3/8" (10mm) diameter hole at the marked position through the mounting surface.
- Page 6 Step 3A Attach the Side VESA Plates to the Monitors For Monitor with Flat Back For Monitor with Curved or Recessed Back Attach the Center VESA Plate to the Monitor Step 3B For Monitor with Curved or For Monitor with Flat Back Recessed Back...
- Page 7 Step 4A Slide the Side Monitors onto the Head of Swivel Arm Slide the monitor onto the head of Install the security Nut(f1). Make Swivel Arm(d1) as shown in the sure the security nut is installed above diagram. before you rotate the monitor. Slide the Center Monitor onto the Head of Monitor Arm Step 4B Slide the monitor onto the head of...
- Page 8 Fix the Tilt Angle of Side and Center Monitors Step 5 grub screw Fix the tilt angle Fix the tilt angle Tighten the bolt with the supplied Allen Fasten the grub screw in monitor arm to fix the tilting angle by provided Allen Key(o). Key(o) to fix the tilt angle.
