Display Mount Pro GS-001-WALL Installation Instruction

Table of Contents

Download this manual

Installation Instruction

Carefully open the carton, remove contents and lay out on cardboard or other

protective surface to avoid damage.

Check package contents against the Supplied Parts List in the next page to assure

that all components were received undamaged. Do not use damaged or defective

parts.

Carefully read all instructions before attempting installation.

Install and operate this device with care. Please read this instruction before

installation, and carefully follow all instructions contained herein. Use proper safety

equipment during installation.

Please call a qualified installation contractor for help if you don't understand these

directions or have any doubts about the safety of the installation.

Do not use this product for any purpose or in any configuration not explicitly specified

in this instruction. We hereby disclaims any and all liability for injury or damage

arising from incorrect assembly, incorrect mounting, or incorrect use of this product.

UNPACKING INSTRUCTIONS

Fits most monitor size: 13"-27"

Load weight: 3.3~15.4 lbs (1.5~7 kg)

VESA: 75 x 75 and 100 x 100

English

Table of Contents

Do you have a question about the GS-001-WALL and is the answer not in the manual?

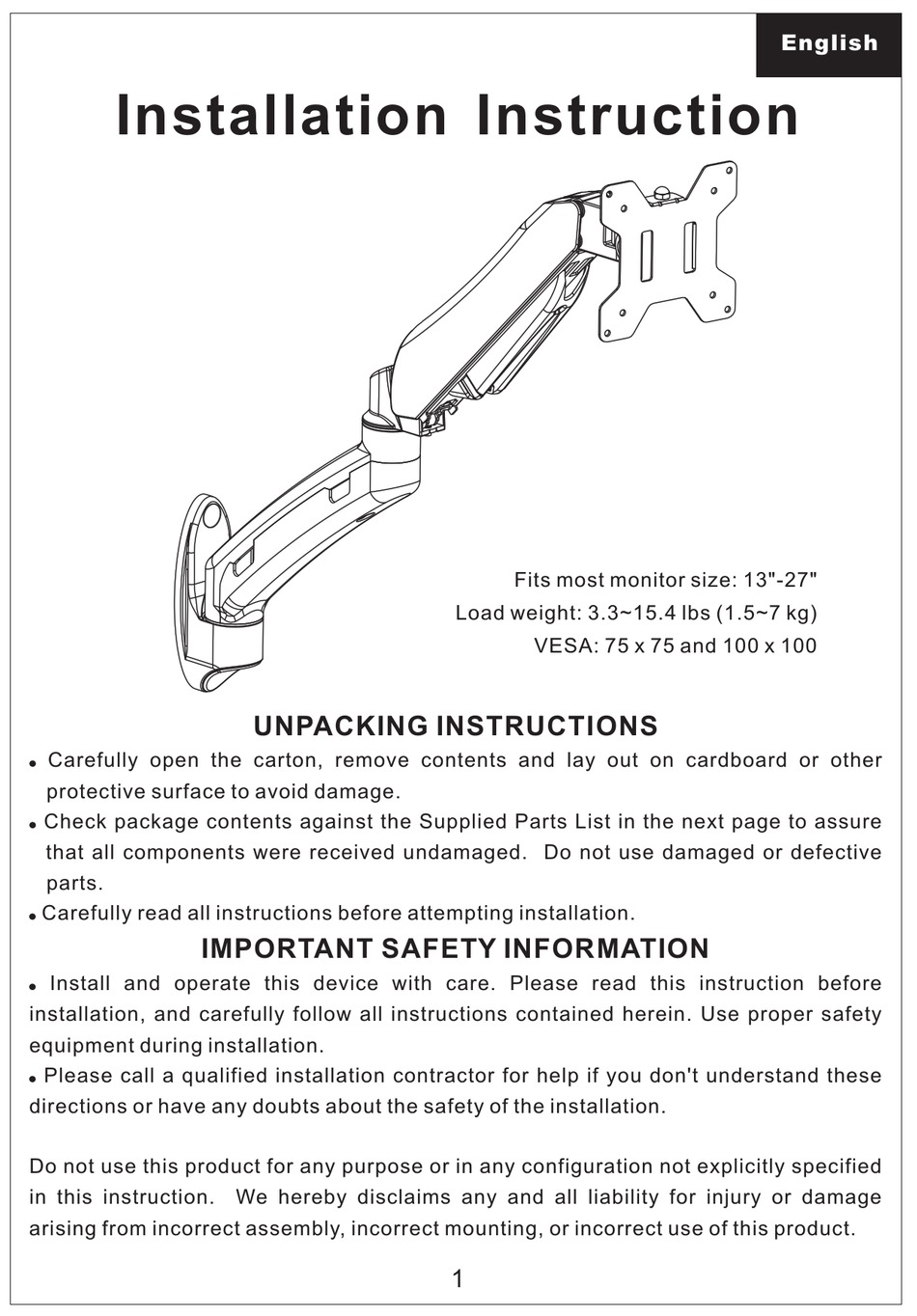

Page 1 English Installation Instruction Fits most monitor size: 13"-27" Load weight: 3.3~15.4 lbs (1.5~7 kg) VESA: 75 x 75 and 100 x 100 UNPACKING INSTRUCTIONS Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged.
Page 2 Supplied Par ts List (2) M8x40 (1) Single Arm Set-a (2) M6x45 Lag Bolt-b Concrete Anchor-c (4)M4x12 (4)M4x30 Bolt-e (4)M4 Spacer-f Thumb Bolt-d (1)Allen Key-g (1)Bolt Cover-h...
Page 3 Mounting the Wall Plate to the Wall Step 1 Brick Mount 45mm 40mm Wood Mount 45mm 3.8mm...
Page 4 Attaching the Plastic Cap and Bolt Cover to the Arm Set Step 2 Removing the Security Nut and Taking Down the VESA Plate Step 3 Security Nut...
Page 5 Attaching the VESA Plate to the Monitor Step 4 For Monitor with Flat Back For Monitor with Curved or Recessed Back Sliding the Monitor onto the Head of Single Arm Set Step 5 Security Nut Slide the monitor onto the head of Install the Security Nut.
Page 6 Setting the Tilt Angle Position Step 6 Adjusting the Torque of Gas Spring Step 7 Adjust the torque of gas spring according to the weight of your monitor. If your monitor can not stay in the lower position, turn the grub screw clockwise(-). If your monitor can not stay in the higher position, turn the grub screw counterclockwise(+).
Page 7 Managing the AV Cables Step 8 Technical Drawing Finish...
