iPuray BRT-603 Quick Start Manual

Timer Switch with Remote Control
(No Neutral Required)
Model #： BRT-603

Features:

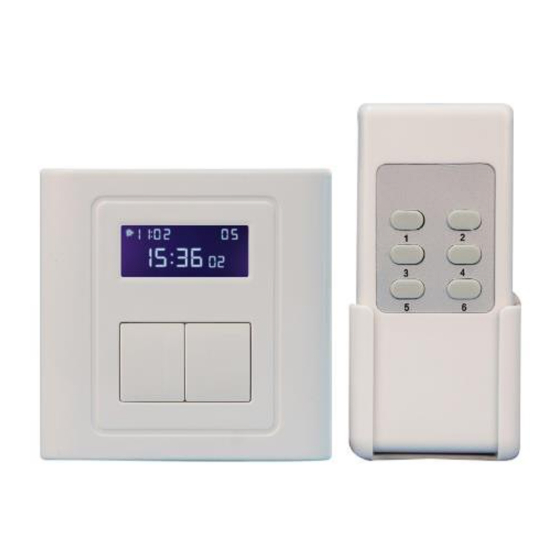

BRT-603 is a timer switch kit which consists of a wall mount unit and a remote control set. The
user can control the loads either directly using the wall mount unit or using the remote. The wall
mount unit is designed for easy installation and retrofit, directly fit into standard wall box.

Two buttons to control two loads respectively;
 Hidden keypad panel for timer settings;
 Delay-off time up to 30 minutes, which can be set accurately to a second;
 Remote control distance up to 15m;
 LCD display showing the current time and the current status of the switch;
 Good for all kinds of loads (Resistive, inductive, and capacitive);
 ABS-V0 flame resistance material; and

Classical 86 series design and high quality build.

Front View, Back View, Hidden Panel and Remote Set:

Fig. 1 and Fig. 2 show the front view and the back view of the wall mount unit of BRT-603 timer
switch respectively.
Fig. 1 Front View
Product Description of BRT-603
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. sales@a-brt.com.
© 2015 All rights reserved. Subject to change without notices.
Fig. 2 Back View
