User
Manual

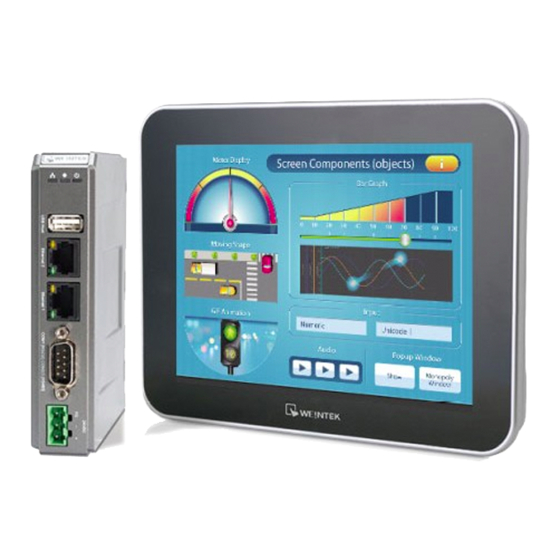

cMT-SVR Startup Guide
Kessler-Ellis Products．10 Industrial Way East, Eatontown, NJ 07724．Toll Free: 800-631-2165．Phone: 732-935-1320．Fax: 732-935-9344
www.kep.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the cMT-SVRiV5EA20 and is the answer not in the manual?

Questions and answers

Related Manuals for weintek cMT-SVRiV5EA20

Summary of Contents for weintek cMT-SVRiV5EA20

  • Page 1 User Manual cMT-SVR Startup Guide Kessler-Ellis Products．10 Industrial Way East, Eatontown, NJ 07724．Toll Free: 800-631-2165．Phone: 732-935-1320．Fax: 732-935-9344 www.kep.com...

  • Page 2: Table Of Contents

    Table of Contents Chapter 1 Overview ............................. 1 Specification ............................1 Dimensions ............................2 Connector pin designations ....................... 4 USB host port and SD card slot ......................4 Ethernet port ............................4 DIP switch ............................4 LED indicator ............................5 Lithium battery ...........................

  • Page 3: Chapter 1 Overview

    Startup Guide Chapter 1 Overview 1.1 Specification UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.

  • Page 4: Dimensions

    Front View Bottom View Top View USB Host Port Power Connector Ethernet 2 Port SD Card Slot Ethernet 1 Port DIP Switch COM1 RS-232, COM2 RS-485 2W/4W, Reset Button COM3 RS-485 2W UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.
  • Page 5 Front View Side View Top View Bottom View Wi-Fi Power Connector USB Host Port SD Card Slot Ethernet Port DIP Switch COM1 RS-232, COM2 RS-485 2W/4W, Reset Button COM3 RS-485 2W UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.

  • Page 6: Connector Pin Designations

    Wi-Fi: DHCP Note: Reboot cMT-SVR after adjusting DIP switches to start the corresponding mode. When restore factory default, the project file and history data stored in the unit are all cleared. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.

  • Page 7: Led Indicator

    Under EasyBuilder Pro installation directory, open UtilityManager.exe, select cMT Series, open Maintenance tab, and select cMT-Server OS Update. Select the cMT-SVR and the OS (20190902 or later), and then click [Update]. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.
  • Page 8 Restart cMT-SVR and wait about 2 minutes for the system to update OS image. To find the version number of cMT-SVR OS, please log in System Setting as shown below. (Details can be found in later chapters.) UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.
  • Page 9 UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.

  • Page 10: Chapter 2 System Setting

    Open internet browser (IE, Chrome, or Firefox), and enter cMT-SVR IP address (for example: 192.168.1.15/web_ihmi) to configure cMT-SVR. Set on cMT Viewer devices Launch cMT Viewer App, tap Search, select the cMT-SVR and tap icon to configure. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.

  • Page 11: Cmt-Svr System Setting

    2.1 cMT-SVR System Setting 2.1.1 Information The following part introduces cMT-SVR system information. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.

  • Page 12: System Setting

    There are two modes, [System setting] and [Update]. [System Setting] controls all the settings while [Update] controls limited items. For safety, specify password for configuration. Enter password to log in and then select [History] to back up history data. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.
  • Page 13 Network Set the IP address of Ethernet port. cMT-SVR-100/102 has two Ethernet ports while cMT-SVR-200/202 only has one. Wi-Fi cMT-SVR-200/202 can be connected via Wi-Fi. The settings page is shown below. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.
  • Page 14 Using Wi-Fi hotspot on cMT-SVR-200/202 is possible. After setting hotspot, computers and portable devices that support Wi-Fi can connect with cMT-SVR-200/202 to wirelessly edit the project, download files, or monitor using cMT Viewer. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.
  • Page 15 Enter a cMT-SVR name to identify the unit. This saves the trouble of remembering the IP address of each unit. Click [Identification light] button to turn on the CPU light of the unit. The light flashes 3 times to help finding the unit. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.
  • Page 16 History Clear or backup history data in cMT-SVR. Email Set the mail address and contact group. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.
  • Page 17 Project Management Restart, update, or backup project file. System Password Set the password for login, and the password for transferring project file and history data. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.
  • Page 18 Enhanced Security Set the privilege and password of the account. EasyAccess 2.0 Activate EasyAccess 2.0 and configure proxy settings. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.
  • Page 19 Misc Miscellaneous settings. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.

  • Page 20: Chapter 3 How To Create A Cmt-Svr Project

    3.1 Create a new project Step 1. Launch EasyBuilder Pro and select cMT-SVR model. Step 2. Create the needed objects on editing screen. Step 3. Save the project and compile to *.cxob file. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.

  • Page 21: Download Project To Cmt-Svr

    Or, in cMT-SVR System setting, tap Project Management \ Update Project to transfer the project file from PC to cMT-SVR. Open internet browser (IE, Chrome, Firefox), enter cMT-SVR IP address (for example: 192.168.1.118/web_ihmi), tap System setting, enter password, and then configure cMT-SVR settings. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.

  • Page 22: Chapter 4 Cmt Viewer App

    Tap this icon to configure cMT Viewer. Tap this icon to change screen layout in Monitor Mode. Tap this icon to search for all cMT Series HMIs on the same network. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.

  • Page 23: How To Load Project File To Cmt Viewer

    4.2 How to load project file to cMT Viewer Step 1. Launch cMT Viewer App and tap the + button as shown below. Step 2. Search for all the cMT Series HMI on the same network. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.
  • Page 24 Seires HMI that uses the same password. Step 4. When finished, cMT Viewer will display the project. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.
  • Page 25 Tap Start Button to return to main screen. To connect another cMT-SVR, follow the preceding steps to search for cMT-SVR and load the project. The + button of the connected cMT Series HMI will turn grey: UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.

  • Page 26: How To Open Cmt Viewer Settings Page

    4.3 How to open cMT Viewer settings page Step 1. In cMT Viewer main screen tap icon. Step 2. Enter password to open [more settings]. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.
  • Page 27 Information cMT Viewer version information. General cMT Viewer display settings. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.
  • Page 28 Language cMT Viewer interface language menu. Password Protection After setting, entering password will be necessary for using these functions. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.
  • Page 29 If this function is protected by password, adding new cMT Series HMI will require password. Modify project If this function is protected by password, changing layout of Monitor Mode will require password. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.
  • Page 30 If this function is protected by password, clearing connection history in History page will require password. To use password protected functions, tap the lock icon in the upper left corner and enter password. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.
  • Page 31 After entering password, cMT Viewer will start a countdown timer of 10 minutes, when it’s over, the functions protected by password will be locked again. The countdown timer can be reset by tapping any button in cMT Viewer. To reset the timer to zero, tap UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.

  • Page 32: Monitor Mode

    Add the needed objects in Window No. 3, which is the Monitor Mode window by default. Step 3. Open [more settings] in cMT Viewer, go to General page and enable [Monitor mode]. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.
  • Page 33 Intel Atom is a trademark of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Other company names, product names, or trademarks in this document are the trademarks or registered trademarks of their respective companies. This document is subject to change without prior notice. UM015002E_20200106 Copyright© 2019 Weintek Lab., Inc. All rights reserved.

This manual is also suitable for:

Cmt-svr-100Cmt-svr-102Cmt-svr-200Cmt-svr-202Cmt-svr seriesCmt-svriv5
