weintek cMT-SVR Series Installation Instruction

cMT-SVR series

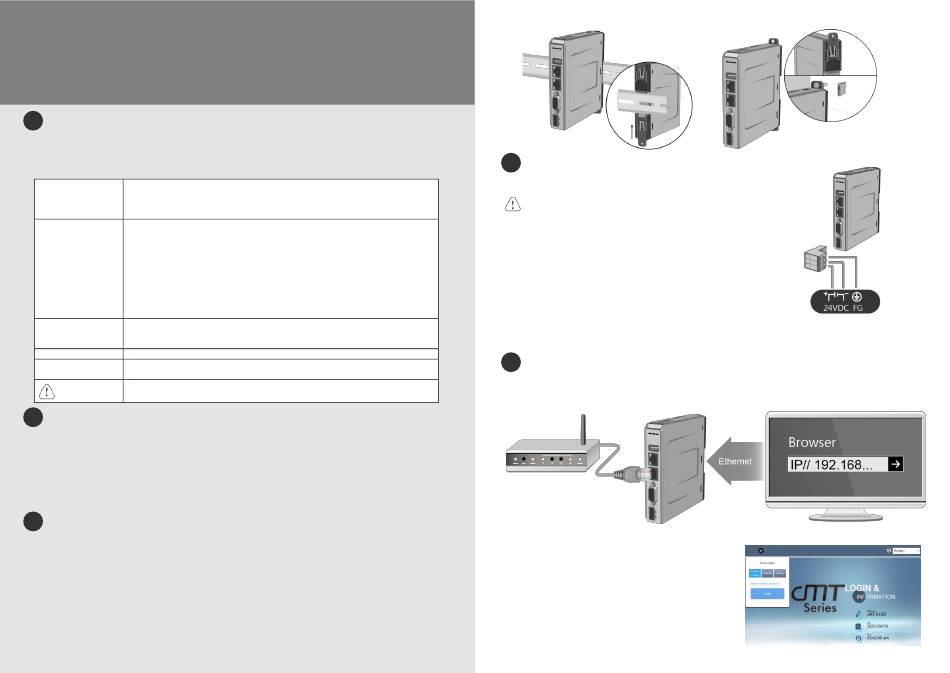

1 Installation and Startup Guide
This document covers the installation of cMT-SVR Series, for the detailed specifications and operation,
please refer to Brochure and EasyBuilder Pro User Manual.
Install Environment:
The cMT-SVR Series has been tested to conform to European CE
Electrical requirements. This means that the circuitry is designed to resist the effects of
Environment electrical noise. This does not guarantee noise immunity in severe cases.
Proper wire routing and grounding will insure proper operation.
(1) Make sure that the units are installed correctly and that the operating
limits are followed. Avoid installing units in environments where severe
mechanical vibration or shocks are present.
(2) Do not operate the unit in areas subject to explosion hazards due to
Environmental flammable gases, vapors or dusts.
Considerations (3) Do not install the unit where acid gas, such as SO2 exists.
(4) This device should be mounted in the vertical position and for use on the
flat surface enclosure.
(5) For use in Pollution Degree 2 Environment and dry location.
(6) Relative Humidity: 10% ~ 90% (non-condensing)
Operating Altitude
(Atmospheric Below 3,000 m (9842.52 ft.), atmospheric pressure is 70.1 kPa.
Pressure)
IP rating IP 20
Cleaning Clean the device using dry cloths. Do not use liquid or spray detergents for
Considerations cleaning.
Protection impairment if used in a manner not specified by the manufacturer.
Warning
Déficit de protection si utilisé d'une manière non spécifiée par le fabricant.
2 Unpacking the Unit
Unpack and check the delivery. If damage is found, notify the supplier.
NOTE: Place the unit on a stable surface during installation. Dropping it or letting it fall may cause
damage.
(1) Installation Instruction, A4 double sided *1
(2) Power Connector *1
(3) cMT-SVR *1
3
Installation Instructions
Rail mounting: DIN rail 35mm
Panel mounting: Use two M4 or #8 panhead screws, mounting hole size is 4.6mm
Installation Instruction
4
Power Connections
Power Connector Specifications:
Wire AWG: 24~12
Wiring Conductor Minimum Temperature: 75°C
Screw Torque: 4.5 lbf-in (max.)
Copper conduct only.
Spécifications du connecteur d'alimentation:
AWG de fil: 24~12
Température minimale du conducteur de câblage: 75°C
Couple de vis: 4.5 lbf-in (max.)
Conducteur en cuivre seulement
NOTE: Connect positive DC line to the '+' terminal and the DC
ground to the '-' terminal.
5
System Settings
Connect cMT-SVR with a router via RJ-45 Ethernet cable. Launch Cloud EB Pro on PC or iPad, find the
cMT-SVR and use the default password "111111" to log in and configure.
Click the System Settings button and configure cMT-SVR.
The interface can be used to download or upload project
files.
