weintek cMT-G01 User Manual

Cmt series
Hide thumbs Also See for cMT-G01:
Table of Contents

Advertisement

Quick Links

User Manual
V1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the cMT-G01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for weintek cMT-G01

Summary of Contents for weintek cMT-G01

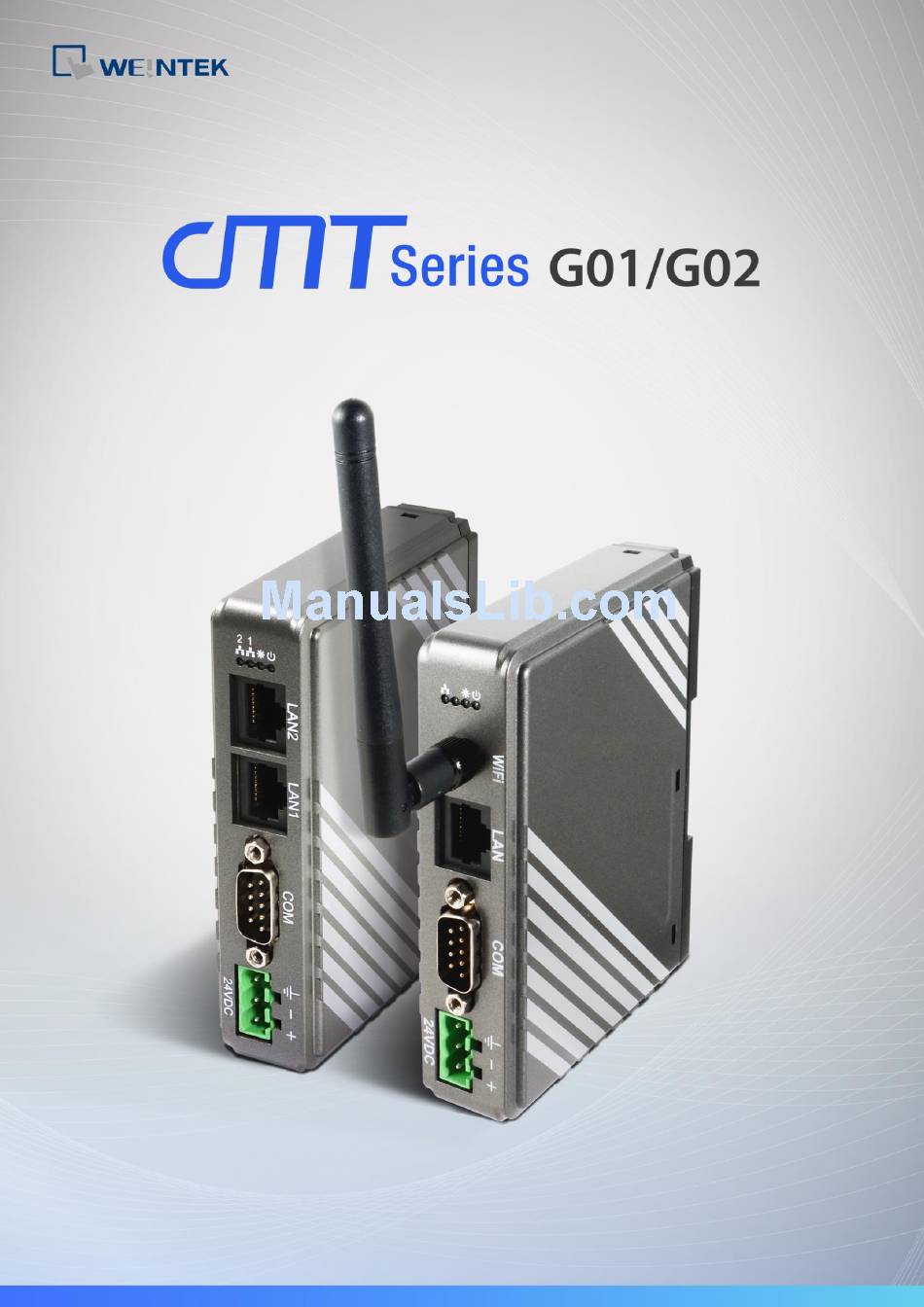

  • Page 1 User Manual V1.0.0...

  • Page 2: Table Of Contents

    Chapter3. Updating Web Package and OS ....................15 Updating Web Package ........................15 Updating OS ............................. 16 Chapter4. How to create a cMT-G01/G02 project ..................18 4.1. Create a new project ........................18 4.2. Download project to cMT-G01/G02 ....................20 4.3.
  • Page 3 UM017003_cMT-G01G02_UserManual 6.4. Edit Node ............................27 6.5. Certificates ............................28 6.6. Discovery ............................29 6.7. Advanced ............................30 V1.0.0...

  • Page 4: Overview

    Fan-less Cooling System  Built-in 256 MB Flash Memory  Supports MPI 187.5K  Built-in Power Isolator  cMT-G02 supports Wi-Fi Model cMT-G01 cMT-G02 Flash 256 MB Memory 256 MB Processor 32 bits RISC Cortex-A8 600MHz SD Card Slot USB Host...

  • Page 5: Dimensions

    UM017003_cMT-G01G02_UserManual 英文版 1.2. Dimensions cMT-G01 27mm [1.06"] 81mm [3.19"] 27mm Side View Front View Top View Bottom View LAN 2 Port (10M/100M) LAN 1 Port (10M/100M/1G) COM1: RS-232 2W COM2: RS-485 2W/4W COM3: RS-485 2W Power Connector Default Button V1.0.0...
  • Page 6 UM017003_cMT-G01G02_UserManual cMT-G02 Wi-Fi LAN 1 Port (10M/100M) COM1: RS-232 2W COM2: RS-485 2W/4W COM3: RS-485 2W Power Connector Default Button V1.0.0...

  • Page 7: Connector Pin Designations

    1.4. Restoring factory default Press and hold on the Default button on the unit for more than 15 seconds to restore factory default. The IP setting will be restored to default: cMT-G01: Ethernet 1: DHCP Ethernet 2: 192.168.100.1 cMT-G02 Wi-Fi: DHCP...

  • Page 8: Led Indicator

    LAN 1 Communication Status Blue LAN 2 Communication Status Orange Power Status Helps the operator to find the cMT-G01. Triggering system register LB-11959 Green can turn this indicator on/off. Blink LED function in Web/Download interface can also control this indicator. cMT-G02...

  • Page 9: Battery

    DC systems. The power conditioning circuitry inside the unit is accomplished by a switching power supply. The peak starting current can be as high as 500mA. cMT-G01 voltage range: 24±20% VDC cMT-G02 voltage range: 10.5~28 VDC Note: Connect positive DC line to the‘+’terminal and the DC ground to the‘-’terminal.

  • Page 10: Chapter2. Cmt-G01/G02 System Setting

    Launch UtilityManagerEX, select a cMT Series model, and then select a function from Reboot, Download, or Upload. The cMT Series HMI model or cMT-G01/G02 can be found in the IP/HMI Name groupbox by using the model’s IP address, even if the PC or laptop is not on the same network.

  • Page 11: System Setting

    2.3.1. Network Configure Ethernet ports: IP, Mask, Gateway, and DNS. cMT-G01 has two Ethernet ports. The default IP address of Ethernet 1 is DHCP, and the static IP address of Ethernet 2 is 192.168.100.1. cMT-G02 has one Ethernet port, and is assigned from DHCP by default.

  • Page 12: Wi-Fi (Cmt-G02)

    2.3.2. Wi-Fi (cMT-G02) Enable/Disable Wi-Fi and related settings: search for AP, configuring IP, Mask, Gateway, and DNS. 2.3.3. Date/Time Set RTC date and time. Select [Sync. with host] and then click [Save] to synchronize cMT-G01/G02 time with the computer time. V1.0.0...

  • Page 13: Hmi Name

    UM017003_cMT-G01G02_UserManual 2.3.4. HMI Name Enter a name to identify the unit. [Identification light]: The green LED indicator of the unit will flash three times when this button is clicked, helping user to find the unit. 2.3.5. History This tab offers settings related to historical data. V1.0.0...

  • Page 14: Email

    UM017003_cMT-G01G02_UserManual [Clear]: Clears history data. [Backup]: Downloads history data in the unit to this computer. 2.3.6. Email This tab offers settings related to email. [SMTP]: Configure email server and relevant settings. [Contacts]: Set email contacts in this tab. [Update Email Contacts]: Import the email contacts built using Administrator Tools. V1.0.0...

  • Page 15: Project Management

    2.3.7. Project Management This tab offers settings related to project management. [Restart Project]: Restart cMT-G01/G02 project. [Update Project]: Upload the project’s *.cxob file to cMT-G01/G02. [Backup Project]: Backup the project file to this computer. 2.3.8. System Password Set login password and the password for transferring project file.

  • Page 16: Enhanced Security

    UM017003_cMT-G01G02_UserManual 2.3.9. Enhanced Security The account setting in this tab can determine the accounts that can log in OPC UA. [Accounts]: Add user or change user password and operable classes. [Import User Account]: Import the user accounts built in Administrator Tools. 2.3.10.

  • Page 17: Opa Ua

    Configure OPC UA settings. Please see Chapter 6 in this manual for more information. 2.3.12. Communication This tab displays the communication parameters of the device connected to cMT-G01/G02. The parameters can be changed. Parameter list for the device connected via Serial Port.

  • Page 18: Chapter3

    UM017003_cMT-G01G02_UserManual Chapter3. Updating Web Package and OS cMT-G01/G02 Web Package and OS can be updated through Ethernet. Launch Utility ManagerEX, select [cMT Series] » [Maintenance] » [cMT-G01 OS Upgrade]. 3.1 Updating Web Package 1. Select an HMI to update OS.

  • Page 19: Updating Os

    1. Select an HMI to update OS. 2. Select [OS], a Warning message shows, please read this message carefully before you click [OK]. 3. If you click [OK], the cMT-G01 OS Update window opens again, browse for the source file, and then click [Update].
  • Page 20 UM017003_cMT-G01G02_UserManual V1.0.0...

  • Page 21: Chapter4. How To Create A Cmt-G01/G02 Project

    How to create a cMT-G01/G02 project This chapter explains how to create a project when cMT-G01/G02 is used as an OPC UA Server, and how to set the addresses used to communicate with OPC UA Clients. The basic steps are: 1.
  • Page 22 UM017003_cMT-G01G02_UserManual Step 3. Click [IIoT] » [OPC UA Server], and select [Enable] check box to enable OPC UA Server. Step 4. Click [Tags] of the device and then click [New Tag] to add tags monitored using OPC UA. When finished, click [OK] to leave. Step 5.

  • Page 23: Download Project To Cmt-G01/G02

    UM017003_cMT-G01G02_UserManual 4.2. Download project to cMT-G01/G02 The format of the project file run on cMT-G01/G02 is *.cxob. In EasyBuilder Pro, click [Project] » [Compile] to compile the project into *.cxob format. When finish compiling, you can download the project to cMT-G01/G02 by two ways.

  • Page 24: Monitoring Opc Ua Client

    4.3. Monitoring OPC UA Client After downloading the project file to HMI, use OPC UA Client software to connect with cMT-G01/G02 to monitor PLC data. Note: The above is a screenshot of UaExport settings window, for more information on OPC UA Client software settings, please see software’s manual.
  • Page 25 UM017003_cMT-G01G02_UserManual On-line simulation, cMT Gateway Viewer can read from / write to PLC. Please note that On-line simulation is limited to 10 minutes. Step 1. In EasyBuilder Pro click [Project] » [On-line Simulation] / [Off-line Simulation] to open cMT Gateway Viewer window. Step 2.

  • Page 26: Chapter5. Functions Supported By Cmt-G01/G02

    Data Transfer (Global) object  Off-line / On-line Simulation  Recipes (RW, RW_A)  Event Log (please note that cMT-G01/G02 cannot read history data saved in an external device)  E-Mail  Scheduler  Managing OPC UA and communication parameters using Web interface.

  • Page 27: Chapter6

    OPC UA configurations. Open cMT-G01/G02’s webpage by entering its IP address into the address bar of a web browser. At the entry page, log in with System setting’s password. Factory default of the password is 111111.

  • Page 28: Startup / Shut Down

    UM017003_cMT-G01G02_UserManual Usage of each window tab: Description Configure server settings such as port, name, security, user Server settings authentication……etc. Edit node Manage tags used by OPC UA server. Certificates Manage certificates used by OPC UA server. Discovery Manage list of discovery server. Advanced Advanced options and features.
  • Page 29 UM017003_cMT-G01G02_UserManual General Function Port Access port of the OPC UA server Server name Server name of the OPC UA server Supported security policies. At least one must be selected. Security policy Supported Policy: None, Basic128Rsa15, Basic256, Basic256sha256 Mode: Sign, Sign & Encrypt Automatically Trust all client certificates: by enabling this option, the Option OPC UA server will trust the certificate from any client connection.

  • Page 30: Edit Node

    UM017003_cMT-G01G02_UserManual Authentication Descriptions Allow anonymous client connection. At least one of Browse, Read, or Anonymous Write modes must be selected. Allow user authentication with username and password. Each access User name & mode, browse, read, and write can be assigned to a user class. User Password classes are configured in the Enhanced Security mode on the web interface or in EasyBuilder Pro.

  • Page 31: Certificates

    UM017003_cMT-G01G02_UserManual Note that all modifications can only be made for existing drivers. It is not possible to change or add other drivers that are not already available. It is also not possible to edit the nodes used by tag PLCs*. *Tag PLCs are characterized by their use of name tags as device memory address as opposed to using device name with indices.

  • Page 32: Discovery

    UM017003_cMT-G01G02_UserManual Page Description Lists of trusted/rejected client certificates on the server. Trusted Clients Supported operation: Trust/Reject, Remove, Import, Export. Lists of trusted/rejected user certificates on the server. Supported Trusted Users operation: Trust/Reject, Remove, Import, Export. Server’s own certificate. Supported operation: Update, Remove. When updating own certificate, matching certificate and Private Key must be uploaded together;...

  • Page 33: Advanced

    UM017003_cMT-G01G02_UserManual After completing settings, click the Save button to save the changes. OPC UA server will shut down momentarily and then restart for the changes to take effect. 6.7. Advanced Additional settings can be configured in the Advanced tab. The user can set the trace logging level and specific startup behavior of the OPC UA server.
