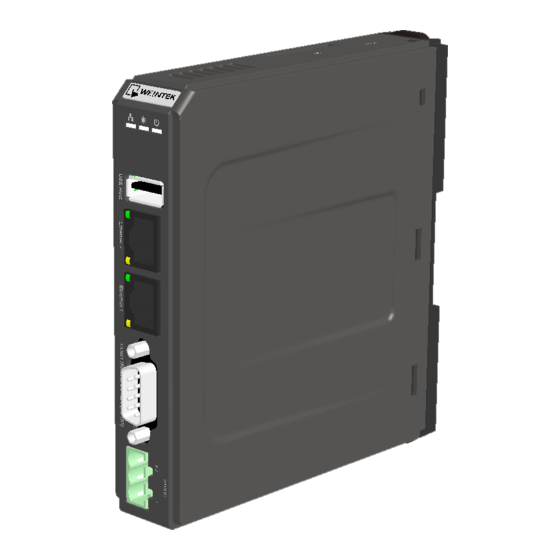

weintek cMT-SVR Series Installation Instruction

cMT-SVR series
1

Installation and Startup Guide

This document covers the installation of cMT-SVR Series, for the detailed specifications and operation,
please refer to Brochure and EasyBuilder Pro User Manual.

Install Environment:

The cMT-SVR Series has been tested to conform to European CE requirements.
Electrical This means that the circuitry is designed to resist the effects of electrical noise.
Environment This does not guarantee noise immunity in severe cases. Proper wire routing and
grounding will insure proper operation.
(1) Make sure that the units are installed correctly and that the operating limits
are followed. Avoid installing units in environments where severe
mechanical vibration or shocks are present.
(2) Do not operate the unit in areas subject to explosion hazards due to
Environmental flammable gases, vapors or dusts.
Considerations (3) Do not install the unit where acid gas, such as SO2 exists.
(4) This device should be mounted in the vertical position and for use on the flat
surface enclosure.
(5) Conform to UL508 (ISBN 0-7629-0404-6) machine safety for use in
Pollution Degree 2 Environment.

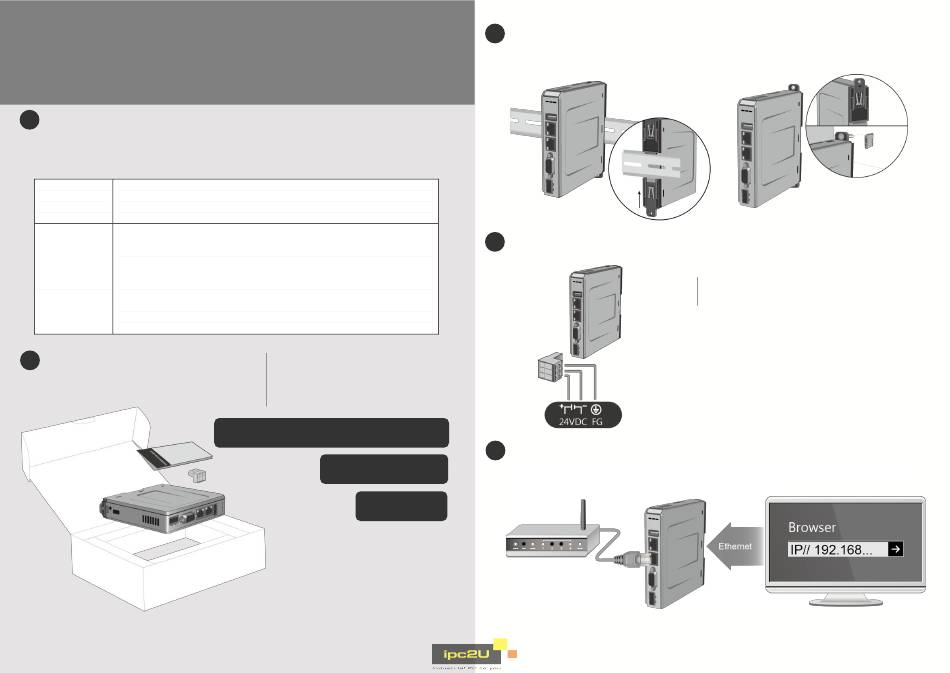

Unpacking the Unit

2
Unpack and check the delivery. If damage is found,
notify the supplier.
(1)
(3)
Installation Instruction
NOTE:
Place the unit on a stable surface during
installation. Dropping it or letting it fall may
cause damage.
(1) Installation Instruction, A4 double sided *1
(2) Power Connector *1
(2)
(3) cMT-SVR *1
www.ipc2u.ru

Installation Instructions

3
Rail mounting: DIN rail 35mm
Panel mounting: Use two M4 or #8 panhead screws, mounting hole size is 4.6mm
4

Power Connections

System Settings

5
Connect cMT-SVR with a router via RJ-45 Ethernet cable. Launch Cloud EB Pro on PC or iPad, find the
cMT-SVR and use the default password "111111" to log in and configure.
NOTE:
Connect positive DC line to the '+' terminal and
the DC ground to the '-' terminal.
To make a connection, strip about 3/8" of
insulation off the end of the wire, turn the
connector screw counterclockwise until the gap
is wide open, insert the wire all the way in, and
turn the screw clockwise until it's tight.
