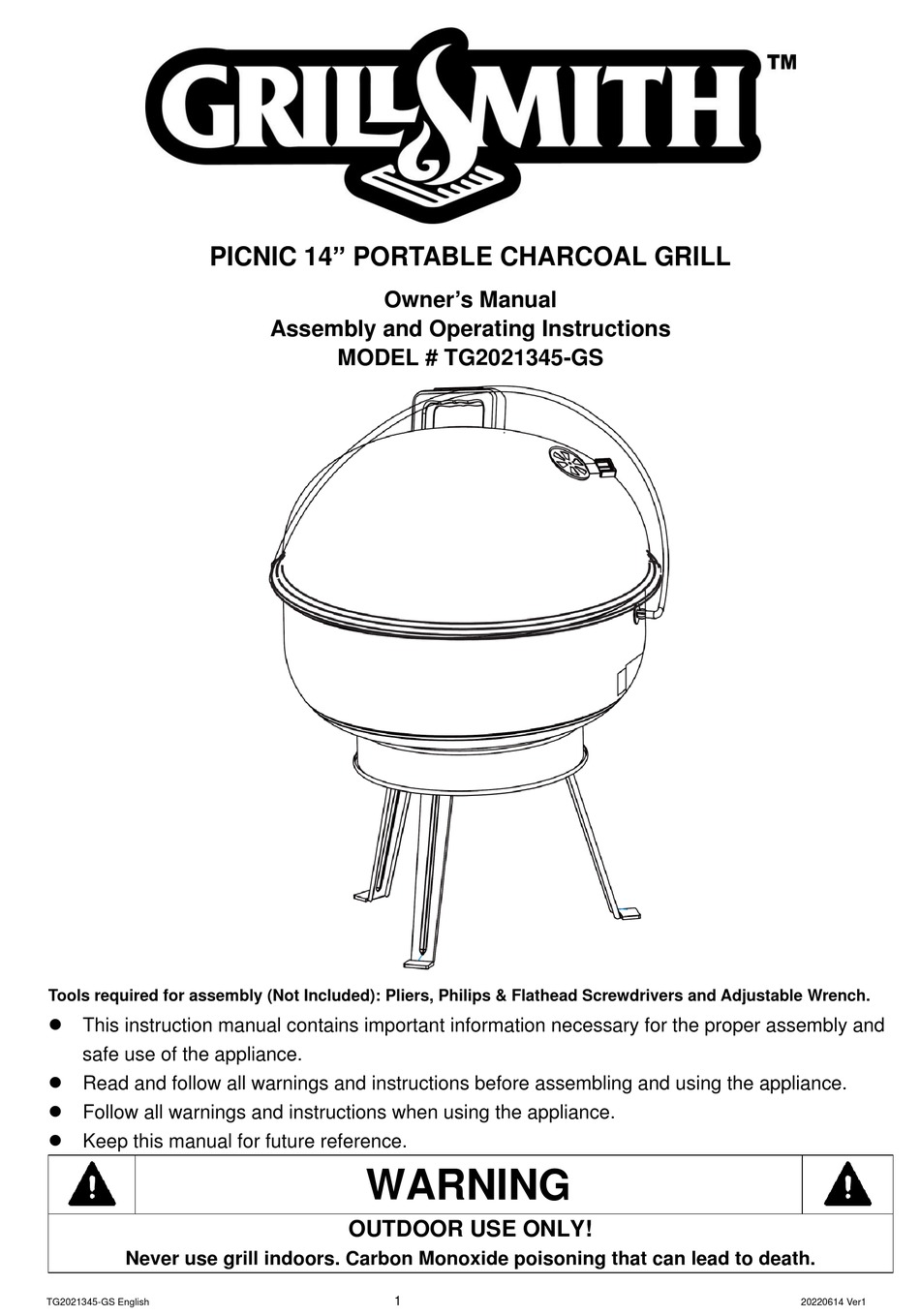

PICNIC 14" PORTABLE CHARCOAL GRILL
Owner's Manual
Assembly and Operating Instructions
MODEL # TG2021345-GS
Tools required for assembly (Not Included): Pliers, Philips & Flathead Screwdrivers and Adjustable Wrench.
⚫ This instruction manual contains important information necessary for the proper assembly and
safe use of the appliance.
⚫ Read and follow all warnings and instructions before assembling and using the appliance.
⚫ Follow all warnings and instructions when using the appliance.
⚫ Keep this manual for future reference.
WARNING
OUTDOOR USE ONLY!
Never use grill indoors. Carbon Monoxide poisoning that can lead to death.
1
TG2021345-GS English
20220614 Ver1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PICNIC TG2021345-GS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GrillSmith PICNIC TG2021345-GS

Summary of Contents for GrillSmith PICNIC TG2021345-GS

  • Page 1 PICNIC 14” PORTABLE CHARCOAL GRILL Owner’s Manual Assembly and Operating Instructions MODEL # TG2021345-GS Tools required for assembly (Not Included): Pliers, Philips & Flathead Screwdrivers and Adjustable Wrench. ⚫ This instruction manual contains important information necessary for the proper assembly and safe use of the appliance.
  • Page 2 WARNING ⚫ Only use this grill on a hard, level, non-combustible, stable surface (concrete, ground, etc.) capable of supporting the weight of the grill. Never use on wood or other surfaces that could ignite. ⚫ DO NOT use grill without charcoal grid in place. DO NOT attempt to remove charcoal grid while coals are hot.
  • Page 3 WARNING ⚫ When grilling, grease from meat may drip into the charcoal and cause a grease fire. If this should happen, close lid to suffocate the flame. Do not use water to extinguish grease fires. ⚫ Use caution when opening the lid, keeping hands, face and body a safe distance away. Flash flare ups may occur when air comes into contact with fire or hot coals.

  • Page 4: Product Diagram

    THANK YOU FOR PURCHASING 14” KETTLE GRILL Read all safety warnings & assembly instructions carefully before assembling or operating your grill. STOP! DO NOT RETURN TO RETAILER. For assembly assistance, missing or damaged parts, please call RANKAM customer service at 1–888–837–1380, Monday thru Friday 8AM to 5PM Pacific Standard Time. (Proof of purchase will be required.) Inspect contents of the box to ensure all parts are included and undamaged.

  • Page 5: Components List

    Components List 1. Lid Handle 2. Lid Vent 3. Lid Part Number: PLA-KG0009 Part Number: MET-KG0031 Part Number: MET-KG0072 4. Cooking Grate 5. Charcoal Grid 6. Grill Body Part Number: MET-KG0036 Part Number: MET-KG0037 Part Number: MET-KG0073 7. Grill Body Vent 8.

  • Page 6: Hardware List

    Hardware List Bolt (M6 x 15) 2pcs Bolt (M6 x 10) 2pcs Bolt (M5 x 12) Bolt (M4 x 10) Nut (M6) 2pcs Nut (M5) Nut (M4) Washer (M6) 4pcs Insulating Washer (M6) 2pcs Washer (M4) Washer (M6 x 19) 2pcs TG2021345-GS English 20220614 Ver1...

  • Page 7: Assembly Instruction

    ASSEMBLY INSTRUCTION STEP 1: Assemble Lid Handle (1) to Lid (3) by inserting 2pcs bolt (A), 2pcs washer (H) and 2pcs insulating washer (I). Assemble Air Vent (2) to Lid (3) by inserting 1 bolt (C) and 1pc nut (F) per illustration. STEP 2: Open the legs on the Legs Assembly (8).
  • Page 8 STEP 3: Attach 2pcs Grill Body Vent (7) to Grill Body (6) by inserting 1pc bolt (D), 1pc washer (J) and 1pc nut (G). STEP 4: Attach the Grill Body (6) on the Legs Assembly (8) by using 2pcs bolt (B), 2pcs washer (H) and 2pcs nut (E).
  • Page 9 STEP 5: Attach the Wire Handle (9) and 2pcs washer (K) to Grill Body. STEP 6: Place the Charcoal Grid (5) and Cooking Grate (4) in Grill Body. Tighten All Hardware. TG2021345-GS English 20220614 Ver1...
  • Page 10 STEP 7: Finished. TG2021345-GS English 20220614 Ver1...
  • Page 11 WARNING DO NOT use grill without charcoal grid in place. DO NOT attempt to remove charcoal grid while grill contains hot coals. WARNING Place the grill outdoors on a hard, level, non-combustible surface away from roof overhang or any combustible material. Never use on wood or other surfaces that could burn. Place the grill away from open windows or doors to prevent smoke from entering your house.

  • Page 12: Preparation For Use & Lighting Instructions

    PREPARATION FOR USE & LIGHTING INSTRUCTIONS WARNING OUTDOOR USE ONLY! Never use grill indoors. Carbon Monoxide poisoning that can lead to death. OPERATING INSTRUCTIONS Step 1 Follow the instructions below carefully to build a fire. You may use charcoal and / or wood as fuel in the grill (see “Adding Charcoal / Wood During Cooking”...
  • Page 13 Step 4 Place cooking grate on grill body. WARNING Always wear oven mitts / gloves, use long handle cooking tongs (not included) when remove cooking grate and / or charcoal grid to protect your hands from burns. Step 5 Place food on cooking grate and close grill lid. Always use a meat thermometer to ensure food is fully cooked before removing from grill.

  • Page 14: Flavoring Wood

    Flavoring Wood To obtain your favorite smoke flavor, experiment by using chunks, sticks or chips of flavor producing wood such as hickory, pecan, apple, cherry, or mesquite. Most fruit or nut tree wood may be used for smoke flavoring. Do not use resinous wood such as pine as it will produce an unpleasant taste. Wood chunks or sticks 3”...

  • Page 15: After-Use Safety

    Step 3 Stand back a safe distance and use long handle cooking tongs to lightly brush aside ashes on hot coals. Use cooking tongs to add charcoal and / or wood to charcoal grid, being careful not to stir-up ashes and sparks.

  • Page 16: Limited Warranty

    LIMITED WARRANTY 1. Manufacturer warrants this Product to be free from defects in workmanship and materials for a period of 90 days from the date of purchase, PROVIDED claims are submitted, in writing, with proof of purchase. 2. If any part of this item fails because of a manufacturing defect within the Limited Warranty Period, Manufacturer offers to replace such part(s) provide that such parts have not been improperly repaired, altered, or tampered with or subject to misuse, abuse or exposed to corrosive conditions.
  • Page 17 TG2021345-GS English 20220614 Ver1...
