17 INCH PORTABLE CHARCOAL GRILL
Owner's Manual
Assembly and Operating Instructions
MODEL # TG2002101-GS
Tools required for assembly (Not Included): Pliers, Philips & Flathead Screwdrivers and Adjustable Wrench.
This instruction manual contains important information necessary for the proper assembly and
safe use of the appliance.
Read and follow all warnings and instructions before assembling and using the appliance.
Follow all warnings and instructions when using the appliance.
Keep this manual for future reference.
WARNING
OUTDOOR USE ONLY!
Never use grill indoors. Carbon Monoxide poisoning that can lead to death.
1
TG2002101-GS English
20220927 Ver1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GrillSmith TG2002101-GS
Summary of Contents for GrillSmith TG2002101-GS

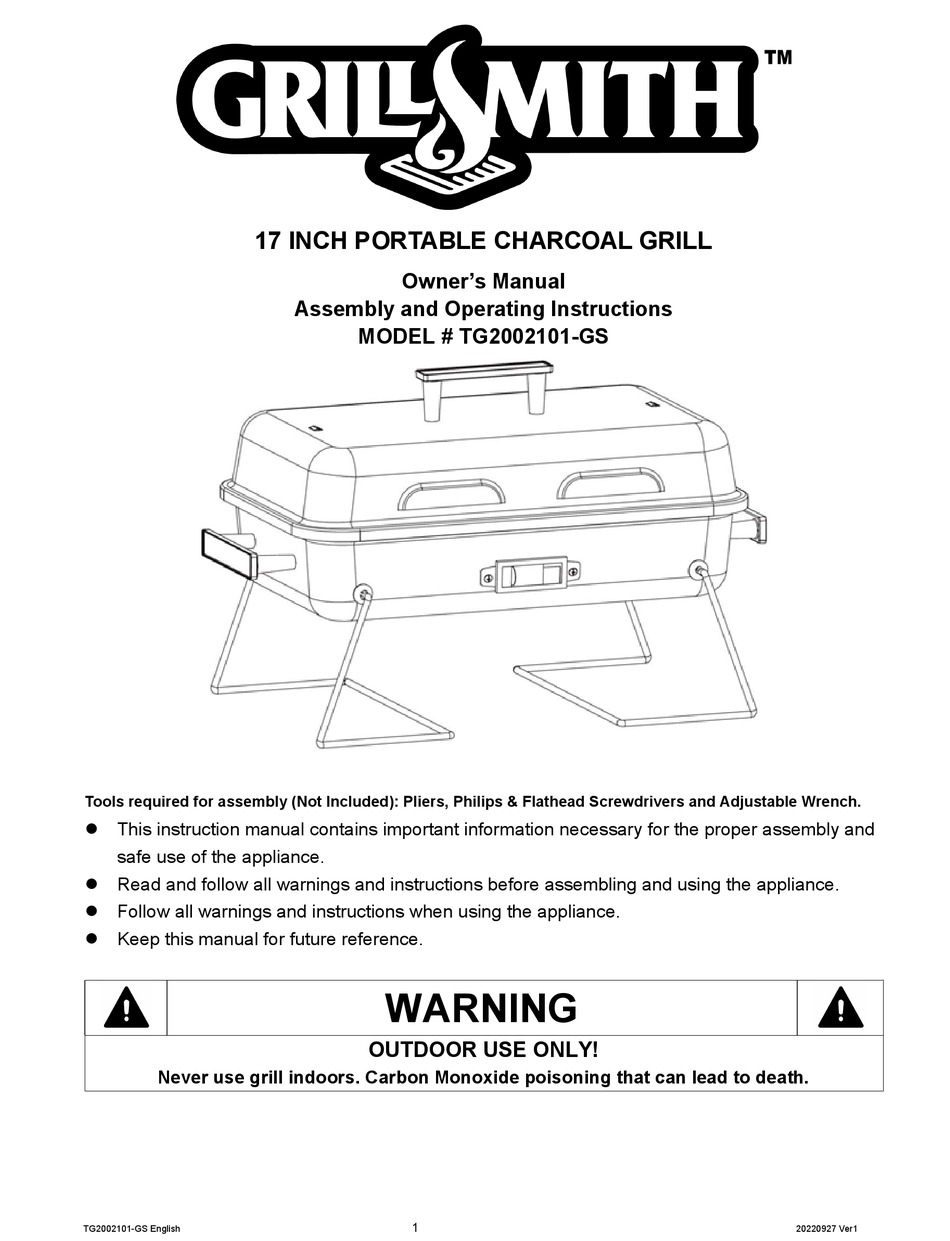

- Page 1 17 INCH PORTABLE CHARCOAL GRILL Owner’s Manual Assembly and Operating Instructions MODEL # TG2002101-GS Tools required for assembly (Not Included): Pliers, Philips & Flathead Screwdrivers and Adjustable Wrench. This instruction manual contains important information necessary for the proper assembly and safe use of the appliance.
- Page 2 DO NOT wear loose clothing or allow hair to come in contact with grill. Grill is hot when in use. To avoid burns: DO NOT attempt to move the grill. Wear protective gloves or oven mitts. DO NOT touch any hot grill surfaces. TG2002101-GS English 20220927 Ver1...
-
Page 3: California Proposition 65 Warning
WARNING: This product can expose you to chemicals including soot, which is known to the State of California to cause cancer, and carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. TG2002101-GS English 20220927 Ver1... -
Page 4: Product Diagram
Estimated Assembly Time: Less than 30 minutes Product Diagram PLA-KG0011 (Component 1) MET-KG0048 (Component 2) MET-KG0049 (Component 3) MET-KG0050 (Component 4) MET-KG0051 (Component 5) MET-KG0052 (Component 6) MET-KG0053 (Component 7) PLA-KG0011 (Component 1) MET-KG0053 (Component 7) MET-KG0054 (Component 8) TG2002101-GS English 20220927 Ver1... -
Page 5: Components List
Part Number: MET-KG0049 3pcs 2pcs 4. Cooking Grate 5. Charcoal Grid 6. Grill Body Part Number: MET-KG0050 Part Number: MET-KG0051 Part Number: MET-KG0052 7. Air Vent 8. Wire Leg Part Number: MET-KG0053 Part Number: MET-KG0054 2sets 2pcs TG2002101-GS English 20220927 Ver1... -
Page 6: Hardware List
Hardware List Bolt (M6 x 15) 6pcs Bolt (M4 x 10) 8pcs Nut (M4) 8pcs Washer (M6 x 19mm Dia.) 4pcs Insulating Washer (M6 x 15mm Dia.) 6pcs Washer (M6 x 12mm Dia.) 6pcs TG2002101-GS English 20220927 Ver1... -
Page 7: Assembly Instruction
STEP 2: Attach each Handle (1) to Grill Body (6) using 2pcs bolts (A), washers (F) and insulating washers (E). Attach each Air Vent (7) to Grill Body (6) using 2pcs bolts (B) and nuts (C). TG2002101-GS English 20220927 Ver1... - Page 8 STEP 3: Attach Wire Leg (8) to the hole of Grill Body with 4pcs washers (D). TG2002101-GS English 20220927 Ver1...
- Page 9 STEP 4: Place Charcoal Grid (5) and Cooking Grate (4) into the Grill Body. TG2002101-GS English 20220927 Ver1...
- Page 10 STEP 5: 1. Tighten all Hardware. 2. Finished! Always unfold the legs during cooking and lighting! TG2002101-GS English 20220927 Ver1...
- Page 11 Lid, otherwise the Lid won't fully close. Lid Opening: When operating the Grill, the Lid can be used as a wind shield as shown in the picture below. Make sure the Lid Bracket is secured to the edge of the Grill Body. TG2002101-GS English 20220927 Ver1...
- Page 12 Folding Legs for Transportation: Please fold the Legs as shown in the picture below, make sure the Legs are secured to the tab on the Lid. TG2002101-GS English 20220927 Ver1...
-
Page 13: Preparation For Use & Lighting Instructions
Pick up by handle and pour lit charcoal on the charcoal grid. Start with 1.5 – 2 pounds (0.7 – 0.9 kg) of charcoal. This should be enough charcoal to cook with, once the curing process has been completed. TG2002101-GS English 20220927 Ver1... - Page 14 Place food on cooking grate and close grill lid. Always use a meat thermometer to ensure food is fully cooked before removing from grill. Step 7 Allow grill to cool completely, and then follow instructions in the “After-Use Safety” and “Proper Care & Maintenance” sections of this manual. TG2002101-GS English 20220927 Ver1...
-
Page 15: Flavoring Wood
Charcoal Chimney Starter to light additional charcoal and / or wood and add to existing fire. WARNING Never add charcoal lighting fluid to hot or even warm coals as flashback may occur causing severe burns. TG2002101-GS English 20220927 Ver1... -
Page 16: After-Use Safety
Touch-up with a good quality high-temperature resistant paint. Never apply paint to the interior surface. Rust spots on the interior surface can be buffed, cleaned, and then lightly coated with vegetable oil or vegetable oil spray to minimize rusting. TG2002101-GS English 20220927 Ver1... -
Page 17: Limited Warranty
8:00am to 5:00pm, Pacific Standard Time, Monday to Friday RANKAM (CHINA) MANUFACTURING COMPANY LIMITED 18/F., New Lee Wah Centre, 88 Tokwawan Road, Kowloon, Hong Kong Customer Service: – – – 1380 customerservice@rankam.com 8:00am to 5:00pm, Pacific Standard Time, Monday to Friday TG2002101-GS English 20220927 Ver1... - Page 18 TG2002101-GS English 20220927 Ver1...
