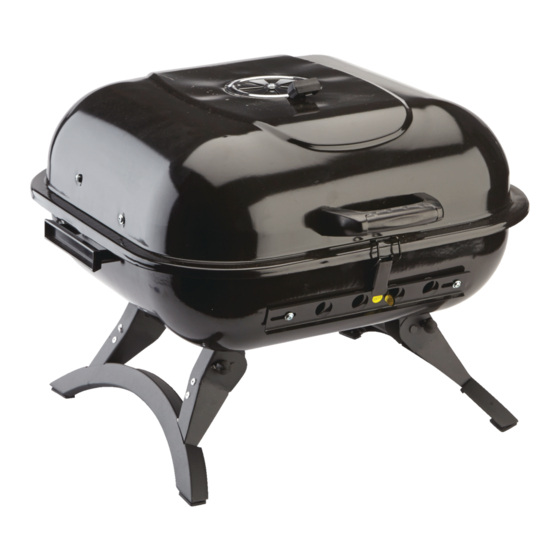

18 Inch Portable Tabletop Charcoal Grill
Tools required for assembly (Not Included): Pliers, Phillips & Flathead Screwdrivers and Adjustable Wrench.
This instruction manual contains important information necessary for the proper assembly and
safe use of the appliance.
Read and follow all warnings and instructions before assembling and using the appliance.
Follow all warnings and instructions when using the appliance.
Keep this manual for future reference.
Never use grill indoors. Carbon Monoxide poisoning that can lead to death.
085-2202-6 / TG2172111-GS English
Owner's Manual
Assembly and Operating Instructions
Model # 085-2202-6 / TG2172111-GS
WARNING
OUTDOOR USE ONLY!
1
190322Ver1
Advertisement
Table of Contents
Related Manuals for GrillSmith TG2172111-GS
Summary of Contents for GrillSmith TG2172111-GS

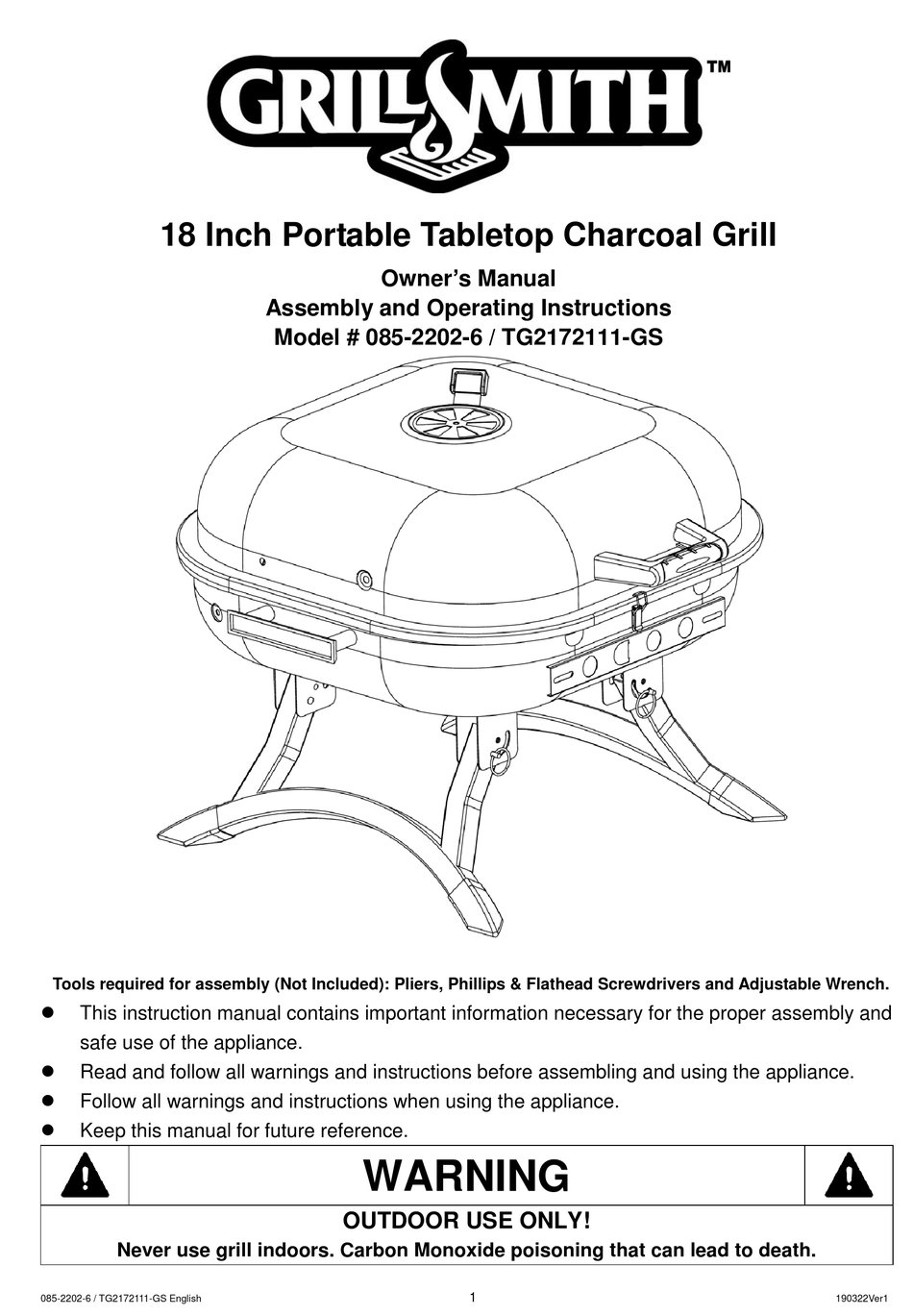

- Page 1 18 Inch Portable Tabletop Charcoal Grill Owner’s Manual Assembly and Operating Instructions Model # 085-2202-6 / TG2172111-GS Tools required for assembly (Not Included): Pliers, Phillips & Flathead Screwdrivers and Adjustable Wrench. This instruction manual contains important information necessary for the proper assembly and safe use of the appliance.
- Page 2 DO NOT wear loose clothing or allow hair to come in contact with grill. Grill is hot when in use. To avoid burns: DO NOT attempt to move the grill. Wear protective gloves or oven mitts. DO NOT touch any hot grill surfaces. 085-2202-6 / TG2172111-GS English 190322Ver1...
- Page 3 Failure to adhere to safety warning and guidelines in this manual could result in bodily injury or property damage. Please wear gloves while assembling the grill. Save this manual for future reference. 085-2202-6 / TG2172111-GS English 190322Ver1...
-
Page 4: Product Diagram
Inspect contents of the box to ensure all parts are included and undamaged. The following tools are required for assembly and are not included: Pliers Philips & Flathead Screwdrivers Adjustable Wrench Estimated Assembly Time: Less than 45 minutes Product Diagram 085-2202-6 / TG2172111-GS English 190322Ver1... -
Page 5: Components List
7. Charcoal Grate 8. Body Handle 9. Grill Body 2pcs 10. Grill Body Air Vent 11. Latch 12L. Left Leg Assembly 2pcs 12R. Right Leg Assembly 13A. Foot Cap A 13B. Foot Cap B 2pcs 2pcs 085-2202-6 / TG2172111-GS English 190322Ver1... - Page 6 Bolt M6 x 12 12pcs Bolt M5 x 12 13pcs Bolt M3 x 10 2pcs Washer M6 x 12mm Dia. 14pcs Washer M5 x 12mm Dia. 13pcs Nut M6 10pcs Nut M5 13pcs Nut M3 2pcs 085-2202-6 / TG2172111-GS English 190322Ver1...
-
Page 7: Assembly Instruction
Attach Grill Body Air Vent (10) to front and rear of Grill Body (9) by inserting 2pcs Bolt M5 x 12 (B) and 2pcs Washer M5 x 12mm Dia. (E) and 2pcs Nut (G). Attach Latch (11) to Grill Body (9) by inserting 2pcs Bolt M3 x 12 (C) and 2pcs Nut M3 (H). 085-2202-6 / TG2172111-GS English 190322Ver1... - Page 8 Left Leg Assembly (12L) as illustrated below. Insert Foot Cap B (13B) to front of Right Leg Assembly (12R) and Foot Cap A (13A) to rear of Right Leg Assembly (12R) as illustrated below. Front Rear 085-2202-6 / TG2172111-GS English 190322Ver1...
- Page 9 Attach Left and Right Leg Assembly (12L & 12R) under Grill Body by inserting 4pcs Bolt M6 x 12 (A), Washer M6 x 12mm Dia. (D) and Nut M6 (F) for each leg assembly as illustrated below. Rear Front 085-2202-6 / TG2172111-GS English 190322Ver1...
- Page 10 Assemble each Long Lid Bracket (5) to both ends of Grill Body and Lid using 4pcs Bolt M5 x 12 (B), 4pcs Washer M5 x 12mm Dia. (E) and 4pcs Nut M5 (G) to connect. 085-2202-6 / TG2172111-GS English 190322Ver1...
- Page 11 Step 6: Place Charcoal Grate (7) and Cooking Grate (6) into the Grill Body. Step 7: 1. Tighten all Hardwares. 2. Finished! Always unfold the legs during cooking and lighting! 085-2202-6 / TG2172111-GS English 190322Ver1...
- Page 12 1. Close the Lid and lock the Latch. 2. Pull the latch on both leg assembly to unlock then fold the legs as illustrated below. Caution: DO NOT fold the legs during cooking and lighting! 085-2202-6 / TG2172111-GS English 190322Ver1...
-
Page 13: Preparation For Use & Lighting Instructions
Pick up by handle and pour lit charcoal on to charcoal grid. Start with 2.2 pounds (1 kg) of charcoal. This should be enough charcoal to cook with, once the curing process has been completed. 085-2202-6 / TG2172111-GS English 190322Ver1... - Page 14 Pick up by handle and pour lit charcoal on to charcoal grid. Start with 2.2 pounds (1 kg) of charcoal. 085-2202-6 / TG2172111-GS English 190322Ver1...
- Page 15 Place food on cooking grate and close grill lid. Always use a meat thermometer to ensure food is fully cooked before removing from grill. Step 7 Allow grill to cool completely, and then follow instructions in the “After-Use Safety” and “Proper Care & Maintenance” sections of this manual. 085-2202-6 / TG2172111-GS English 190322Ver1...
-
Page 16: Flavoring Wood
Charcoal Chimney Starter to light additional charcoal and / or wood and add to existing fire. WARNING Never add charcoal lighting fluid to hot or even warm coals as flashback may occur causing severe burns. 085-2202-6 / TG2172111-GS English 190322Ver1... -
Page 17: After-Use Safety
Touch-up with a good quality high-temperature resistant paint. Never apply paint to the interior surface. Rust spots on the interior surface can be buffed, cleaned, and then lightly coated with vegetable oil or vegetable oil spray to minimize rusting. 085-2202-6 / TG2172111-GS English 190322Ver1... -
Page 18: Limited Warranty
8:00am to 5:00pm, Pacific Standard Time, Monday to Friday RANKAM (CHINA) MANUFACTURING COMPANY LIMITED 18/F., New Lee Wah Centre, 88 Tokwawan Road, Kowloon, Hong Kong Customer Service: – – – 1380 customerservice@rankam.com 8:00am to 5:00pm, Pacific Standard Time, Monday to Friday 085-2202-6 / TG2172111-GS English 190322Ver1...
