Delta TP70P-211LC1T Operation Manual
  1. Manuals
  2. Brands
  3. Delta Manuals
  4. Touch Panel
  5. TP70P-211LC1T
  6. Operation manual

Delta TP70P-211LC1T Operation Manual

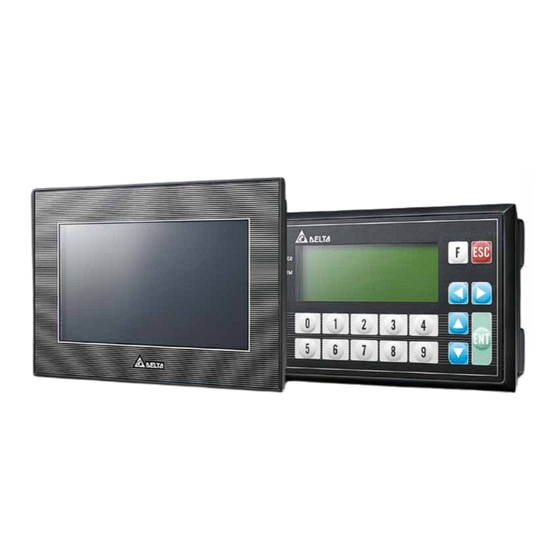

Text panel hmi with built-in plc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Industrial Automation Headquarters
Taiwan:
Delta Electronics, Inc.
Taoyuan Technology Center
No.18, Xinglong Rd., Taoyuan District,
Taoyuan City 33068, Taiwan
TEL : +886 - 3 - 362 - 6301 / FAX : +886 - 3 - 371 - 6301
Asia
Delta Electronics ( Shanghai ) Co., Ltd.
China:
No.182 Minyu Rd., Pudong Shanghai, P.R.C.
Post code : 201209
TEL: +86 - 21 - 6872 - 3988 / FAX: +86 - 21 - 6872 - 3996
Customer Service: 400 - 820 - 9595
Delta Electronics ( Japan ) , Inc.
Japan:
Industrial Automation Sales Department
2 - 1 - 14 Shibadaimon, Minato - ku
Tokyo, Japan 105 - 0012
TEL: +81 - 3 - 5733 - 1155 / FAX: +81 - 3 - 5733 - 1255
Delta Electronics ( Korea ) , Inc.
Korea:
1511, 219, Gasan Digital 1 - Ro., Geumcheon - gu,
Seoul, 08501 South Korea
TEL: +82 - 2 - 515 - 5305 / FAX: +82 - 2 - 515 - 5302
Delta Energy Systems ( Singapore ) Pte Ltd.
Singapore:
4 Kaki Bukit Avenue 1, #05 - 04, Singapore 417939
TEL: +65 - 6747 - 5155 / FAX: +65 - 6744 - 9228
Delta Electronics ( India ) Pvt. Ltd.
India:
Plot No.43, Sector 35, HSIIDC Gurgaon,
PIN 122001, Haryana, India
TEL: +91 - 124 - 4874900 / FAX: +91 - 124 - 4874945
Delta Electronics ( Thailand ) PCL.
Thailand:
909 Soi 9, Moo 4, Bangpoo Industrial Estate ( E.P.Z ) ,
Pattana 1 Rd., T.Phraksa, A.Muang,
Samutprakarn 10280, Thailand
TEL: +66 - 2709 - 2800 / FAX: +66 - 2709 - 2827
Delta Electronics ( Australia ) Pty Ltd.
Australia:
Unit 2, Building A, 18-24 Ricketts Road,
Mount Waverley, Victoria 3149 Australia
Mail: IA.au@deltaww.com
TEL: +61-1300-335-823 / +61-3-9543-3720
Americas
Delta Electronics ( Americas ) Ltd.
USA:
5101 Davis Drive, Research Triangle Park, NC 27709, U.S.A.
TEL: +1 - 919 - 767 - 3813 / FAX: +1 - 919 - 767 - 3969
Brazil:
Delta Electronics Brazil Ltd.
Estrada Velha Rio-São Paulo, 5300 Eugênio de
Melo - São José dos Campos CEP: 12247-004 - SP - Brazil
TEL: +55 - 12 - 3932 - 2300 / FAX: +55 - 12 - 3932 - 237
Mexico:
Delta Electronics International Mexico S.A. de C.V.
Gustavo Baz No. 309 Edificio E PB 103
Colonia La Loma, CP 54060
Tlalnepantla, Estado de México
TEL: +52 - 55 - 3603 - 9200
*We reserve the right to change the information in this catalogue without prior notice.
EMEA
Delta Electronics ( Netherlands ) B.V.
EMEA Headquarters:
Sales: Sales.IA.EMEA@deltaww.com
Marketing: Marketing.IA.EMEA@deltaww.com
Technical Support: iatechnicalsupport@deltaww.com
Customer Support: Customer - Support@deltaww.com
Service: Service.IA.emea@deltaww.com
TEL: +31 ( 0 ) 40 800 3900
Delta Electronics ( Netherlands ) B.V.
BENELUX:
Automotive Campus 260, 5708 JZ Helmond, The Netherlands
Mail: Sales.IA.Benelux@deltaww.com
TEL: +31 ( 0 ) 40 800 3900
Delta Electronics ( Netherlands ) B.V.
DACH:
Coesterweg 45, D - 59494 Soest, Germany
Mail: Sales.IA.DACH@deltaww.com
TEL: +49 ( 0 ) 2921 987 0
Delta Electronics ( France ) S.A.
France:
ZI du bois Challand 2, 15 rue des Pyrénées,
Lisses, 91090 Evry Cedex, France
Mail: Sales.IA.FR@deltaww.com
TEL: +33 ( 0 ) 1 69 77 82 60
Delta Electronics Solutions ( Spain ) S.L.U
Iberia:
Ctra. De Villaverde a Vallecas, 265 1º Dcha Ed.
Hormigueras – P.I. de Vallecas 28031 Madrid
TEL: +34 ( 0 ) 91 223 74 20
Carrer Llacuna 166, 08018 Barcelona, Spain
Mail: Sales.IA.Iberia@deltaww.com
Delta Electronics ( Italy ) S.r.l.
Italy:
Via Meda 2–22060 Novedrate ( CO )
Piazza Grazioli 18 00186 Roma Italy
Mail: Sales.IA.Italy@deltaww.com
TEL: +39 039 8900365
Russia:
Delta Energy System LLC
Vereyskaya Plaza II, office 112 Vereyskaya str.
17 121357 Moscow Russia
Mail: Sales.IA.RU@deltaww.com
TEL: +7 495 644 3240
Delta Greentech Elektronik San. Ltd. Sti. ( Turkey )
Turkey:
Şerifali Mah. Hendem Cad. Kule Sok. No:16 - A
34775 Ümraniye – İstanbul
Mail: Sales.IA.Turkey@deltaww.com
TEL: + 90 216 499 9910
Eltek Dubai ( Eltek MEA DMCC )
MEA:
OFFICE 2504, 25th Floor, Saba Tower 1,
Jumeirah Lakes Towers, Dubai, UAE
Mail: Sales.IA.MEA@deltaww.com
TEL: +971 ( 0 ) 4 2690148
TP-0148620-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TP70P-211LC1T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Delta TP70P-211LC1T

Summary of Contents for Delta TP70P-211LC1T

  • Page 1 TEL: +7 495 644 3240 Delta Electronics ( Americas ) Ltd. USA: Delta Greentech Elektronik San. Ltd. Sti. ( Turkey ) 5101 Davis Drive, Research Triangle Park, NC 27709, U.S.A. Turkey: TEL: +1 - 919 - 767 - 3813 / FAX: +1 - 919 - 767 - 3969 Şerifali Mah.
  • Page 2 Digitized Automation for a Changing World TP70P-211LC1T / TP04P-20EXL1T Operation Manual www.deltaww.com...
  • Page 3 TP70P-211LC1T/TP04P-20EXL1T Operation Manual REVISION HISTORY Ve r s i o n R e v i s i o n D a t e T h e f i r s t v e r s i o n w a s p u b l i s h e d .

  • Page 5: Table Of Contents

    2.2.4.2 Electrical Specifications for Temperature / Current / Analog Input Terminals ..................2-14 2.2.4.3 Electrical Specifications for Loadcell Terminals ........ 2-15 2.2.4.4 TP70P-211LC1T Electrical Specifications for Analog Voltage / Current Input Terminals ................2-16 2.2.4.5 TP04P-20EXL1T Electrical Specifications for Analog Voltage / Current Output Terminals .................
  • Page 6 3.1.5 Digital I/O..................3-10 3.1.6 System Setup................3-11 TP04P-20EXL1T Operational Interface ..........3-12 3.2.1 Load Cell Setup ................3-13 3.2.2 Load Cell Calibration Process ............3-14 3.2.3 Load Cell Full Screen Display ............3-17 Chapter 4 Installation and Wiring Installation ..................4-2 Wiring ....................
  • Page 7 Chapter 1 Product Introduction Table of Contents Overview ................1-2 Related Manuals ..............1-2 Model Descriptions ..............1-3 1.3.1 TP70P-211LC1T ..............1-3 1.3.2 TP04P-20EXL1T ..............1-4 1.3.3 Inputs and Outputs .............. 1-4 1 - 1...

  • Page 8: Overview

    This manual introduces the product specifications, wiring, functions, interface, corresponding registers, operation and so forth for TP70P-211LC1T and TP04P-20EXL1. 1.2 Related Manuals The related manuals for TP70P-211LC1T and TP04P-20EXL1Tare listed below.  The installation instructions for TP70P-211LC1T and TP04P-20EXL1T. An installation instruction is enclosed in the package, introducing important information for the first time user.

  • Page 9: Model Descriptions

    Ch a pt er 1 Pr o duc t In tr o d uc t i on 1.3 Model Descriptions 1.3.1 TP70P-211LC1T Type 7-inch Touch Panel HMI with Built-in PLC Model Name TP70P-211LC1T 24VDC, 5mA, 17 inputs Digital 12 ~ 24VDC, 0.5A/output, 2.5A/COM, Transistor-T (sinking) (NPN), 24...

  • Page 10: Tp04P-20Exl1T

    Communication Port Isolated USB (COM1) & Isolated RS-485 (COM2/COM3) 1.3.3 Inputs and Outputs Analog / Digital Analog Temperature Load Cell Models Digital Input Analog Input Output Type Output Output Measurement Input Input Sinking TP70P-211LC1T (NPN) Sinking TP04P-20EXL1T (NPN) 1 - 4...

  • Page 11: Chapter 2 Specifications And Functions

    2.2.4.2 Electrical Specifications for Temperature / Current / Analog Input Terminals .................. 2-14 2.2.4.3 Electrical Specifications for Loadcell Terminals ....... 2-15 2.2.4.4 TP70P-211LC1T Electrical Specifications for Analog Voltage / Current Input Terminals ................2-16 2.2.4.5 TP04P-20EXL1T Electrical Specifications for Analog Voltage / Current Output Terminals ................

  • Page 12: Profile And Arrangement Of Terminals

    T P70 P-211LC 1T /TP04P-2 0 EXL1 T O pera ti on M an ua l 2.1 Profile and Arrangement of Terminals 2.1.1 TP70P-211LC1T Profile  205.6 142.6 87.7 Unit: mm Opening Dimensions  The opening size should be within the tolerance limits of ±0.1mm to ensure a waterproof and dustproof installation.
  • Page 13 Ch ap te r 2 Spec i fica ti ons a nd F unc tio ns Arrangement of Terminals  Terminals on the I/O board ① • ② S/S2 • AGND AGND • ③ ④ 2 - 3...
  • Page 14 T P70 P-211LC 1T /TP04P-2 0 EXL1 T O pera ti on M an ua l Terminals on the drive board ⑤ ⑦ S/S0 • • ⑥ ⑧ S/S1 • • 2 - 4...
  • Page 15 Ch ap te r 2 Spec i fica ti ons a nd F unc tio ns Descriptions  Number Description Reset button ⑨ RUN/STOP switches ⑩ ⑪ USB port for programs to be uploaded or downloaded ⑫ RS-485 communications ( two sets of RS-485 communicaiton interfaces) ⑬...

  • Page 16: Tp04P-20Exl1T

    T P70 P-211LC 1T /TP04P-2 0 EXL1 T O pera ti on M an ua l 2.1.2 TP04P-20EXL1T Profile  175.8 108.6 82.4 Unit: mm Opening Dimensions  The opening size should be within the tolerance limits of ±0.1mm to ensure a waterproof and dustproof installation.
  • Page 17 Ch ap te r 2 Spec i fica ti ons a nd F unc tio ns Arrangement of Terminals  Terminals on the I/O board ① • ② S/S2 • AGND AGND • ③ ④ 2 - 7...
  • Page 18 T P70 P-211LC 1T /TP04P-2 0 EXL1 T O pera ti on M an ua l Terminals on the drive board ⑤ ⑦ S/S0 • • ⑥ ⑧ 2 - 8...
  • Page 19 Ch ap te r 2 Spec i fica ti ons a nd F unc tio ns Descriptions  Number Description ⑨ USB port for programs to be uploaded or downloaded RUN/STOP switches ⑩ ⑪ DC power ⑫ RS-485 communications ( two sets of RS-485 communicaiton interfaces) ⑬...

  • Page 20: Specifications And Functions

    T P70 P-211LC 1T /TP04P-2 0 EXL1 T O pera ti on M an ua l 2.2 Specifications and Functions 2.2.1 Functional Specifications 2.2.1.1 TP70P-211LC1T Model TP70P-211LC1T Specifications Screen/Color 7” TFT LCD (65535 colors) Resolution 800×480 pixels Display LED backlight (It has a lifespan of 20,000 hours at a temperature of 25℃)

  • Page 21: Tp04P-20Exl1T

    Ch ap te r 2 Spec i fica ti ons a nd F unc tio ns 2.2.1.2 TP04P-20EXL1T Model TP04P-20EXL1T Specifications Screen/Color STN-LCD / monochromatic color Resolution 192 × 64 pixels Time for the backlight to dim out: 1-99 minutes (0 indicates backlight stays Backlight Type LED backlight (It has a lifespan of 50,000 hours at a temperature of 25℃) Display Area...

  • Page 22: Electrical Specificaitons

    LEFT: Use this key to set up the parameters. RIGHT: Use this key to set up the parameters. Users can also define command keys in TPEditor. 2.2.2 Electrical Specifications Model TP70P-211LC1T TP04P-20EXL1T Item 32-bit ARM Cortex-M4 MCU 32-bit ARM Cortex-M3 MCU...

  • Page 23: Digital Input/Output Specifications

    Ch ap te r 2 Spec i fica ti ons a nd F unc tio ns 2.2.3 Digital Input/Output Specifications Electrical specifications for digital input terminals Model Item 24VDC (-15% ~ 20%) single common terminal TP70P-211LC1T Number of inputs TP04P-20EXL1T Connector type Removable terminal blocks Electrical isolation...

  • Page 24: Analog Input/Output Specifications

    T P70 P-211LC 1T /TP04P-2 0 EXL1 T O pera ti on M an ua l 2.2.4 Analog Input/Output Specifications 2.2.4.1 Electrical Specifications for Analog Output Terminals Model TP70P-211LC1T / TP04P-20EXL1T Item Number of channels for 4 (IO1~IO4) analog output...

  • Page 25: Electrical Specifications For Loadcell Terminals

    Ch ap te r 2 Spec i fica ti ons a nd F unc tio ns 2.2.4.3 Electrical Specifications for Load cell Terminals Model TP70P-211LC1T / TP04P-20EXL1T Item Input Signal Range ±300 mVDC (when the excitation voltage is at 5 VDC) Sensibility (Variable +2 ~ 9.5VDC ±5%...

  • Page 26: Input Terminals

    T P70 P-211LC 1T /TP04P-2 0 EXL1 T O pera ti on M an ua l 2.2.4.4 TP70P-211LC1T Electrical Specifications for Analog Voltage / Current Input Terminals Model TP70P-211LC1T Item 4 (V0+ ~ V3+) 4 (I0 ~ I3) Number of inputs...

  • Page 27: Chapter 3 Interface Introduction

    Chapter 3 Interface Introduction Table of Contents TP70P-211LC1T Operational Interface ........3-2 3.1.1 Load Cell Setup ..............3-3 3.1.2 Load Cell Calibration Process ............ 3-5 3.1.3 Load Cell Full Screen Display ............ 3-7 3.1.4 Analog I/O ................3-9 3.1.5 Digital I/O ................3-10 3.1.6...

  • Page 28: Tp70P-211Lc1T Operational Interface

    On the main setting menu, you can find six main setting items. Load cell Setup TP70P-211LC1T is a one-channel load cell with multiple functions. You can use its friendly interface to set up the setting items including excitation voltage, eigenvalue mode, response time mode and configure the parameters for load cell related functions.

  • Page 29: Load Cell Setup

    Ch a pt er 3 In t er f ac e I ntr o duc t io n Digital I/O TP70P-211LC1T is with 17 input points and 24 output points. You have controls over individual points and you can also read the status of the input points under this setting item.
  • Page 30 T P7 0P - 2 11 L C1T /T P 0 4 P- 20 EX L 1T O per a ti o n Ma n ua l Excitation Eigenvalue Eigenvalue Excitation Eigenvalue Eigenvalue Excitation Eigenvalue Eigenvalue Excitation Eigenvalue Eigenvalue voltage modes (mV/V) voltage...

  • Page 31: Load Cell Calibration Process

    Ch a pt er 3 In t er f ac e I ntr o duc t io n 3.1.2 Load Cell Calibration Process Press LC Cal. Process from the main setting menu to display its corresponding setting page. Start Cal. Mode In setting item 1.
  • Page 32 T P7 0P - 2 11 L C1T /T P 0 4 P- 20 EX L 1T O per a ti o n Ma n ua l Digital Value Setup Put an object that you know its weight on the load cell sensor and then enter its digital value for calibration. When the value is settled, the status shows Stable.

  • Page 33: Load Cell Full Screen Display

    Ch a pt er 3 In t er f ac e I ntr o duc t io n 3.1.3 Load Cell Full Screen Display Press Load Cell Full Screen Display from the main setting menu to display its corresponding setting page. No Calibration If the calibration is not complete before you enter Load Cell Full Screen Display page, a warning No Calibration!! appears in the upper right corner, as the image shown below.
  • Page 34 T P7 0P - 2 11 L C1T /T P 0 4 P- 20 EX L 1T O per a ti o n Ma n ua l Unstable When the weight value is not stable, the Unstable in the bulletin is highlighted in a red block. When the weight value is stable, the Motion in the bulletin is highlighted in a green block.

  • Page 35: Analog I/O

    Press Analog I/O from the main setting menu to display its corresponding setting page. TP70P-211LC1T is with two-channels of multi-analog inputs and four-channels of analog current outputs. You can set up different modes for each channel, read input values and set up output values under this setting item. You can perform basic operations including system adjustments and checks before you have your own programs ready.

  • Page 36: Digital I/O

    Press Digital I/O from the main setting menu to display its corresponding setting page. TP70P-211LC1T is with 17 digital inputs and 24 digital outputs. When an input point detects a signal, its corresponding input point in the bulletin is highlighted in a green block. The output points Y0-Y27 can be pressed to send signal to its corresponding devices.

  • Page 37: System Setup

    Ch a pt er 3 In t er f ac e I ntr o duc t io n 3.1.6 System Setup Press System Setup from the main setting menu to display its corresponding setting page. You can also press the RESET button or use M1662 (refer to section 5.3 for more details) to enter the System Setup page.

  • Page 38: Tp04P-20Exl1T Operational Interface

    T P7 0P - 2 11 L C1T /T P 0 4 P- 20 EX L 1T O per a ti o n Ma n ua l 3.2 TP04P-20EXL1T Operational Interface The default operational interface is as the image shown below; you can download the program in Delta’s official website: http://www.deltaww.com/ Load Cell related functions are described below.

  • Page 39: Load Cell Setup

    Ch a pt er 3 In t er f ac e I ntr o duc t io n 3.2.1 Load Cell Setup Press the key to display the corresponding setting page of the Load Cell Setup. There are 10 setting items for you to set up. Excitation Voltage: set up the excitation voltage at the load cell, ranging from 2.0 V to 9.5 V.

  • Page 40: Load Cell Calibration Process

    T P7 0P - 2 11 L C1T /T P 0 4 P- 20 EX L 1T O per a ti o n Ma n ua l Response Time Mode: setting range is from 0 to 8; see the modes and their corresponding response times below. Response time mode Response time (ms)
  • Page 41 Ch a pt er 3 In t er f ac e I ntr o duc t io n Zero Cal. Before performing zero calibration, the system checks if the environment is stable. When it is stable, the status besides Put a Weight shows Stable instead of Unstable as the image shown below. Press to start calibration.
  • Page 42 T P7 0P - 2 11 L C1T /T P 0 4 P- 20 EX L 1T O per a ti o n Ma n ua l After all calibrations are complete, the Undone changes to Done and Store Data [2] is shown in the lower right corner, as the image shown below.
  • Page 43 Ch a pt er 3 In t er f ac e I ntr o duc t io n 3.2.3 Load Cell Measure Press the key to display the corresponding setting page of the Load Cell Measure. to show less information as the image shown below. Use to go back.
  • Page 44 T P7 0P - 2 11 L C1T /T P 0 4 P- 20 EX L 1T O per a ti o n Ma n ua l Zero Reset Press to reset the present value to zero. Unit Setup Press to select the weight unit, in kilogram or in gram.
  • Page 45 Chapter 4 Installation and Wiring Table of Contents Installation ................4-2 Wiring ..................4-3 4.2.1 Wiring Power ................. 4-3 4.2.2 Wiring Digital Input Terminals ..........4-5 4.2.3 Wiring Digital Output Terminals ..........4-5 4.2.4 Wiring Analog Input Terminals ..........4-6 4.2.5 Wiring Analog Voltage / Current Output Terminals ......

  • Page 46: Installation

    The required torque for tightening a screw should be less than 2.75 kg-cm; do NOT exceed 2.75 kg-cm to avoid damaging the panel. TP70P-211LC1T / TP04P-20EXL1T is water resistant to IP66 / NEMA4 standard but Delta Electronics warranty does NOT cover if the installation is NOT correctly complete.

  • Page 47: Wiring

    5-8 kg-cm (4.3-6.9 lb-in). Do NOT wire empty terminals. To prevent a surge and induction, the cable and the input signal cables that are connected to the TP70P-211LC1T / TP04P-20EXL1T must be separate cables. Prevent foreign objects, such as oil, water, or metal powder entering TP70P-211LC1T / TP04P-20EXL1T through the ventilation holes.
  • Page 48 T P70 P-211LC 1T /TP04P-2 0 EXL1 T O pera ti on M an ua l Only DC power supply can be used for TP70P-211LC1T and TP04P-20EXL1T. You can use Delta power supply modules such as DVPPS01, DVPPS02, and DVPPS05 to supply DC power for TP70P-211LC1T and TP04P-20EXL1T.

  • Page 49: Wiring Digital Input Terminals

    Ch ap te r 4 Ins ta ll a ti on a nd Wi ri ng 4.2.2 Wiring Digital Input Terminals The input signal is DC power input. Sinking and sourcing are the current driving capabilities of a circuit. Sinking ...

  • Page 50: Wiring Analog Input Terminals

    T P70 P-211LC 1T /TP04P-2 0 EXL1 T O pera ti on M an ua l 4.2.4 Wiring Analog Input Terminals Only TP04P-20EXL1T has this feature analog voltage / current input in a range of V0+ ~ V3+.  TP70P-211LC1T does NOT include this feature.  Voltage input -10V~+10V C H0...

  • Page 51: Wiring Analog Voltage / Current Output Terminals

    Ch ap te r 4 Ins ta ll a ti on a nd Wi ri ng 4.2.5 Wiring Analog Voltage / Current Output Terminals Only TP04P-20EXL1T has this feature analog voltage / current input in a range of V4 ~ V5.  TP70P-211LC1T does NOT include this feature.  Voltage output -10V~+10V C H4...

  • Page 52: Wiring Analog Current Output Terminals

    T P70 P-211LC 1T /TP04P-2 0 EXL1 T O pera ti on M an ua l 4.2.6 Wiring Analog Current Output Terminals The IO1 ~ IO4 of TP04P-20EXL1T and TP70P-211LC1T are for analog current outputs only, NOT for analog voltage  outputs.

  • Page 53: Mixed Analog Input Terminals

    Ch ap te r 4 Ins ta ll a ti on a nd Wi ri ng 4.2.7 Mixed Analog Input Terminals Temperature Measurement Input Terminals  Ni100/N i1000/ LG -N i1000/Cu50/Cu100 C urrent output Shielded C H1 Pt100/JP t100/Pt1000 cable*1 A DC IN A A G ND...

  • Page 54: Wiring Load Cell Terminals

    T P70 P-211LC 1T /TP04P-2 0 EXL1 T O pera ti on M an ua l 4.2.8 Wiring Load Cell Terminals E XC+ E X C+(2~9.5V) EX C- A G2 4 Wire SIG+ SIG- A G2 S EN+ SE N- A G2 A G2 E XC+...

  • Page 55: Definitions Of Rs-485 Ports

    Refer to section 3.1.1 for more details on the response time modes. When selecting a load cell module, you can check the specifications of the response time mode and the precision to see if they meet your requirements. 4.2.9 Definitions of RS-485 Ports TP70P-211LC1T  RS-485 (COM2) RS-485 (COM3) -for PLC mode...
  • Page 56 T P70 P-211LC 1T /TP04P-2 0 EXL1 T O pera ti on M an ua l TP04P-20EXL1T  You can find the definitions of RS-485 ports on the product case as the image shown below, D1+ D1-, D2+ D2- and SG. D1+ and D1- are for PLC Mode while D2+ and D2- are for TP Mode. 4 - 1 2...
  • Page 57 Chapter 5 Devices Table of Contents Devices .................. 5-2 Special Data Registers ............5-4 Special Auxiliary Relay ............5-12 Special Data Registers Specific for TP Series ....... 5-21 5 - 1...
  • Page 58 External input relay TP70P-211LC1T: X0 ~ X7, X10 ~ X17, X20 TP04P-20EXL1T: Y0 ~ Y7, Y20 ~ Y27 External output relay TP70P-211LC1T: Y0 ~ Y7, Y10 ~ Y17, Y20 ~ Y27 M0~M511: 512 auxiliary relays (*1) General M768~M999: 232 auxiliary relays (*1)

  • Page 59: Chapter 5 Devices

    *1: They are not latching/retentive devices. They can not be changed. *2: They are latching/retentive devices. They can not be changed. *3: COM2 is RS-485 communication port by default *4: Special registers specific for TP04P-20EXL1T and TP70P-211LC1T 5 - 3...

  • Page 60: Special Data Registers

    T P7 0P-211 LC1 T /T P04 P- 20 EXL1T Ope ra tion Ma nua l 5.2 Special Data Registers The types and functions of special data registers (special D) are listed in the table below. Some registers of the same No. may bear different meanings for different PLC series. “R” in the column of Attribute refers to “read only”...
  • Page 61 Ch ap te r 5 De vices STOP Special Content Attrib. Latched Default    STOP D1043 Order of the 4 Step switching to ON D1044 Order of the 5 Step switching to ON D1045 Order of the 6 Step switching to ON D1046 Order of the 7 Step switching to ON...
  • Page 62 D1130 COM2 (RS-485) Error code returning from Modbus D1137 Address where incorrect use of operand occurs D1140 Number of Analog I/O modules (max. 1) Digital input points (X point) D1142 TP70P-211LC1T: 17 TP04P-20EXL1T: 9 Digital output points (Y point) D1143 TP70P-211LC1T: 24...
  • Page 63 D1318 Week of RTC: 1 ~ 7 D1319 Year of RTC: 00 ~ 99 (A.D.) DRV BD module code H’22 D1320 TP04P-20EXL1T: H’22 H’16 TP70P-211LC1T: H’16 IO BD module code D1321 H’9C TP04P-20EXL1T: H’9C TP70P-211LC1T: H’9C PLC Link scan cycle (Unit: 1ms) ...
  • Page 64 T P7 0P-211 LC1 T /T P04 P- 20 EXL1T Ope ra tion Ma nua l STOP Special Content Attrib. Latched Default    STOP D1357 Starting reference for Master to read from Slave ID#3 H’1064 D1358 Starting reference for Master to read from Slave ID#4 H’1064 D1359 Starting reference for Master to read from Slave ID#5 H’1064...
  • Page 65 Ch ap te r 5 De vices STOP Special Content Attrib. Latched Default    STOP D1431 Setting value for times of PLC LINK polling cycle D1432 Display of current times of PLC LINK polling cycle D1433 Number of slave units connected to PLC LINK D1434 Data length to be read on Slave ID#1 D1435 Data length to be read on Slave ID#2 D1436 Data length to be read on Slave ID#3...
  • Page 66 T P7 0P-211 LC1 T /T P04 P- 20 EXL1T Ope ra tion Ma nua l STOP Special Content Attrib. Latched Default    STOP D1462 Data length to be written on Slave ID#13 D1463 Data length to be written on Slave ID#14 D1464 Data length to be written on Slave ID#15 D1465 Data length to be written on Slave ID#16 The data which is read from slave ID#1 in PLC LINK at...
  • Page 67 Ch ap te r 5 De vices STOP Special Content Attrib. Latched Default    STOP D1672 ↓ The data which is read from slave ID#7 in PLC LINK D1687 D1688 ↓ The data which is written into slave ID#7 in PLC LINK D1703 D1704 ↓...
  • Page 68 T P7 0P-211 LC1 T /T P04 P- 20 EXL1T Ope ra tion Ma nua l STOP Special Content Attrib. Latched Default    STOP ↓ starting reference for Slave to write is defined in D1428; default is to write 16 pieces of data starting from H’10C8. D1927 D1928 The data to be read from slave ID#15 in PLC LINK;...
  • Page 69 Ch ap te r 5 De vices STOP Special Content Attrib. Latched Default    STOP M1020 Zero flag M1021 Borrow flag M1022 Carry Flag M1024 COM1 monitor request M1025 Incorrect communication request M1026 RAMP mode selection M1027 PR output mode selection Switch T64~T126 timer resulotion between 10 ms and M1028 100 ms.
  • Page 70 T P7 0P-211 LC1 T /T P04 P- 20 EXL1T Ope ra tion Ma nua l STOP Special Content Attrib. Latched Default    STOP M1063 System error message 4 M1064 Incorrect use of operands M1065 Syntax error M1066 Loop error M1067 Program execution error M1068 Execution error locked (D1068) M1072 PLC status (RUN/STOP), ON = RUN...
  • Page 71 M1162 ON: binary floating point; OFF: decimal integer M1167 16-bit mode for HKY input M1168 Designating work mode of SMOV Enable the communication instruction for Delta VFD M1177 series inverter. ON: VFD-A (Default), OFF: other models of VFD M1200 C200 counting mode (ON: count down)
  • Page 72 T P7 0P-211 LC1 T /T P04 P- 20 EXL1T Ope ra tion Ma nua l STOP Special Content Attrib. Latched Default    STOP M1214 C214 counting mode (ON: count down) M1215 C215 counting mode (ON: count down) M1216 C216 counting mode (ON: count down) M1217 C217 counting mode (ON: count down) M1218 C218 counting mode (ON: count down)
  • Page 73 Ch ap te r 5 De vices STOP Special Content Attrib. Latched Default    STOP M1245 C245 counter monitor (ON: count down) M1246 C246 counter monitor (ON: count down) M1247 C247 counter monitor (ON: count down) M1248 C248 counter monitor (ON: count down) M1249 C249 counter monitor (ON: count down) M1250 C250 counter monitor (ON: count down) M1251 C251 counter monitor (ON: count down)
  • Page 74 T P7 0P-211 LC1 T /T P04 P- 20 EXL1T Ope ra tion Ma nua l STOP Special Content Attrib. Latched Default    STOP M1362 Slave ID#3 status in PLC LINK M1363 Slave ID#4 status in PLC LINK M1364 Slave ID#5 status in PLC LINK M1365 Slave ID#6 status in PLC LINK M1366 Slave ID#7 status in PLC LINK...
  • Page 75 Ch ap te r 5 De vices STOP Special Content Attrib. Latched Default    STOP M1393 Slave ID#2 connection error M1394 Slave ID#3 connection error M1395 Slave ID#4 connection error M1396 Slave ID#5 connection error M1397 Slave ID#6 connection error M1398 Slave ID#7 connection error M1399 Slave ID#8 connection error M1400 Slave ID#9 connection error...
  • Page 76 M1437 Writing to ID#14 is complete M1438 Writing to ID#15 is complete M1439 Writing to ID#16 is complete M1580 Suceed to use DABSR instruction to read Delta ASD-A2 M1581 Failed to use DABSR instruction to read Delta ASD-A2 M1662 TP setting page...
  • Page 77 Ch ap te r 5 De vices 5.4 Special Data Registers Specific for TP Series The types and functions of special data registers (special D) for TP04P-20EXL and TP70P-211LC1T are listed in the table below. “X” in the column of Attibute refers to un and “O”...
  • Page 78 T P7 0P-211 LC1 T /T P04 P- 20 EXL1T Ope ra tion Ma nua l Special Item Description Attibutes Default K23: Ni100 K24: Ni1000 K25: LG-Ni1000 K28: -100 ~ 100mV (Supported by V1.02 and after) K0: ℃; K1: ℉ D4324 AX CH1 measurement unit D4325...
  • Page 79 Ch ap te r 5 De vices Special Item Description Attibutes Default K7: 200 ms K8: 400 ms K0: disable K1: subtract tare K2: not subtract tare D4532 Subtract tare ◎ K3: reset to zero Once the setting is done, the status switches back to ON.
  • Page 80 T P7 0P-211 LC1 T /T P04 P- 20 EXL1T Ope ra tion Ma nua l Special Item Description Attibutes Default Mode setting: H’0: digital input point (default) H’1: ON; a weight is restoreto zero H’2: ON; a tare is measured H’3: ON;...
  • Page 81 Ch ap te r 5 De vices Special Item Description Attibutes Default weight value that is set to output H’A: OFF, when the weight is greater than the Weight value that is set to output b15-b12 b11-b8 b7-b4 b3-b0 H’0: digital output point (default) H’1: ON, when there is no load on the load cell H’2: OFF, when there is no load on the load cell H’3: ON, when the weight is larger than the...
  • Page 82 T P7 0P-211 LC1 T /T P04 P- 20 EXL1T Ope ra tion Ma nua l Special Item Description Attibutes Default Y24 weight output setting D4576 ◎ value (High word) Y25 weight output setting D4577 ◎ value (Low word) Y25 weight output setting D4578 ◎...
  • Page 83 Ch ap te r 5 De vices Special Item Description Attibutes Default D4606 Calibrated weight 3 (Hi) ◎ D4607 Calibrated weight 4 (Lo) ◎ Calibrated weight of the calibration point 4 K300 D4608 Calibrated weight 4 (Hi) ◎ D4609 Calibrated weight 5 (Lo) ◎...
  • Page 84 T P7 0P-211 LC1 T /T P04 P- 20 EXL1T Ope ra tion Ma nua l Special Item Description Attibutes Default D4641 Raw data 1 (Lo) ◎ Raw data of the zero point D4642 Raw data 1 (Hi) ◎ D4643 Raw data 2 (Lo) ◎...
  • Page 85 Ch ap te r 5 De vices Special Item Description Attibutes Default D4676 Raw data 18 (Hi) ◎ D4677 Raw data 19 (Lo) ◎ Raw data of the calibration point 19 K18000 D4678 Raw data 19 (Hi) ◎ D4679 Raw data 20 (Lo) ◎...
  • Page 86 T P7 0P-211 LC1 T /T P04 P- 20 EXL1T Ope ra tion Ma nua l MEMO 5 - 3 0...

This manual is also suitable for:

Tp04p-20exl1t

Table of Contents
