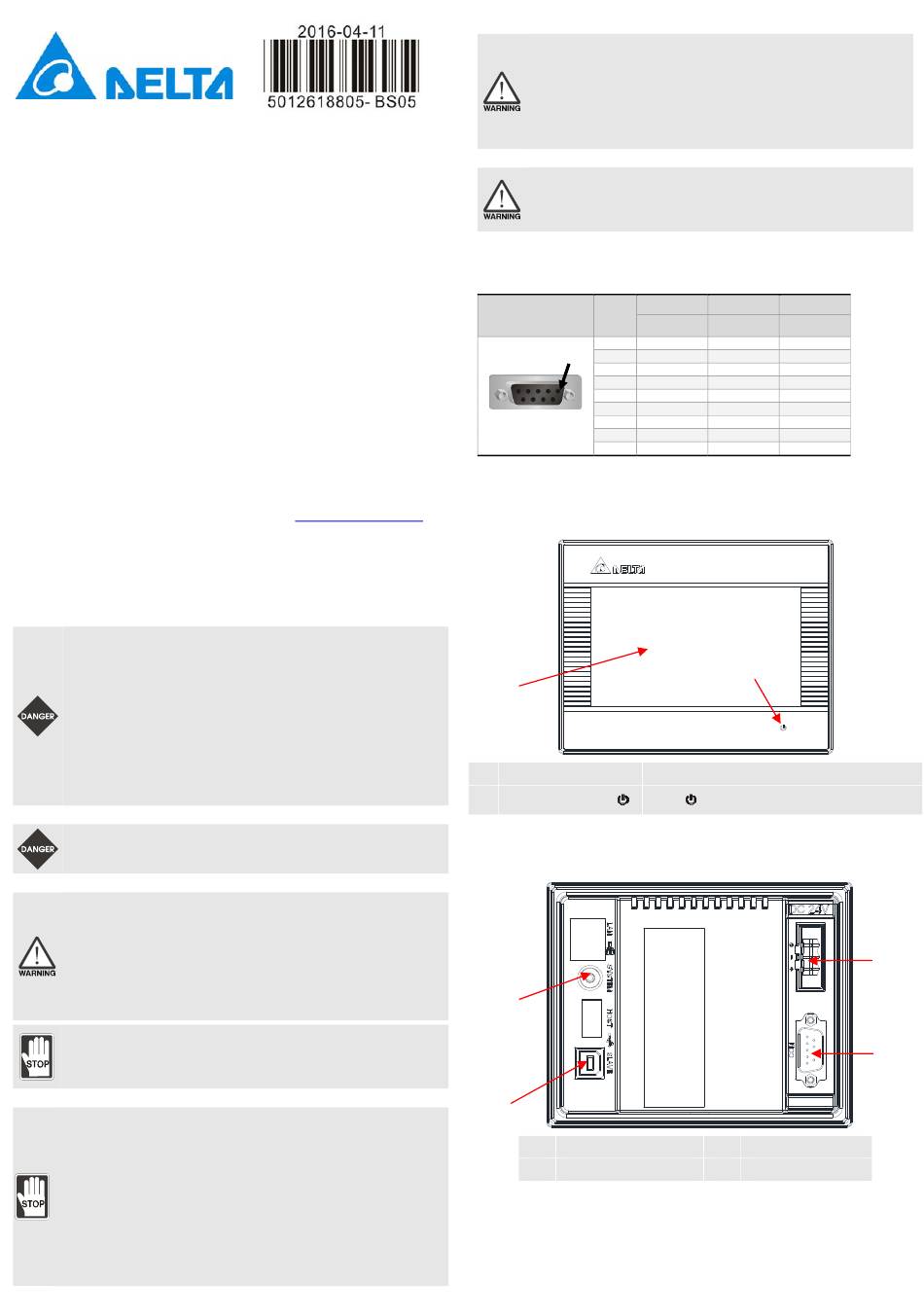

Delta DOP-B03 Instruction Sheet

上海菱本电子科技有限公司
-B03
DOP
B03S210 Instrunction Sheet

(1) Preface

Thank you for purchasing DELTA's DOP-B series. This instruction sheet will be helpful in
the installation, wiring and inspection of Delta HMI. Before using the product, please
read this instruction sheet to ensure correct use. You should thoroughly understand all
safety precautions before proceeding with the installation, wiring and operation. Place
this instruction sheet in a safe location for future reference. Please observe the following
precautions:
 Install the product in a clean and dry location free from corrosive and
inflammable gases or liquids.
 Ensure that all wiring instructions and recommendations are followed.
 Ensure that HMI is correctly connected to a ground. The grounding method
must comply with the electrical standard of the country (Please refer to NFPA 70:
National Electrical Code, 2005 Ed.).
 Do not disassemble HMI, modify or remove wiring when power is applied to
HMI.
 Do not touch the power supply during operation. Otherwise, it may cause
electric shock.
If you have any questions during operation, please contact our local distributors or Delta
sales representatives.
The content of this instruction sheet may be revised without prior notice. Please consult
our distributors or download the most updated version at http://www.delta.com.tw/ia.

(2) Safety Precautions

Carefully note and observe the following safety precautions when receiving, inspecting,
installing, operating, maintaining and troubleshooting. The following words, DANGER,
WARNING and STOP are used to mark safety precautions when using the Delta's HMI
product. Failure to observe these precautions may void the warranty!
Installation
 Comply with quick start for installation. Otherwise it may cause
equipment damage.
 Do not install the product in a location that is outside the stated
specification for the HMI. Failure to observe this caution may result in
electric shock, fire, or explosion.
 Do not install the product in a location where temperatures will exceed
specification for the HMI. Failure to observe this caution may result in
abnormal operation or damage the product.
 Please note that this equipment has obtained EMC registration for
commercial use. In the event that it has been mistakenly sold or
purchased, please exchange it for equipment certified for home use.
 Do not use this product as an alarm device for disaster early warning
that may result in personal injury, equipment damage, or system
emergency stop.
Wiring
 Connect the ground terminals to a class-3 ground (Ground resistance
should not exceed 100Ω). Improper grounding may result in
communication error, electric shock or fire.
Operation
 The users should use Delta Screen Editor Software to perform editing in
Delta's HMI product. To perform editing and confirming HMI programs
without using Delta Screen Editor software in Delta's HMI product may
result in abnormal operation.
 To prevent the personal injury and equipment damage, when designing
HMI programs, please ensure that a communication error occurred
between Delta's HMI product and the connecting controller or
equipment will not result in system failure or malfunction.
 Please be sure to backup the screen data and HMI programs in case
they are lost, accidentally deleted or worse.
 Do not modify wiring during operation. Otherwise it may result in electric
shock or personal injury.
 Never use a hard or pointed object to hit or strike the screen as doing
this may damage the screen and let the screen has not respond at all,
and then cause HMI to work abnormally.
Maintenance and Inspection
 Do not touch any internal or exposed parts of the HMI as electrical shock
may result.
 Do not remove operation panel while power is on. Otherwise electrical
shock may result.
 Wait at least 10 minutes after power has been removed before touching
any HMI terminals or performing any wiring and/or inspection as an
electrical charge may still remain in the HMI with hazardous voltages even
after power has been removed.
 Turn the power off before changing backup battery and check system
settings after finishing change. (all data will be cleared after changing
battery).
 Be sure the ventilation holes are not obstructed during operation.
Otherwise malfunction may result due to bad ventilation or overheating
troubles.
上海菱本电子科技有限公司
服务热线：400 821 3454
High Color‧Wide Screen‧
User-Friendly HMI Products
No.18, Xinglong Rd., Taoyuan City
33068, Taiwan
服务热线：400 821 3454

Wiring Method

 Do not use a voltage that will exceed specification for the HMI. Failure
to observe this caution may result in electric shock or fire.
 Remove the terminal block from the HMI before wiring.
 Insert only one wire into one terminal on the terminal block.
 If the wiring is in error, perform the wiring again with proper tools. Never
use force to remove the terminals or wires. Otherwise, it may result in
malfunction or damage.
 For the power line that forced to take out, ensure to check wiring again
and restart.

Communication Wiring

 Comply with communication wiring specification for wiring.
 Wiring length should comply with the stated specification for the HMI.
 Proper grounding to avoid bad communication quality.
 To avoid noise and interference, the communication cable, all power
cables, and motor power cable should be placed in separate conduits.

(3) Pin Definition of Serial Communication

DOP-B03S210 COM1 Port
MODE1
COM Port PIN
RS-232
1
PIN1 2
3
4
5
6
7
8
9
Note1: Blank = No Connection.

(4) Parts Names

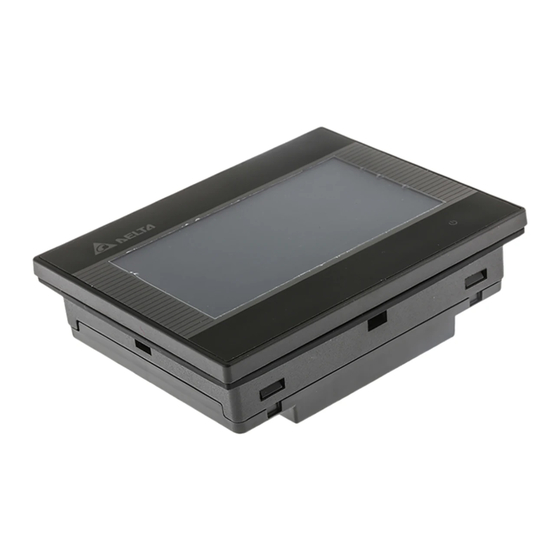

DOP-B03S210 (Front View)
A
A Touch Screen / Display
B
Power LED Indicator ( ) Note:
DOP-B03S210 (Rear View)
A
B
A System Key
C Power Input Terminal
MODE2 MODE3
RS-485 RS-422
D+ TXD+
RXD
TXD
RXD+
GND GND GND
D- TXD-
RTS
CTS
RXD-
B
Lights in green when HMI works normally.
B USB Slave
D COM1
C
D
