HAMPTON BAY ROSEMARKET XSC-1786-FP Use And Care Manual

Fire pit table
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Item #
1472788
YOW SKU #
637 300/637 302
Model #
XSC-1786-FP

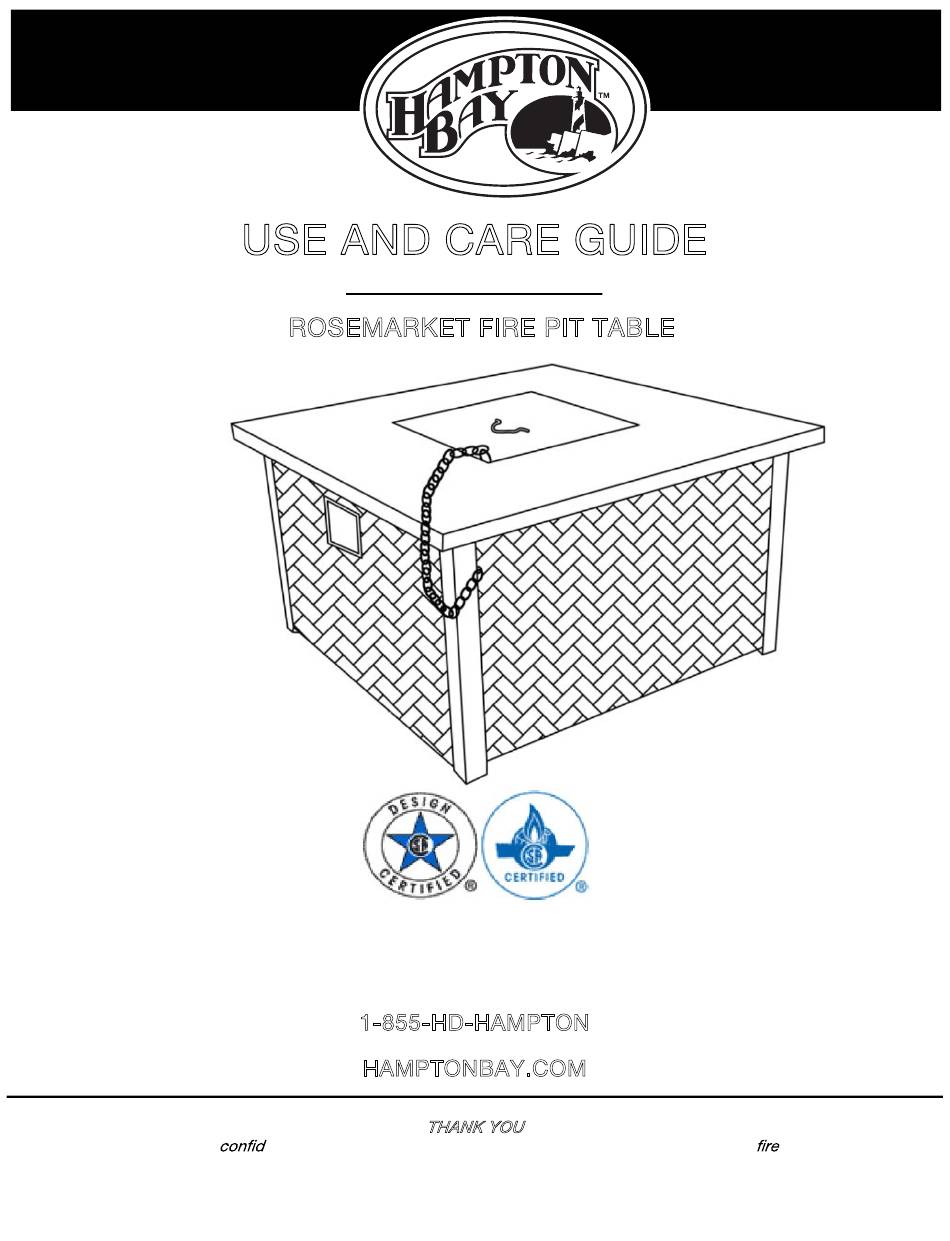

USE AND CARE GUIDE
ROSEMARKET FIRE PIT TABLE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and
ence you have placed in Hampton Bay through the purchase of this
pit table. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROSEMARKET XSC-1786-FP and is the answer not in the manual?

Questions and answers

Related Manuals for HAMPTON BAY ROSEMARKET XSC-1786-FP

Summary of Contents for HAMPTON BAY ROSEMARKET XSC-1786-FP

  • Page 1 THANK YOU We appreciate the trust and ence you have placed in Hampton Bay through the purchase of this pit table. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for...

  • Page 2: Table Of Contents

    Table of Contents     Table of Contents ............ 2 Assembly ..............8     Safety Information ........... 2 Assembly (continued)..........9     Safety Information ........... 3 Assembly (continued)..........10     Safety Information ........... 4 Assembly (continued)..........11  ...

  • Page 3: Safety Information

    Safety Information WARNING: This outdoor fire pit table should be WARNING: LP gas tank needed to operate. Only thoroughly cleaned and inspected on a regular tanks marked "Propane" may be used.  basis. Clean and inspect the hose before The LP gas tank must be constructed and each use of the appliance.

  • Page 4: Safety Information

    Safety Information WARNING:  High Surface temperatures: Children and adults should stay away to avoid burns or clothing ignition.  Young children should be carefully supervised when they are in the area of the appliance.  Clothing or other flammable materials should not be hung from the appliance, or placed on or near the appliance.

  • Page 5: Warranty

    Warranty 2 YEAR LIMITED WARRANTY WHAT IS COVERED This product is covered under the manufacturer’s 2-Year Limited Warranty against defects in materials and workmanship. If your furniture frame fails structurally due to inferior metals or welds during normal use within two years of purchase, the manufacturer will repair or replace the defective piece at no charge.

  • Page 6: Pre-Assembly

    Pre-assembly PLANNING ASSEMBLY Please read this entire instruction manual before beginning assembly. Identify all parts packed in carton using the parts lists. Remove all protective materials. If any parts are missing or damaged, do not attempt to assemble. NOTE: Place parts on a nonabrasive surface to avoid scratching.

  • Page 7: Pre-Assembly (Continued)

    Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Front panel Side panel Support bracket Base support Table frame Drawer rail Tank support Back panel Chain Fire bowl Table top Lava rock 6.5 lb Cover Wheel Tank Strap HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 8: Assembly

    Assembly Attaching the side and front Attaching the base support panels and side panels □ □ Attach the side panel (B) and front panel (A) using Attach the base support (D) to the side panels (B) four hex bolts (AA) and metal washers (EE). using four hex bolts (AA) and metal washers (EE).

  • Page 9: Assembly (Continued)

    Assembly (continued) Attaching the tank support Attaching the support bracket and back panel □ □ Attach the support bracket (C) and side panels (B) Attach the tank support (G) and back panel (H) using using four hex bolts (AA) and metal washers (EE). the four hex bolts (BB) and metal washers (EE).

  • Page 10: Assembly (Continued)

    Assembly (continued) Connecting the base support Attaching the drawer rail and drawer rail □ □ Attach the tank support (G), drawer rail (F), and wheel Attach the base support (D) and drawer rail (F) using (N) using six hex bolts (AA) and metal washers (EE). four hex bolts (AA) and metal washers (EE).

  • Page 11: Assembly (Continued)

    Assembly (continued) Connecting the panels and Attaching the frame to the top frame □ □ Attach the side panel (B), front panel (A), and table Turn the table top (K) face down on a soft, flat frame (E) using the four hex bolts (CC) and metal surface.

  • Page 12: Assembly (Continued)

    Assembly (continued) Placing the lava rock and Turning the table cover □ Place 6.5 lb of the lava rock (L) into the fire bowl (J). CAUTION: To avoid personal injury or damage to □ Place the cover (M) on top of the fire bowl when fire the fire pit table, at least two people are needed to is not in use.

  • Page 13: Operation

    Operation Installing a gas tank Checking for leaks □ □ Open the drawer and place the 20 pound gas tank Mix two to three ounces of a soapy solution to check on the tank support (G). for leaks. Use one part liquid dishwashing detergent □...

  • Page 14: Operation (Continued)

    Operation (continued) Lighting the fire pit □ To access the control knob, push to open the door on the front panel. □ Turn the control knob to the “OFF” position. □ Fully open the LP cylinder valve. □ For the initial start or after any cylinder change, push in and hold the control knob in for 2 minutes to purge air from the gas lines before proceeding.

  • Page 15: Maintenance

    Maintenance □ Air flow through the fire pit must remain unobstructed. Keep ventilation openings, controls, burner, and air passages clean and clear of debris. Signs of possible blockage include the following: Gas odor with extreme yellow tipping of flame. Fire pit does not reach the desired temperature. Fire pit glow is excessively uneven.

  • Page 16: Troubleshooting

    Troubleshooting PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION □ □ The burner will not light. The propane cylinder is Wait until the propane cylinder frosted over. warms up and becomes unfrosted. □ An opening is blocked. □ Clear the blockage. □ The control knob is not in the □...
  • Page 17 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.

This manual is also suitable for:
