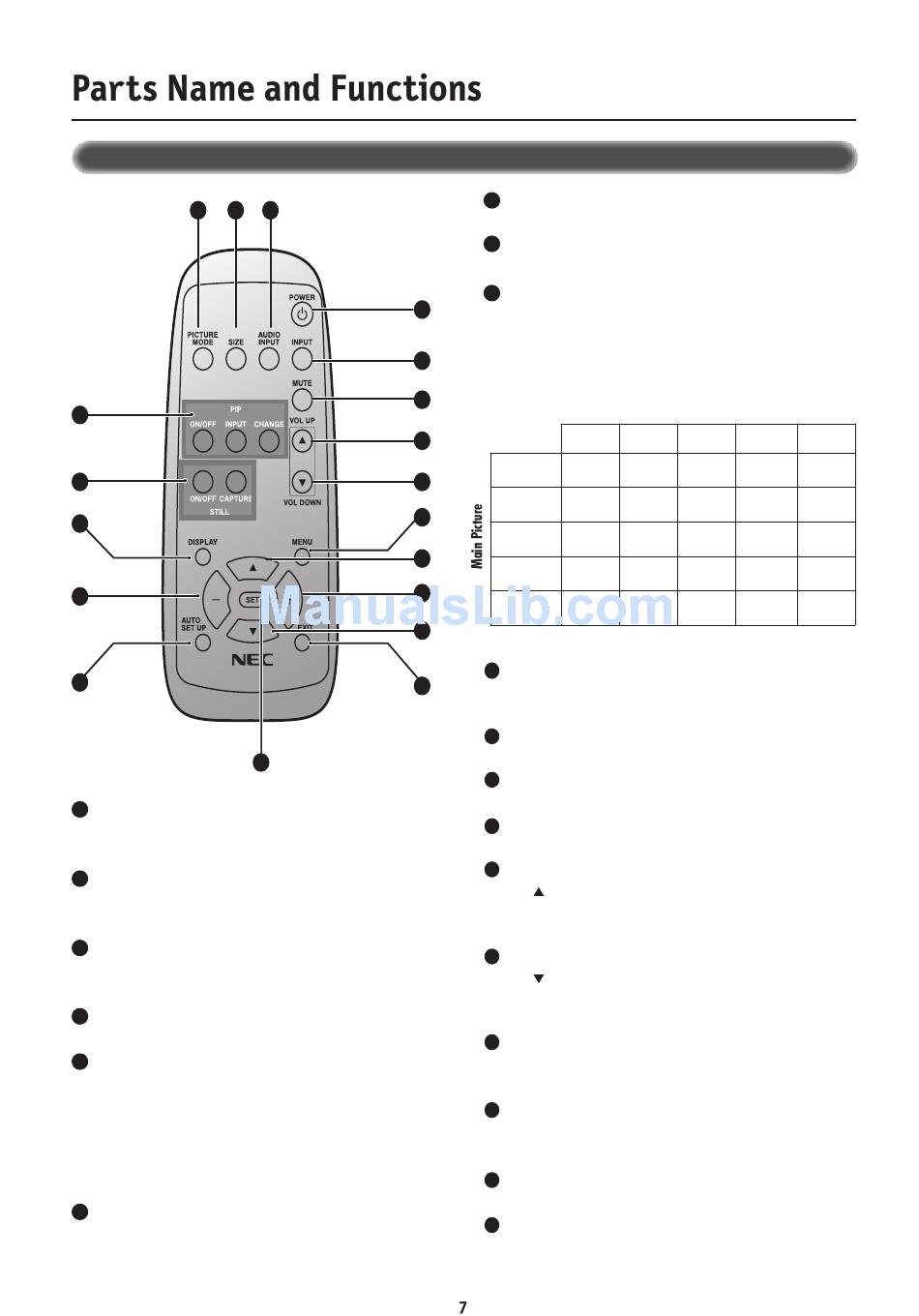

REMOTE CONTROLLER RU-M104
12
POWER button
1
Switches the power on/off.
* If Power Indicator is not glowing, then no controls will work.
INPUT button
2
Selects from input signal, [RGB1], [RGB2], [RGB3], [DVD/
HD], [VIDEO].
AUDIO INPUT button
3
Selects from input audio signal, [AUDIO1], [AUDIO2],
[AUDIO3]
SIZE button
4
Selects picture size, [FULL], [NORMAL], [WIDE]. See page 18.
5
PICTURE MODE button
Selects from picture mode, [HIBRIGHT], [STANDARD], [sRGB],
[CINEMA].
HIBRIGHT: for moving image such as DVD
STANDARD: for images
sRGB: for text based images
CINEMA: for movies. See page 18.
MUTE button
6
To on/off the mute function.

Wireless Remote Control

3
1
2
6
7
8
13
14
17
15
19
18
–continued
VOLUME UP button
7
Increase the audio output level.
8 VOLUME DOWN button
Decrease the audio output level.
PIP (Picture In Picture) button
9
ON/OFF button: Toggle switches between PIP-ON/
POP-ON/OFF.
INPUT button: Select the 'picture in picture' input signal.
CHANGE button: Replaces to the main picture and sub
picture.
R G 1 B R G 2 B
_ _
R G 1 B
_ _
R G 2 B
_ _
R G 3 B
_ _
D V D / H D
_

V D I O E
Note: The aspect ration of PIP synchronizes with a setup in the Main Picture.
STILL button
10
ON/OFF button: To on/off the still picture mode.
CAPTURE button: Capture the new picture.
DISPLAY button
11
To on/off the OSM information. See page 18.
AUTO SETUP button
12
To enter the auto setup menu. See page 21.
MENU button
13
To on/off the menu mode.
UP button
14
Acts as button to move the highlighted area up to select the
adjustment with OSM menu.
Small screen which adjusted "PIP" mode moves up.
DOWN button
15
Acts as button to move the highlighted area down to select
the adjustment with OSM menu.
Small screen which adjusted "PIP" mode moves down.
MINUS button decrease
16
Acts as (-) button to decrease the adjustment with OSM menu.
Small screen which adjusted "PIP" mode moves left.
PLUS button increase
17
Acts as (+) button to increase the adjustment with OSM menu.
Small screen which adjusted "PIP" mode moves right.
SET button
18
Acts as SET button with OSM menu.
EXIT button
19
Turn to previous menu with OSM menu.
Sub Picture
R G 3 B D V D / H D V D I O E
_

_ _

_ _

_ _ _
_ _
