Wireless Remote Control - NEC MultiSync V554 User Manual

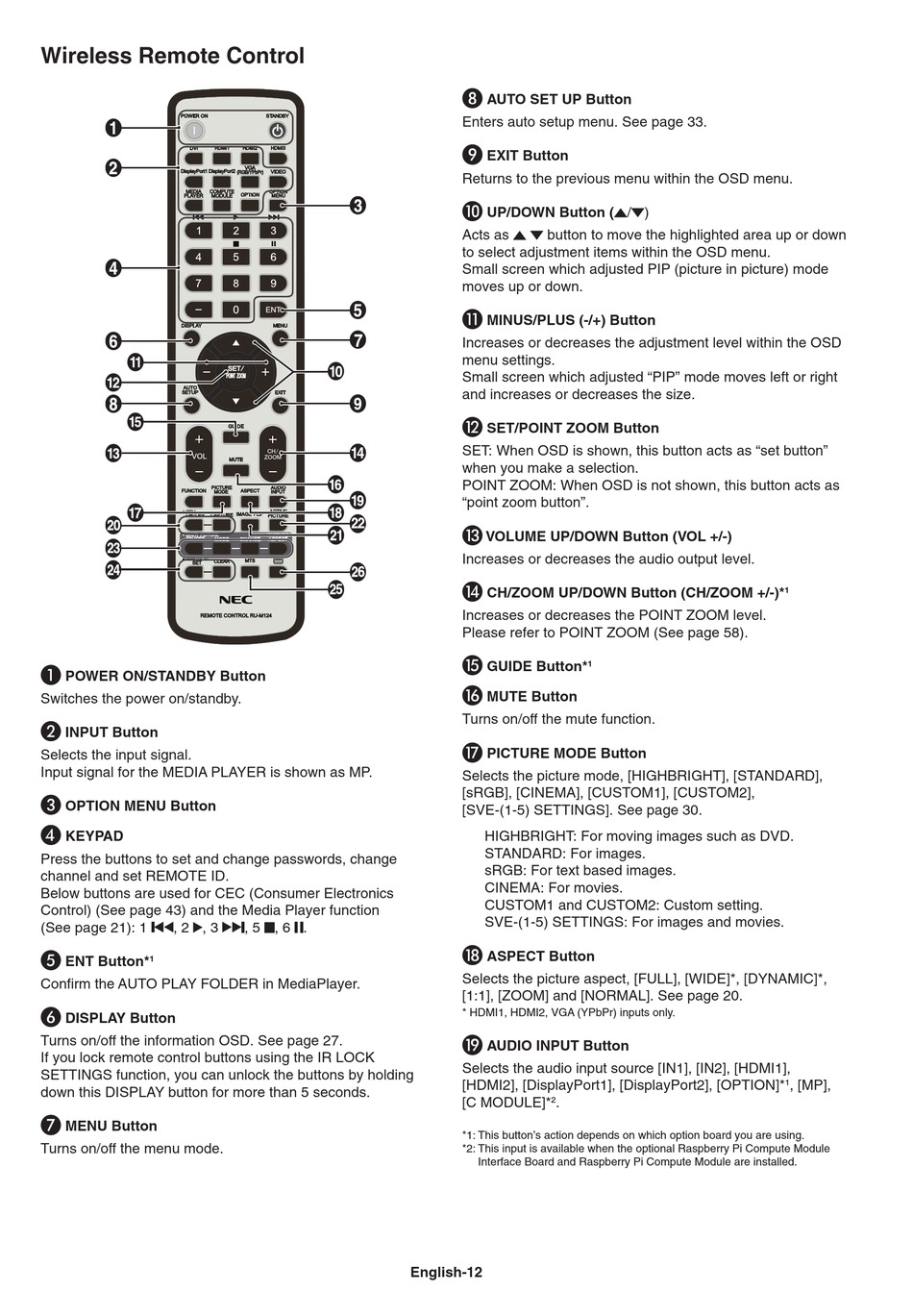

Wireless Remote Control

A
POWER ON/STANDBY Button
Switches the power on/standby.
B
INPUT Button
Selects the input signal.
Input signal for the MEDIA PLAYER is shown as MP.
C
OPTION MENU Button
D
KEYPAD
Press the buttons to set and change passwords, change
channel and set REMOTE ID.
Below buttons are used for CEC (Consumer Electronics
Control) (See page 43) and the Media Player function
(See page 21): 1 , 2 , 3
E
ENT Button* 1
Confirm the AUTO PLAY FOLDER in MediaPlayer.
F
DISPLAY Button
Turns on/off the information OSD. See page 27.
If you lock remote control buttons using the IR LOCK
SETTINGS function, you can unlock the buttons by holding
down this DISPLAY button for more than 5 seconds.
G
MENU Button
Turns on/off the menu mode.
, 5 , 6 .
English-12
H
AUTO SET UP Button
Enters auto setup menu. See page 33.
I
EXIT Button
Returns to the previous menu within the OSD menu.
J
UP/DOWN Button ( / )
Acts as button to move the highlighted area up or down
to select adjustment items within the OSD menu.
Small screen which adjusted PIP (picture in picture) mode
moves up or down.
K
MINUS/PLUS (-/+) Button
Increases or decreases the adjustment level within the OSD
menu settings.
Small screen which adjusted "PIP" mode moves left or right
and increases or decreases the size.
L
SET/POINT ZOOM Button
SET: When OSD is shown, this button acts as "set button"
when you make a selection.
POINT ZOOM: When OSD is not shown, this button acts as
"point zoom button".
M
VOLUME UP/DOWN Button (VOL +/-)
Increases or decreases the audio output level.
N
CH/ZOOM UP/DOWN Button (CH/ZOOM +/-)*
Increases or decreases the POINT ZOOM level.
Please refer to POINT ZOOM (See page 58).
O
GUIDE Button* 1
P
MUTE Button
Turns on/off the mute function.
Q
PICTURE MODE Button
Selects the picture mode, [HIGHBRIGHT], [STANDARD],
[sRGB], [CINEMA], [CUSTOM1], [CUSTOM2],
[SVE-(1-5) SETTINGS]. See page 30.
HIGHBRIGHT: For moving images such as DVD.
STANDARD: For images.
sRGB: For text based images.
CINEMA: For movies.
CUSTOM1 and CUSTOM2: Custom setting.
SVE-(1-5) SETTINGS: For images and movies.
R
ASPECT Button
Selects the picture aspect, [FULL], [WIDE]*, [DYNAMIC]*,
[1:1], [ZOOM] and [NORMAL]. See page 20.
* HDMI1, HDMI2, VGA (YPbPr) inputs only.
S
AUDIO INPUT Button
Selects the audio input source [IN1], [IN2], [HDMI1],
[HDMI2], [DisplayPort1], [DisplayPort2], [OPTION]*
[C MODULE]* 2 .
*1: This button's action depends on which option board you are using.
*2: This input is available when the optional Raspberry Pi Compute Module
Interface Board and Raspberry Pi Compute Module are installed.
1
1
, [MP],
