Non-abrasive surface

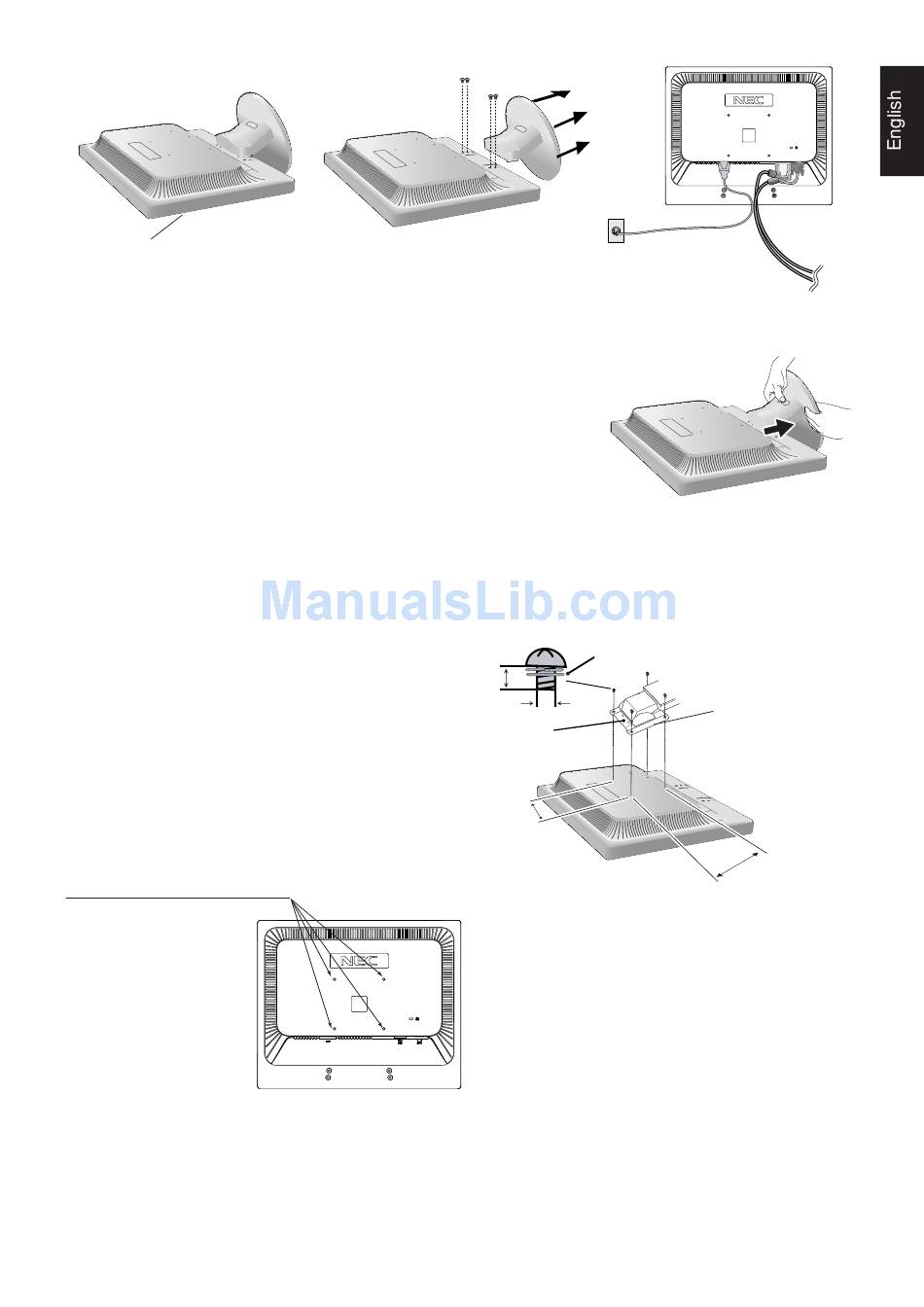

Figure R.1

Removing the Base Stand

NOTE:
Always remove the Base Stand when shipping the LCD.
1. Place monitor face down on a non-abrasive surface (Figure R.1).
2. While using your thumbs, press the bottom tabs upward to unlock.
3. Press the top tabs down to unlock and pull off the Base Stand.
Connecting a Flexible Arm
This LCD monitor is designed for use with a flexible arm.
Please use screws (4pcs) as shown in the picture when installing. To meet the safety requirements, the monitor must be
mounted to an arm which, guaranties the necessary stability under consideration of the weight of the monitor.
The LCD monitor shall only be used with an approved arm (e.g. GS mark).
NOTE:
The mounting stand shall be able to sustain at least 12 kg and UL certified.
Specifications
4-SCREWS (M4)
(MAX depth: 10 mm)
If use other screw,
check depth of hole.
Weight of LCD assembly: AS192: 3.0 kg (MAX)
Figure R.2
12 mm
M4
4 x 12 mm with lock washer
and flat washer
100 mm
English-7
Figure R.3
Locking tabs
Thickness of Bracket
(Arm) 2.0 ~ 3.2 mm
Tighten all screws
100 mm
