Removing the Base Stand

NOTE:
Always remove the Base Stand when shipping the LCD.

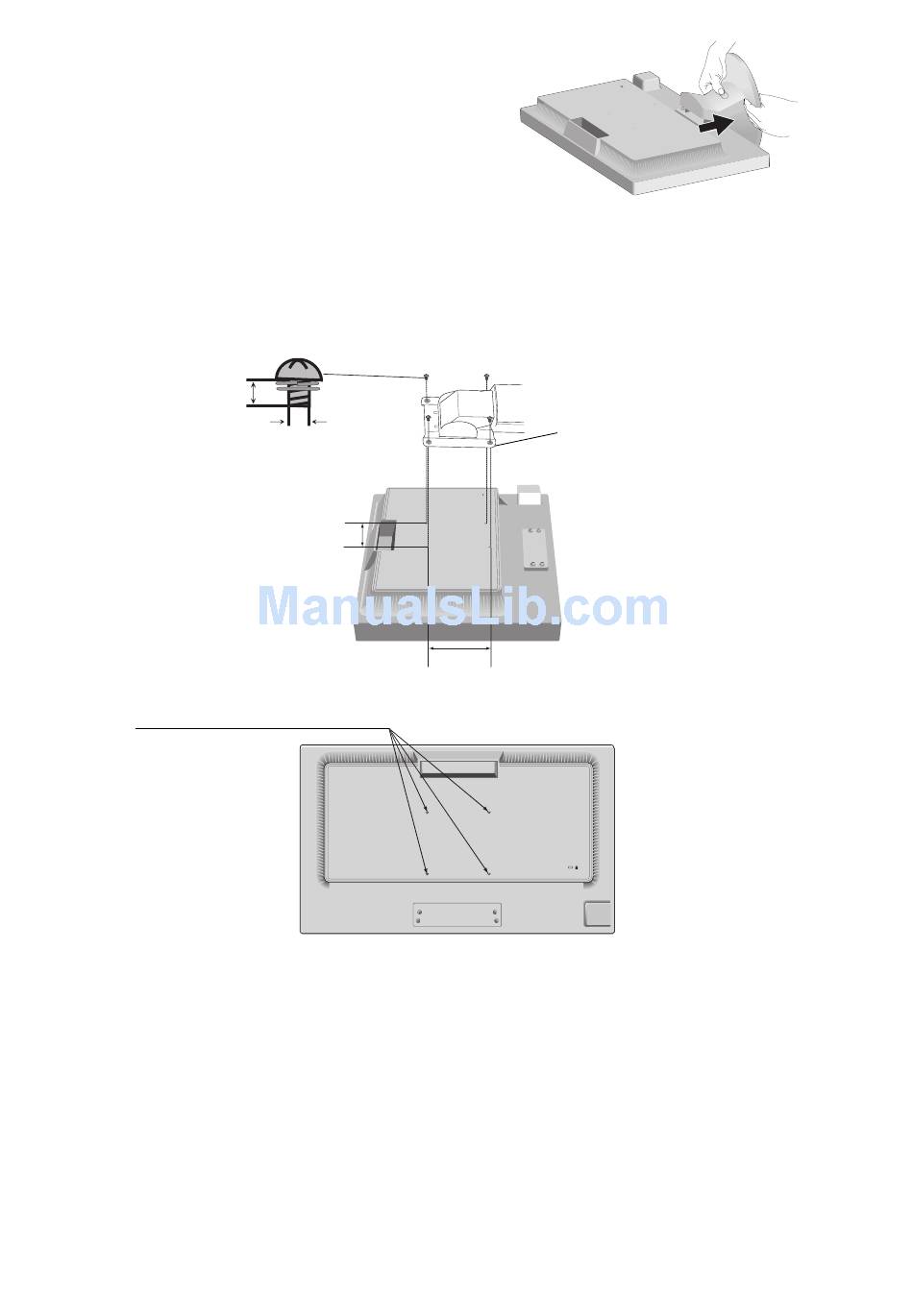

1. Place monitor face down on a non-abrasive surface (Figure R.1).
2. While using your thumbs, press the bottom tabs upward to unlock.
3. Press the top tabs down to unlock and pull off the Base Stand.
Connecting a Flexible Arm
This LCD monitor is designed for use with a fl exible arm.
Please use screws (4pcs) as shown in the picture when installing. To meet the safety requirements, the monitor must be
mounted to an arm which, guaranties the necessary stability under consideration of the weight of the monitor.
The LCD monitor shall only be used with an approved arm (e.g. GS mark).
NOTE:
To meet the safety requirements, the monitor must be mounted to an arm that supports the weight of the monitor and
be UL-certifi ed. See page 11 for details. Remove the base stand before mounting.
12 mm
4 x 12 mm with lock washer and
Specifi cations
4-SCREWS (M4)
(MAX depth: 10 mm)
If use other screw,
check depth of hole.
M4
fl at washer
100 mm
100 mm
Weight of LCD assembly: 3.3 kg (MAX)
English-8
Thickness of Bracket
(Arm) 2.0 ~ 3.2 mm
Tighten all screws
