- Page 1 93561B TNP TNJ DIGTAL TORQUE METER SERIES Instruction Manual Please read the instruction manual carefully before use. www.nidec-shimpo.co.jp...
- Page 2 Do not move and hold the product while the power is on. Please check the electric source is Do not mangle, bend, pull, turn, truss single phase. The voltage of electrical power cables. outlet is equal to the mark voltage. Don't place object on the cables.
- Page 3 Please charge with attached AC adapter Please use and charge only by AC100 and not others. 230V. Please insert power cable into AC socket Don't plug into or unplug from AC firmly. connect instrument with wet hands. Don't disassemble, repair, or remodel. Don't haul AC connect instrument.
-
Page 4: Product Features

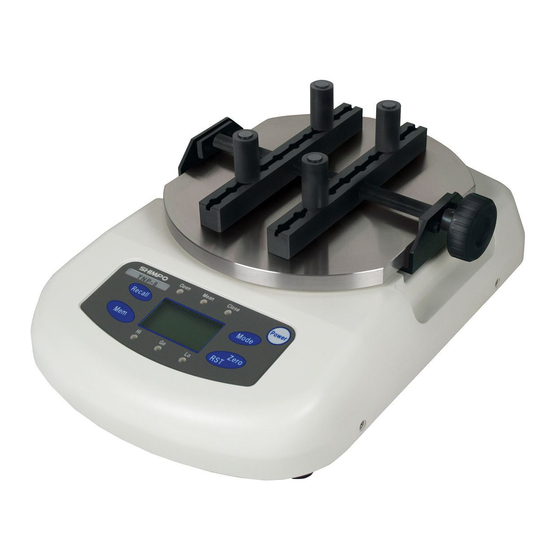

Rating torques TNJ series 2N m, 5N m, 10N m. TNP series 0.5N m, 2N m, 5N m, 10N m. Select the measuring units (Nm, Ncm, Kgcm, Lbin) Selectable measuring cycle (indication cycle); 1, 2, 4, 8 times / second 2. - Page 5 Parts names and functions 3.1 Main unit TNP series Front TNJ series Front Measuring mode display Power Key Power Key Recall Key Mode Key Mode Key Mem key Zero/RST Key Zero/RST Key Comparator judgement lights Display Display Power key Turn ON and OFF.
- Page 6 Display 3.2.1 Part names Sub display (showing units) Battery charge display Main display (Torque value) 3.2.2 Value display Show measuring value with sign and 4 digits numbers. Mean mode; Show opening as “+”, closing as “-“. Open/Close mode; always “+” 3.2.3 Unit display Show “OVR”...
- Page 7 3.2.4 Battery charge display (TNP only) Display shows below screens depending on the battery condition. “LO BAT” is shown when voltage of “BAT” is shown during recharging of Nickel-Metal Hydried battery is low. Nickel Metal Hydried battery; even Please charge battery with AC adapter. if Power is off.
-
Page 8: Measuring Mode
Measuring mode Please change the measuring mode by Mode key. Open mode Average mode Closing mode Mean Close Mean Close Open Open Open Mode Mode Mode 5.1 Open Measuring Mode Hold the peak value of torque for opening direction on measuring table. Measuring cycle, 8 times/second Display cycle, 8 times/second Show the Torque in “real time”... -
Page 9: Comparator Function
5.3 Close measuring mode Hold the peak value of torque for closing direction at measuring table. Measuring cycle, 8 times/second Display cycle, 8 times/second Reset the peak hold by pressing Zero/RST key. Mean Close Open Mean Close Open Zero/RS Peak hold reset Comparator function (TNP only) Compare upper/lower limit setting value at Function mode with measuring value or peak hold value or... -
Page 10: Measuring Method
In case of close torque measuring Open No jugement LO:ON Lower limit setting value GO:ON Upper limit setting value HI:ON Close Measuring data is from 0 - -49, then the “ Lo” indicator is on Measuring data is from -50 - -100, then the “Go” indicator is on Measuring data is from -101 - “Hi”... - Page 11 T able Special fixture Chuck pin Chuck Nob Cap should be centered 7.2 Zero adjustment: to “Zero” or Tare the TNP: When the TNP is in “Open” or “Close” measuring mode, if the displayed torque does not return to “0.00” (when no torque is applied and press Zero/RST), please change the mode to “Mean” mode, and then set “zero point ”...
- Page 12 Memory registration (TNP only) 8.1 Memory registration When at the “Open” or “Close” measuring modes, a single peak torque value is registered in the TNP memory by simply pressing the “Mem” key. (see flow chart below). The TNP will then automatically reset to zero, and another torque test may be performed. Up to 1000 tests may be performed with each test peak stored into memory.
- Page 13 8.2 Memory display When at the “Open” or “Close” measuring modes, press the “Recall” key, then it’s in Memory display mode. In the memory display mode, showing “the Last memory data” -> “Average” of all memory data -> “Maximum” -> “Minimum” -> “each memory data” by pressing “Recall” key. (In case of the last memory number is 1000, “000”...
-
Page 14: Clearing Memory Data
8.3 Clearing memory data To clear the last data stored, press “Zero/RST”. When showing last memory number Last memory number and data Clear Last memory number (Appears 1 sec.) When there is one last data, the last data is cleared by pressing “Zero/RST” key. After that, “nonE” is displayed at main display for 2 seconds, then the display returns to measuring mode as shown below: Last memory number... - Page 15 Setting update time Mode Mode 1time/sec 2times/sec 4times/sec Mode Mode Zero/RST TNP series; TNJ series; Move to auto power OFF setting Complete setting and back to measuring standard display Set auto power off to Auto power OFF 10 minutes Mode Mode TNP series;...
- Page 16 When you press Mem key at 1st digit, Recall back to 4 digit (repetition). Zero/RST TNP series; Move to comparator lower value setting Comparator lower value setting Show present setting at display Present lower value Key operation is the same as Comparator upper value seitting...
-
Page 17: Importing The Data
10. 3 How to install Digitorq _ TNP Access to the support page of our website (http://www.nidec-shimpo.co.jp/support/dl/index.html) and register for downloading. After registration, ID and password will be sent. With ID and Password, access to the Download website of “Degitorq _ TNP”... - Page 18 USB1.1 (available with TNP series only) Able to download the memory data by PC software (Digitorq_TNP). PC software Digitorq_TNP is available from our website free of charge). (available with TNP series only) Accessories USB cable (available with TNP series only), AC adapter Built in nickel hydride battery or AC adapter (AC100V～240V）...
