Fan Speed Control Switch with Remote Control
(No Neutral Required)
Model #:
BRT-F005-T

Features:

BRT-F005-T is a speed control switch which has a built-in micro controller unit. In addition to a
wall mount keypad unit, it also has a handheld remote control. The wall mount unit is designed for
easy installation and retrofit, directly fit into standard wall box with no need for the neutral.
Two load control outputs, one for fan and another one for lights;
5 step speed control using wall mount keypads or a remote control ;
Memory function. The motor always starts at last speed;
Adjustable minimum speed. The minimum speed can be fine-tuned by the user to suit for all
kind of motors;
ABS-V0 flame resistance material; and
Classical 86 series design and high quality build.
Front View and Back View:

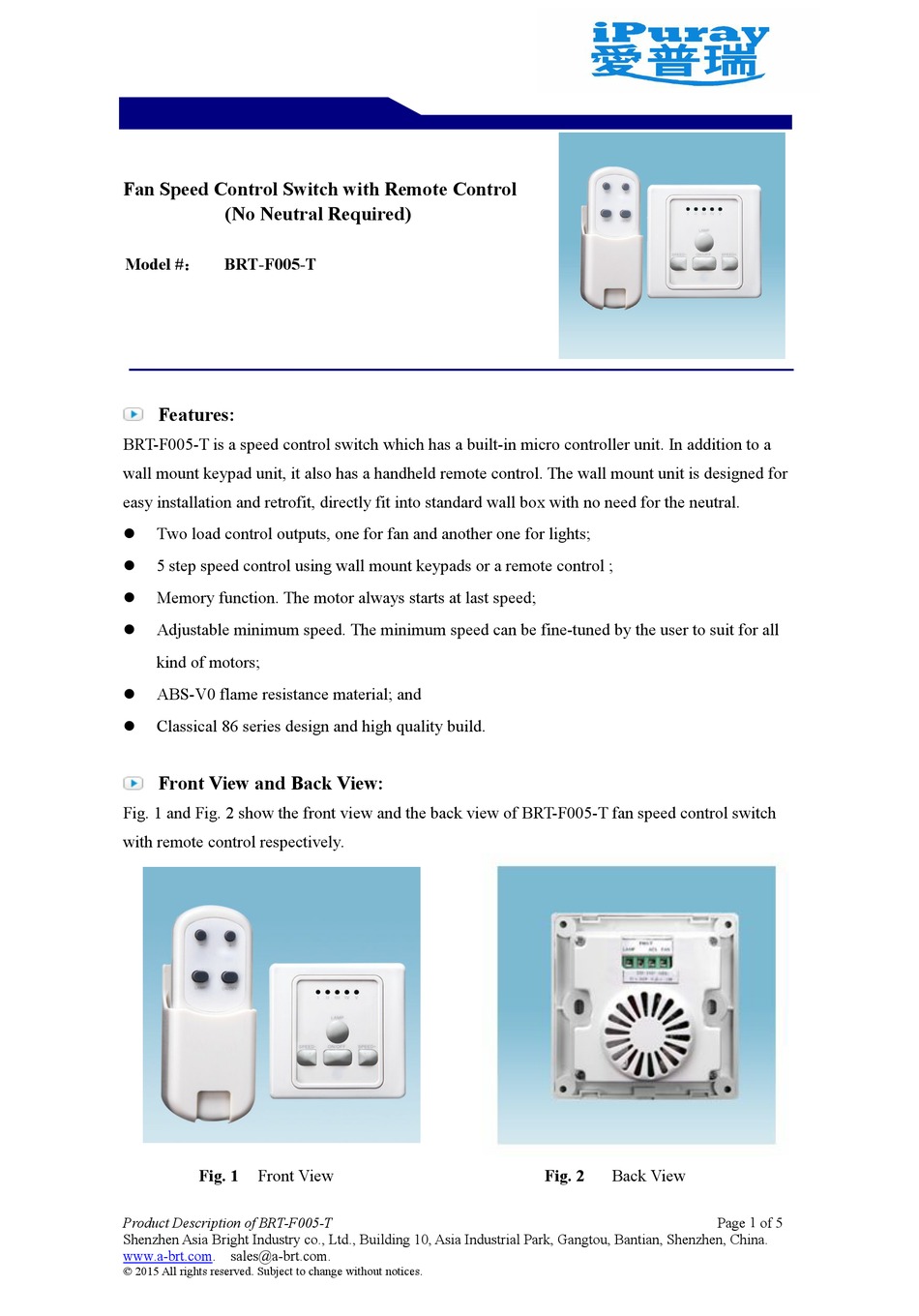

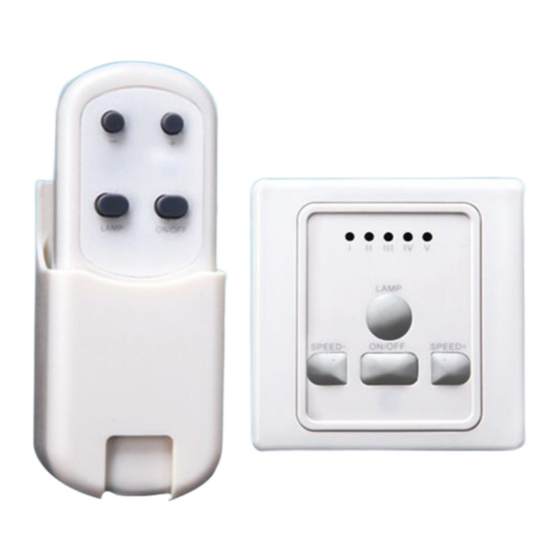

Fig. 1 and Fig. 2 show the front view and the back view of BRT-F005-T fan speed control switch
with remote control respectively.
Fig. 1
Front View
Product Description of BRT-F005-T
