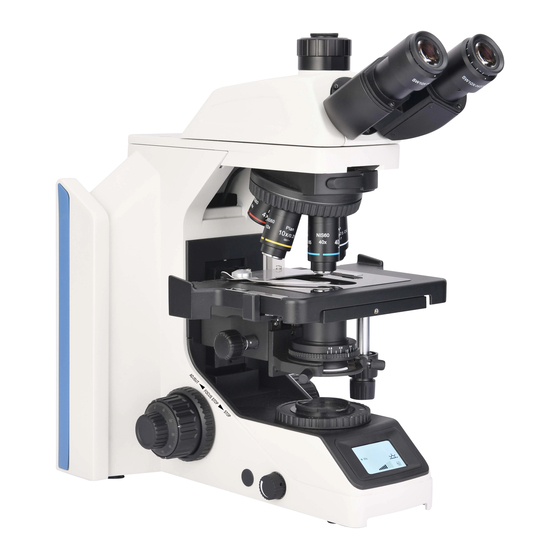

BS-2076 Series Microscope
Instruction manual
This instruction manual is suitable for BS-2076 laboratory biological microscope. In order to ensure safety, give full
play to the best performance of the instrument, and make you fully familiar with the use of this microscope, we
recommend that you read this manual thoroughly and carefully before operating the microscope.
Advertisement
Table of Contents
Related Manuals for BestScope BS-2076 Series
Summary of Contents for BestScope BS-2076 Series
- Page 1 BS-2076 Series Microscope Instruction manual This instruction manual is suitable for BS-2076 laboratory biological microscope. In order to ensure safety, give full play to the best performance of the instrument, and make you fully familiar with the use of this microscope, we...
-
Page 2: Table Of Contents
Beijing BestScope Technology Co., Ltd. Contents BS-2076 Notice for use …………………………………………………………………………………………………………………2 1. Components Name …………………………………………………………………………………………………… 4 2. Overview of Each Institution ……………………………………………………………………………………5 3. Installation ……………………………………………………………………………………………………………………7 3-1. Installation Diagram ………………………………………………………………………………………………7 3-2. Installation Steps……………………………………………………………………………………………………8 3-2-1. Installing the Mechanical Stage Bracket …………………………………………………………… 8 3-2-2. -
Page 3: Notice For Use
Beijing BestScope Technology Co., Ltd. Notice for Use BS-2076 1. Safety Precautions (1) Be careful when opening the box to prevent the lens glass from sticking to fingerprints, sweat, etc. that affect the observation, and prevent the lens and other accessories from being dropped and damaged. - Page 4 Beijing BestScope Technology Co., Ltd. BS-2076 (9) Microscope use environment requirements: a) Indoor use; b) The ambient temperature range: 5 ℃ ~30 ℃; c) Relative humidity range: 45%~85%. (10) Microscope storage and transportation environment requirements: a) Environmental temperature range: -40 ℃ ~ + 55 ℃...
-
Page 5: Components Name
Beijing BestScope Technology Co., Ltd. 1. Components Name BS-2076 Eyepiece Viewing Head Nosepiece Objective Stage Condenser Main body - 5 -... -
Page 6: Overview Of Each Institution
Beijing BestScope Technology Co., Ltd. 2. Overview of Each Institutions BS-2076 Slide clip Condenser Aperture Diaphragm Focusing Knob Left Coarse Portrait Adjustment Knob Focus Knob Lateral Adjustment Knob Left Fine Focus Knob Tension Adjustment Collar Field Diaphragm Brightness LCD screen... - Page 7 Beijing BestScope Technology Co., Ltd. BS-2076 Right Fine Focus Knob Right Coarse Focus Knob Locking Knob - 7 -...
-
Page 8: Installation
Beijing BestScope Technology Co., Ltd. 3.Installation BS-2076 3-1Installation Diagram The following Fig. shows the installation sequence of each component, and the Fig.shows the installation steps. Before installation, verify that all parts are free of dust and dirt. Do not scratch any parts or the glass surface. -
Page 9: Installing The Mechanical Stage Bracket
Beijing BestScope Technology Co., Ltd. 3-2.Installation Step BS-2076 3-2-1 Installing the Mechanical Stage Bracket (Fig.1,2) ① Rotate the thick operation wheel to lower ② the tail of the frame to expose the end screw as shown, then install the platform bracket according to the path of Fig.1, align the tail... -
Page 10: Install The Observation Head And Photography Accessories
Beijing BestScope Technology Co., Ltd. BS-2076 3-2-3 Install the Observation Head and Photography Accessories (Fig.5) 1. installation trinocular observation head ③ Install the observation head into the ④ microscope circular swallow tail by the path shown in Fig.5, and then the... -
Page 11: Install Objective Lens
Beijing BestScope Technology Co., Ltd. BS-2076 3-2-5 Install Objective Lens (Fig.7) 1.The adjusts the coarse focus handwheel until the mechanical carrier bracket drops to its low limit. 2. After the customer turns on the power supply, the converter turns to a certain... -
Page 12: Adjustment And Operation
Beijing BestScope Technology Co., Ltd. 4. Adjustment and Operation BS-2076 4-1 Turn On the Power (Fig.9) Connect the adapter to the power supply and then insert the adapter plug in the position in Fig.9. Then dial the main switch on the back of the microscope body to the-◎-state. -
Page 13: Mount Specimen
Beijing BestScope Technology Co., Ltd. BS-2076 4. Press + down: perform color temperature adjustment (Fig.14). After entering color temperature adjustment interface, release and rotate the color temperature adjustment. The color 3000K temperature adjustment range 3000K~7000K, Press + to exit the color temperature adjustment mode. -
Page 14: Light Path Switching
Beijing BestScope Technology Co., Ltd. BS-2076 4-5 Light Path Switching (Fig.17) ① For the binocular / triple switching observation head, turn the knob to switch the optical path, observe the camera when the knob points to position, and observe binocular observation when the knob points to the Fig.17... -
Page 15: Adjusting The Tightness Of Focusing Handwheel
Beijing BestScope Technology Co., Ltd. BS-2076 Both sides of the micro-hand wheel in the convenience to dismantle, the hand wheel with a strong magnetic suction. Just as shown in the arrow, press the end of the hand wheel inside to raise the other, and then gently dial it from the raised end. - Page 16 Beijing BestScope Technology Co., Ltd. BS-2076 Condenser centering 1. Turn the spotlight focus handwheel to raise the spotlight to the highest position. 2. Focus on the sample with a 10 × objective lens. 3. Rotate the field aperture ring and narrow the field aperture image to be visible in the field of view.
-
Page 17: Technical Specification
Beijing BestScope Technology Co., Ltd. 5.Technical Specification BS-2076 I. Main technical specifications and views Optical system NIS60 Infinite Distance Optical System (F200) BS-2076 Hinged trinocular, 30 ° tilt, pupil distance 47-78mm (5:5) ● Viewing head Hinged trinocular (0: 100 / 100: 0) ○... -
Page 18: Troubleshooting Guide
Beijing BestScope Technology Co., Ltd. 6. Trouble Shooting BS-2076 6.1 Optical part Problem Reason The Solution Nosepiece is not in the right position (the Go to the right position (turn the objective Edge darkness or objective lens is not in the center of the... - Page 19 Beijing BestScope Technology Co., Ltd. BS-2076 Reinstall the Condenser and adjust Polscope not in center of view or tilt carefully with the Condenser center One side of the image screw Nosepiece is not at the location Turn it in place...
- Page 20 Beijing BestScope Technology Co., Ltd. BS-2076 6.3 Electrical part Problem Reason The Solution No power supply Check the electrical wire connection Light is not on when LED lamp connection plug not inserted in Insert correctly switch circuit board switched on...
