2.2

MECHANICAL INSTALLATION

Use the following as a reference for installing the sensors and accessories, as well as
the air and water connections.

2.2.1 Sensor (standard)

All sensors are supplied with a fixed bracket and mounting nut. Alternatively, the
sensor may be mounted through a hole or may be mounted using a customer-sup-
plied bracket or other accessories. See Section 1.0 for a description of accessories and
options for the sensor.

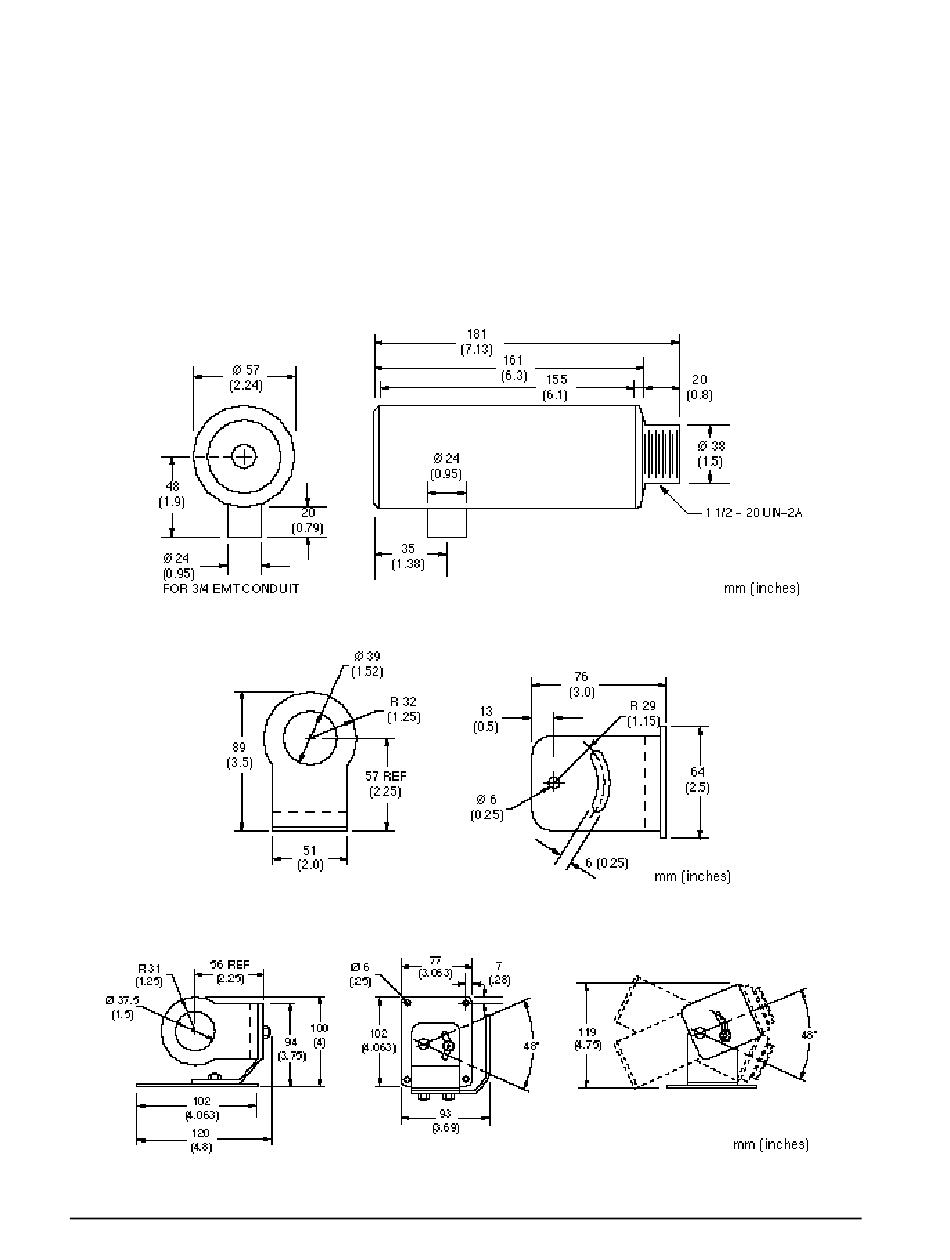

Figure 2-3: Sensing Head
Figure 2-4: Fixed Mounting Bracket
Figure 2-5: Adjustable Mounting Bracket
