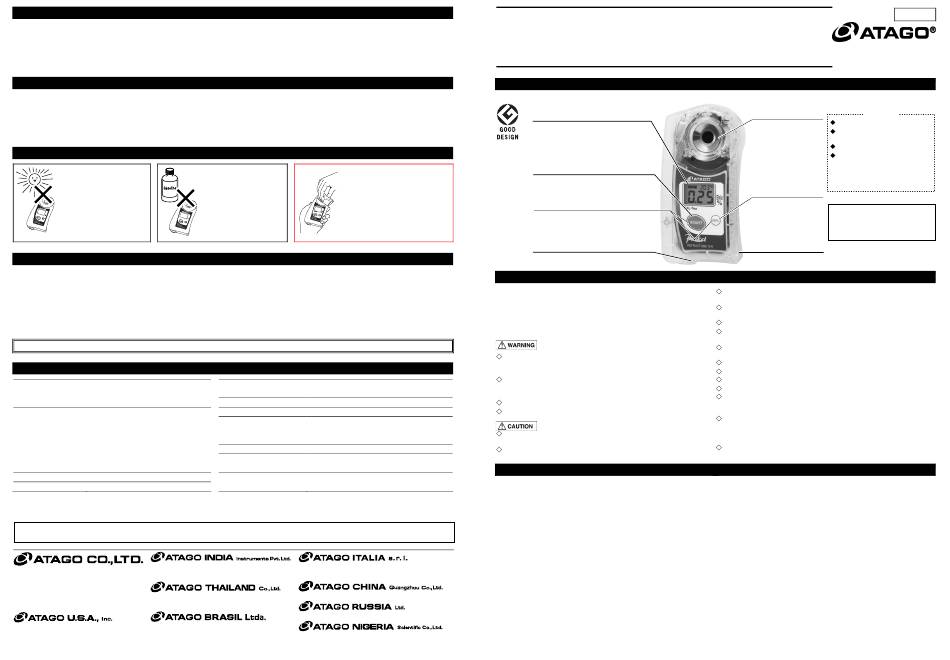

ATAGO PAL-Tea BLT/i Instruction Manual

Brix represents the weight of sucrose in 100 grams of sucrose solution as percentage by weight. When other dissolved solids are
present in the solution, Brix conversion may be applied.
Brix is a measure of the total dissolved solids in a solution and indicates the combined concentration of all soluble substances,
such as sugar, salt, protein, and acids.
Automatic Temperature Compensation
The readings are corrected, based on the temperature of the prism, within the automatic temperature compensation range.
【Caution】
◇ Measurements may fluctuate with hot or cold samples. Wait for approximately 20 seconds to press the START button.
Measurements will stabilize once the instrument acclimates to the sample temperature.
Storage and Maintenance
Store the instrument in
a dry place away from
direct sunlight.
Exposure to humidity
and heat may damage
the instrument.
The instrument is warranted for one year from the date of purchase. This warranty is void if the instrument shows evidence of the
following. Send the included batteries as well if they are still in use.
• Having been disassembled by unauthorized personnel
•
Damages to the prism and/or sample stage
•
Water damage or having been dropped
Repair services are available for a fee after the warranty expires.
Contact an ATAGO authorized service center for service and support.
Please have the serial number information ready when contacting a service center.
Measurement range 0.00 to 25.00% Brix
(Automatic Temperature Compensation)
10.0 to 100℃
Output Bluetooth Ver 4.0
Maximum communication range: 3 to 7 m
Baudrate: 38.4 k/Data length: 8/Prity
bit: none RTS/CTS flow control/Stop
bit: 1
Transmit data: time, data, Temp,
2014/05/30 15: 02: 21,1.23,23.4
Resolution 0.01% Brix / 0.1℃
Accuracy ±0.10% Brix / ±1℃
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
iPhone, iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.
App Store is service mark of Apple Inc.
The product is in conformity with the requirements of the EMC Directive 2004/108/EC and R&TTE Directive 1999/5/EC.
Patent Granted in Japan, United States, Germany, China and Taiwan.
TEL: 91-22-2854-4915 / 4071-3232
Headquarters: The Front Tower Shiba Koen,
customerservice@atago-india.com
23rd Floor 2-6-3 Shiba-koen, Minato-ku,
Tokyo 105-0011, Japan
TEL: 81-3-3431-1943 overseas@atago.net TEL: 66-21948727-9 ,66-21171549
http://www.atago.net/ customerservice@atago-thailand.com
TEL: 1-425-637-2107 TEL: 55 16 3913-8400
customerservice@atago-brasil.com
customerservice@atago-usa.com
Brix scale
Do not use organic Clean and dry the sample
solvents (paint stage thoroughly, following
thinner, benzene, the "Cleaning" instructions.
gasoline, etc.) on the Store the unit away from
plastic body case. direct sunlight at a stable
temperature with as little
fluctuation as possible.
Repair and Warranty
• Having been misused and/or operated outside the environmental specifications
•
Leakage from batteries other than those included with the unit
Specifications
Automatic temperature 10 to 100℃
compensation range
Ambient temperature range 10 to 40 ℃
Sample volume 0.3 mL or more
Measurement time Approx 5 seconds (or longer until sample
temperature stabilizes) 120 seconds of
continuous measurement
Power supply Size AAA alkaline batteries × 2
International Protection IP65 Water resistant
class
Dimensions and weight 55 (W) x 31 (D) x 109 (H)mm,
100g (main unit only
TEL: 39 02 36557267
customerservice@atago-italia.com
TEL: 86-20-38108256
TEL: 7-812-777-96-96
TEL: 234-707-558-1552

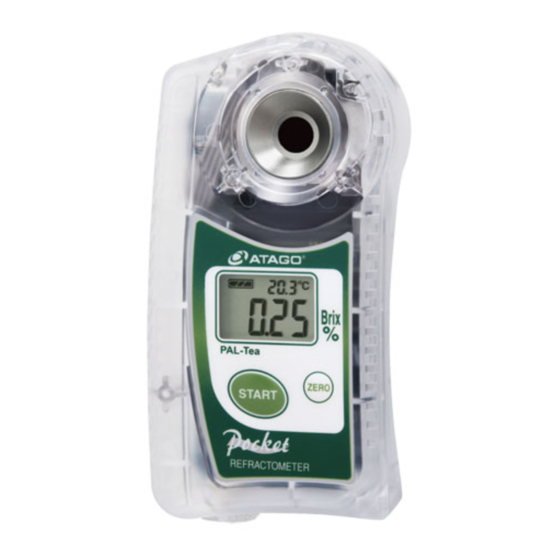

"Ｄｉｇｉｔａｌ Ｈａｎｄ-ｈｅｌｄ Pocket" Tea Refractometer
PAL- Tea BLT/i
300
LCD
Measurement results, prism
temperature, and remaining battery
charge are displayed.
The displayed value is an example.
START button
Press to take measurements and hold
down to turn off the display.
START button + ZERO button
Press to set the date and time. Be
sure to set the date and time
before intial use.
Battery compartment
Place and remove batteries from here.
Thank you for purchasing the instrument. Carefully read and follow all
instructions. Keep this manual for future reference.
Safety Instructions
Read and follow all safety instructions before operating the instrument.
Failure to comply with the following instructions may result in personal
injury or property damage.
Ensure safety when handling hazardous materials. Observe precau-
tionary measures and use protective equipment, Be aware of the haz-
ards of such chemicals and emergency response guidelines.
ATAGO may not be held liable for any injury or damage arising in
connection with handling of hazardous materials during the use of the
instrument.
Do not drop the instrument or subject it to strong physical shock.
Do not attempt to repair, modify, or disassemble the instrument.
Carefully read this manual to have basic knowledge of the function of
each component.
ATAGO is not liable for any loss and damage caused by the meas-
urement and use of this instrument.
:
MODEL PAL-Tea (CONTAINS FCC ID: P00-WC69)
USA-Federal Communication Commission (FCC)
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation.
INFORMATION TO USER:
This equipment has been tested and found to comply with the limit for a
Class B digital device, pursuant to Pat 15 of FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can ra-
diate radio frequency energy. If not installed and used in accordance
with the instructions, it may cause harmful interference to radio commu-
info@atago-china.com nications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
info@atago-russia.com
by turning the equipment off and on, the user is encouraged to try and
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna
atagonigeria@atago.net
1703K Printed in Japan
Cat. No. 4535i
Parts
Sample stage
Apply water and samples
on the glass prism
located in the center of
the sample stage.
ZERO button
Press to perform
ATAGO instruments are rigorously
zero-setting. Press and
inspected to ensure each unit
hold to export data via
meets the highest standards of
Bluetooth.
quality assurance.
Lanyard hole
Introduction
Some acids may corrode the glass prism and/or metal sample stage,
which may cause erroneous measurements.
Do not use metal tools, such as a spoon, as they may scratch the prism,
resulting in erroneous measurements.
Do not use water above 50℃ to rinse the instrument.
Only use the specified battery type. Observe proper polarities, properly
aligning the anodes and cathodes.
Store the instrument away from direct sunlight/heat sources and ex-
cessive amounts of dust/debris.
Do not expose the instrument to a rapid change in ambient temperature.
Do not subject the instrument to strong vibration.
Do not subject the instrument to extreme cold temperature.
Do not place the instrument under anything heavy.
Loosen the battery compartment cover for air transportation.
<International Protection Classification IP65>
The instrument is water-resistant, not waterproof, and should not be
submerged.
<Chemical Resistance of Body Case>
The body case is made of PC. Do not expose it to water vapor or sol-
vents.
FCC Cｏｍｐｌｉａｎｃｅ Sｔａｔｅｍｅｎｔ
- Increase the distance between the equipment and the receiver.
- Connect the equipment to outlet on a circuit different from that to which
- the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate
this equipment.
Canada-Industry Canada
Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation on this device.
To reduce potential radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent isotropically radiated
power (EIRP) is not more than that required for successful communication.
Caution: Exposure to Radio Frequency Radiation.
To comply with RSS 102 RF exposure compliance requirements, for mobile
configurations, a separation distance of at least 20 cm must be maintained
between the antenna of this device and all persons. This device must not
be co-located or operating in conjunction with any other antenna or
transmitter.
4535i-E01
Instruction Manual
Contents
Main unit ......................... 1
Instruction Manual .... 1
(this book)
Calibration Report....... 1
AAA batteries ............... 2
AAA alkaline batteries are in-
cluded. Remove the tape from
the battery compartment before
inserting the batteries..
