EDS ECB20R Installation Manual

Keep the instructions for use, follow all warnings, follow all
procedures and instructions.
Do not reverse voltage.
Do not short circuit.
For good performance, follow the instructions given in the
installation section.
If there is a problem with the operation of the device,
immediately disconnect the power supply and call the
authorized service.

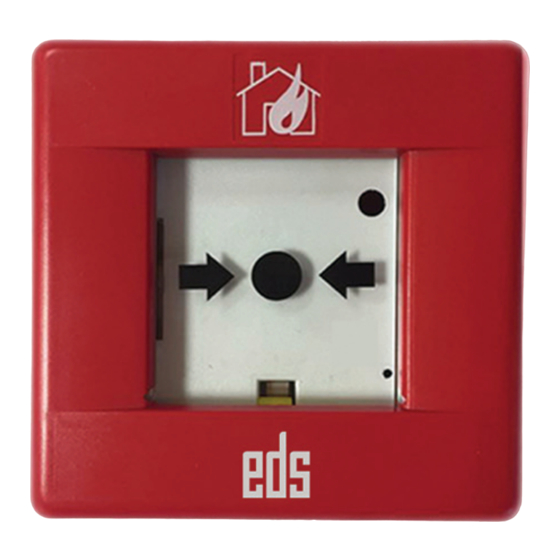

ECB20R
CONVENTIONAL
MANUAL CALL POINT
www
1 SPECIFICATIONS
WARNINGS
Model ECB20R
Environmental class II indoor
Electrical
Operating voltage 24V DC ± %10
Alarm resistor 470 Ohm
Alarm current <70mA
General ral
Housing material ABS Plastic
Housing shape Standard
External cover color Red
Protection class IP24
Type Type A
Cable diameter 0.5-1.5mm
Operating Temperature -10 C~+55 C
O O
Dimension (HxWxD) 86x86x39mm
Weight 97g
BSI
ECB20R-UM-EN-2242-R3 01.20V2 2797 0086
0086-CPR-636147
2797
Standard no EN54-11:2001+A1:2005
Year of manufacture
digit of your product serial number (located on the product
Manufacturer EDS Elektronik Destek Sanayi ve Ticar
Meclis Mah. Teraziler Cad. Hayran Sk. No: 4 34785 Sancaktepe /
Recycle
2 PHYSICAL
86 39
3
1
4
2 2
1 Reset 3 Black Point
2 2 Yellow Indicator 4 Pin
3 TEST
Press your ger to the black
point (3) on the manual call
point.
I n ca s e o f a l a rm st a t us ,
yellow warning indicator
(2) appears on the display.
1
16
2797
4 CONNECTIONS
Manual call points must be mounted visibly along escape and
rescue routes.
A Mounting Hole
A A
A
B Cable Terminal
B B
Wiring Terminal
C
A
D Pin Locations
A A
Figure1:
Openening Key
D
Place the reset button as illustrated in Figure 2. As
D
pressing down, the cover will open as shown in Figure 3.
C
D
D
The pin on the top plastic
Terminal
corresponds to the pin
Connections
locations (D) on the lower
Details
plastic of the manual call
point. Place the pins and
close the top cover.
2 3
5 MOUNTING
Reset / Figure 2 Figure 3
6 RESET
Place the reset key as illustrated
in Figure 4. Display of the manual
call point restored to the previous
location by pressing to the bottom.
4
Figure 4
