EDS SD800 Mounting Instructions

SD800
Fire Alarm Systems / Telephone Dialer
SPECIFICATIONS
Model SD800
Environmental class II Indoor
Electrical
Operating voltage 24V DC ± %10
Stand-by current <50 mA
Alarm current <100mA
Controller Microprocessor
Line frequency 390-490Hz
Keyboard Built-in
Call
Called phone number 8
Called period Tone:70s Pulse:80s
Audio recoding period 16s
Unanswered / Busy 5 times
Unanswered calling period 50s
Unanswered call number 10 times
Alarm
Alarm input Programmable, 5 time call
Alarm detection Available
Password
User password 6
Programing password 1
Relay puller with password Available
Tone / Pulse options Available
Restore factory settings Available
General
Housing material / shape Card / Standard
Operating Temperature -10 C~+50 C
O O
Dimension (HxWxD) 90x80x25mm
Dimension Box (HxWxD) 110x110x39mm
Weight card 82g
Year of Manufacture The year and week of manufacture is included in the first four
digit of your product serial number (located on the product
identification label)
Manufacturer EDS Elektronik Destek Sanayi ve Ticaret Ltd.
Meclis Mah. Teraziler Cad. Hayran Sk. No: 4 34785 Sancaktepe
/ İstanbul / Turkey
Recycle
Address:
Meclis Mah. Teraziler Cad. Hayran Sk. No: 4 34785 Sancaktepe / Istanbul / Turkey +90 216 528 45 00 I eds@eds.com.tr I www.eds.com.tr

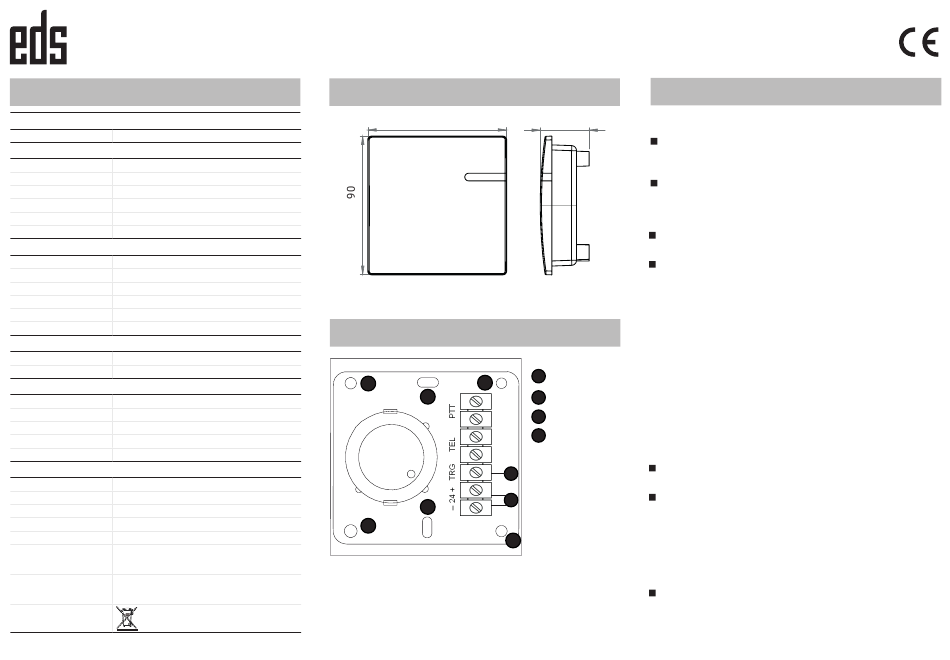

PHYSICAL
80
CONNECTIONS
1
1 1
2
2
3
4
4
3
2
1
1
39
Introduction to Programming Mode
In order to enter the telephone numbers to be dialled in
the device and to make the settings, one must first enter the
programming mode.
To enter the programming mode, press and hold the "*" and "#"
keys simultaneously for 3 seconds.
Entering the Numbers to be dialled
After the device is switched to the programming mode, 8
different land- or mobile telephone numbers can be recorded.
When the device receives a signal, all the numbers are dialled
in order and the recorded message is read.
1#(tel no)# 1. The number record to be dialled first.
2#(tel no)# 2. The number record to be dialed second.
3#(tel no)# 3. The number record to be dialled third.
4#(tel no)# 4. The number record to be dialled fourth.
5#(tel no)# 5. The number record to be dialled fifth.
6#(tel no)# 6. The number record to be dialled sixth.
7#(tel no)# 7. The number record to be dialled seventh.
Cable Input Holes
8#(tel no)# 8. The number record to be dialled eighth.
Mounting
Ports Note: To delete a recorded number from the memory, 0 is written
instead of the (tel. no.) in the above commands.
Supply
For example: 3#0# deletes the 3rd record.
Trigger
Voice Recording
Press the SW1 key (the red REC LED shall light up) and read the
message to be recorded.
When the record key is released or after 16 seconds, the voice
recording shall be completed.
Note: During recording, speak with a normal voice from a
distance of 20 cm to the microphone.
Exiting the Programming Mode
To exit the programming mode, press and hold the "*" and "#"
keys simultaneously for more than 3 seconds.
Note: If there is no command in 2m ms system exits
programmable mode.
PROGRAMMING
12.19V2
