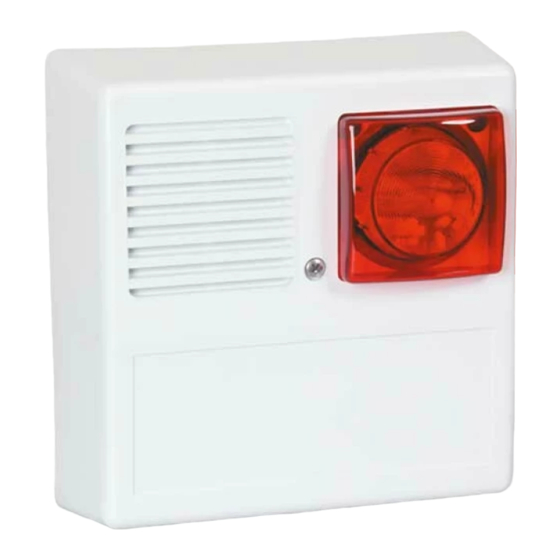

EDS AS495L Connection Manual

AS495L
Intrusion Alarm Systems / Outdoor Sounder
SPECIFICATIONS
Model AS495L
Environmental class IV Outdoor
Elektrical
Supply voltage range 10 - 15V DC
Stand-by current <70mA
Alarm current <1100mA
Audio output 110dB
Audio frequency 2-4Khz
Audio type 4 Optional
Time selection 4
Start time set-up 5min. (selectable)
Sounder time 5/15min. (selectable)
Sounder Type Horn type
Trigger type Negative / Positive
Power LED
Flasher
Flasher color Red / Blue / Orange
LED Indicator Double LED with flasher
Tamper Avaliable
Metal inner cover Avaliable
Battery / Accumulator Accumulator 12V-1.2A / 2.2A /7A
Accumulator slot Avaliable (12V 1.2Ah/2.2Ah/7Ah)
General
Housing material ABS Plastic
Housing shape Square
Extrenal cover color White
Protection class IP44
Operating Temperature -10 C~+50 C
O O
Dimension (HxWxD) 235x240x90mm
Weight 2.1kg
Year of Manufacture The year and week of manufacture is included in the first
four digit of your product serial number (located on the
product identification label)
Manufacturer EDS Elektronik Destek Sanayi ve Ticaret Ltd.
Meclis Mah. Teraziler Cad. Hayran Sk. No: 4 34785
Sancaktepe / İstanbul / Turkey
Recycle
Address:
Meclis Mah. Teraziler Cad. Hayran Sk. No: 4 34785 Sancaktepe / İstanbul / Turkey +90 216 528 45 00 I eds@eds.com.tr I www.eds.com.tr

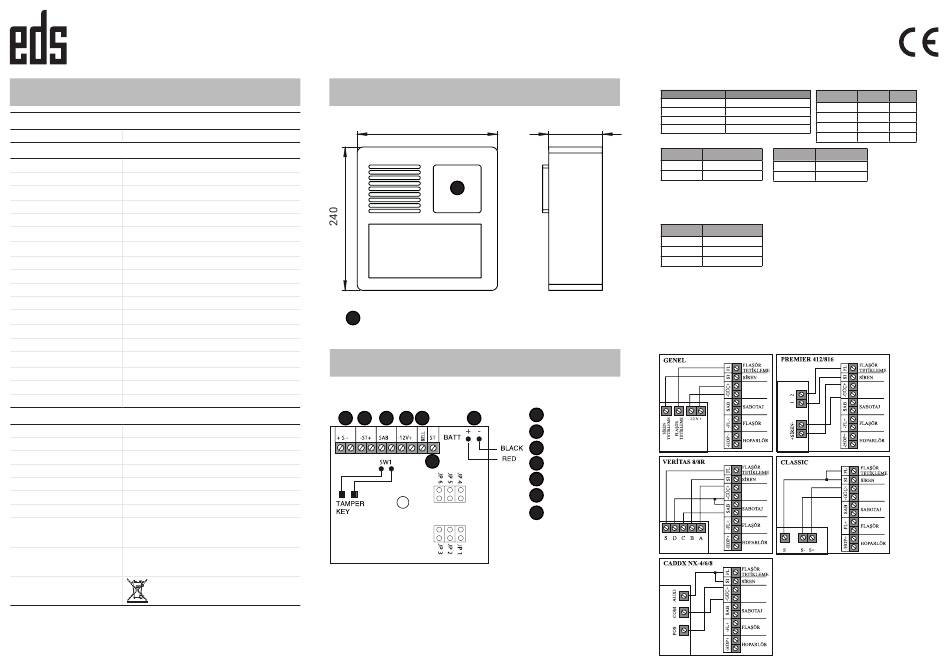

PHYSICAL
235
1
Power LED Flasher
1
CONNECTIONS
Electrical Connections
A B C D E G
F
Jumper
JP1-JP2
JP3
90
JP4 - JP5
JP6
JP 3
Off
On
Flasher Connection
Mount flasher as the LEDs looking downward.
Cable
Red
White
Black
Note: Open protective metal cover.
Adjust trigger and time before feeding.
Battery inverse connection protective fuse is 2A. If the battery is
mounted inversely, the fuse fails. When the connection adjusted
accurately, the fuse will be its regular position.
Panel Connection
Speaker
A
Flasher
B
Tamper
C
Power Supply
D
E Sounder Trigger
F Flasher Trigger
Accumulator
G
Fonksiyon
JP2 JP3
Time Select
Off Off
Start time set-up
Off On
Audio Select
On Off 10min.
Trigger Select
On On 15min.
Delay JP6 Trigger
5min. On Negative
- Off Pozitive
Connection
FL+
FL-
12V-
CADDX NX 4/6/8 AUX Programming:
* 8 9 7 1 3 0 (Entering to programming
mode)
47 # (Location (Menu) No)
7 * (Exit Programming mode)
max.0 - 255dk * (Time for exit activa-
tion between 0-225 min)
46 #1 *** (Exit Program)
02/03/2017 R3
Time
3min.
5min.
