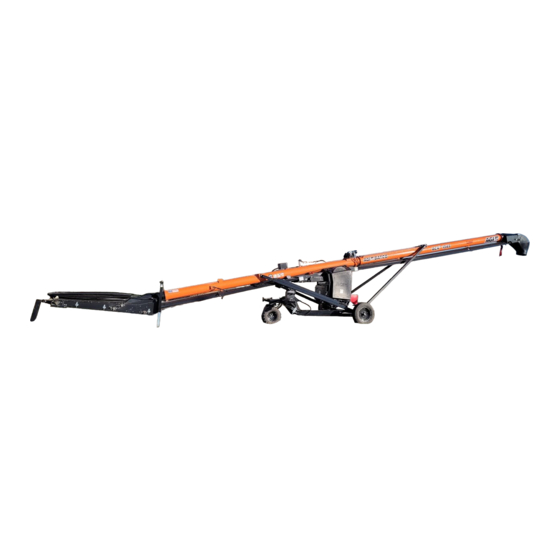

Field Loader S-Drive
Portable Grain Belt Conveyor
Assembly Manual
This manual applies to:
Brands: AGI Batco, AGI Westfield, AGI Hutchinson, AGI GrainMaxx
Models: BCX
3
1549, GCX
Gas Drive with Mover Kit
Read this manual before using product. Failure to
follow instructions and safety precautions can
result in serious injury, death, or property
damage. Keep manual for future reference.
3
1549, HCX
3
1549, WCX
3
1549
Part Number: 8210-00020 R1
Revised: March 2022
Original Instructions
