Untangle U50XW Setup Manual

Package Contents
The u50xw package includes:
VESA mounting hardware
●
Power supply (12V 3A adapter and plug)
●
Antennae (2x)
●
Rubber feet
●
Ethernet cable
●
u50xw appliance
●
Installation
If necessary, use the included VESA mounting hardware to mount the appliance.
●
If you are not mounting the appliance, attach the included rubber feet to the bottom of the appliance.
●
Fasten the included antennae to the WiFi RP-SMA connectors located on the rear panel.
●
Connect the ethernet cable from your Internet modem or router to the Internet port (LAN 1) located on the rear panel.
●
Connect the ethernet cable from your LAN switch to the LAN port (LAN 2) located on the rear panel.
●
Plug in the power adapter to a power source and connect it to the 12V power input located on the rear panel.
●
Review the power indicator on the front of the appliance. If the indicator is green, the appliance is powered on.
●
If the appliance is not powered on, press the power button.
●
untangle.com​ ​ ​ ​ | © Copyright 2018. Untangle, Inc. All rights reserved.

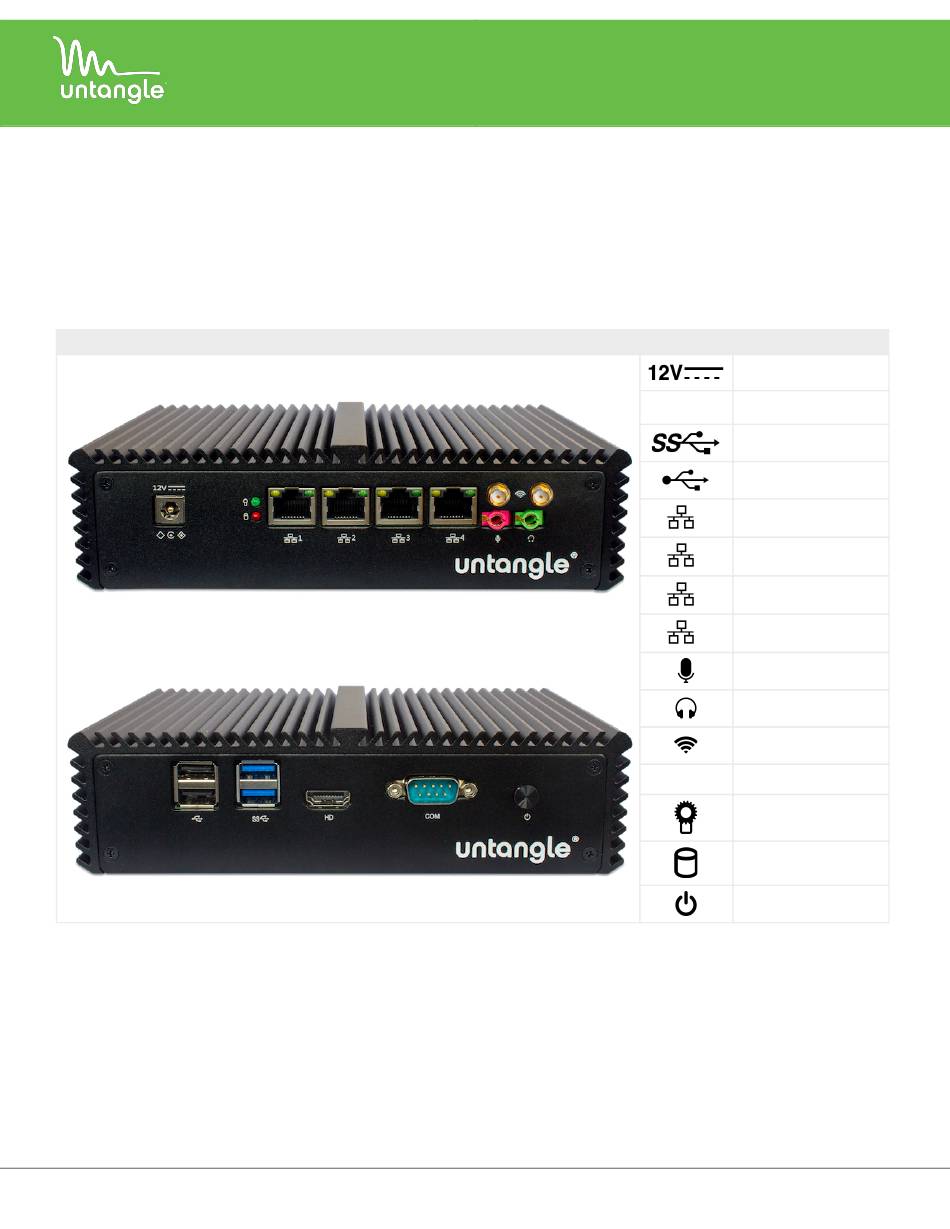

u50xw rear and front panels.
